Industrial Fog Mist Spray Nozzle Guide

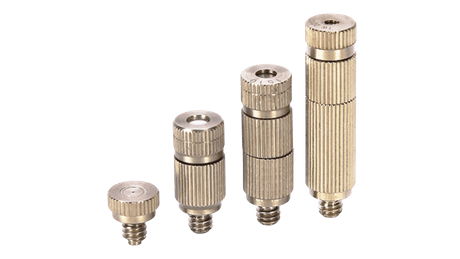

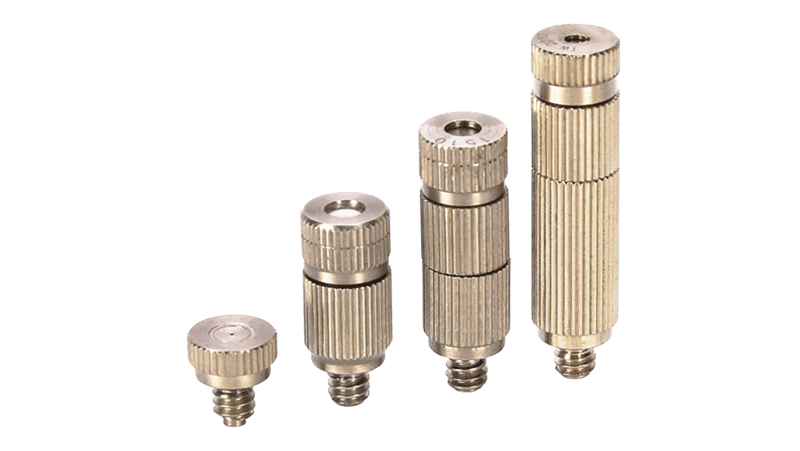

What is Fog Mist Spray Nozzle?

Fog Mist Spray Nozzle, commonly known as atomizing nozzle or fine mist nozzle, is a spraying device that disperses water or other liquids into extremely fine droplets (typically in the range of 5–50 micrometers) through high-speed shearing, impact, or rotating structures of the liquid. Unlike ordinary sprinkler nozzles, the core value of the atomizing nozzle does not lie in 'high flow rate', but in uniform droplet size, wide coverage, and high water efficiency per unit. In industrial fields, Fog Mist Spray Nozzle is more.

Fog Mist Spray Nozzle Working Principle

From an engineering perspective, atomizing nozzles achieve fine mist effects primarily through the following methods:

• High-Pressure Liquid Atomization: Utilizing high pressure, liquid passes through micropores or a special vortex cavity, causing it to instantly break into tiny droplets. This type of nozzle has a simple structure but requires high system pressure.

• Gas-Liquid Mixing Atomization (Two-Fluid): Compressed air or steam mixes with the liquid inside the nozzle. High-speed airflow shears the liquid to form ultrafine droplets, resulting in more uniform atomization. Suitable for applications with extremely strict requirements for mist diameter control.

• Swirl Atomization Structure: The liquid forms a high-speed rotating liquid film inside the nozzle, naturally disintegrating into droplets at the outlet. Commonly used in applications with high anti-clogging requirements.

High-quality atomizing nozzles often undergo extensive optimization in their internal flow channel structure, swirling cavity design, and outlet geometry to ensure consistent droplet distribution, rather than simply pursuing a "fine mist appearance."

The effect of fog droplet size on performance

In practical applications, there is no absolute "the smaller the better" when it comes to droplet size. Instead, it needs to be highly matched to the usage scenario:

• 5–15 micrometers: Suitable for rapid evaporation, gas cooling, and efficient gas-liquid contact scenarios.

• 15–30 micrometers: Commonly used in industrial humidification, environmental control, and fine dust suppression, balancing coverage and stability.

• 30–50 micrometers: More suitable for dust suppression in open spaces or scenarios with high requirements for preventing fog drift.

Therefore, selecting a Fog Mist Spray Nozzle is essentially an engineering balance between droplet size, spray angle, and application objectives.

Fog Mist Spray Nozzle Applications

Industrial Cooling and Equipment Cooling

In high-temperature production environments, atomizing nozzles achieve cooling through droplet evaporation and heat absorption. Their advantages include fast response, wide coverage, and minimal impact on existing equipment.

Compared to traditional cooling methods, atomizing systems require less structural modification and are particularly suitable for workshop-level or localized hotspot cooling.

Industrial Humidification and Static Electricity Control

In the electronics manufacturing, precision assembly, and packaging industries, stable air humidity not only affects product quality but also directly relates to static electricity risk control.

The Fog Mist Spray Nozzle achieves uniform humidification with no noticeable water droplet residue, avoiding issues like damp floors or equipment corrosion.

Dust Suppression and Particle Control

The value of atomizing nozzles in dust control lies not only in "dropping dust down" but also in effectively adsorbing dust particles through a suitable mist diameter.

A well-designed atomizing system can achieve long-term stable dust suppression without increasing the moisture content of the material.

Gas Treatment and Chemical Applications

In waste gas scrubbing, desulfurization and denitrification, or chemical reaction processes, atomizing nozzles are used to increase the gas-liquid contact area, and their spray uniformity directly determines the reaction efficiency and reagent utilization rate.

Common Materials

High-quality atomizing nozzles are typically manufactured using precision CNC machining or high-precision injection molding, and the appropriate material is selected based on the operating environment:

• Stainless steel: Suitable for high-temperature, high-pressure, and corrosive environments; high mechanical strength and long service life.

• Brass: Cost-effective, suitable for conventional industrial water environments.

• Engineering plastics: Offer significant advantages in highly corrosive or special chemical media environments; lightweight and easy to install in systems.

Selection parameters for Fog Mist Spray Nozzle

For B2B buyers, product selection should not solely focus on "the finer the mist, the better," but should comprehensively consider the following factors:

• Operating pressure range

• Spray angle and coverage radius

• Droplet size distribution

• Flow rate and system compatibility

• Anti-clogging performance (pore size and filtration requirements)

• Selection of different materials

Appropriate product selection can significantly reduce later maintenance costs and improve the overall stability of the system.

Why Choose Xinhou's Fog Mist Spray Nozzle

Compared to general-purpose nozzles, Xinhou offers:

• More stable atomization performance

• More stringent control over size and spray diameter

• Support for customized spray angle, flow rate, and interface

• Comprehensive technical support and after-sales guarantee.

This is especially critical for industrial systems operating for extended periods.

If you are looking for a stable, reliable, and customizable Fog Mist Spray Nozzle solution, Xinhou can provide one-stop support from selection advice to bulk delivery.

Contact Xinhou to let professional nozzles truly serve your industrial systems.
