How Do Misting Nozzles Work?

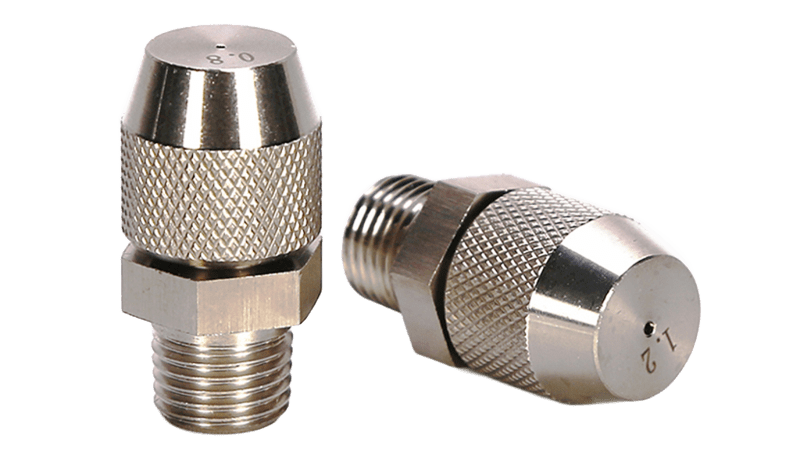

What is a misting nozzle?

A misting nozzle is a device that converts liquids (such as water or other liquids) into tiny droplets through pressure or airflow. These fine water mists quickly disperse and evaporate in the air, effectively removing heat, humidifying the air, and clearing dust. As a result, misting nozzles are widely used in fields such as industrial cooling, agricultural greenhouse humidification, and air purification.

The principle of misting nozzles is simple but highly efficient. It uses physical principles to disperse liquids into particles, thereby significantly increasing the surface area of the liquid. These tiny droplets can evaporate rapidly, enabling functions such as cooling, humidification, and dust removal.

Working Principle of misting nozzles

The core principle of a misting nozzle is to break down liquid into tiny water mist particles using pressure, airflow, or vibration. The specific working process is as follows:

Liquid Inflow into Nozzle:

Liquid (usually water) enters the nozzle inlet through a pipe. Depending on the nozzle type, the liquid is pressurized or propelled into the nozzle by airflow. This allows the liquid to flow steadily towards the nozzle.

Accelerating Liquid Flow:

Once the liquid enters the nozzle, it passes through the nozzle's narrow channel, a design that significantly increases the liquid flow rate. For high-pressure nozzles, the liquid is typically pressurized to tens or even hundreds of bar of pressure to achieve extremely high flow rates.

Atomization Process:

The high-speed flowing liquid is rapidly broken down into extremely small water droplets at the nozzle outlet. These droplets can range in diameter from a few micrometers to hundreds of micrometers, forming a very fine water mist. The higher the degree of atomization, the smaller the spray particles, and the better the evaporation effect.

Mist Diffusion and Effect:

The sprayed mist rapidly diffuses in the air, and the droplets quickly evaporate, carrying away heat and providing a cooling effect. In some applications, atomized water mist can also increase air humidity, achieving a humidifying effect, or absorb dust and smoke from the air, thus purifying the air.

Through this efficient atomization principle, misting nozzles can effectively improve liquid utilization, achieving a faster and more uniform environmental conditioning effect.

Types of Atomizing Nozzles

Different types of atomizing nozzles have different working principles and application characteristics. Choosing the right nozzle can maximize its working efficiency.

High-Pressure misting Nozzles

High-pressure atomizing nozzles use a pressure pump to deliver water into the nozzle, forming a very fine water mist. These nozzles are commonly used in applications requiring high precision, such as efficient cooling and humidification, including industrial equipment cooling and spray cooling.

• Advantages: Fine and uniform spray particles, excellent cooling effect, widely used in cooling systems for industry, agriculture, and large buildings.

Low-Pressure misting Nozzles

Low-pressure misting nozzles are suitable for low-pressure environments and are typically used for humidification in homes, offices, or small factories. They generate water mist using lower water pressure, resulting in low operating noise and suitability for small-scale applications.

• Advantages: Simple structure, low maintenance costs, suitable for humidification in small environments.

Misting Nozzles

Fog Misting nozzles use airflow to propel liquid, typically used over wider areas. Airflow, through the nozzle's special structure, drives the liquid into droplets. These nozzles are commonly used for cooling and humidification in large greenhouses, air conditioning systems, and outdoor sites.

• Advantages: Does not rely on a high-pressure pump, wide spray range, energy-saving and environmentally friendly.

Ultrasonic misting nozzle

This nozzle uses ultrasonic technology to transform liquid into an extremely fine mist, suitable for environments requiring ultra-fine atomization, such as laboratories and clean rooms.

• Advantages: Extremely high atomization precision, can produce even finer water mist, widely used for special humidification needs.

Main applications of atomizing nozzles

Misting nozzles, due to their highly efficient atomization effect, are widely used in various industries, primarily including:

Industrial Cooling:

In high-temperature environments, misting nozzles can quickly evaporate moisture, carrying away heat and effectively lowering the temperature. Common applications include metallurgy, chemical industry, and power industry.

Agricultural Greenhouse Humidification and Cooling:

In greenhouse agriculture, atomizing nozzles are used to precisely control humidity and promote plant growth. The atomized water mist not only maintains suitable humidity but also lowers the temperature inside the greenhouse, providing an ideal growing environment for crops.

Air Purification and Dust Removal:

By generating water mist, atomizing nozzles can adsorb dust, bacteria, and viruses in the air, thus achieving air purification. In heavily polluted environments, atomizing nozzles can effectively reduce dust pollution and improve air quality.

Commercial Building Cooling:

In the hot summer, atomizing nozzles are often used in shopping malls, exhibition halls, stadiums, and other similar venues. Through fine water mist spraying, they can quickly lower the air temperature, providing a more comfortable environment for customers or visitors.

Firefighting and Protection:

In industrial areas and buildings, misting nozzles can rapidly spray water mist in the event of a fire, reducing its temperature and spread. This technology has been widely used in fire prevention and extinguishing operations.

Food Processing and Cleaning:

In the food processing industry, misting nozzles are used to clean equipment, disinfect, and increase humidity in the production environment. The atomized water mist improves hygiene standards in the working environment, ensuring food quality and safety.

Conclusion

As an efficient environmental control device, misting nozzles play a significant role in cooling, humidifying, and purifying air. Whether in industrial, agricultural, construction, or public places, misting nozzles have demonstrated their strong application value. Selecting the appropriate nozzle type and performing proper maintenance can ensure their long-term stable operation to meet the needs of different scenarios.
