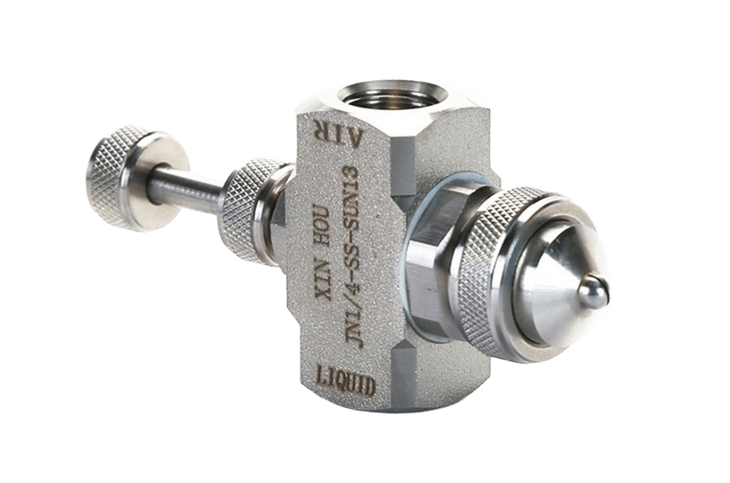

Industrial air nozzles are essential components in compressed air systems used for cleaning, drying, cooling, conveying, and removing unwanted particles from industrial products and equipment. Although they may appear to be simple fittings, their internal geometry and outlet design can significantly affect airflow direction, blowing force, noise, and compressed air consumption.
In modern manufacturing, compressed air is often used to remove water from components, clear dust from workpieces, clean conveyor systems, and prepare surfaces for subsequent production processes. Choosing the right industrial air nozzle helps engineers direct airflow more effectively and match the blowing performance to the actual application.
However, not all air nozzles work in the same way. Some produce a concentrated round jet, while others generate a wide, flat airflow for surface cleaning. Certain designs entrain surrounding air to increase the total moving air volume, whereas others focus on delivering a compact, directional stream.
This guide explains what industrial air nozzles are, how they work, the main types available, their industrial applications, and the factors engineers should consider when selecting a suitable compressed air nozzle.
An industrial air nozzle is a device designed to control and direct compressed air toward a target area. It connects to a compressed air supply and shapes the exiting airflow through a specifically designed passage, outlet, or internal structure.
Unlike an ordinary open pipe, an engineered air nozzle is designed around a defined airflow objective. Depending on its construction, it can concentrate air into a narrow stream, distribute it across a wider surface, or improve the interaction between the supplied air and surrounding ambient air.
Industrial air nozzles are commonly used when a manufacturing process requires controlled blowing rather than an uncontrolled discharge from a hose or pipe.
Main functions of industrial air nozzles
Blow-off cleaning: Remove loose dust, chips, debris, and other unwanted particles from workpieces.
Part drying: Remove residual water or cleaning liquid from components after washing.
Surface preparation: Clear particles from surfaces before inspection, assembly, packaging, or coating.
Cooling: Direct airflow toward components or surfaces where air cooling is appropriate.
Material and particle movement: Help move lightweight debris or particles in specific production processes.
Process assistance: Support automated manufacturing operations that require repeatable, directional airflow.
The effectiveness of an air nozzle depends on the target material, particle characteristics, required blowing force, working distance, supply pressure, and available air capacity. A nozzle that performs well in one process may be unsuitable for another.
For example, removing heavy metal chips requires a different airflow strategy from drying small plastic components or removing fine dust from a wide panel.
The working principle of an industrial air nozzle is based on controlling the flow of compressed air through a designed passage and outlet.
Compressed air is supplied from a compressor or centralized air system. It travels through pipes, valves, and fittings before entering the nozzle. Inside the nozzle, the passage and outlet geometry influence how the air accelerates, expands, and moves toward the target.
The resulting airflow pattern determines how effectively the nozzle transfers momentum to particles, water droplets, or the target surface.
Stage 1: Compressed air enters the nozzle
The air supply delivers compressed air at a specified pressure. The pressure available at the nozzle may be lower than the compressor's discharge pressure because of losses in pipes, filters, regulators, valves, and fittings.
For reliable performance, engineers should measure or estimate the pressure at the point of use rather than relying only on the compressor's rated pressure.
Stage 2: The internal passage controls airflow
As air passes through the nozzle, the internal passage directs it toward the outlet. Passage dimensions, restrictions, and outlet geometry influence the air mass flow rate and velocity distribution.
A smaller outlet does not automatically provide better cleaning performance. Although a restricted outlet can produce a high-speed jet, it may also limit the mass of air delivered. The correct design depends on whether the process needs high local velocity, greater air volume, or a combination of both.
Stage 3: The outlet forms the air pattern
The outlet determines the shape and direction of the air stream.
A round air nozzle generally produces a concentrated, approximately circular jet. A flat air nozzle spreads airflow across a wider, narrow band. Other designs may generate a broad airflow or entrain surrounding air to increase the total air volume moving through the target area.
These differences make nozzle geometry an important selection factor.
Stage 4: The airflow acts on the target
When the air stream reaches the target, it transfers momentum to the surface, liquid, or loose material.
The result may be the removal of dust, displacement of water, movement of lightweight particles, or cooling through forced convection.
Performance depends on more than air velocity alone. Air mass flow, pressure, nozzle-to-target distance, target geometry, and the attachment of particles or liquid to the surface all influence the result.
What is the role of air entrainment?
Some engineered air nozzles use surrounding ambient air as part of their operating principle. A high-speed primary air stream can draw additional ambient air into the moving flow through entrainment.
This can increase the total airflow delivered toward a target without requiring the entire flow to come directly from the compressed air supply.
However, entrainment performance varies by nozzle design. It should not be assumed that every air nozzle increases airflow in the same way or provides the same compressed air savings.
Industrial air nozzles are available in different shapes and operating configurations. The most suitable type depends on the area to be treated, the required blowing force, the distance to the target, and the available compressed air supply.
3.1 Round Air Nozzles
Round air nozzles produce a concentrated airflow directed toward a relatively small target area.
They are commonly used for localized blow-off, precision cleaning, and applications where airflow must reach a specific point rather than cover a wide surface.
Typical applications include removing particles from small components, clearing machining residues, and directing air into localized areas of equipment.
Best suited for: Targeted cleaning, localized drying, and applications requiring directional airflow.
When selecting a round nozzle, consider the target size, required blowing force, working distance, and the possibility of disturbing nearby components or spreading contaminants.
3.2 Flat Air Nozzles
Flat air nozzles distribute airflow across a wider, relatively narrow band. They are useful when a process requires air to reach a broad surface or a continuous product moving along a production line.
For example, a flat air nozzle may be installed above a conveyor to remove water from a product or across a panel to clear surface dust.
Depending on the design, flat air nozzles can provide a more uniform distribution across the working width than a single round jet.
Best suited for: Surface blow-off, conveyor drying, panel cleaning, and applications requiring wider coverage.
The effective working width depends on the nozzle design, installation distance, supply conditions, and the arrangement of multiple nozzles where applicable.
3.3 Wide-Blow Air Nozzles
Wide-blow designs aim to distribute airflow over a relatively large area. They can be useful when a single concentrated jet would require excessive movement or multiple individual blowing points.
The exact airflow pattern depends on the nozzle geometry. Some designs produce a broad, fan-like stream, while others use different internal structures to distribute air over a wider region.
Best suited for: Broad surface cleaning, lightweight particle removal, and production lines with larger target areas.
Engineers should verify that the airflow remains effective across the entire required width. A visually wide air pattern does not necessarily mean that blowing force is uniform from one edge to the other.
3.4 Air Amplifying Nozzles
Air amplifying nozzles use a primary compressed air stream to draw in additional ambient air. The combined stream can deliver a larger total air volume toward the target than the primary supply stream alone.
These nozzles may be suitable for certain drying, cooling, ventilation, and material movement tasks.
Their performance depends on the internal geometry, supply pressure, inlet arrangement, and the surrounding air available for entrainment.
Best suited for: Applications where a larger moving air volume is useful and an appropriate air-amplifying design is available.
Air amplification is not the same as generating additional energy. The system still consumes compressed air, and actual energy savings must be assessed against the previous configuration under comparable operating conditions.
3.5 Air Knives
An industrial air knife produces a long, narrow sheet of air along an extended outlet. It is designed to treat a relatively wide area or the full width of a product.
Air knives are frequently considered for drying bottles, cans, sheets, profiles, and other products moving through continuous production lines.
Compared with installing many individual round nozzles, an air knife may provide a more continuous airflow across the treatment width. The final result depends on the air knife design and the uniformity of the air supply.
Best suited for: Continuous production-line drying, wide-surface blow-off, and applications requiring a long, continuous air pattern.
An air knife and a compact flat air nozzle are related but not identical solutions. An air knife typically spans a much greater length and may require a dedicated supply manifold or air distribution arrangement.
Choosing an industrial air nozzle based only on its shape or connection size can lead to poor results. Several operating factors should be evaluated together.
4.1 Supply Pressure
Supply pressure affects the air's behavior through the nozzle and influences the resulting airflow and blowing force.
However, increasing pressure may also increase compressed air consumption, operating costs, and noise. The optimal pressure is the lowest pressure that consistently meets the process requirement, provided that the nozzle and system are operated within their specified limits.
4.2 Air Consumption
Air consumption describes the volume or mass of compressed air used over time. It is commonly expressed in units such as L/min, m³/min, or SCFM, depending on the measurement convention.
Two nozzles with similar external dimensions may have significantly different air consumption because of differences in their internal passages and operating characteristics.
When comparing products, confirm whether the stated airflow is measured at standard reference conditions or represents the volume at actual line conditions. Mixing these definitions can lead to misleading comparisons.
4.3 Blowing Force
Blowing force describes the nozzle's ability to transfer momentum to the target. It is particularly important when removing firmly attached particles, machining chips, or residual liquid.
A nozzle with high air velocity but limited mass flow may perform differently from one delivering a larger air volume at a lower local velocity.
The required balance depends on the material being removed and the target surface.
4.4 Airflow Pattern
The airflow pattern determines how the air is distributed over the target.
A round jet concentrates airflow in a small region, whereas a flat pattern covers a wider area. A wide-blow design or air knife may be more suitable for continuous surfaces.
The pattern should match the target geometry to minimize untreated areas and unnecessary air discharge.
4.5 Nozzle-to-Target Distance
As the airflow moves away from the nozzle, it interacts with the surrounding air and may spread or lose effectiveness at the target.
Installing a nozzle too far away can reduce cleaning or drying performance. Installing it too close may limit coverage or interfere with product movement.
The optimum distance should be established using manufacturer recommendations and practical tests under actual operating conditions.
4.6 Noise Level
Compressed air can generate significant noise, particularly when discharged through unrestricted openings or operated at excessive pressure.
Noise depends on the nozzle design, pressure, airflow, installation environment, and surrounding equipment.
Where noise is a concern, compare measured noise data under equivalent test conditions rather than relying solely on product descriptions.
4.7 Material and Environmental Conditions
The nozzle material should be compatible with the environment, operating temperature, cleaning chemicals, and expected mechanical wear.
Stainless steel is often considered for demanding industrial environments. Brass and engineering plastics may also be suitable in compatible applications.
Material selection should reflect actual operating conditions rather than general assumptions about which material is always best.
Industrial air nozzles are used across a wide range of manufacturing processes because compressed air can be delivered quickly, controlled directionally, and integrated into automated equipment.
5.1 Component Cleaning
Air nozzles remove loose particles, machining residues, and debris from components during or after manufacturing.
They can be installed at specific production stations where the product needs to be cleaned before inspection, assembly, or packaging.
For firmly attached contamination, compressed air alone may not be sufficient. The process may require brushing, washing, vacuum extraction, or another cleaning method.
5.2 Industrial Drying
Air nozzles can remove residual water from metal parts, plastic components, glass products, and other items after washing or rinsing.
Round nozzles are suitable for localized areas, while flat air nozzles and air knives may be better for larger surfaces or continuous production lines.
Drying effectiveness depends on water film thickness, surface geometry, air temperature, airflow, and product speed.
5.3 Conveyor and Packaging Lines
In packaging systems, air nozzles can remove loose particles, displace water, or clear debris from products before labeling, inspection, or packaging.
A properly designed air nozzle arrangement can help maintain repeatable results as products move through the production line.
Nozzle position and timing should be coordinated with product movement to avoid wasting compressed air when no target is present.
5.4 Electronics and Precision Manufacturing
Selected air nozzle designs are used to remove loose dust and debris from components, fixtures, and workstations.
For delicate electronics, however, the airflow must be controlled carefully. Excessive pressure can damage sensitive parts, move small components, or generate electrostatic risks if the system is not appropriately designed.
Where electrostatic discharge is a concern, use suitable equipment and procedures rather than assuming ordinary compressed air is safe for every electronic assembly.
5.5 Metalworking and Machining
Air nozzles can direct air toward workpieces, fixtures, or machine areas to remove loose chips and residues.
For heavy chips or hazardous dust, engineers must consider particle trajectory, guarding, extraction, and operator exposure. Blowing contaminants into the surrounding workspace may create a greater problem than the original contamination.
5.6 Cooling and Ventilation
In selected applications, directed airflow can improve convective heat transfer from components or surfaces.
The achievable cooling effect depends on the component temperature, surface area, airflow, ambient temperature, and heat load. Air nozzles should be selected according to the actual thermal requirement rather than assuming that higher air velocity always provides sufficient cooling.
A structured selection process helps engineers avoid oversizing the compressed air system or choosing a nozzle that does not match the target area.
Step 1: Define the task
Determine whether the nozzle is intended for cleaning, drying, cooling, conveying, or another process.
Identify the material being removed or treated, such as water droplets, loose dust, chips, or lightweight particles.
Step 2: Determine the required airflow pattern
Choose a round jet for localized treatment, a flat air nozzle for a wider band, or an air knife for an extended continuous surface.
For a large target area, compare the cost and performance of one wide-flow device against multiple smaller nozzles.
Step 3: Confirm available pressure and air capacity
Determine the pressure and air capacity available at the point of use while the system is operating.
A compressor's nominal output does not guarantee that every nozzle receives sufficient air, particularly when multiple devices operate simultaneously.
Step 4: Estimate the required blowing force
Evaluate how firmly the material is attached, the target distance, and the desired result.
Where necessary, test different nozzle designs and pressures on representative samples rather than assuming that the highest pressure is best.
Step 5: Evaluate air consumption and operating cost
Check the manufacturer's air consumption data and calculate the expected total demand for all nozzles.
For a system with multiple nozzles, total consumption is approximately the sum of the individual nozzle demands when all operate simultaneously, subject to the applicable reference conditions.
Where blow-off is intermittent, a suitable control valve or sensor may reduce unnecessary air use.
Step 6: Consider noise and workplace safety
Check noise levels, installation clearances, workpiece stability, and the possibility of particles being projected toward operators.
Use equipment that meets applicable workplace requirements and establish suitable operating procedures.
Step 7: Validate the installation
Test the selected nozzle at the actual working pressure, distance, product speed, and duty cycle.
Evaluate cleaning or drying results, air consumption, noise, and repeatability. A short practical trial can reveal issues that are difficult to predict from dimensions alone.
Compressed air is a valuable industrial utility, but generating it can require substantial energy. Poorly designed blow-off arrangements may consume air without delivering useful performance to the target.
A suitable nozzle can help improve the relationship between air consumption and the required process result.
Use an engineered nozzle instead of an unrestricted pipe
An open pipe may discharge a large amount of compressed air without providing the best airflow distribution or useful blowing performance for the task.
An engineered nozzle is designed to direct the flow toward a defined objective. The actual improvement depends on the original configuration and the replacement design.
Match the nozzle pattern to the target
Using a narrow round jet on a wide surface may require multiple passes or several blowing points. A flat air nozzle or air knife may provide more suitable coverage.
Selecting the correct pattern can reduce unnecessary air discharge outside the target area.
Avoid excessive pressure
Operating pressure should be based on the actual cleaning or drying requirement.
If a lower pressure achieves the same verified process result, the system may reduce compressed air demand and operating costs. The savings depend on the compressor, controls, nozzle design, and operating schedule.
Control airflow when blowing is not required
In automated production, compressed air may continue flowing even when no product is present.
Suitable sensors, solenoid valves, or machine controls can stop or reduce airflow during idle periods where the process permits.
Measure before and after changes
To evaluate whether a nozzle upgrade is worthwhile, compare air consumption, pressure, cycle time, cleaning quality, and noise under equivalent operating conditions.
A meaningful energy-saving assessment measures the complete process result rather than comparing nozzle purchase prices or outlet dimensions alone.
Several mistakes can reduce system performance and increase operating costs.
Choosing a nozzle based only on its appearance. Similar-looking nozzles may have different airflow characteristics and consumption rates.
Assuming that higher pressure always means better cleaning. More pressure can increase cost and noise without improving the final result.
Ignoring the available compressor capacity. Multiple nozzles operating simultaneously may exceed the capacity of the supply system.
Using the wrong airflow pattern. A concentrated jet may be inefficient for a wide surface, while a broad stream may not deliver sufficient local force for stubborn debris.
Overlooking noise and safety. High-speed air can project particles and create noise hazards.
Failing to verify actual consumption. Product comparisons can be misleading when airflow data use different reference conditions.
Installing nozzles too far from the target. Excessive distance may reduce the effective force at the work surface.
A reliable selection process considers the nozzle, air supply, target material, installation arrangement, and operating cycle as one integrated system.

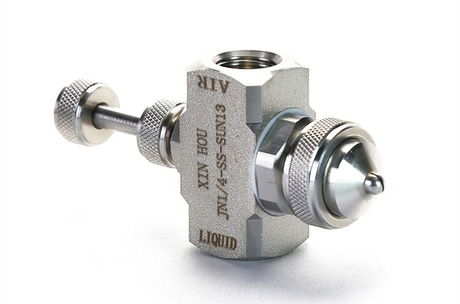

Shanghai Xinhou Industrial Co., Limited provides industrial nozzle solutions for manufacturing and process applications.
When evaluating industrial air nozzles, buyers and equipment engineers should consider the required airflow pattern, operating pressure, air consumption, target distance, installation space, material, and intended process.
To help identify a suitable configuration, prepare the following information:
Application, such as cleaning, drying, cooling, or blow-off
Target material and the substance to be removed
Required airflow pattern and coverage width
Available operating pressure
Expected operating time and duty cycle
Connection size and installation requirements
Preferred material and environmental conditions
Required quantity and production-line arrangement
These details help narrow down the options and make technical evaluation more efficient.
For applications involving wide surfaces, continuous products, or multiple blowing stations, the overall system arrangement should also be reviewed. A nozzle that meets the individual performance requirement may still be unsuitable if the air supply cannot support the combined demand.
Contact Shanghai Xinhou to discuss your industrial air nozzle requirements and identify a suitable solution for your production process.
Website: https://www.xinhouspray.com/
Website: https://www.chinaxinhounozzle.com/
What is an industrial air nozzle used for?
An industrial air nozzle directs compressed air for tasks such as cleaning, drying, cooling, and removing loose particles from products or equipment.
How does an industrial air nozzle work?
Compressed air enters the nozzle and passes through a designed internal passage and outlet. The geometry shapes the resulting airflow and influences its velocity distribution, direction, and interaction with the target.
What are the main types of industrial air nozzles?
Common types include round air nozzles, flat air nozzles, wide-blow designs, air amplifying nozzles, air knives, and safety air nozzles. Their suitability depends on the required airflow pattern and process conditions.
How do I choose between a round air nozzle and a flat air nozzle?
A round air nozzle is generally suitable for localized, concentrated airflow. A flat air nozzle is generally more appropriate when a wider band of airflow is needed across a surface or moving product.
Do industrial air nozzles reduce compressed air consumption?
They can help reduce unnecessary air use when the nozzle design, pressure, airflow pattern, and operating controls are properly matched to the task. Actual savings should be verified through measurement under comparable conditions.
What affects the air consumption of a nozzle?
Important factors include nozzle geometry, supply pressure, the number of operating nozzles, duty cycle, and the reference conditions used to report airflow.
Can air nozzles be used for drying industrial parts?
Yes. They are commonly used to remove residual water from components and surfaces. The required nozzle type depends on the water film, surface geometry, product speed, and required drying result.
What information should I provide when requesting an air nozzle quotation?
Provide the application, target material, available pressure, required airflow pattern, working distance, connection requirements, operating schedule, and expected quantity. If available, include existing air consumption or performance data.
