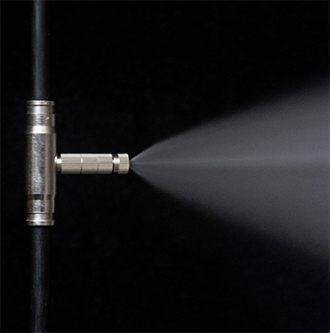

FD High Pressure Fog Misting Nozzles

FD High Pressure Fog Misting Nozzles thread size can be made as 3/16’’, 10/24’’, 12/24’’ FD High Pressure Fog Misting Nozzles can be used indoor and outdoor . Not easy become clogging, no leakage, good wear resistance, uniform spray This series of nozzles does not need air supply.

Material
● Stainless steel
● Brass
Availability:
Product Description

FD High Pressure Fog Misting Nozzles

FD High Pressure Fog Misting Nozzles thread size can be made as 3/16’’, 10/24’’, 12/24’’ FD High Pressure Fog Misting Nozzles can be used indoor and outdoor . Not easy become clogging, no leakage, good wear resistance, uniform spray This series of nozzles does not need air supply.

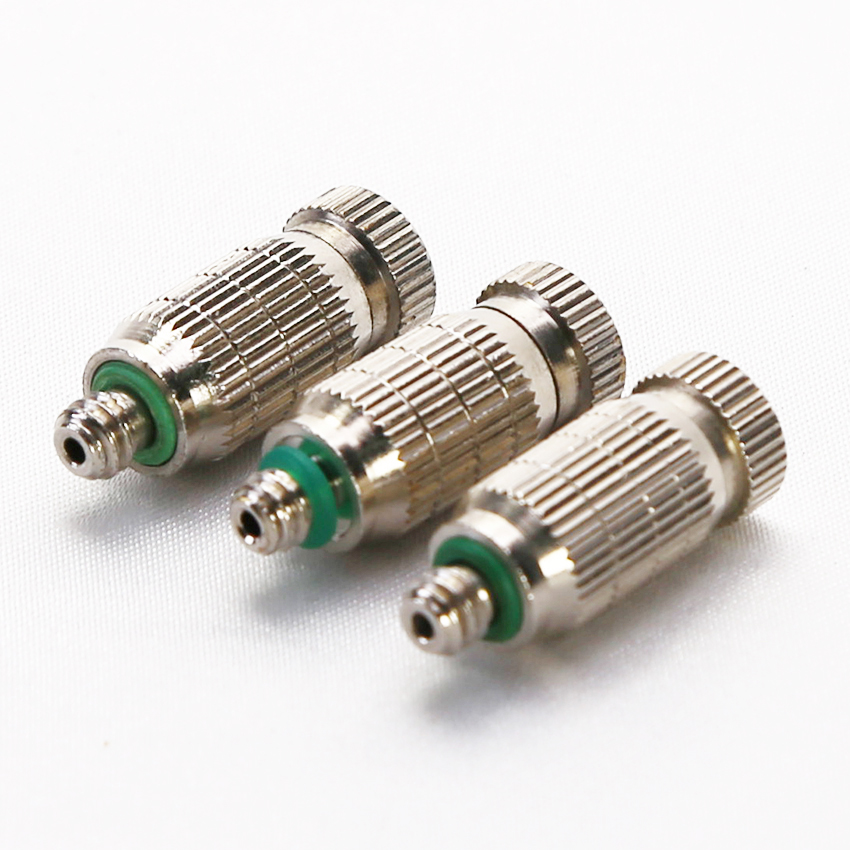

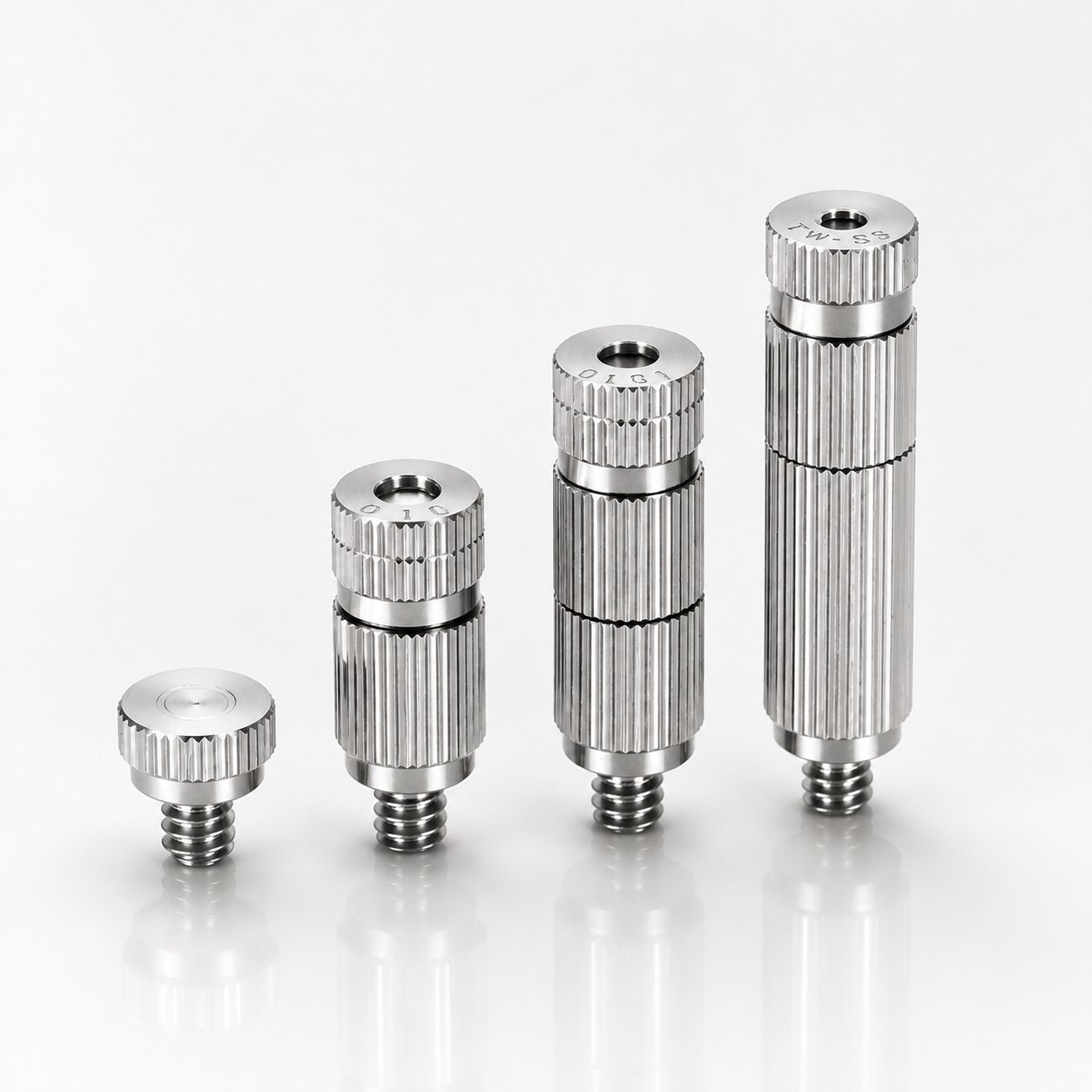

FD  ( High pressure) 3/16, 10/24 , 12/24



Accessories


FD (Low pressure)

Quick connect

(6mm, 8mm)


Accessories



Description
Model FD ( High pressure)             3/16’’, 10/24 ‘’, 12/24’’
FD ( Low pressure)              Quick connect (6mm, 8mm )
Working pressure 100bar/84bar/70bar/50bar/35bar/18bar/15bar/10bar/7bar/4bar/3bar
Orifice dia. 0.8mm/0.5mm/0.4mm/0.3mm/0.2mm/0.15mm/0.1mm
Application • Wetting and descaling
•Humidification
• Chemical treatment or spraying
• Liquid spraying
• Garden park or agricultural humidification or cooling
• Tablet coating
• Flue gas evaporating cooling
•Sterilization
• Fruit spray Wax
• Wetting and cooling of textile mills
• Plant humidification
• Salt spray test
• Artificial fog
Delivery time 5 days after payment being confirmed
Payment Western union, Paypal, T/T, Visa, Our bank account, online payment



General Applications

• Wetting and descaling

•Humidification

• Chemical treatment or spraying

• Liquid spraying

• Garden park or agricultural humidification or cooling

• Tablet coating

• Flue gas evaporating cooling

•Sterilization

• Fruit spray Wax

• Wetting and cooling of textile mills

• Plant humidification

• Salt spray test

• Artificial fog



Design Features



Features:

• FD High Pressure Fog Misting Nozzles thread size can be made as 3/16"", 10/24"", 12/24""

• FD High Pressure Fog Misting Nozzles can be used indoor and outdoor.

• Not easy become clogging, no leakage, good wear resistance, uniform spray.

• This series of nozzles does not need air supply.

• The system is simple; the spray mist is fine, full atomization, energy saving, • Stainless steel micro-nozzle plate is processed by advanced forging process and has strong durability. It is 2.5 times longer than the same type of nozzle.




Performance Data

Thread Size Style NO. Orifice Dia. Flow rate(L/min)
mm 3bar 4bar 7bar 10bar 15bar 18bar 35bar 50bar 70bar 84bar 100bar 120bar

1010 0.1





0.01 0.02 0.03 0.04 0.05 0.06
1/8 1510 0.15




0.02 0.03 0.04 0.05 0.051 0.059 0.075
3/16 2010 0.2



0.05 0.06 0.07 0.08 0.09 0.098 0.10 0.114
10/24 3010 0.3


0.06 0.07 0.08 0.09 0.10 0.11 0.16 0.166 0.176
12/24 4010 0.4 0.07 0.09 0.12 0.15 0.18 0.20 0.22 0.25 0.28 0.38 0.39 0.41

5010 0.5 0.08 0.10 0.13 0.16 0.19 0.21 0.23 0.26 0.30 0.39 0.40 0.42

6010 0.6 0.09 0.12 0.14 0.17 0.20 0.23 0.27 0.32 0.38 0.49 0.50 0.52

8010 0.8 0.11 0.13 0.15 0.18 0.22 0.26 0.30 0.36 0.48 0.59 0.60 0.62
