How Does An Air Knife Work?

In continuous production lines, water, dust, debris, and leftover materials may not be the primary issues, but they often play a crucial role in impacting efficiency, yield, and the quality of appearance.

Since these problems are challenging to address effectively with traditional mechanical methods, air knife devices have gradually become essential airflow control tools in industrial environments.

The effectiveness of an air knife does not come from "blowing with great force," but from its ability to deliver airflow precisely to the right spot, in the right way, and with consistent, stable output.

To accomplish this, it is important to first understand how it works, rather than just relying on parameter charts.

What Is An Air Knife?

An air knife is not a literal "knife," but an industrial tool that uses compressed air or a blower to convert air into a high-velocity, uniform, sheet-like airflow through a specialized design.

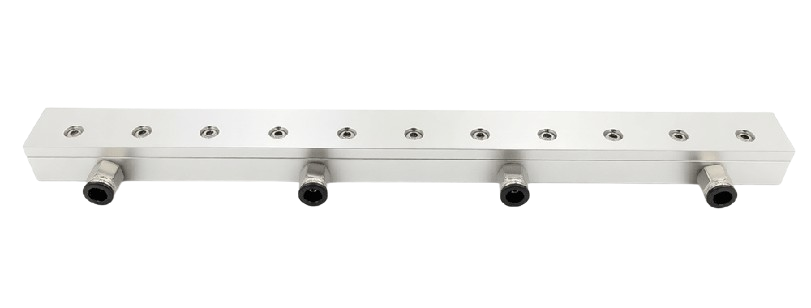

Externally, an air knife usually looks like a long, slim structure made of metal or engineering plastic, featuring an internal cavity and very narrow air outlet slots on one or both sides. When air enters the air knife, it is stabilized in pressure and evenly distributed inside the cavity, resulting in a continuous, steady high-speed air curtain at the outlet.

This "air curtain" is the key element of the air knife's operation.

How Does An Air Knife Work?

1. Air Source Entry: The Initial Step Defining Performance Limits

Air Knives typically utilize two types of air sources:

• Compressed air systems

• High-pressure fans or blowers

Regardless of the source, the air entering the Air Knife exhibits these characteristics:

• Pressure or airflow that is not completely stable

• Possible pulsations

• Flow direction that is not entirely consistent

The Air Knife’s first role is to further refine this "raw airflow."

2. Pressure Equalization Chamber: The Core Component Determining Airflow Quality

An Air Knife usually includes a pressure equalization chamber.

Though it may seem inconspicuous, this component directly influences the Air Knife’s performance level.

The equalization chamber serves to:

• Buffer the impact of airflow and reduce sudden pressure fluctuations

• Redistribute airflow to ensure even diffusion along the entire length

• Provide a stable and continuous air supply at the outlet

If the equalization chamber is poorly designed, it can cause:

• Uneven airflow

• Excessively high local air velocities

• Inconsistent drying or purging results

This explains why different Air Knife systems can perform very differently even when supplied with the same air source.

3. Slit Nozzle: The Key to Creating a High-Speed Air Curtain

The true effectiveness of an Air Knife lies in its extremely narrow outlet slit.

As air moves from the equalization chamber to the slit outlet, the cross-sectional area changes dramatically, causing:

• A drop in static pressure

• A rapid increase in flow velocity

• Forced straightening of the airflow direction

This results in a layer of airflow characterized by:

• High velocity

• Thin thickness

• A continuously wide, sheet-like flow known as an "air curtain"

This air curtain is not just a strong breeze but a predictable, measurable, and repeatable industrial airflow pattern.

4. How Air Curtains Interact with Object Surfaces

When the high-speed air curtain produced by the Air Knife contacts a product surface, it primarily acts through these physical mechanisms:

• Shear force: removes liquids or particles adhering to the surface

• Transfer of kinetic energy: pushes water droplets away from the product in a controlled direction

• Airflow barrier: prevents liquid from flowing back or re-adhering

Because this process involves no physical contact, it is ideal for:

• Products with surfaces that are easily scratched

• Complex-shaped or thin-walled items

• High-speed continuous conveyor production lines

Why is Air Knife More Efficient Than Traditional Methods?

From a principle perspective, Air Knife's efficiency advantage doesn't come from "more airflow," but rather from the following aspects:

• Concentrated Energy Utilization: Ordinary nozzles cause airflow diffusion and rapid energy attenuation; Air Knife concentrates energy into a single air curtain, achieving a longer range.

• Controllable Airflow Direction: By adjusting the installation angle and spacing, airflow can be precisely applied to the area requiring treatment, rather than being ineffectively dispersed.

• Strong Coverage Consistency: Air Knife outputs consistent coverage along its length, avoiding localized over-drying or residue issues.

• Suitable for Continuous Operation: Air Knife has no reciprocating moving parts, making it ideal for 24-hour continuous production lines.

Air Knife's working methods in different industrial scenarios

While the working principle is the same, the "working method" of an air knife is not entirely consistent across different applications.

1. Air Knife in Drying Processes: Used to remove coolant, water film, or residual moisture after cleaning, typically emphasizing a balance between airflow velocity and coverage width.

2. Air Knife in Cleaning Processes: Focuses on stable shear force to prevent secondary dust adhesion.

3. Cooling or Insulation Processes: Uses airflow to isolate high-temperature areas, reducing heat transfer.

4. Process Auxiliary Uses: Such as controlling liquid flow, reducing coating sagging, and stabilizing film edges.

This is why air knife is considered a "process tool" rather than simply a piece of equipment.

Selection Guide

In the actual selection process, focusing solely on "airflow," "pressure," or "price" often overlooks the truly crucial aspects of an Air Knife.

Based on its working principle, selection should at least consider:

• The type of media to be removed in actual operating conditions

• Product operating speed and width

• Allowable energy consumption range

• Installation space and maintenance conditions

While the Air Knife may appear simple, its design involves a high degree of matching between airflow control, structural design, and actual operating conditions.
