In most industrial systems, spray nozzles are often treated as standardized, minor components. However, in actual operation, they are the direct executors that determine the results.
Whether for cleaning, cooling, dust suppression, spraying, or gas treatment, nozzle selection directly impacts three core metrics:
Process Compliance: Does the performance meet the required standards?
Resource Efficiency: Is the usage of water, air, and chemicals reasonable?
System Stability: Is the operation consistent and reliable?
Many on-site issues appear to stem from equipment or process flaws, but the root cause often lies in mismatched nozzle selection. For example:
Poor cleaning results, leading to a blind increase in pressure.
Uneven spraying, mistakenly diagnosed as a liquid issue.
Frequent nozzle clogging, while ignoring structural design flaws.
Essentially, these problems can all be attributed to one fact: the nozzle was not systematically selected based on actual operating conditions.
As a company focused on the R&D and manufacturing of various nozzles, Xinhou presents this article not to introduce products, but to help you establish a clear logic for nozzle selection.
Before delving into specific models, the underlying logic of the selection must be clearly defined. Any selection divorced from the actual operating conditions is unreliable.
1. Define the Application Goal: What problem do you need to solve?
Different application goals have completely different requirements for nozzles:
Cleaning: Emphasis on impact force and coverage angle
Cooling: Emphasis on uniformity and heat exchange efficiency
Dust Suppression: Emphasis on droplet size and suspension capacity
Spraying/Lubrication: Emphasis on precision and controllability
This step determines: Spray pattern (spray type)
2. Determine Operating Parameters: What conditions can the system provide?
Key parameters include:
Operating pressure range (bar)
Flow rate requirement (L/min)
Liquid characteristics (particles, corrosiveness)
Environmental conditions (temperature, dust, spatial structure)
This step determines: Nozzle structure and material
3. Balance between impact force and coverage area The most common contradiction in selection is:
Stronger impact force: Usually smaller coverage area
More uniform coverage: Weaker single-point impact
For example:
Fan-shaped nozzle: Strong impact, suitable for cleaning
Solid cone nozzle: Uniform coverage, suitable for cooling
4. System matching rationality The nozzle is only part of the system and needs to be matched with the following components:
Pump flow rate and pressure
Piping losses
Installation angle and spacing Common problems:
Correct flow rate, but insufficient pressure
Correct nozzle angle, but incorrect installation layout

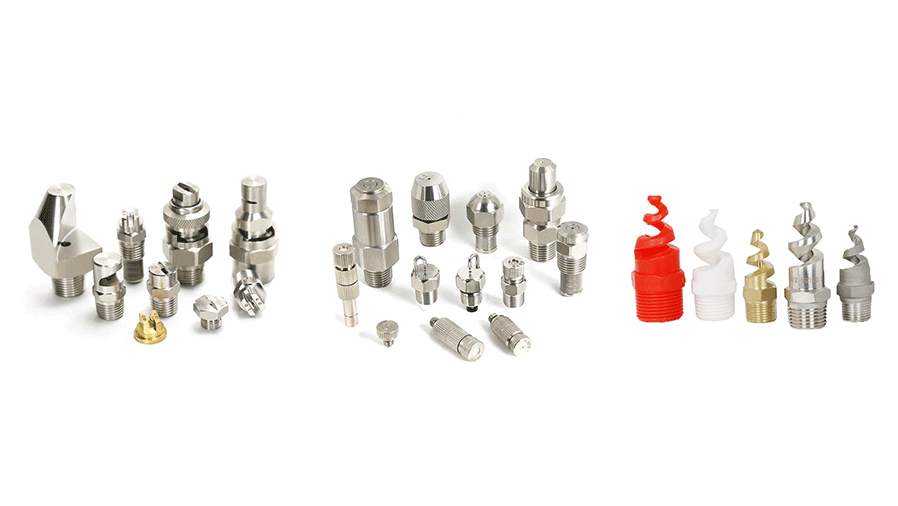

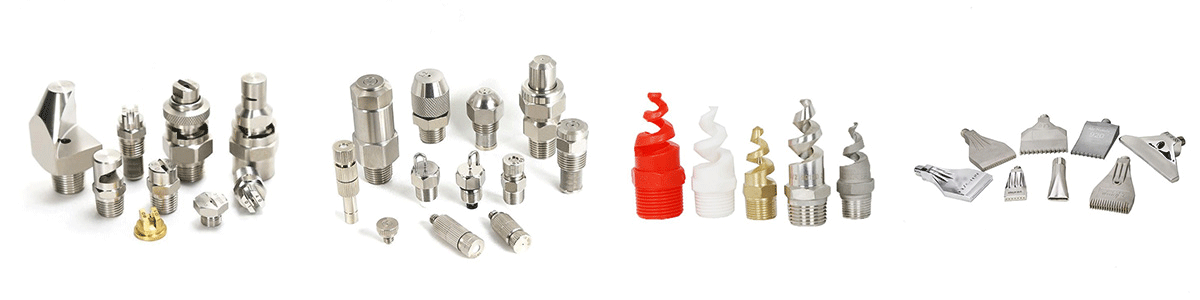

Understanding nozzle types is not about memorizing classifications, but about quickly matching them to operating conditions.

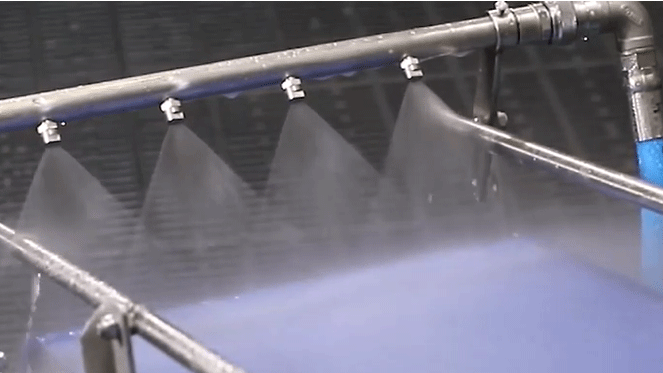

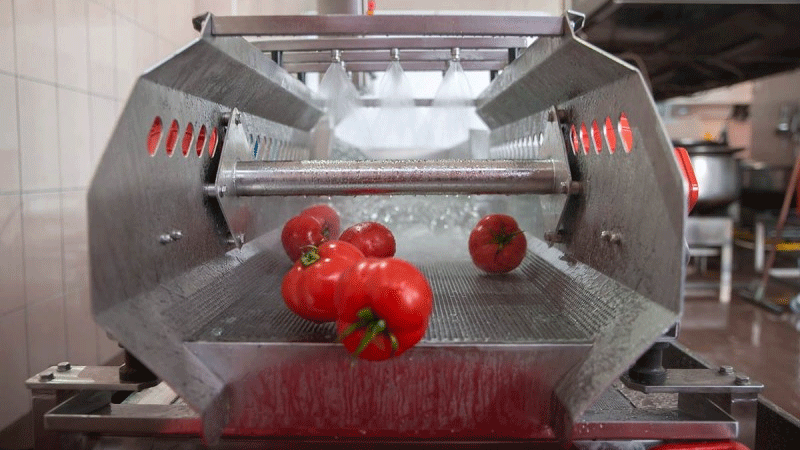

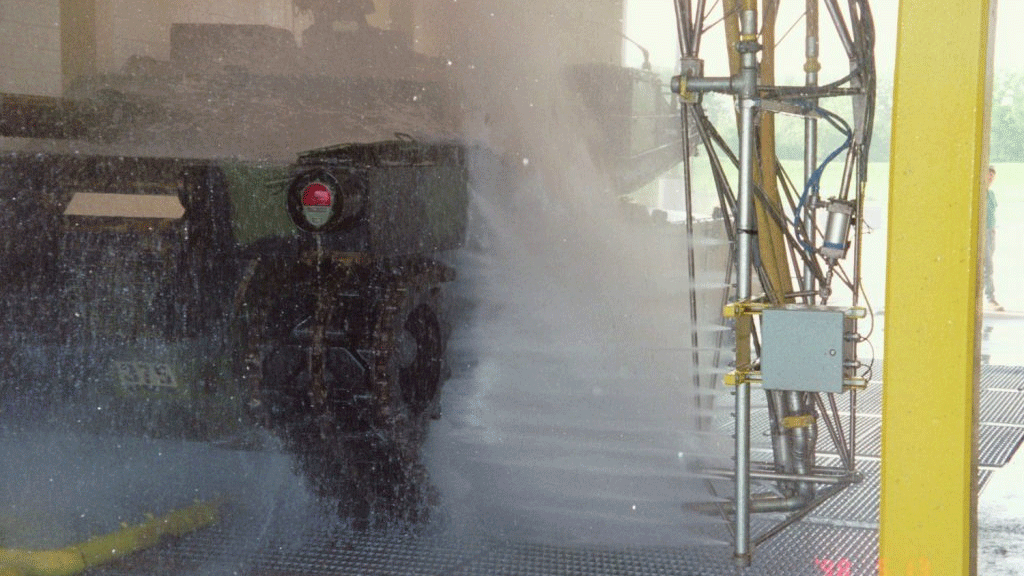

1. Flat Fan Spray Nozzles
A flat fan nozzle is a basic spray pattern that ejects liquid in a fan-shaped pattern, widely used in industrial applications requiring linear coverage and high impact.
Features:
Fan-shaped spray distribution for concentrated impact
Suitable for linear coverage areas
Easy to achieve uniform coverage through overlapping multiple nozzles
Typical Applications:
Metal surface cleaning
Conveyor belt rinsing
Degreasing and decontamination processes
When your application prioritizes impact over comprehensive coverage, consider a fan nozzle. However, pay close attention to nozzle spacing and installation angle; otherwise, cleaning dead zones or uneven coverage may occur.

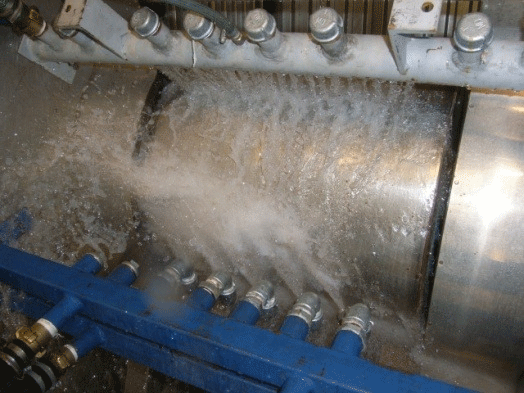

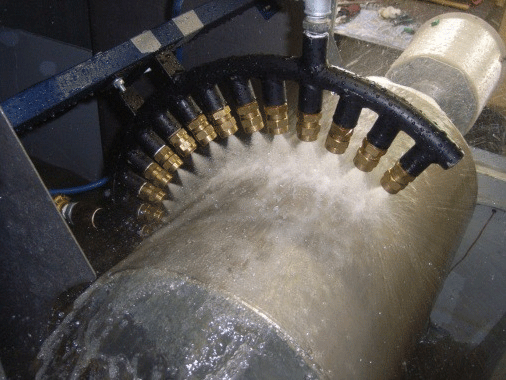

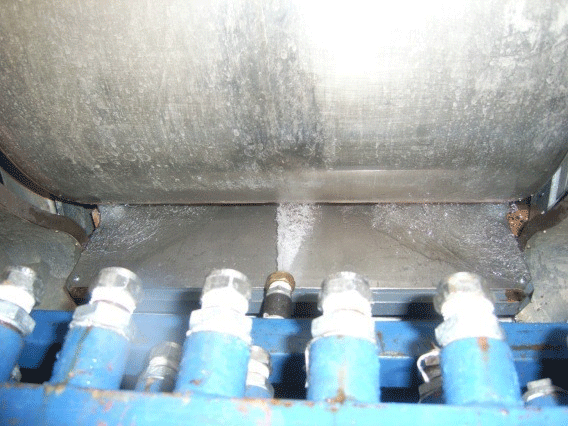

2. Full Cone Spray Nozzles
Full cone nozzles utilize their internal structure to evenly distribute liquid across the entire spray cross-section, making them suitable for processes requiring complete coverage.
Features:
Uniform liquid distribution within the spray area
Complete coverage with no noticeable gaps
Good stability, suitable for continuous operation
Typical applications:
Cooling systems
Spraying reactions
General industrial washing
When the overall uniformity of the process is required to be higher than that of a single point impact, solid cone nozzles should be preferred, such as in temperature control or liquid coverage processes.
3. Holllow Cone Nozzles
The hollow cone nozzle uses a swirling structure to create an annular spray distribution, achieving a fine atomization effect while ensuring coverage.
Features:
Spray concentrated in an annular area
Fine droplets, high evaporation efficiency
Minimal liquid in the central area
Typical applications:
Flue gas desulfurization
Gas cooling
Humidification systems
Suitable for scenarios requiring rapid evaporation or high gas-liquid contact efficiency, but not suitable for applications requiring complete surface coverage.

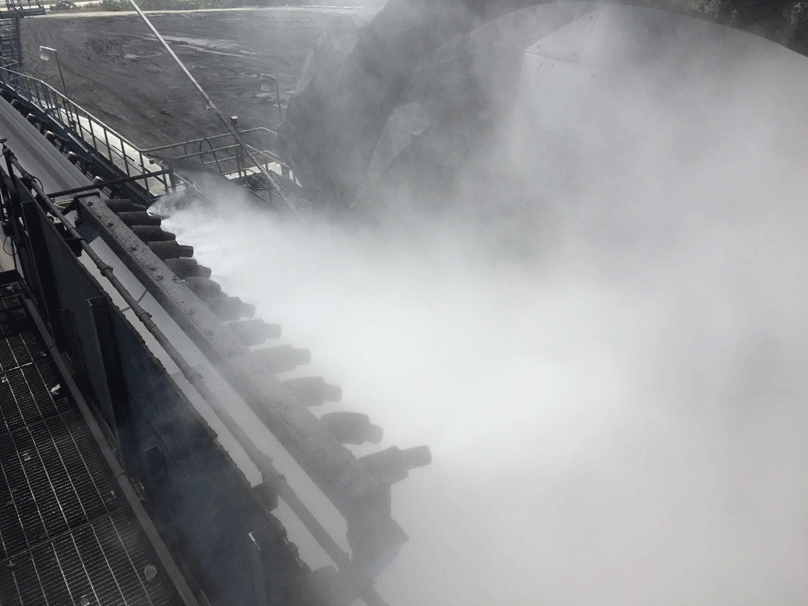

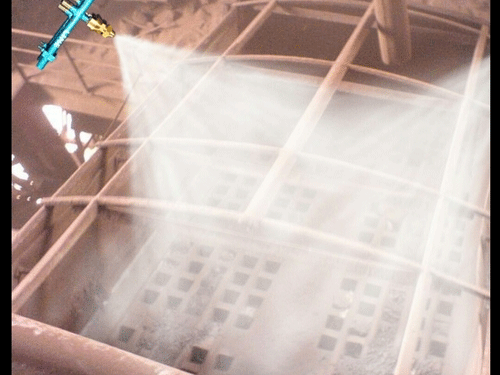

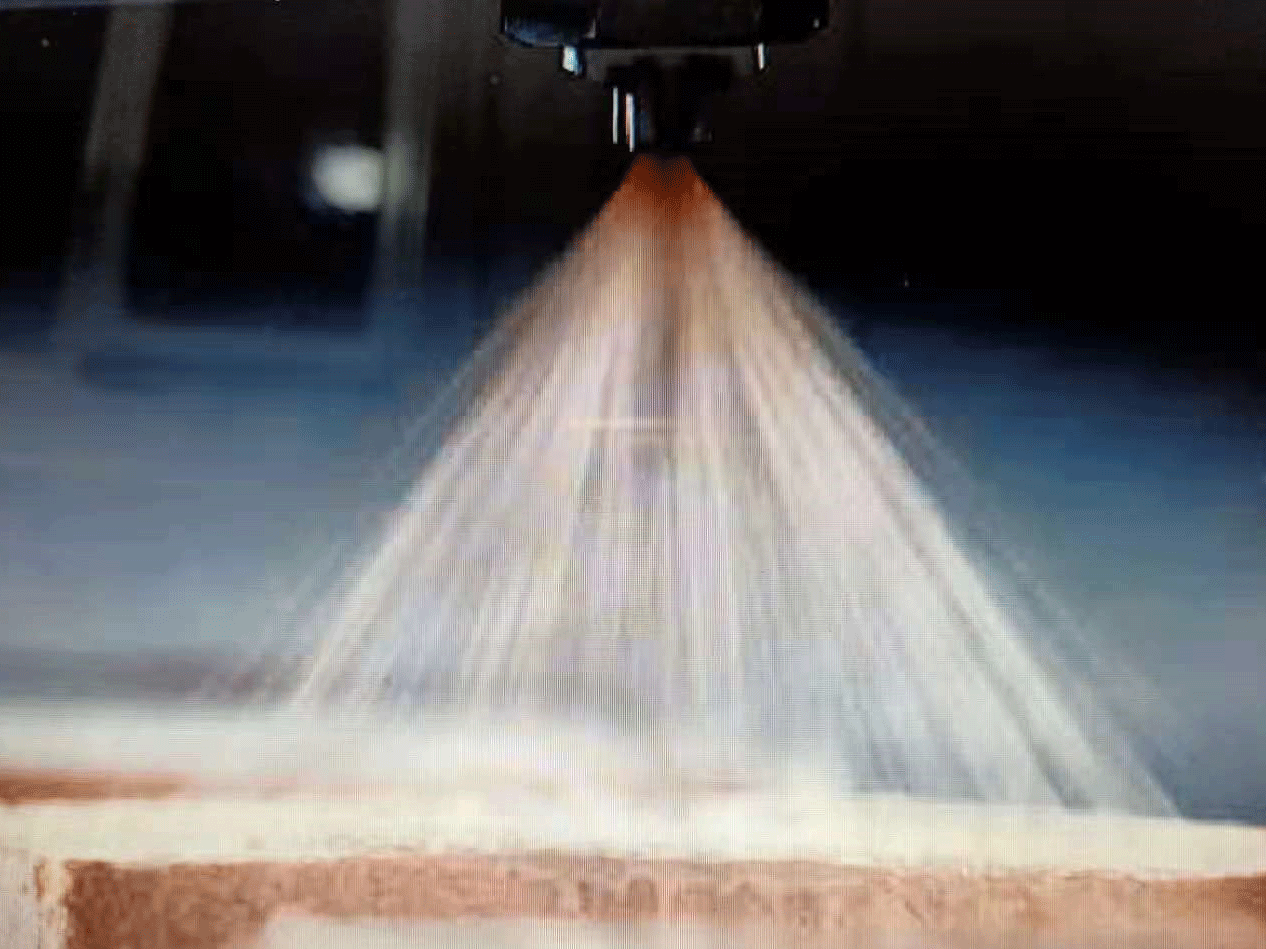

4. Air Atomizing Nozzles
Air atomizing nozzles use compressed air to atomize liquids into fine droplets, making them suitable for processes requiring high spray precision and droplet size control.
Features:
Achieves liquid refinement through compressed air
Wide controllable droplet size range
High spray precision and strong adjustability
Typical Applications:
Precision spraying
Lubrication systems
Chemical spraying processes
When high requirements are placed on droplet size, spray uniformity, or liquid volume control, air atomizing nozzles shoul be considered first, but compressed air energy consumption must also be evaluated.

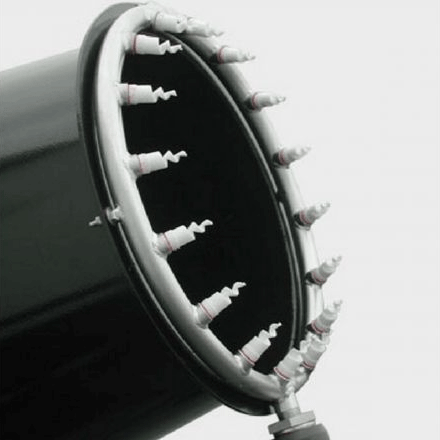

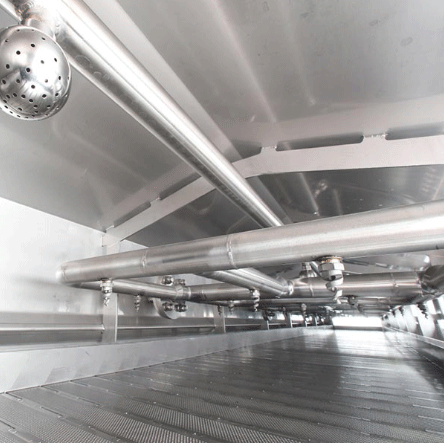

5. Spiral Spray Nozzles
The spiral nozzle employs an open spiral structure, allowing the liquid to form a spray without internal obstruction, providing excellent anti-clogging capabilities.
Features:
Open structure design
Large diameter, less prone to clogging
Suitable for media containing particles or high levels of contamination
Typical applications:
Flue gas desulfurization (FGD) towers
Exhaust gas treatment systems
High dust environments
When the medium contains impurities or solid particles, anti-clogging performance should be prioritized over spray accuracy; spiral nozzles are generally more reliable in these situations.

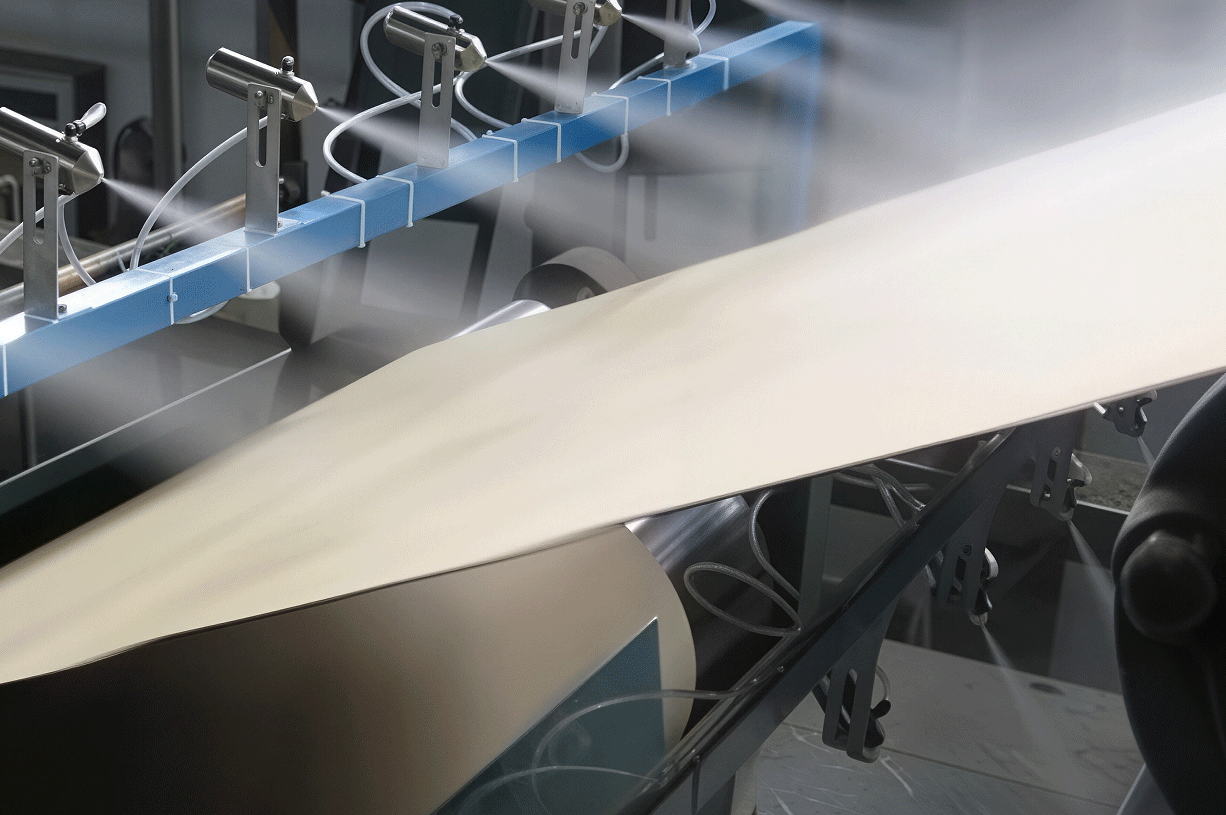

6. Paper Making Nozzles
Papermaking nozzles are specialized nozzle types developed for various stages of a papermaking production line, emphasizing spray precision, stability, and long-term operational consistency.
Features:
Mostly high-precision, small-aperture designs
High requirements for spray stability and directional control
Some operating conditions require high pressure and wear resistance
Typical Applications:
Paper web trimming (high-pressure cutting nozzles)
Wire cleaning
Pressing and drying section spraying
Blanket and roll surface cleaning
The papermaking industry demands more than just high-quality spray from nozzles; it emphasizes long-term stability and consistency. Deviations in spray angle or flow rate can directly impact paper quality. Therefore, when selecting nozzles, processing precision, wear resistance, and long-term operational stability should be the primary focus.
Application scenarios | Recommended nozzle solution | Key Point |
Cleaning system
| Flat Fan Nozzle + Medium-High Pressure System | Impact force takes priority; nozzle spacing should be designed with overlap to avoid cleaning blind spots |
Cooling system | Full Cone Nozzles | Uniform coverage; stable droplet distribution |
Dust suppression
| Fine Mist Nozzle / Air Atomizing Nozzle | The droplet size needs to match the dust particle size to achieve effective capture |
Desulfurization and waste gas treatment | Spiral nozzle / Hollow cone nozzle | Strong anti-clogging capability; adaptable to high impurity and high load conditions. |
Drying and Blowing
| Air Knife / High-Efficiency Air Jet Nozzle
| Airflow uniformity; injection efficiency |
In real-world projects, nozzle problems rarely surface initially. Instead, they gradually amplify after the system has been running for a period, eventually leading to decreased efficiency, increased costs, and even downtime risks. The following common errors share several key characteristics:
Focusing solely on flow parameters while ignoring the relationship between pressure and atomization.
Many nozzle selections rely solely on flow meters for matching, but in reality, nozzle spray performance is determined by both pressure and structure.
For the same nozzle model, spray angle, impact force, and particle size will significantly change under different pressures.
Insufficient pressure can easily lead to spray collapse and uneven coverage.
Excessive pressure can cause over-atomization or increased equipment load.
Ignoring media characteristics, resulting in severely shortened lifespan.
Nozzles are not universal components; different media have vastly different effects on materials:
Liquids containing particles: lead to increased orifice wear.
Strong acids/alkalis: cause corrosion failure.
High-temperature media: accelerate material fatigue.
For example, using ordinary stainless steel nozzles in sandy or slurry environments often quickly leads to flow control issues.
The correct approach is to select appropriate materials such as ceramics, hard alloys, or engineering plastics (e.g., PVDF) based on the media.
Overemphasizing finer atomization is a common misconception in dust suppression and spraying applications.
Excessively fine droplets: Easily dispersed by airflow, failing to effectively target the area.
Over-atomization: Increases energy consumption (especially in aerosol systems).
In cleaning applications: Fine mist has almost no impact.
Key logic: Particle size must match the application target, not just be as small as possible.
Ignoring maintenance and replacement costs
Many projects focus only on procurement costs initially, neglecting operating costs:
Low-cost nozzles: Frequent replacements.
Easily clogged structures: Increased downtime for maintenance.
Non-standard interfaces: Complex replacements.
Inadequate nozzle layout design
Even with the correct nozzle selection, incorrect layout significantly reduces effectiveness:
Non-overlapping spray areas: Creates cleaning dead zones.
Excessive overlap: Wastes resources.
Inappropriate installation angle: Offsets impact direction.
In practical engineering, layout design is just as important as nozzle selection itself.
As a frequently used component, nozzle performance degradation is inevitable. However, through proper management and selection, its effective service life can be significantly extended, and stable output maintained.
1. Filtration System as a Fundamental Guarantee
Over 80% of nozzle problems are related to impurities:
Solid particles: clogging or abrading the nozzle orifice
Tiny impurities: affecting spray uniformity
Recommended configuration:
Front-end filter (select filtration precision according to nozzle orifice size)
Regularly check the filtration system status
2. Establish a Flow Monitoring Mechanism
The most direct manifestation of nozzle wear is: flow rate changes
When the flow rate is approximately 10% higher than the rated value: the nozzle orifice has worn out.
Abnormal flow fluctuations: may indicate clogging or localized damage.
It is recommended to establish a regular inspection mechanism in critical systems, rather than replacing nozzles only when they break down.
3. Proper Cleaning Methods to Avoid Secondary Damage
Many on-site workers habitually use metal needles to clean nozzles, which actually directly damages the nozzle's precision.
Correct Methods:
Use a soft-bristled brush or specialized cleaning tools
For stubborn deposits, chemical cleaning can be used (select according to material).
4. Upgrade Materials Based on Operating Conditions
Applicable Scenarios for Different Materials:
Stainless Steel (304/316): General Environments
PVDF / PP: Highly Corrosive Environments
Ceramic / Hard Alloy: High-Abrasion Environments
5. Optimize Operating Parameters to Reduce Unnecessary Losses
During Long-Term Operation:
Excessive Pressure: Accelerates Wear
Frequent Start-Stops: Increases Structural Fatigue
By properly controlling the operating range, the rate of wear can be reduced without affecting performance.
The value of a nozzle lies not in its specifications, but in whether it truly matches your working conditions.
If you encounter the following problems in actual use:
Unstable cleaning effect
Uneven spray coverage
Frequent nozzle replacements or clogging
We recommend re-evaluating your selection logic, rather than simply changing the model.
A systematic analysis based on specific working conditions is often more efficient than repeated trial and error.
