In modern large-scale transportation hubs, such as train stations, subway stations, and integrated transportation terminals, indoor spaces are typically large in area and have high ceilings. These buildings have extremely high requirements for air circulation and comfort, but traditional fixed diffusers often struggle to meet the demands for long-distance air delivery and precise air distribution.

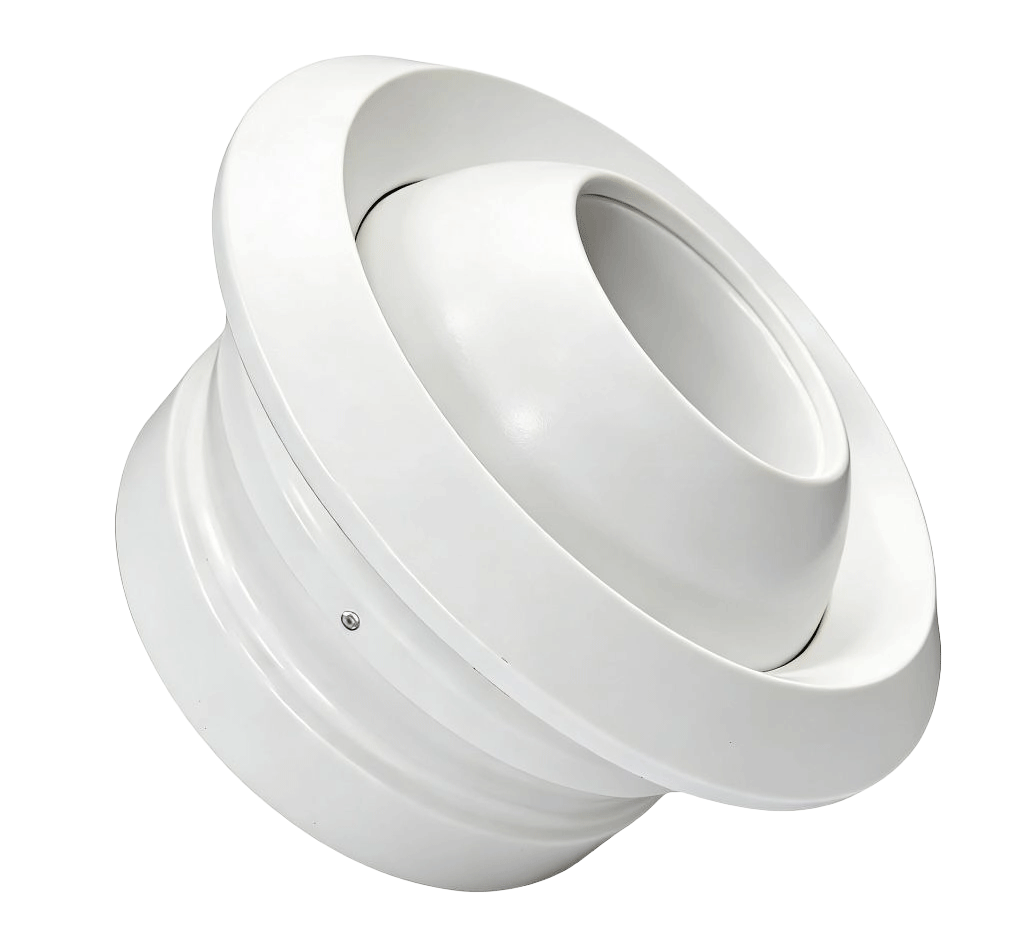

The ABS Ball Jet Nozzle is an HVAC solution widely used in such applications. Through its adjustable spherical nozzle structure, it achieves flexible airflow direction control and long-distance air delivery, significantly improving air distribution efficiency in stations and terminals.

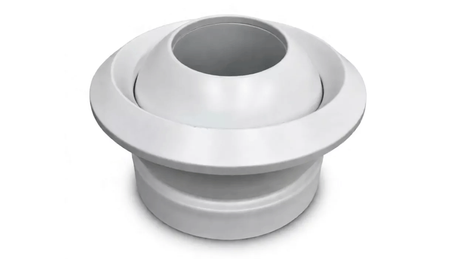

An ABS Ball Jet Nozzle typically consists of several key components:
Spherical Nozzle Body: The core sphere is molded from precision ABS engineering plastic and can rotate 360°, allowing adjustment of the spray angle and direction. The sphere's internal optimized airflow design ensures a stable jet of air from the nozzle outlet while minimizing turbulence and energy loss. This design is particularly suitable for large spaces such as train stations and subway concourses, delivering air to areas away from the air vent without compromising passenger comfort.
Mount Mount: The mount, made of ABS or lightweight metal, ensures a secure installation of the nozzle within the duct system. The mount not only supports the sphere but also allows for easy adjustment of the spray direction after installation using a simple adjusting nut or locking ring, facilitating engineering commissioning and subsequent maintenance.
Internal Airflow Guiding Structure: The internal airflow guiding components are designed with optimized fluid dynamics to concentrate the air jet and extend its delivery distance. This structure reduces airflow noise, improves wind speed stability, and ensures uniform air diffusion in high-ceilinged spaces, avoiding dead zones.
ABS Material Housing: ABS engineering plastic is lightweight and has excellent corrosion resistance and UV resistance, making it suitable for long-term exposure to airflow in air conditioning systems. Compared to metal nozzles, ABS nozzles have lower installation costs, are easier to process, and can be manufactured in different specifications to suit the dimensions of different halls and passageways.
The ABS Ball Jet Nozzle draws in treated air through ducts and concentrates it from nozzles to create a long-range jet of airflow. Its core operating principles include:
Adjustable Jet Direction: By rotating the ball, the air jet angle can be adjusted, typically within the range of ±30° to ±45°. Engineers can strategically place the nozzles based on building structure, passenger location, and heat load to achieve directional airflow.
Concentrated Jet for Long-Distance Airflow: The small-diameter nozzle design allows air to be ejected at high speed, covering distances of several meters or even tens of meters, suitable for high-ceilinged spaces such as station halls, waiting areas, and ticket areas.
Optimized Airflow Organization: When multiple nozzles are used in combination, they create uniform airflow coverage, reducing stagnant air and uneven heating/cooling, thus improving passenger comfort. Simultaneously, a well-planned nozzle layout can reduce discomfort caused by excessively high local wind speeds.
Reduced Noise and Energy Consumption: The internal airflow guides and nozzle design optimize the airflow path, reducing turbulence noise, improving airflow efficiency, and ensuring stable and energy-efficient operation of the HVAC system.
ABS Ball Jet Nozzles offer several advantages in HVAC systems for large public spaces:
Flexible and Adjustable Direction: The spheres can rotate freely to adjust the airflow direction, allowing for precise delivery of air to passenger areas or specific functional areas, such as ticket counters, waiting areas, or the center of the lobby.
Long-Distance Air Delivery Capability: The concentrated airflow design delivers air to areas far from the main vent, solving the air delivery challenges in high-ceilinged spaces and ensuring uniform temperature distribution.
Lightweight, Durable, and Easy to Install: Made of lightweight ABS material, installation is simple, and it is resistant to moisture, corrosion, and UV rays. Compared to metal nozzles, long-term maintenance costs are lower, making it particularly suitable for large transportation hubs.
Uniform Air Distribution: Multiple ABS ball nozzles used in combination can create a wide-coverage, uniform airflow effect, improving overall air circulation efficiency and reducing uneven heating or airflow stagnation in passenger areas.
Energy Saving and Low Noise: The optimized airflow structure reduces turbulence and wind noise, improving HVAC system efficiency, reducing energy consumption, and enhancing passenger comfort.
ABS ball jet nozzles are widely used in large public buildings, especially transportation hubs:
Train Station Halls: Air circulation challenges in high-ceilinged halls can be solved through long-distance air delivery. ABS ball jet nozzles allow for flexible directional adjustment, ensuring even air distribution throughout the hall and avoiding direct airflow that could cause discomfort to passengers.
Subway Station Passages and Waiting Areas: Long, narrow passageways with high pedestrian traffic can be effectively ventilated by strategically placed ball jet nozzles, ensuring uniform air distribution along the length of the passage and reducing stuffiness and stagnation.
Airport Waiting Halls and Integrated Transportations: ABS ball jet nozzles provide precise air distribution in high-ceilinged areas, improving overall comfort and working in conjunction with air conditioning systems to achieve energy savings and noise reduction.
Large Public Spaces: Exhibition centers, stadiums, shopping malls, and other venues can also benefit from efficient air circulation using ABS ball jet nozzles, particularly in areas with high pedestrian traffic or varying ceiling heights.
When selecting an ABS Ball Jet Nozzle, the following parameters should be considered:
1. Nozzle Diameter and Specifications: Choose an appropriate nozzle diameter based on the space size, airflow requirements, and air delivery distance.
2. Airflow and Velocity: Ensure sufficient momentum for air to reach distant areas while avoiding excessively high local velocities that could cause discomfort.
3. Air Delivery Distance: For high-rise spaces, the air delivery distance typically needs to be 5–15 meters, depending on the number and arrangement of nozzles.
4. Adjustable Angle Range: Select a nozzle model with an appropriate adjustable angle range based on the building layout and passenger positions to ensure uniform air coverage.
5. Installation Method and Interface Size: Ensure compatibility with the duct system for easy maintenance and adjustments.
By comprehensively considering these factors, efficient and uniform air distribution can be achieved, meeting the comfort and energy-saving requirements of stations or terminals.
ABS Ball Jet Nozzles play a crucial role in large public transportation spaces, effectively improving air distribution efficiency and passenger comfort through adjustable direction and long-distance air delivery capabilities.
If you are looking for high-quality spherical air jets for train stations, subway stations, or large terminals, please contact Xinhou. We offer professional ABS ball jet nozzle products and customized solutions to help your HVAC system achieve efficient and stable air distribution.
