How to Choose the Right Solid Stream Nozzle for Industrial Cleaning

In industrial cleaning systems, nozzles may seem like small components, but they often directly determine cleaning effectiveness, water efficiency, equipment energy consumption, and subsequent maintenance costs. Especially in scenarios such as high-pressure cleaning, conveyor belt washing, equipment descaling, steel cooling, and mine dust removal, Solid Stream Nozzles are widely used in various industrial systems due to their strong concentrated impact, long spray distance, and high penetration capability.

However, many companies, when purchasing nozzles, often only focus on price or interface size, neglecting crucial factors such as pressure, flow rate, spray angle, material, and operating environment. The result is unstable spraying effects, frequent clogging, increased water consumption, and even disruption to the entire production line.

So, how should one choose the right Solid Stream Nozzle for an industrial cleaning system? This article will analyze this from the perspective of actual working conditions and engineering applications.

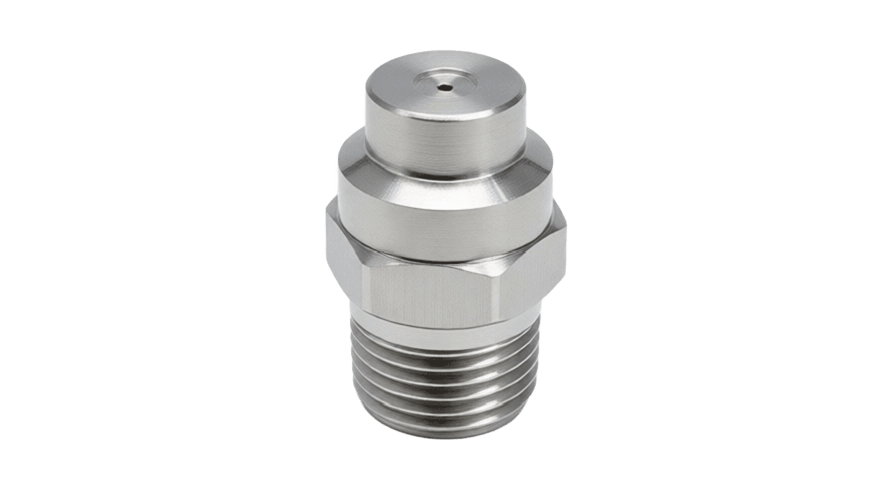

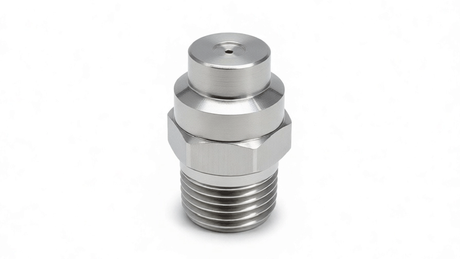

What is Solid Stream Nozzle?

A solid stream nozzle is an industrial nozzle that concentrates liquid into a high-impact, straight stream. Compared to fan nozzles and hollow cone nozzles, it offers a more concentrated spray coverage area but with a stronger impact force.

Its core features include:

• Concentrated water flow

• Long spray distance

• Strong impact cleaning capability

• Suitable for high-pressure environments

• High water penetration

Therefore, this type of nozzle is commonly used for:

• Industrial equipment cleaning

• Conveyor belt rinsing

• Pipeline rinsing

• Steel descaling

• High-pressure decontamination

• Tank cleaning

• Dust suppression systems

Clearly define the cleaning objectives

Many companies make a mistake in the very first step when selecting nozzles. Not all industrial cleaning is suitable for the same Solid Stream Nozzle; the spraying requirements for different working conditions are completely different. For example:

If the objective is merely to rinse away surface stains, excessive pressure may actually result in equipment damage; conversely, when dealing with stubborn scale or highly adhesive industrial residues, insufficient pressure will lead to reduced cleaning efficiency.

Therefore, prior to selecting a model, it is essential to clarify the following points:

• What is the object to be cleaned?

• What is the nature of the contaminants?

• Is long-distance spraying required?

• Is continuous operation required?

• What is the required system pressure range?

These factors will directly influence the selection of the appropriate nozzle model.

Pressure parameters determine the injection effect

Pressure is one of the most critical factors when selecting a solid stream nozzle; many users mistakenly believe that higher pressure is always better, but in reality, this is not the case. If the system pressure does not match the nozzle's flow rate, the following issues may arise:

• Dispersed water flow

• Insufficient impact force

• Increased pump load

• Higher energy consumption

• Accelerated nozzle wear

Generally speaking:

• Low Pressure: General rinsing

• Medium Pressure: Industrial equipment cleaning

• High Pressure: Removal of heavy oil deposits and high-intensity descaling

• Ultra-High Pressure: Steel descaling and specialized processes

In actual projects, many instances of poor cleaning performance are not due to issues with the nozzle's quality, but rather stem from errors in calculating the system pressure.

Therefore, when selecting a nozzle, it is essential to simultaneously consider the pump pressure, pipeline pressure loss, actual operating pressure, and nozzle flow rate, rather than focusing solely on the nozzle itself.

The size of the flow directly affects water consumption

Industrial enterprises are increasingly focusing on water conservation and energy consumption issues. This is particularly critical for large-scale continuous production lines, where an improper selection of nozzle flow rates can result in prohibitively high water consumption costs over the long term.

Insufficient Flow:

• Inadequate cleaning coverage

• Low rinsing efficiency

Excessive Flow:

• Waste of water resources

• Increased pump load

• Higher system operating costs

Therefore, the correct approach is not to simply pursue high flow rates, but rather to calculate the optimal flow rate based on specific parameters such as cleaning width, conveyor speed, spray distance, and operating duration. For many automated cleaning systems, optimizing nozzle flow rates often leads to a significant reduction in overall water consumption.

The nozzle material is more important than many people imagine

This is often the easiest area for many purchasing personnel to overlook. The requirements for nozzle wear resistance and corrosion resistance vary greatly across different industrial environments.

Common materials include:

For example:

• The chemical industry requires corrosion resistance.

• The mining industry prioritizes wear resistance.

• High-temperature environments demand heat resistance.

• The food industry requires sanitary-grade materials.

If the wrong material is selected, the lifespan of the nozzle may be drastically reduced, resulting in higher maintenance costs in the long run.

A Greater Spray Distance Is Not Always Better

Many clients place particular emphasis on maximizing spray distance, believing that the farther the spray reaches, the better. In reality, however, the spray distance must be carefully matched to the specific layout of the system.

Excessive spray distance can lead to:

• Attenuation of water flow

• Reduced impact force

• Uneven cleaning

Conversely, a spray distance that is too short can result in:

• Excessive localized impact force

• Damage to equipment surfaces

• Insufficient cleaning coverage

Therefore, the nozzle mounting position, spray angle, and spray distance typically require a comprehensive design approach that takes into account the specific structural configuration of the on-site equipment.

This is precisely why many mature industrial systems undergo rigorous spray testing prior to installation.

Conclusion

Although a Solid Stream Nozzle is merely a single component within an industrial cleaning system, it exerts a direct influence on cleaning efficiency, equipment stability, water consumption costs, and long-term operational performance.

During the actual selection process, a comprehensive assessment of various factors—including pressure, flow rate, material composition, spray distance, and operating environment—is essential. Only a nozzle solution that is truly tailored to the specific requirements of the system can effectively guarantee cleaning results while simultaneously minimizing energy consumption and maintenance costs.

If you are seeking Solid Stream Nozzle solutions for industrial cleaning, dust suppression, cooling, or high-pressure rinsing systems, Xinhou offers professional spray solutions and product support customized to suit diverse operating conditions, thereby assisting enterprises in enhancing both the operational efficiency and stability of their systems.
