Nozzles are essential parts of industrial spray systems, and their effectiveness directly affects the efficiency and quality of operations like cooling, spraying, dust control, and humidifying. Selecting the appropriate nozzle type is vital for various industrial applications. This article offers a detailed comparison of the design concepts, practical uses, flow characteristics, and optimization methods of full cone and fan nozzles, serving as a professional guide for industrial users in making informed choices.

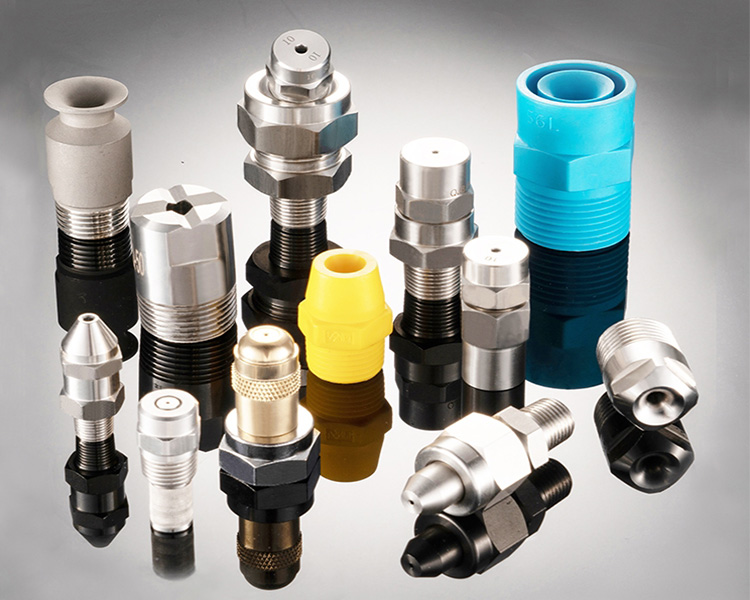

Full cone nozzles are industrial devices that generate a full conical spray pattern with even coverage, ensuring droplets are evenly spread across the circular area. This makes them ideal for applications requiring consistent and uniform spraying.
They offer high uniformity in spray coverage, distributing droplets evenly within the circular spray zone to prevent localized liquid buildup or gaps. This makes them especially suitable for industrial uses demanding extensive liquid coverage, such as cooling towers, heat exchangers, and chemical reaction vessels.
The droplet size and spray density can be adjusted by modifying factors like the nozzle orifice size, spray pressure, nozzle angle, and material. This allows control over droplet size ranging from fine mist to larger droplets, catering to precise needs in dust removal, coating, chemical processing, or heat treatment.
These nozzles are made from materials such as stainless steel (304/316), brass, engineering plastics, and highly corrosion-resistant alloys, enabling them to resist acidic and alkaline liquids, high temperatures, and specialized chemical environments. This durability reduces maintenance requirements and extends their operational lifespan.

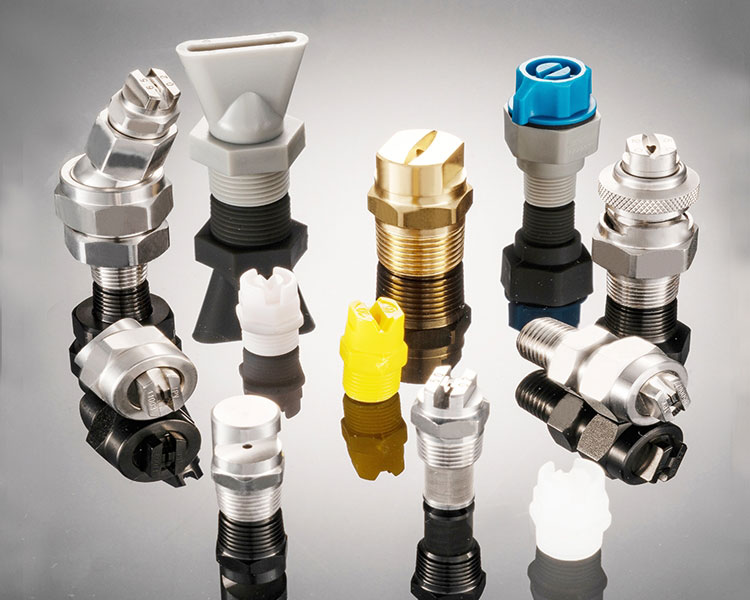

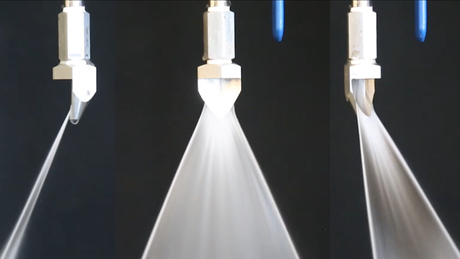

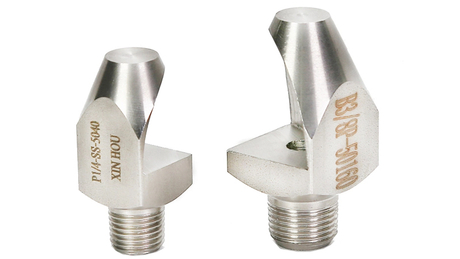

Flat fan nozzles spray liquid in a fan-shaped pattern, distributing droplets along a linear area to create a wide, thin band of coverage, making them ideal for linear or strip-shaped process areas.
Linear coverage and precise control: Spray is evenly distributed along a linear or strip-shaped area, making them suitable for conveyor belt coating, long strip cleaning, spot cooling, spot coating, and chemical treatment. The nozzles can be adjusted through angle, aperture, and pressure to precisely control spray width, droplet thickness, and uniformity.
Conserve fluid and reduce costs: Strip-type covering reduces fluid waste and improves process efficiency, making it particularly suitable for continuous production lines or batch processes, saving raw materials and energy.
Corrosion-resistant materials and adaptability to various environments: Commonly used materials include stainless steel, brass, engineering plastics, and highly corrosion-resistant alloys. They are suitable for high-temperature, high-pressure, and chemically intensive process environments, while maintaining low maintenance costs.
Cooling System Applications
Solid conical nozzles, used in cooling systems such as cooling towers, heat exchangers, and compressor cooling equipment, can efficiently remove heat by uniformly covering the entire cooling area. This prevents localized overheating and ensures stable operation of the equipment. Such uniform spraying not only improves cooling efficiency but also effectively reduces energy consumption and equipment maintenance costs.
Dust Removal System Applications
In settings with elevated dust levels, like mines, steel mills, cement factories, and wood processing facilities, solid cone nozzles enhance collection efficiency by evenly coating dust particles with mist. This helps decrease air pollution and minimize process losses. Additionally, they effectively reduce safety hazards and assist businesses in complying with environmental regulations.
Chemical Mixing and Spraying Applications
In chemical mixing or industrial spraying processes, nozzles ensure the liquid is evenly distributed within the reactor or container, preventing localized concentration imbalances that can cause product defects or incomplete reactions. Using solid cone nozzles can enhance product quality stability, reduce rework and waste, and improve production efficiency.
Industrial Cleaning and Wetting Applications
Solid cone nozzles are commonly used for all-around spraying on the surfaces of containers, workpieces, or equipment, ensuring cleaning effectiveness and process consistency. This not only reduces manual labor but also significantly boosts production line efficiency, making cleaning and wetting processes more reliable.
Conveyor Belt Coating Application
Flat fan nozzles are used in food processing, packaging production lines, textile, and electronic component manufacturing to evenly spray liquids or coatings across the width of the conveyor belt. This ensures consistent surface treatment of products, improves production uniformity, reduces rework rates, and saves on raw material costs.
Industrial Cleaning Applications
For cleaning the surfaces of long workpieces, pipes, tanks, or assembly lines, flat fan nozzles can provide strip-shaped spraying to quickly remove dirt and residues. This reduces manual cleaning time and improves production line efficiency and cleaning quality consistency.
Localized Cooling and Chemical Treatment Applications
Flat fan nozzles are suitable for precise spraying of specific areas, allowing control over temperature or chemical dosage to avoid material waste and process defects. In the localized cooling or chemical treatment of industrial parts, they can enhance process accuracy, reduce material consumption, and minimize potential safety risks.
Coating and Paint Spraying Applications
In coating or paint spraying, flat fan nozzles can achieve strip coverage, ensuring an even thickness of liquid or paint. They not only improve the surface quality of the product but also save on paint costs and reduce rework rates, making them especially suitable for large-scale continuous production lines.
Feature | Full Cone Nozzle | Flat Fan Nozzle |
Feature | Cone spray | Fan Spray |
Coverage Scope | Circular, uniform | Linear, broadband |
Droplet distribution | Uniform, controllable | Linear gradient, suitable for band-like areas |
Stress adaptation | 20bar Medium to high pressure, up to 20 bar | Mainly medium and low pressure |
Liquid viscosity applicable | Low to medium viscosity | Low-viscosity liquids are more suitable |
Process Application | Cooling, uniform spraying, dust removal | Conveyor line coating, localized cleaning, strip spraying |

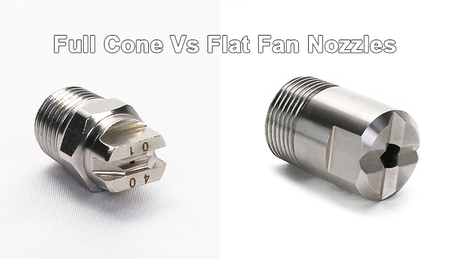

Full cone nozzles are suitable for processes that require circular and uniform spray patterns, such as cooling towers, chemical reactions, and dust suppression. Fan nozzles are more appropriate for strip or linear coverage, such as coating on conveyor lines and localized cleaning. Selecting the right nozzle type can significantly improve industrial production efficiency, liquid utilization, and process reliability. Want to obtain professional selection schemes for solid cone and fan nozzles, or learn about the most suitable nozzle configurations for your process? Contact Xinhou immediately! Professional industrial nozzle solutions help make your production more efficient, precise, and reliable!
