Cone Nozzles: What You Need To Know

What Is Cone nozzle

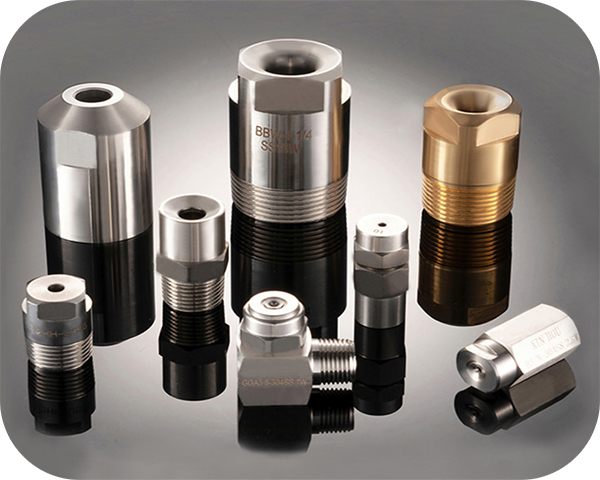

Cone nozzle is a common type of nozzle used to control the spray state of fluid or gas. As the name implies, the design of the conical nozzle presents a conical appearance. It is usually made of brass, stainless steel, PP, PVDF and other materials. It can be used in many industries.

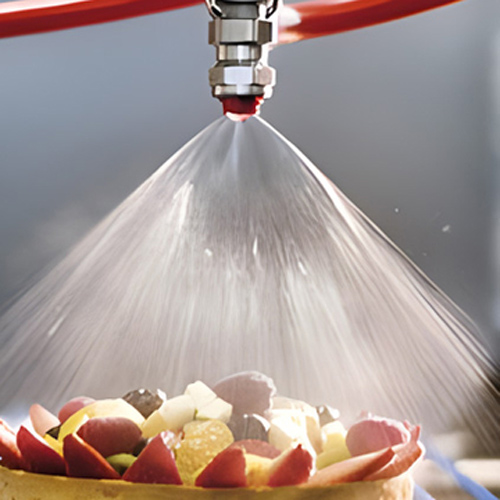

● Food industry

● Agricultural industry

● Construction industry

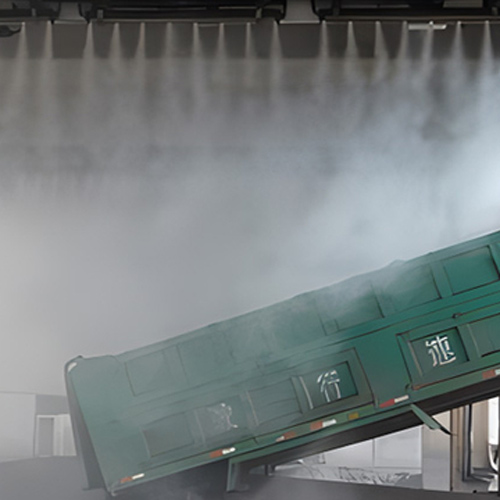

● Environmental protection

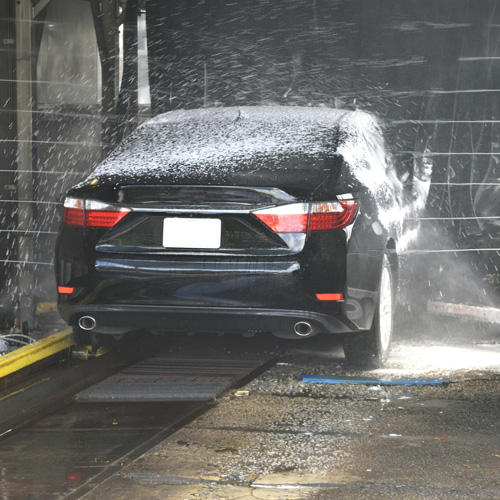

● Automobile industry

● Paper industry

● Chemical industry

● Fire protection

Working Principle Of Cone Nozzle

The conical nozzle is mainly composed of three parts: inlet, contraction section, and outlet. The inlet is the entrance of the conical nozzle, which is used to introduce fluid or gas. The contraction section is used to accelerate the fluid and increase its flow rate. The outlet sprays high-speed fluids in different states. Its working principle is to use fluid pressure to spray the fluid from the nozzle. When the fluid passes through the conical nozzle, the flow rate will gradually increase, which will cause the fluid to form a conical spray at the nozzle outlet. The spray angle and flow rate of the conical nozzle can be adjusted by changing the fluid pressure and nozzle size.

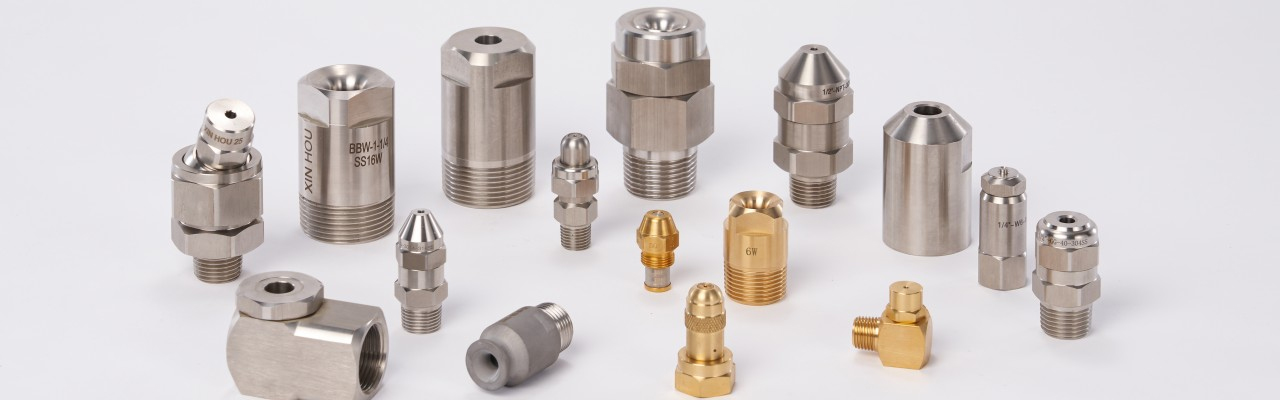

Cone Nozzle Types

Cone nozzles are usually divided into solid cone nozzles and hollow cone nozzles. The spray angle of solid cone nozzles can be customized from 15 degrees to 120 degrees. Hollow cone nozzles have larger, unobstructed flow channels, which can reduce blockage and ensure uniform spraying at various flow rates and pressures.

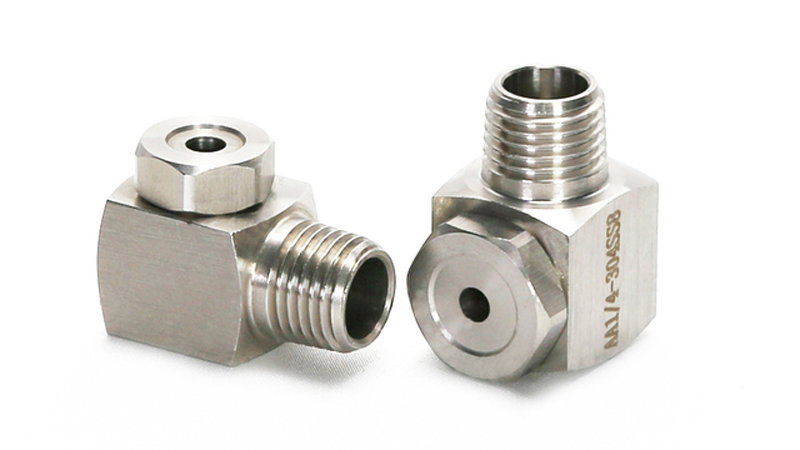

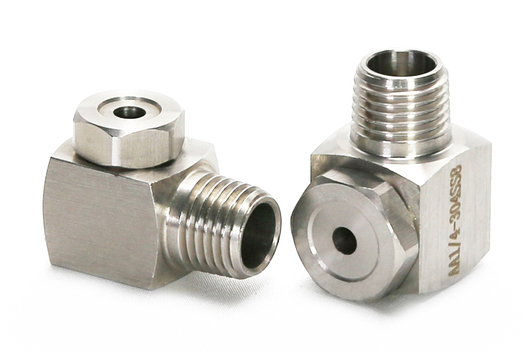

Hollow Cone Nozzles

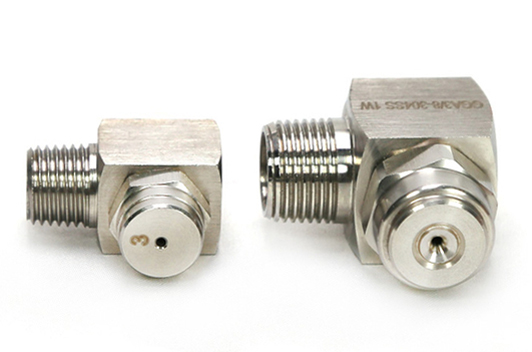

Full Cone Spray Nozzles

Cone Nozzle Uses

● Spraying: Cone nozzles are a common choice in painting applications, which can produce uniform spray and cover large areas.

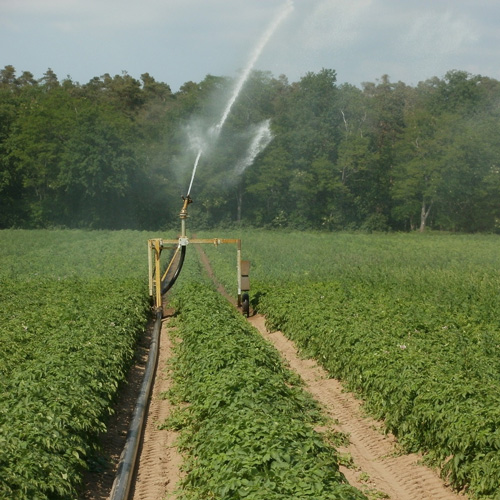

● Spraying: Cone nozzles can be used to spray pesticides, herbicides and insecticides, which can effectively cover crops and minimize drift.

● Cleaning: Cone nozzles can be used for cleaning, and the conical spray can produce a strong water flow to effectively remove dirt and debris.

● Cooling: Cone nozzles can also be used for cooling equipment, industrial machinery, etc., which can provide cooling over a large area and effectively reduce the temperature.

Choose The Right Conical Nozzle

If you have problems choosing a nozzle, you can consult Xinhou. We are a manufacturer that develops and produces various nozzles. We have rich experience in many industries and can provide you with complete and professional nozzle solutions, as well as personalized nozzle customization services. You can get the most affordable price by buying from nozzle manufacturers. We look forward to your consultation!

● Spray angle

● Injection flow

● Fluid pressure

● Nozzle material

● Application area
