In HVAC systems of large public buildings, the air distribution method directly affects indoor comfort and airflow performance. For structures with high ceilings and expansive spaces, traditional diffusers often fail to achieve long-throw air delivery, making ball jet nozzles a common solution.
Specifically, ABS Ball Jet Nozzles are widely utilized in the air supply systems of airports, train stations, gymnasiums, and large commercial spaces due to their lightweight construction, ease of installation, and superior aerodynamic design.

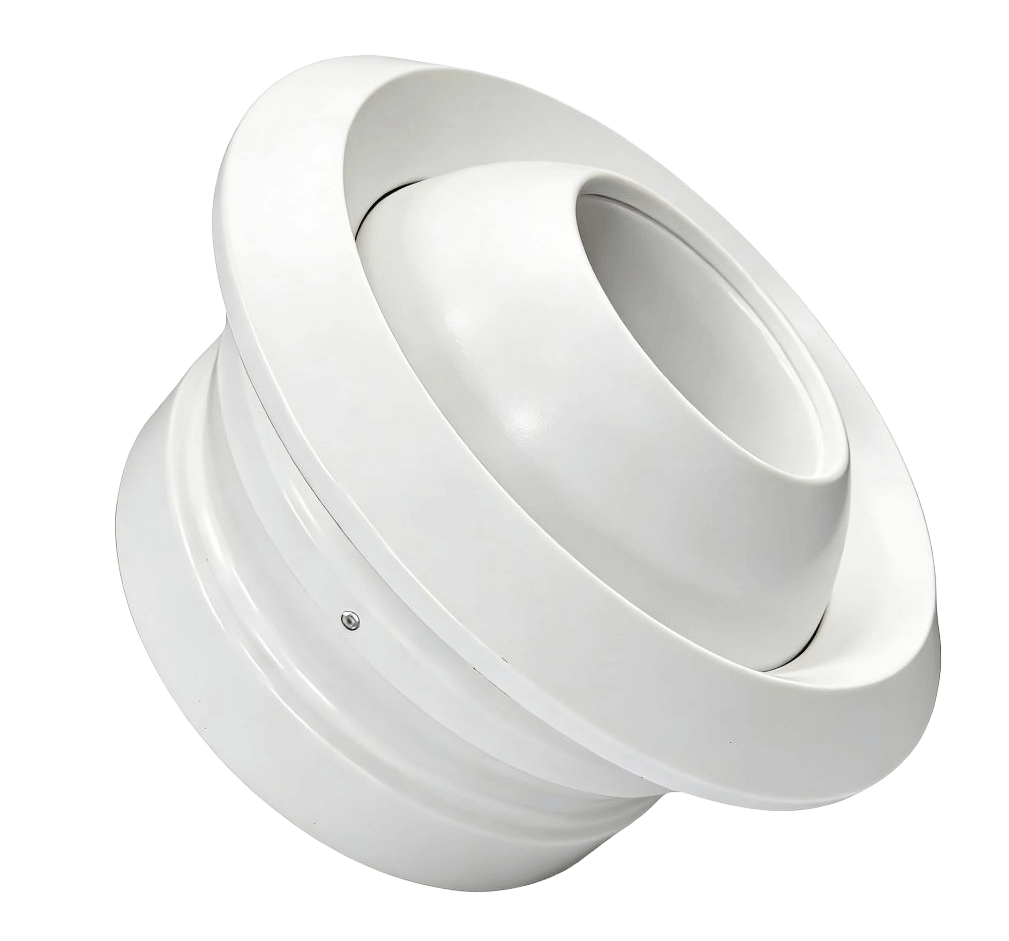

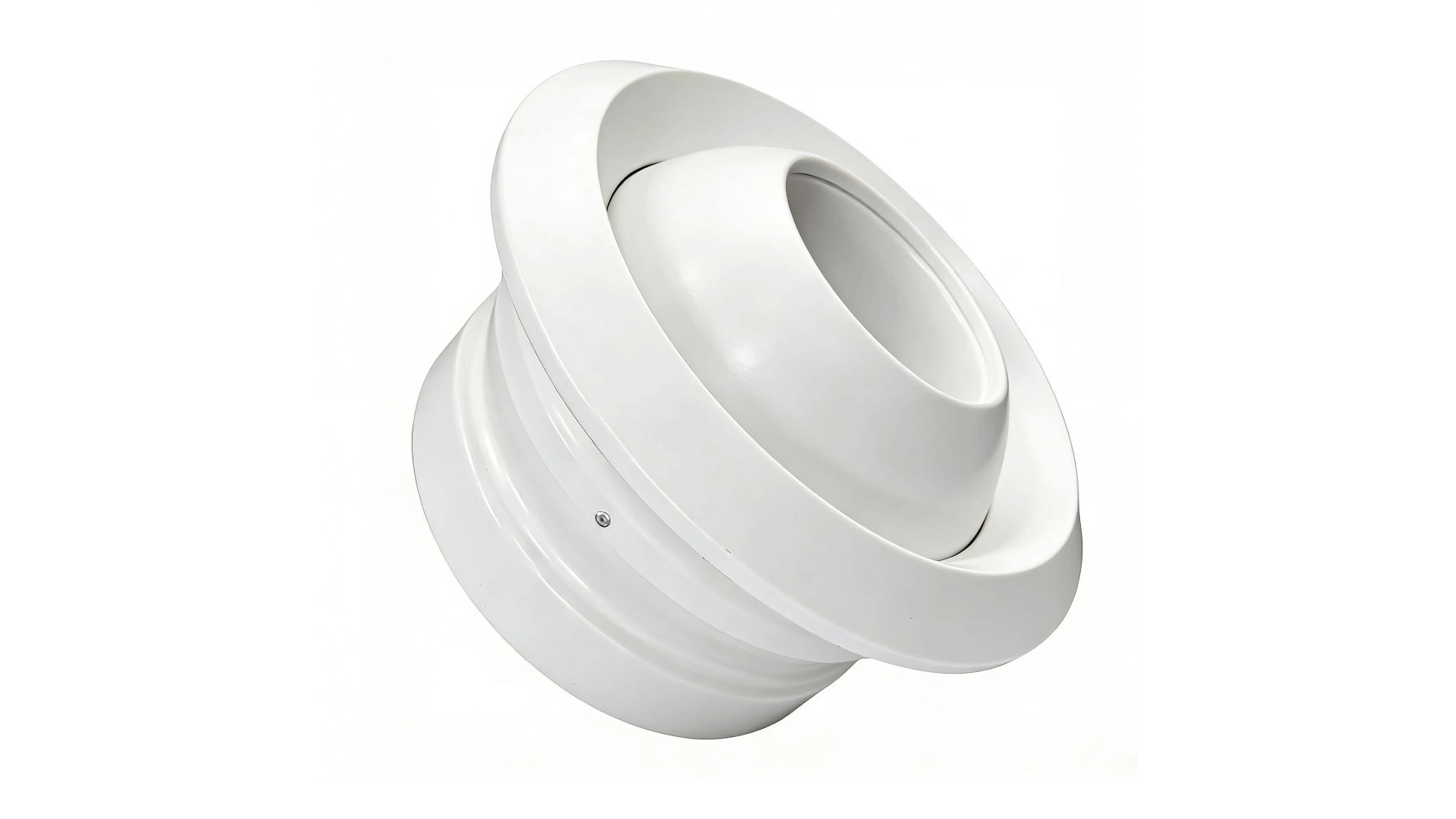

An ABS Ball Jet Nozzle is typically composed of several structural components that collectively determine its directional adjustability and airflow performance. Here is the translation of your breakdown:
1. Spherical Nozzle Body
The core of the jet nozzle is its spherical design. This structure allows the nozzle to rotate within its fixed frame, enabling the airflow direction to be adjusted based on specific site requirements. Compared to fixed diffusers, this spherical geometry maintains high flexibility after installation, making it exceptionally practical during the system commissioning phase.
2. External Fixing Frame
The spherical nozzle is usually housed within a circular or square fixing frame. This frame connects to the HVAC ductwork and provides stable support for the sphere. Beyond ensuring a secure installation, the frame serves as the structural foundation that facilitates the rotation of the ball.
3. Internal Guide Structure
Some ABS ball nozzles feature internal vanes or airflow rectifiers. These are designed to stabilize the air entering the nozzle, minimizing turbulence and enhancing the stability and "throw" of the jet stream.
4. Adjustment Mechanism
By manually rotating the sphere, the discharge direction can be repositioned. Most products offer an adjustment range typically between ±30° and ±45°. This adaptability allows the nozzle to suit various spatial layouts and ventilation needs, which is particularly advantageous in large, open-plan environments.
In HVAC supply air systems, the choice of nozzle material is of paramount importance. ABS engineering plastic, known for its stable comprehensive properties, has become a preferred material for many supply air nozzle products.
Lightweight Structure
Compared to traditional metal air outlets, ABS material is significantly lighter, making it more convenient during installation and transportation. For large-scale buildings requiring a high volume of air outlets, this lightweight characteristic helps reduce overall construction difficulty.
Excellent Corrosion Resistance
During the operation of air conditioning systems, the air may contain certain levels of humidity, and condensation can occur. ABS material offers high resistance to moist environments and is not prone to corrosion or rust.
Clean and Aesthetic Appearance
The surface of ABS material is relatively smooth and can be treated with various finishing processes. Consequently, it is widely used in locations with high aesthetic standards, such as shopping malls, airports, or exhibition centers.
High Processing Flexibility
ABS possesses excellent molding properties, allowing for the manufacture of supply air nozzles in various sizes and structural forms to meet different airflow and velocity requirements.
Note: However, in certain high-temperature or specialized industrial environments, aluminum alloy or steel nozzles may still be used. Therefore, the specific material should be selected based on the unique requirements of each project.
ABS Ball Jet Nozzle are primarily designed for concentrated jet discharge, and their operating principle differs significantly from that of standard diffusers.
Core Mechanism
When the central air conditioning system is in operation, treated air is transported through ducts to the nozzle, creating a high-velocity airflow at the outlet. Due to the restricted discharge area, the air forms a concentrated jet as it exits, allowing the airflow to be projected over long distances.
As this jet enters the indoor space, it gradually entrains and mixes with the surrounding ambient air. During this diffusion process, the air velocity decreases, eventually achieving uniform air distribution throughout the environment.
Directional Adjustability
By adjusting the orientation of the spherical nozzle, the direction of the jet can be altered to deliver air more accurately to target zones. For example:
Directing airflow toward occupant activity areas.
Avoiding direct drafts on fixed seating areas.
Adjusting the coverage range of the airflow.
This adjustable supply method offers distinct advantages in high-ceiling buildings, such as theaters, gymnasiums, or industrial halls.
In HVAC systems, ABS ball jet nozzles play a crucial role in air delivery and airflow organization.
Long-distance air delivery: The spherical nozzle creates a concentrated airflow jet, allowing air to be delivered to distant areas. In buildings with high ceilings or large spaces, this air delivery method effectively increases air coverage.
Airflow direction adjustment: By rotating the spherical nozzle, the airflow direction can be flexibly adjusted, allowing the airflow to better adapt to the building's spatial layout. For example, in lobbies, exhibition halls, or atriums, the airflow angle can be adjusted according to actual needs.
Optimized air distribution: In large spaces, by strategically arranging multiple spherical nozzles, a more uniform airflow distribution can be created, thereby reducing localized temperature differences.
Enhanced indoor comfort: Good airflow organization reduces air stratification, resulting in a more uniform indoor temperature distribution and thus improving overall environmental comfort.
ABS Ball Jet Nozzleare typically used in architectural environments with large ceiling heights and long-distance air delivery requirements.
Airport Terminals: Terminal halls have large spaces where ordinary diffusers struggle to deliver air over long distances, while spherical nozzles can deliver air to more distant areas.
Train Station Waiting Halls: Waiting halls usually have high ceilings; using spherical air delivery nozzles improves airflow organization and makes air distribution more even.
Gymnasiums and Large Venues: In gymnasiums or large event venues, air delivery systems covering large spaces are required, and spherical nozzles can meet this need.
Exhibition Centers: Exhibition hall layouts are varied; adjustable nozzles can be tailored to the specific layout of the exhibition space.
Large Shopping Malls: In atriums or open-plan commercial spaces, spherical air delivery nozzles can help achieve long-distance air delivery.
When designing or selecting HVAC systems, it's crucial to choose the appropriate nozzle specifications based on specific project conditions. Several key parameters typically need attention:
Nozzle Diameter: Nozzle size directly affects airflow and jet velocity; different spaces require different nozzle sizes.
Supply Air Volume: Supply air volume determines air delivery capacity and needs to be matched to the system's airflow calculations.
Jet Distance: Jet distance is a vital indicator of nozzle performance, especially critical in tall, open spaces.
Adjustable Angle Range: Different nozzle designs offer varying directional adjustment ranges, impacting the flexibility of airflow organization.
Installation Method: Nozzles are typically installed within ductwork or wall structures; therefore, the installation method must be compatible with the building design.
In actual engineering projects, a comprehensive selection process is usually required, considering the building's height, supply distance, and airflow requirements.
In HVAC systems of large buildings, a proper air distribution method is crucial for improving indoor environmental quality. ABS Ball Jet Nozzles, with their adjustable airflow direction and excellent long-distance air delivery capability, have become an important component in air supply systems for large spaces.
If you are looking for high-quality ABS Ball Jet Nozzle products, please contact Xinhou. We can provide suitable product solutions based on your project needs, helping you achieve a more efficient and stable air distribution system.
