Author: Site Editor Publish Time: 09-20-2024 Origin: Site

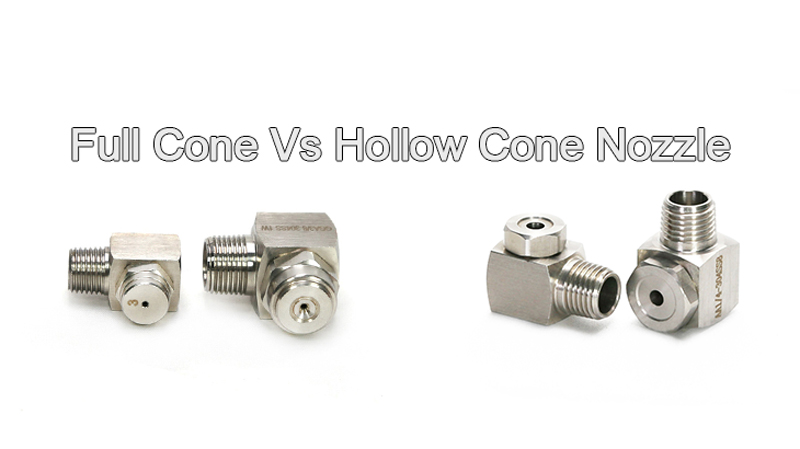

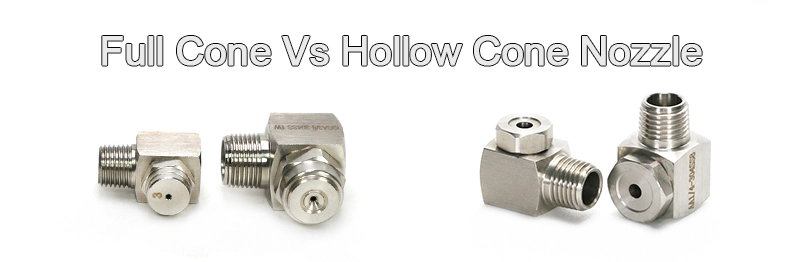

Nozzles are essential components in many industrial, agricultural, food, automotive and other industry applications. They are used for spraying and atomizing various liquids and gases. There are also various types and designs of nozzles, such as solid cone nozzles and Hollow cone nozzles are two common nozzle types. Both are conical, but play different roles and effects. Each has unique characteristics and advantages.
Full cone spray nozzle:
The outlet of the solid cone nozzle is an integral closed structure, and it is solid from the nozzle inlet to the outlet.
Hollow cone spray nozzle:
The outlet of the hollow cone nozzle is hollow in the middle, forming a hollow geometric shape.
Full cone nozzle:
The full cone nozzle has high impact and can effectively remove dirt or cool surfaces.
Hollow cone nozzle:
Although the hollow cone nozzle does not have a high impact, it has a large coverage area and can spray liquid or atomized substances evenly.
Full cone nozzle:
Because the interior of the solid cone nozzle is solid in design, the jet will eject the fluid in a solid form, and the jet cone angle is usually between 15 degrees and 120 degrees.
Hollow cone nozzle:
The hollow cone nozzle will form a hollow injection area during the injection process, and the injection cone angle is usually between 43 degrees and 180 degrees.
Full cone spray nozzle:
Full cone sprays are better suited for applications requiring high impact, such as cleaning, cooling and spraying.
Hollow cone nozzle:
Hollow cone nozzles are more suitable for applications that require large coverage areas and good atomization effects, such as spraying, atomizing and humidification.
Differences | Hollow cone nozzle | hollow conical liquid flow |
Injection method | solid conical liquid flow | hollow conical liquid flow |
Impact | higher | lower |
Coverage area | smaller | Larger |
Atomization effect | weaker | better |
Application scenarios | Cleaning, cooling, spraying, dust removal | Spray, atomize, humidify, fire extinguishing |
price | higher | cheaper |
Material | plastic, stainless steel brass | plastic, stainless steel, brass |
Both full cone nozzles and hollow cone nozzles are important spray tools. Choosing the appropriate nozzle type can effectively improve production efficiency. Through the above content, I believe you can choose the most suitable one between full cone nozzles and hollow cone nozzles.
Of course, for more industries and engineering requirements, your choice may not be limited to solid cone nozzles and hollow cone nozzles. In addition to these two nozzle types, there are many other types of nozzles to choose from, such as Fan nozzles, flat nozzles, atomizing nozzles, spiral nozzles, etc. These nozzles also have excellent characteristics and multi-functional effects. You can contact the nozzle manufacturer to obtain the most professional and complete nozzle solution.
