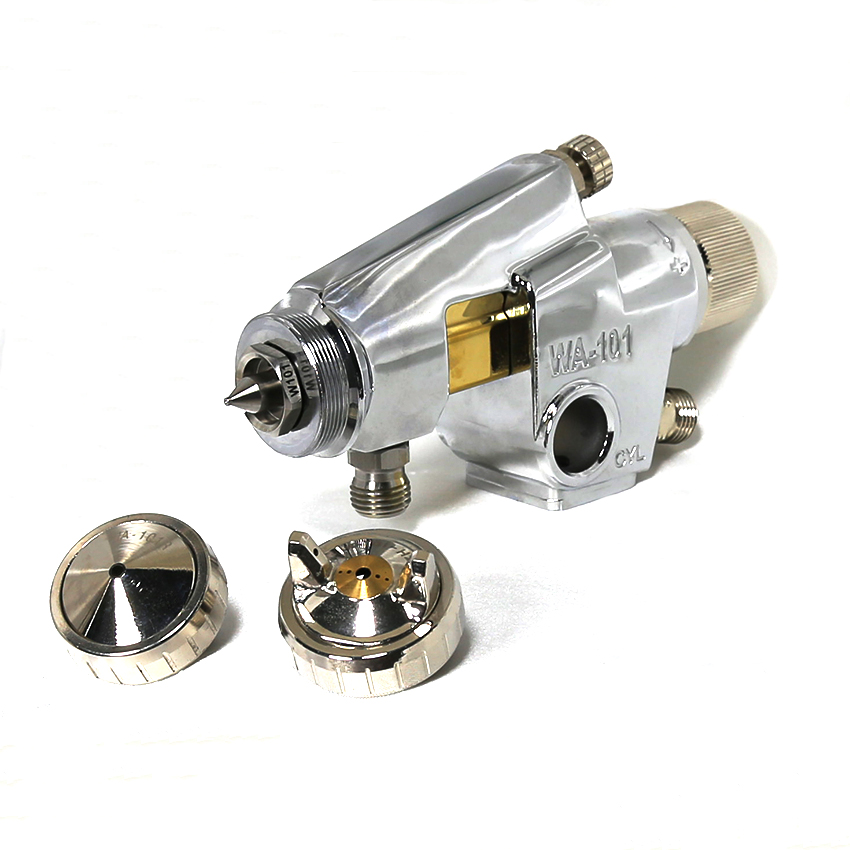

WA-101 WA200 Automatic Spray Gun

The WA-101 Small Hole Automatic Spray Gun is suitable for painting on small objects. The WA200 has a large orifice and is suitable for paiting large objects, and is commonly used in automatic paiting machines and paiting robots. This spray gun is also widely used, such as spraying wood, ceramics, hardware, toys, plastic products, furniture, handicrafts, etc.

Material
● Stainless Steel
Availability:
Product Description

WA101 WA200 AUTOMATIC SPRAY GUNS

The WA-101 Small Hole Automatic Spray Gun is suitable for painting on small objects. The WA200 has a large orifice and is suitable for paiting large objects, and is commonly used in automatic paiting machines and paiting robots. This spray gun is also widely used, such as spraying wood, ceramics, hardware, toys, plastic products, furniture, handicrafts, etc.




Description
Model WA101,WA200
Spray pattern WA101,WA200 Automatic Spray Guns
Orifice diameter(mm) 0.8/1.0/1.3/1.5/2.0/2.5
Air pressure 0.29(3.0)Mpa water spray gun
Air Consumption 100-700 Liters Per Minute
Spray distance 200-500MM
Cup Volume 560ml
Application Ideal to spray wood,ceramics,hardware,toy,plastic item,furniture,craft etc.Especially for ceramics glaze spraying and abrasive grind material.
Delivery time 4 days after payment being confirmed
Payment Western union, Paypal, T/T, Visa, Our bank account, online payment



General Applications

•Painting

•Coating

•Lubricating

•Oil spraying




Design Features

Features:

• Our WA-101 WA200 Automatic Spray Gun has perfect atomization effect and wide spray width which save your paiting cost and ensure your paiting quality.

• WA-101 Automatic Spray Gun with small orifice is suitable for painting on small objects. WA200 with bigger orifice is suitable for big objects paiting, and is often used on automatic paiting machine and paiting robot .

• The material of needle and spray tip are 316 stainless steel which is wearing and corrosion resistance.

• WA-101 Automatic Spray Gun has high requirement for the air supply. So we suggest you install Pressure regulating filter. To adjust the air pressure at around 0.3 Mpa to 0.4 Mpa, at the same time the water and oil in the air will be filtered. It will highly improve the paiting quality.



Product Details

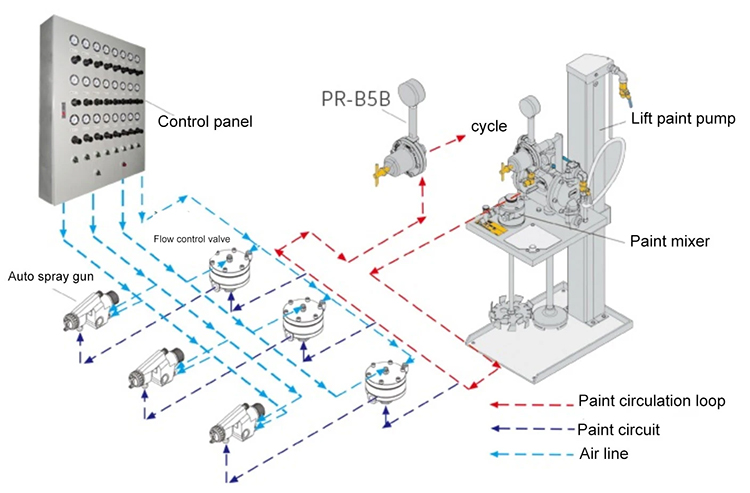

图片3图片4图片5图片6图片7图片8图片9 副本



Performance Data

Model No. Painting Feeding Method Orifice dia. (mm) Spray distance (mm) Working pressure (Mpa) Air consumption    (L/min) Liquid capacity (ml/min) Max spray width     ((mm) Air cap model No.
WA-101-082P Pressure  / Siphon 0.8 200 0.29 270 150 190 E2P
WA-101-101P 1.0 90 100 140 E1
WA-101-102P 1.0 270 200 220 E2P
WA-101-132P 1.3
260 250 230 H2
WA-101-152P 1.5
330 270 260 H2
WA-101-182P 1.8
350 330 280 H2
WA-200-122P 1.2 250 530 500 400 G2P
WA-200-152P 1.5 330 270 340 K2
WA-200-202P 2.0 360 400 320 R2
WA-200-251P 2.5 360 500 330 W1
WRA-101-082P 0.8 200 0.26 270 150 190 E2P
