V Narrow Angle deflector FLAT FAN NOZZLES
Unigue deflecting process design, the large and unobstructed deflecting channel can reduce the blocking phenomenon toa certain extent. When the water droplets are ejected from the nozzle hole, they are rapidly ejected through the diversionsurface, forming a narrow-Angle fan-shaped spray shape with high impact force and a certain deflecting Angleat the nozzle axis.
Description | |
Model | V |
Spray pattern | Narrow Angle Flat Fan Nozzles |
Thread size | 1/8'', 1/4'', 3/8'', 1/2'', 3/4'' |
Working pressure | 0.3 bar to 35 bar |
Flow Rate | 0.047-4720L/min |
Spray angle | From 15° to 65° |
Application Industries | Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Construction works , Energy & Mining, Cleaning, cooling, washing |
Delivery time | 4 days after payment being confirmed |
Payment | Western union, Paypal, T/T, Visa, Our bank account, online payment |
General Applications
● Cleaning gravel
● Degreasing
● Fruit/vegetable washing
● High impact washing
● Paper machine frame spraying
Design Features
Features:
● Spray shape has a clear and definite edge
● Provides higher impact than other narrow angle nozzles
● Deflected type flat fan spray pattern
● Ideal for conveyor cleaning
● Spray angles from 15° to 50°
● Uniform distribution with medium sized droplets
● The QLVA quick connect design allows for quick and easy installation and automatic calibration with a simple 1/4 turn without tools.

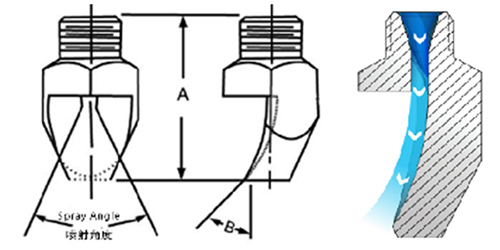

Nozzle Dimension
As liquid passes through the nozzle, it hits the deflector surface and spreads out to form a flat spray pattern
The distribution is even from the center of the spray. The combination of medium-to large-flow rates and narrow spray angles produce a high impact spray.
Performance Data
Spray angle at 3 bar | Thread Size | Flow Code | Orifice Dia. (mm) | Flow Rate ( L/min) | Spray angle | A (mm) | B Deflection angle | |||||||||||||
1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar | 6 bar | 7 bar | 10 bar | 1 bar | 3 bar | 7 bar | |||||
50° | ● | 05 | 1.3 | 1.1 | 1.6 | 2.0 | 2.3 | 2.6 | 2.8 | 3.0 | 3.6 | 33° | 50° | 60° | 31 | 60° | ||||
● | 10 | 1.9 | 2.3 | 3.2 | 3.9 | 4.6 | 5.1 | 5.6 | 6.0 | 7.2 | 34° | 50° | 60° | 31 | 60° | |||||
● | ● | 25 | 3.0 | 5.7 | 8.1 | 9.9 | 11.4 | 12.7 | 14.0 | 15.1 | 18.0 | 42° | 50° | 59° | 41.5 | 42° | ||||
● | ● | 40 | 3.8 | 9.1 | 12.9 | 15.8 | 18.2 | 20 | 22 | 24 | 29 | 39° | 50° | 60° | 47 | 45° | ||||
● | 60 | 4.6 | 13.7 | 19.3 | 24 | 27 | 31 | 33 | 36 | 43 | 42° | 50° | 53° | 55 | 37° | |||||
● | 100 | 5.9 | 23 | 32 | 39 | 46 | 51 | 56 | 60 | 72 | 43° | 50° | 55° | 72 | 40° | |||||
● | 125 | 6.6 | 28 | 40 | 49 | 57 | 64 | 70 | 75 | 90 | 38° | 50° | 55° | 72 | 38° | |||||
● | 160 | 7.5 | 36 | 52 | 63 | 73 | 80 | 89 | 96 | 115 | 44° | 50° | 55° | 72 | 37° | |||||
● | 200 | 8.4 | 46 | 64 | 79 | 91 | 102 | 112 | 121 | 144 | 46° | 50° | 53° | 72 | 32° | |||||
40° | ● | 40 | 3.8 | 9.1 | 12.9 | 15.8 | 18.2 | 20 | 22 | 24 | 29 | 31° | 40° | 50° | 60.5 | 35° | ||||
● | 50 | 4.2 | 11.4 | 16.1 | 19.7 | 23 | 25 | 28 | 30 | 36 | 31° | 40° | 49° | 63.5 | 33° | |||||
● | 60 | 4.6 | 13.7 | 19.3 | 24 | 27 | 31 | 33 | 36 | 43 | 32° | 40° | 49° | 72 | 33° | |||||
● | 70 | 5.0 | 16.0 | 23 | 28 | 32 | 36 | 39 | 42 | 50 | 32° | 40° | 49° | 75.5 | 29° | |||||
● | 80 | 5.3 | 18.2 | 26 | 32 | 36 | 41 | 45 | 48 | 58 | 32° | 40° | 48° | 77 | 26° | |||||
● | 90 | 5.6 | 21 | 29 | 36 | 41 | 46 | 50 | 54 | 65 | 34° | 40° | 44° | 77 | 28° | |||||
● | 100 | 5.9 | 23 | 32 | 39 | 46 | 51 | 56 | 60 | 72 | 35° | 40° | 44° | 86.5 | 28° | |||||
35° | ● | 04 | 1.2 | 0.91 | 1.3 | 1.6 | 1.8 | 2.0 | 2.2 | 2.4 | 2.9 | 20° | 35° | 41° | 23 | 40° | ||||
● | 10 | 1.9 | 2.3 | 3.2 | 3.9 | 4.6 | 5.1 | 5.6 | 6.0 | 7.2 | 18° | 35° | 39° | 36.5 | 36° | |||||
● | ● | 20 | 2.7 | 4.6 | 6.4 | 7.9 | 9.1 | 10.2 | 11.2 | 12.1 | 14.4 | 24° | 35° | 39° | 42 | 30° | ||||
● | 25 | 3.0 | 5.7 | 8.1 | 9.9 | 11.4 | 12.7 | 14.0 | 15.1 | 18.0 | 24° | 35° | 39° | 49 | 28° | |||||
● | 30 | 3.3 | 6.8 | 9.7 | 11.8 | 13.7 | 15.3 | 16.8 | 18.1 | 22 | 26° | 35° | 39° | 52.5 | 28° | |||||
● | 40 | 3.8 | 9.1 | 12.9 | 15.8 | 18.2 | 20 | 22 | 24 | 29 | 28° | 35° | 38° | 58 | 26° | |||||
● | 50 | 4.2 | 11.4 | 16.1 | 19.7 | 23 | 25 | 28 | 30 | 36 | 31° | 35° | 38° | 63.5 | 23° | |||||
● | 60 | 4.6 | 13.7 | 19.3 | 24 | 27 | 31 | 33 | 36 | 43 | 29° | 35° | 39° | 73 | 27° | |||||
● | 80 | 5.3 | 18.2 | 26 | 32 | 36 | 41 | 45 | 48 | 58 | 26° | 35° | 40° | 81 | 24° | |||||
● | 100 | 5.9 | 23 | 32 | 39 | 46 | 51 | 56 | 60 | 72 | 26° | 35° | 40° | 89 | 19° | |||||
● | 160 | 7.5 | 36 | 52 | 63 | 73 | 82 | 89 | 96 | 115 | 26° | 35° | 40° | 114 | 23° | |||||
● | 200 | 8.4 | 46 | 64 | 79 | 91 | 102 | 112 | 121 | 144 | 25° | 35° | 40° | 122 | 22° | |||||
25° | ● | 40 | 3.8 | 9.1 | 12.9 | 15.8 | 18.2 | 20 | 22 | 24 | 29 | 15° | 25° | 34° | 65 | 25° | ||||
15° | ● | 10 | 1.9 | 2.3 | 3.2 | 3.9 | 4.6 | 5.1 | 5.6 | 6.0 | 7.2 | 15° | 23° | 47.5 | 22° | |||||
● | 20 | 2.7 | 4.6 | 6.4 | 7.9 | 9.1 | 10.2 | 11.2 | 12.1 | 14.4 | 15° | 19° | 54 | 19° | ||||||
● | 30 | 3.3 | 6.8 | 9.7 | 11.8 | 13.7 | 15.3 | 16.8 | 18.1 | 22 | 6° | 15° | 24° | 72 | 25° | |||||
● | 40 | 3.8 | 9.1 | 12.9 | 15.8 | 18.2 | 20 | 22 | 24 | 29 | 8° | 15° | 21° | 92 | 18° | |||||
● | 50 | 4.2 | 11.4 | 16.1 | 19.7 | 23 | 25 | 28 | 30 | 36 | 9° | 15° | 20° | 90.5 | 15° | |||||
● | 60 | 4.6 | 13.7 | 19.3 | 24 | 27 | 31 | 33 | 36 | 43 | 10° | 15° | 19° | 125 | 14° | |||||
● | 80 | 5.3 | 18.2 | 26 | 32 | 36 | 41 | 45 | 48 | 58 | 11° | 15° | 18° | 130 | 14° | |||||
● | 100 | 5.9 | 23 | 32 | 39 | 46 | 51 | 56 | 60 | 72 | 11° | 15° | 18° | 131 | 14° | |||||
● | 200 | 8.4 | 46 | 64 | 79 | 91 | 102 | 112 | 121 | 144 | 12° | 15° | 18° | 191 | 14° |
