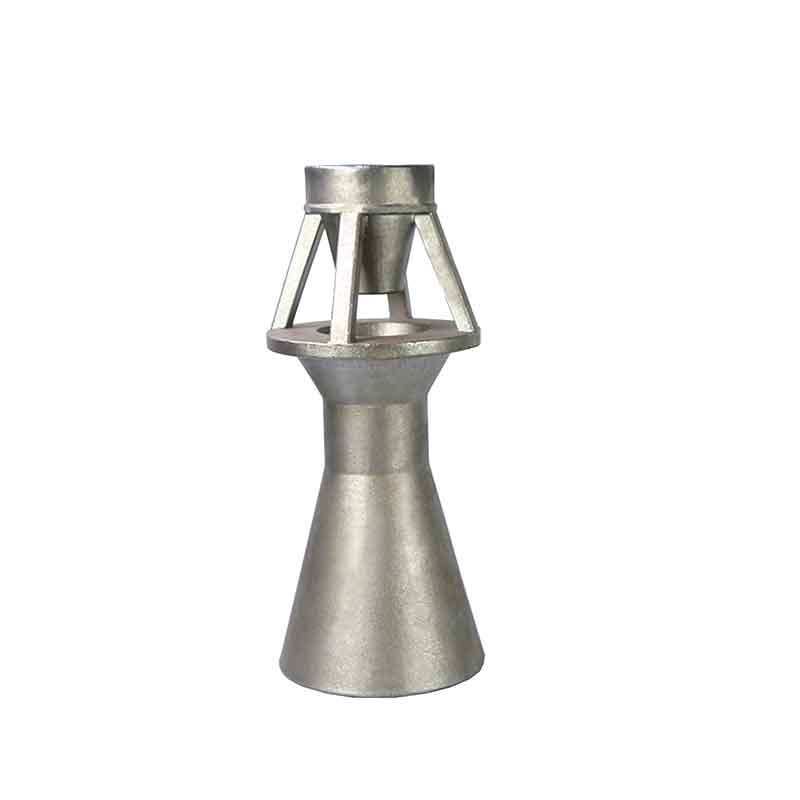

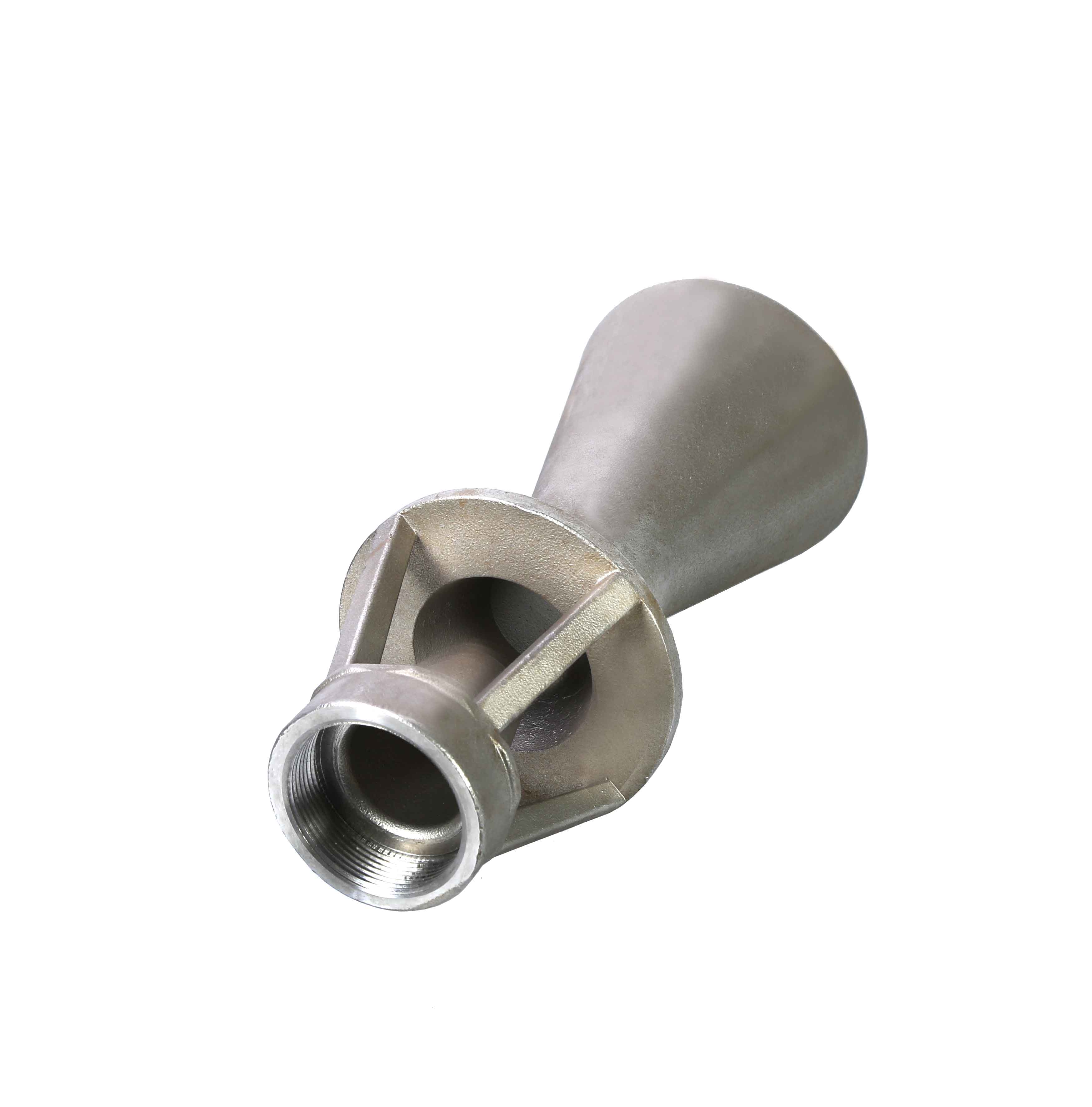

Stainless Steel Venturi Tank Mixing Eductor Nozzles

Stainless steel material is offered in 304SS or 316SS, both capable of withstanding extreme temperatures in harsh environments.

Material
● 304 Stainless steel
● 316 stainless steel
● Plastic (PP, PVDF, PE)
Availability:
Product Description

STAINLESS STEEL VENTURI TANK MIXING EDUCTOR NOZZLES

Stainless steel material is offered in 304SS or 316SS, both capable of withstanding extreme temperatures in harsh environments.




Description
Model Mixing Eductor Nozzles
Spray pattern Stainless Steel Venturi Tank Mixing Eductor Nozzles
Thread size 1/4’’; 3/8’’ ; 1/2’’ ; 3/4’’ ; 1’’ ; 1-1/2’’
Working pressure 0.5-4 bar
Flow Rate 7.2-620L/min
Spray angle From 0° to 82°
Application Liquid mixing, solution agitation
Delivery time 4 days after payment being confirmed
Payment Western union, Paypal, T/T, Visa, Our bank account, online payment



General Applications

● Electrophoresis tank liquid stirring

● Fire protection water storage tanks

● General particle agitation

● Material injection and mixing

● Waste water treatment plants

● Oil and gas storage tanks

● Drinking water holding tanks and reservoirs

● Cooling towers and decorative fountains

● Tank blending of oils

● Tank Mixing Eductor in batch mixing application

● Maintain solids in suspension




Design Features





Features:

● Provides Circulation and agitation in liquid rinsing and coating tanks

● Allows smaller pumps to circulate large volumes of liquid

●  Large flow opening minimizes plugging and clogging

● Manufactured of Polypropylene or investment cast, 304 or 316 stainless steel for excellent corrosion chemical resistance and durability

● Available in 1/4'', 3/8'', 1/2'', 3/4'', 1'' and 1 1/2'' BSP inlet connections.





Performance Data

Approx. flow rate Model No. Inlet Thread size  (BSP) Orifice Dia. Dimension Inlet Liquid Pressure
D d L 0.5 1 1.5 2 2.5 3 3.5 4
(mm) (mm) (mm) (mm) bar bar bar bar bar bar bar bar
Inlet Flow Rate          ''A''                ( l/ min ) E -1/4-1 1/4'' 3 48 33 95 7.2 10.6 13 16 17 20 24 26
E- 1/4-2 5 32 22.5 69 11.3 16 19.5 23 25 28 30 32
E -3/8 3/8' 8 52 38 103 29 42 51 59 65 70 77 82
E- 1/2 1/2'' 9 66.5 48 146 36 53 62 72 83 88 97 103
E - 3/4 3/4'' 10 75 56.5 161 43 64 74 85 97 106 116 124
E - 1 1'' 12 102 71 215 54 96 100 107 122 134 146 156
E - 1 1/2 1 1/2'' 14 112 75.5 252 106 151 184 215 243 259 288 308
Entrained Liquid         ''B''             ( l/ min ) E -1/4-1 1/4'' 3


26 36 45 52 58 63 68 73
E- 1/4-2 5 42 59 72 84 93 102 110 118
E -3/8 3/8' 8 116 168 204 236 260 280 308 328
E- 1/2 1/2'' 9 131 212 251 288 324 352 386 421
E - 3/4 3/4'' 10 172 256 298 340 388 424 464 496
E - 1 1'' 12 217 384 390 428 489 534 585 625
E - 1 1/2 1 1/2'' 14 424 604 736 860 972 1036 1152 1232
Circulation Rate      ''A''+''B''   ( l/ min ) E -1/4-1 1/4'' 3 33.2 46.6 58 68 75 83 92 99
E- 1/4-2 5 53.3 75 91.5 107 118 130 140 150
E -3/8 3/8' 8 145 210 255 295 325 350 385 410
E- 1/2 1/2'' 9 180 265 313 360 405 440 482 515
E - 3/4 3/4'' 10 215 320 370 425 485 530 580 620
E - 1 1'' 12 342 480 490 536 611 668 731 781
E - 1 1/2 1 1/2'' 14 530 755 920 1075 1215 1295 1440 1540
