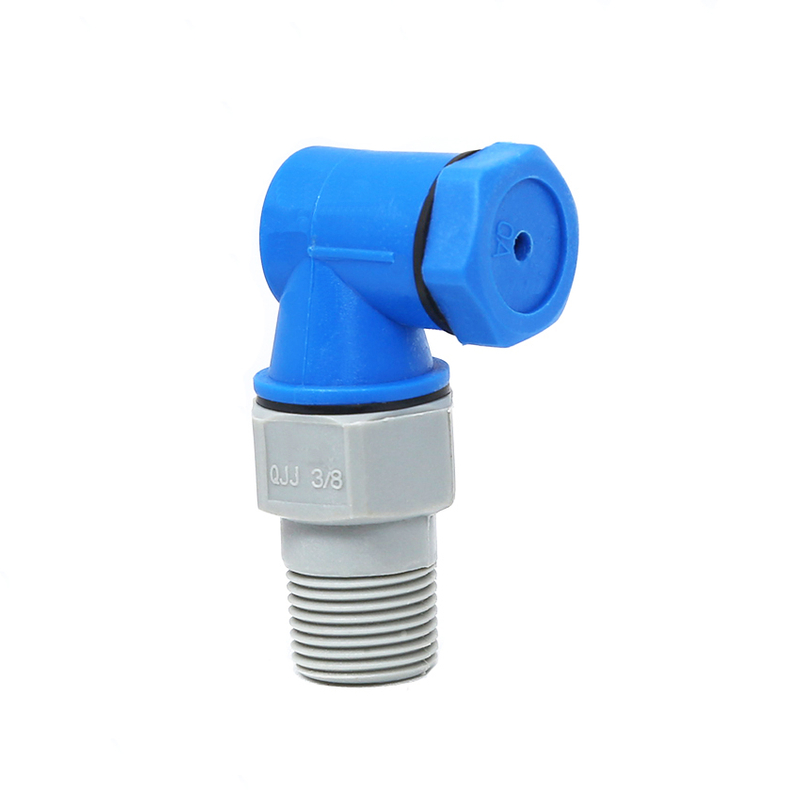

Quick Release Hollow Cone Nozzles

The quick-connect nozzle is made of plastic injection molding. The scientific design of the quick-release system makes the installation and removal of the nozzle quick and easy. The nozzle and base can be separated quickly and effortlessly. You can complete the disassembly and installation work in a few seconds without any tools. This time also eliminates human factors such as washout and loss caused by twisting the nozzle into place. The industrial quick-release nozzle has the advantages of high strength, wear resistance and chemical corrosion resistance, and can prevent the flushing fluid from clumping and accumulation. Suitable for flushing, rinsing and cleaning application requirements of dry phosphates, acids, solvents and other corrosive solutions. There are various specifications, PPR, PVDF, PVC and other materials are available, and there are a variety of flow rates and angles to choose from.

Material
● Plastic (PP)
Availability:
Product Description

QUICK RELEASE HOLLOW CONE NOZZLES

The quick-connect nozzle is made of plastic injection molding. The scientific design of the quick-release system makes the installation and removal of the nozzle quick and easy. The nozzle and base can be separated quickly and effortlessly. You can complete the disassembly and installation work in a few seconds without any tools. This time also eliminates human factors such as washout and loss caused by twisting the nozzle into place. The industrial quick-release nozzle has the advantages of high strength, wear resistance and chemical corrosion resistance, and can prevent the flushing fluid from clumping and accumulation. Suitable for flushing, rinsing and cleaning application requirements of dry phosphates, acids, solvents and other corrosive solutions. There are various specifications, PPR, PVDF, PVC and other materials are available, and there are a variety of flow rates and angles to choose from.




Description
Model Quick-connect nozzle
Spray pattern Quick release hollow cone nozzles
Thread size 1/8",1/4",3/8"
Working pressure 0.5 to 6 bar
Flow Rate 0.97-12.1L/min
Spray angle From 50° to 80°
Application Suitable for washing phosphate, acid, solvent and other corrosive solutions,Production of printed circuit boards;Product cleaning, rinsing, Phosphating metal parts;cooling;humidification;Chemical manufacturing;Dust extinguishing control
Delivery time 4 days after payment being confirmed
Payment Western union, Paypal, T/T, Visa, Our bank account, online payment



General Applications

● Production of print circuit board

● Cleaning or rinsing

● Phosphating of metal components

● Humidifying

● Chemical manufacturing

● Dedusting,dust control



Design Features


Features:

● Quick-connect nozzle adopt new design.Body and spray tip can be quickly detached without any tools,which reduce much maintenance time.There is a builtin link stopper inside spraytip which make sure to fix precise location when connecting with the body.lt avoid wasting time to adjust by hand.

● Quick-connect nozzle made by new design,adopt glass fiber reinforced polypropylene(fiber content:25%) and PVDF.Both have advantage of resisitance to chemical corrosion and abrasive wear.Glass fiber reinfotrced polypropylene max operating temperature is 82℃ CPVDF is a high purity material,which can keep highly purified processing enviroment and max operating temperature is 148℃.

● The quick-connect nozzle has three size 1 /8",1/4" and 3/4". The Nitrile rubber O ring can make sure absolute seal between body and spray tip.The spray tip can provide three typesof spraying,Flat fan,full cone and hollow cone,with several flow rate and angle for you rchoices.



Spray Effect


Performance Data

Hollow Cone

Style No. Flow rate  ( l /m ) Spray angle
0.5bar 1b ar 1.5bar 2bar 3bar 4bar 5bar 6bar 7bar 0.5bar 1.5bar 6bar
QA3 0.97 1.4 1.7 1.9 2.4 2.7 3.1 3.3 3.6 55° 79° 80°
QA5 1.6 2.3 2.8 3.2 3.9 4.6 5.1 5.6 6.0 70° 75° 79°
QA8 2.6 3.6 4.5 5.2 6.3 7.3 8.2 8.9 9.6 65° 72° 74°
Hollow cone pattern QA10 3.2 4.6 5.6 6.4 7.9 9.1 10.2 11.2 12.1 70° 76° 75°


Nozzle body    No. Thread size
QJJ 1/8'' 1/8''
QJJ 1/4'' 1/4''
QJJ 3/8'' 3/8''
body QJJB 1/4'' 1/4''  (Hollow cone)
