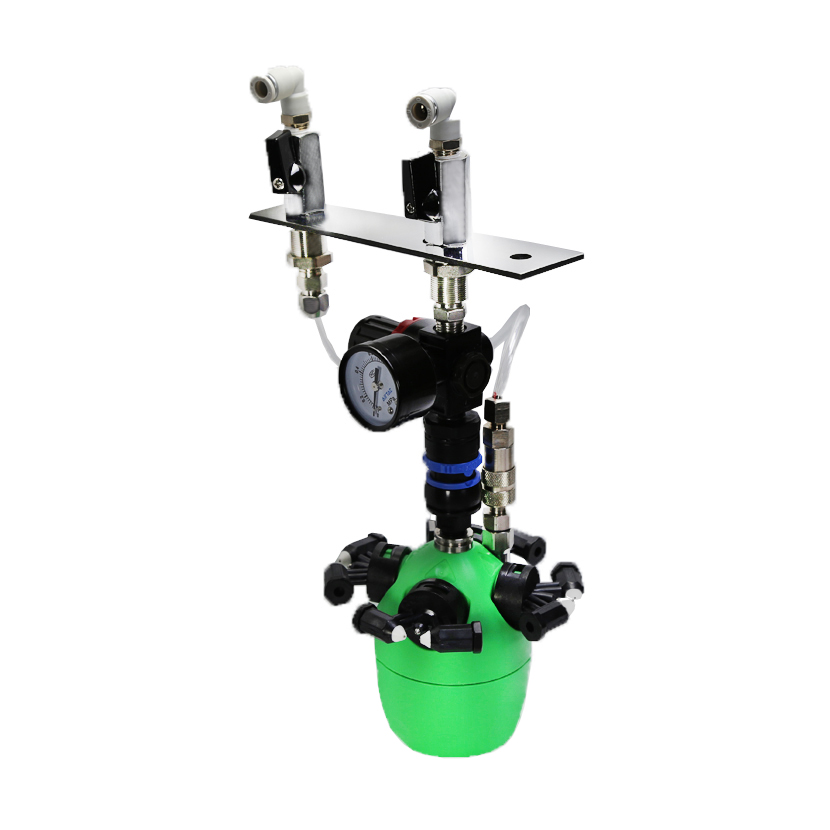

Portable Humidifier dry fog Air Atomizing Nozzles

Portable Humidifier dry fog Air Atomizing Nozzles’ spraying can reach distance of 5-6 meters Can meet the requirement of humidifying or cooling for a space of 100 square meters The fog produced by the portable humidifier dry fog air atomizing nozzles can float in the air without wetting the ground.
Availability:
Product Description

Portable Humidifier dry fog Air Atomizing Nozzles

Portable Humidifier dry fog Air Atomizing Nozzles’ spraying can reach distance of 5-6 meters Can meet the requirement of humidifying or cooling for a space of 100 square meters The fog produced by the portable humidifier dry fog air atomizing nozzles can float in the air without wetting the ground.



Turn the quick-connect nozzles' retainer at an angle of 45o, and the  nozzles will be installed  and removed easily


Two degrees of air atomzing design  produces fine fog with average 10 μm

---  First time atomizing spray is through the mix of air and liquid

--- Second time atomization is through the air spray at the side



Description
Model HM
Spray distance 5 to 6 meters



Performance data

Style No. Number of nozzles Air pressure : 3 bar
Liquid capacity Air capacity
( L/h) ( l / m)
HM-1 1 2.4 29
HM-2 2 4.8 58
HM-3 3 7.2 87
HM-4 4 9.6 116



Features:

● Portable Humidifier dry fog Air Atomizing Spray Nozzles’ spraying can reach a distance of 5-6 meters.

● Can meet the requirement of humidifying or cooling for a space of 100 square meters.

● The fog produced by the portable humidifier dry fog air atomizing spray nozzles can float in the air without wetting the ground.

● The spray is finely atomized, mist or fog spray, and not easy to come to clog.

● Portable Humidifier dry fog Air Atomizing Nozzles are easy to install and the humidifying area can be evenly covered.

● Air pressure is usually 2 -3 bar.


General Applications

• Coating, cooling, humidifying

• Gas cooling

• Lubricating, moistening

• Misting, fogging

• Dust suppression
