Plastic Low Pressure Fog Misting Nozzles

This series of misting nozzles do not need air supply. The system is simple; the spray mist is fine, full atomization, energy saving.
Liquid requirements: There will be residual impurities in the liquid under high pressure, and a filter must be installed to achieve a purity similar to that of household drinking water.

Material
● PP ( Polypropylene )
Availability:
Product Description

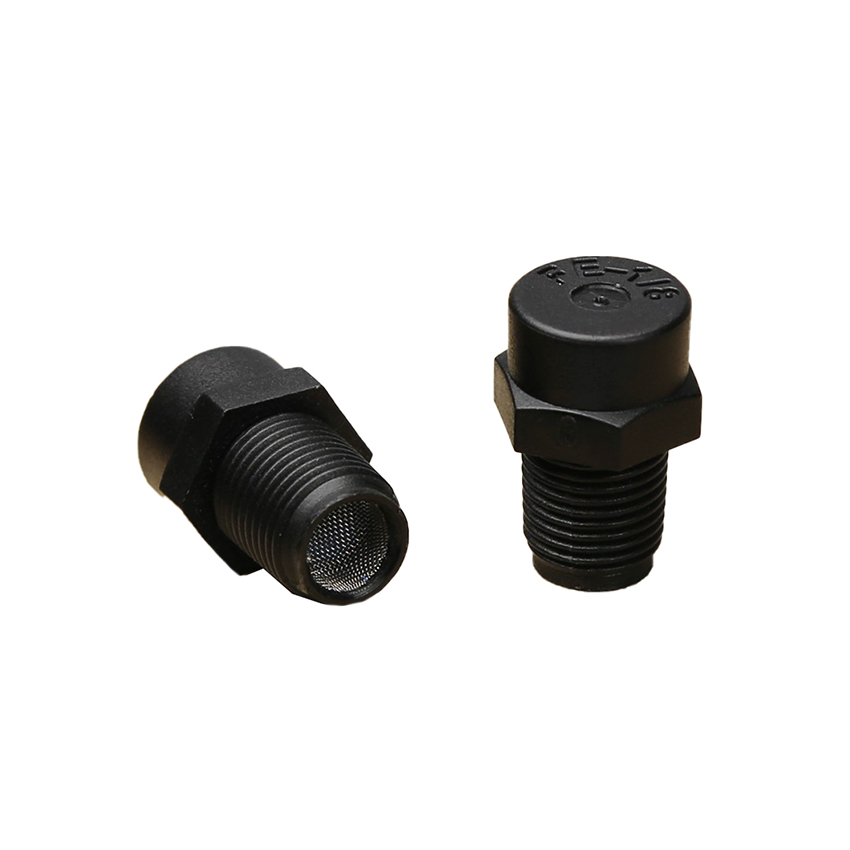

Plastic Low Pressure Fog Misting Nozzles

This series of misting nozzles do not need air supply. The system is simple; the spray mist is fine, full atomization, energy saving.

Liquid requirements: There will be residual impurities in the liquid under high pressure, and a filter must be installed to achieve a purity similar to that of household drinking water.

With filter inside



Description
Model FE
Inlet connection 1/8''
Water pressure 80-90°
Application • Humidification
• Fog spraying
• Liquid spraying
• Flue gas evaporating cooling
• Artificial fog
Delivery time 4 days after payment being confirmed
Payment Western union, Paypal, T/T, Visa, Our bank account, online payment



General Applications

• Humidification

• Fog spraying

• Liquid spraying

• Flue gas evaporating cooling

• Artificial fog



Design Features


Features:

● Plastic Low Pressure Fog Misting Nozzles produce very fine fog with small droplets

● Material : PP ( Polypropylene ) Corrosion resistance and wearing resistance

● Working pressure 3~15bar

● Thread size : 1/8" Male

● Compact size, wide variety of flowrates.

● This series of misting nozzles do not need air supply,

● The system is simple; the spray mist is fine, full atomization, energy saving,

● Liquid requirements: There will be residual impurities in the liquid under high pressure, and a filter must be installed to achieve a purity similar to that of household drinking water.



Performance Data

Thread Size Droplet size Flow rate Pressure Spray Angle
inch (μm) L/H bar (°)
1/8 20-40 1.6-3.4 3-14 80-90°
