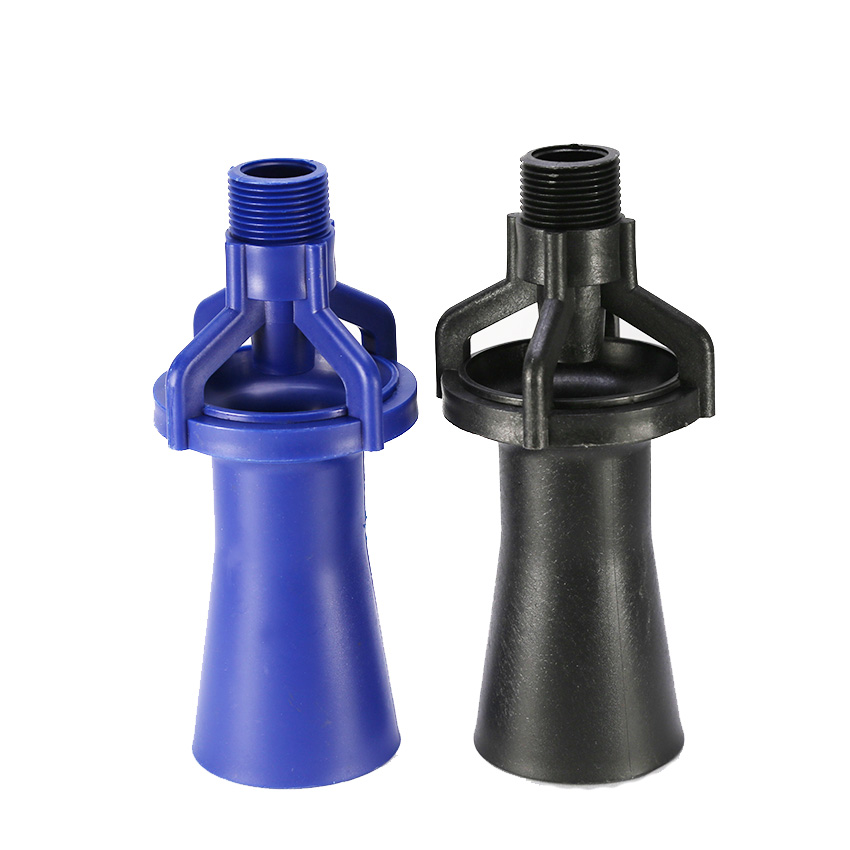

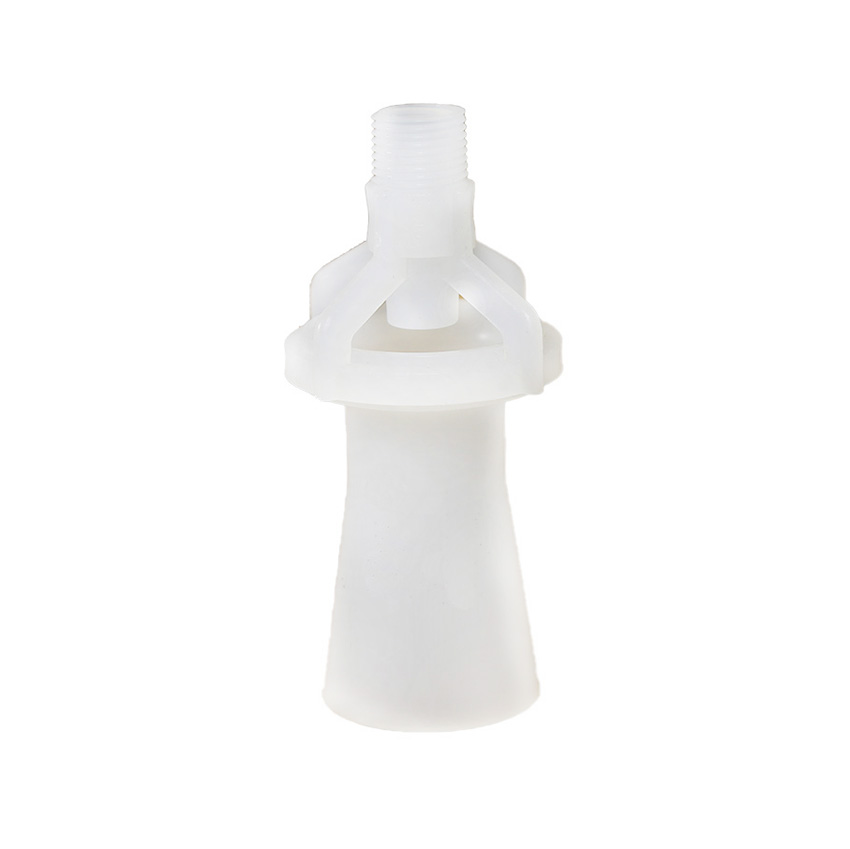

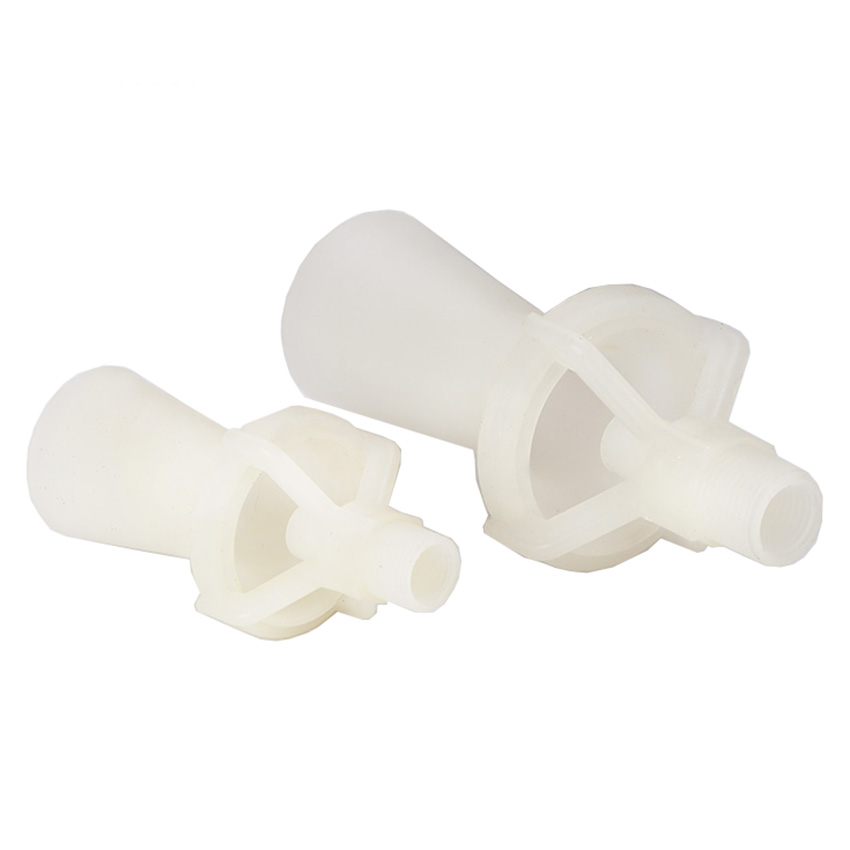

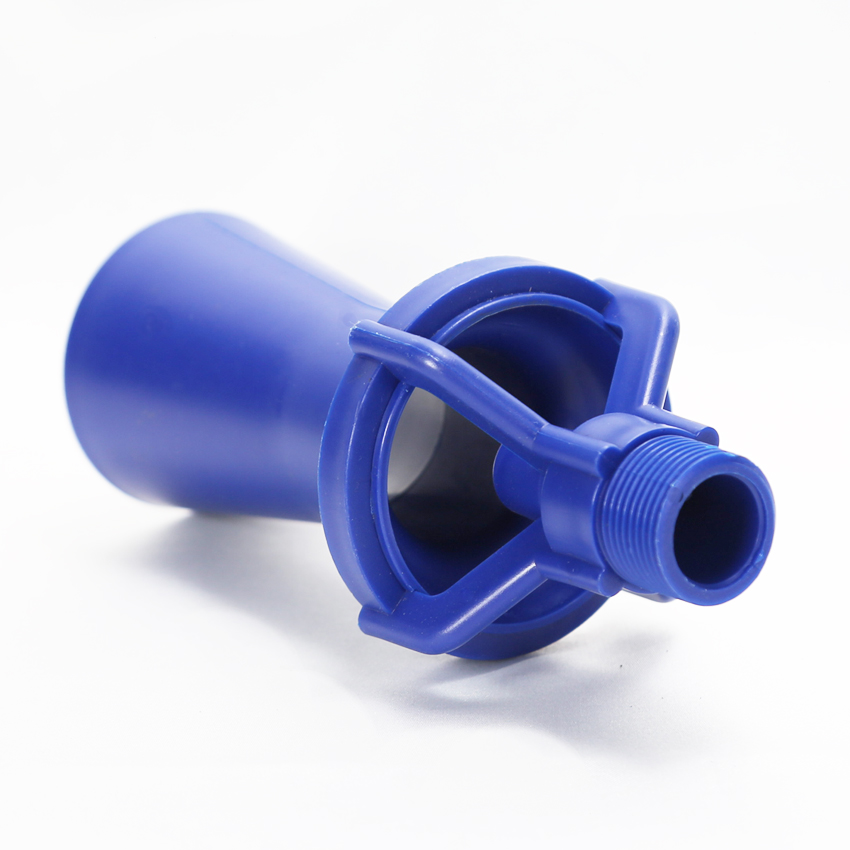

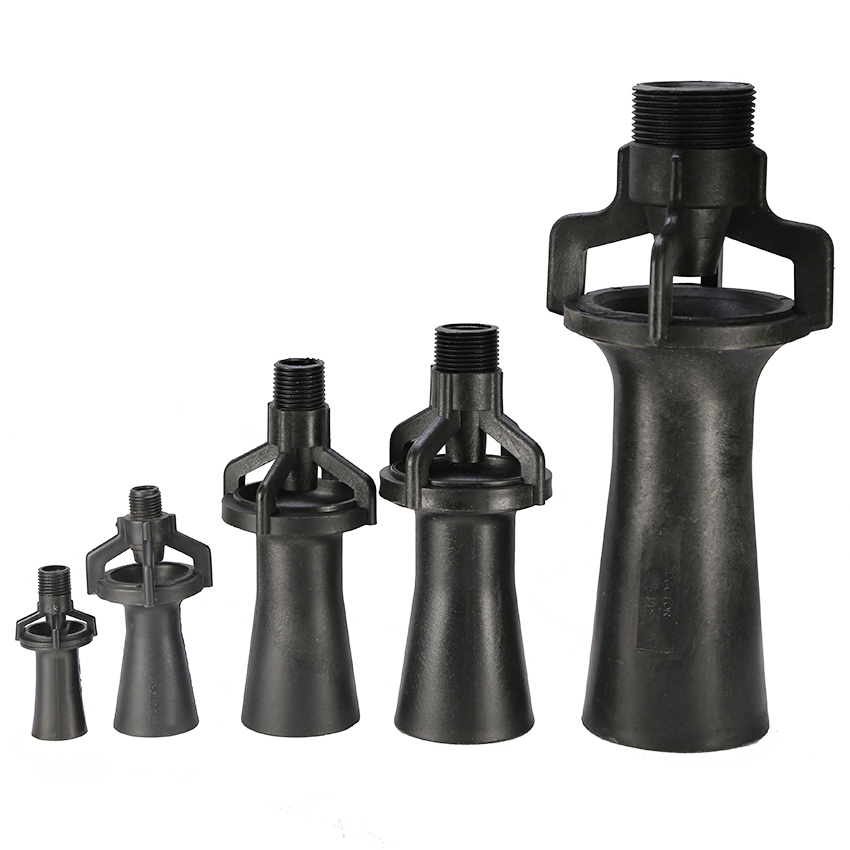

PLASTIC AGITATING TANK MIXING EDUCTOR NOZZLES

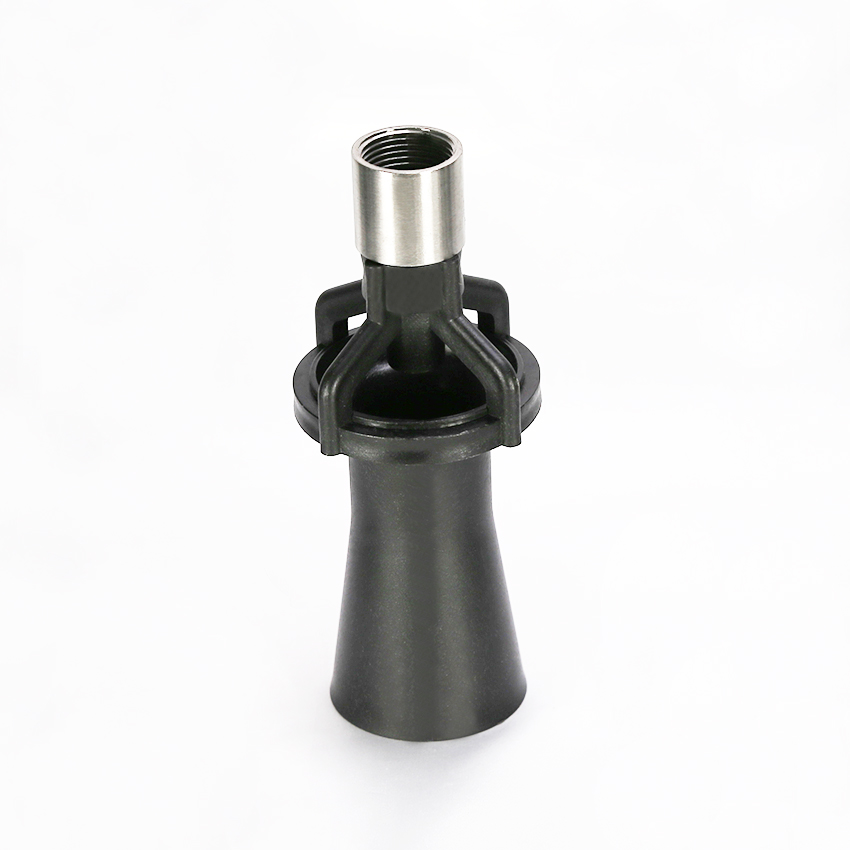

The eductor nozzle operates based on the Bernoulli jet principle and is designed with carefully calculated geometric surface parameters. A high-speed liquid jet is emitted from a cone-shaped nozzle, creating a low-pressure zone around the front opening. The high-speed flow and liquid spray are mixed in a 1:4 ratio in the diffuser. Eductor nozzles have the potential to enhance the quality of surface processing for workpieces. The M model mixing nozzle is constructed from high-performance materials such as carbon fiber polypropylene die-casting and stainless steel, offering excellent chemical resistance and a maximum operating temperature of 120℃.
| Description | |
| Model | Mixing Eductor Nozzles |
| Spray pattern | Plastic Agitating Tank Mixing Eductor Nozzles |
| Thread size | 1/4’’; 3/8’’ ; 1/2’’ ; 3/4’’ ; 1’’ ; 1-1/2’’ |
| Working pressure | 0.5-4 bar |
| Flow Rate | 7.2-620L/min |
| Spray angle | From 0° to 82° |
| Application | Liquid mixing, solution agitation |
| Delivery time | 4 days after payment being confirmed |
| Payment | Western union, Paypal, T/T, Visa, Our bank account, online payment |
General Applications
● Electrophoresis tank liquid stirring
● Fire protection water storage tanks
● General particle agitation
● Material injection and mixing
● Waste water treatment plants
● Oil and gas storage tanks
● Drinking water holding tanks and reservoirs
● Cooling towers and decorative fountains
● Tank blending of oils
● Tank Mixing Eductor in batch mixing application
● Maintain solids in suspension
Design Features
Performance Data
| Approx. flow rate | Model No. | Inlet Thread size (BSP) | Orifice Dia. | Dimension | Inlet Liquid Pressure | |||||||||
| D | d | L | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | ||||
| (mm) | (mm) | (mm) | (mm) | bar | bar | bar | bar | bar | bar | bar | bar | |||
| Inlet Flow Rate ''A'' ( l/ min ) | E -1/4-1 | 1/4'' | 3 | 48 | 33 | 95 | 7.2 | 10.6 | 13 | 16 | 17 | 20 | 24 | 26 |
| E- 1/4-2 | 5 | 32 | 22.5 | 69 | 11.3 | 16 | 19.5 | 23 | 25 | 28 | 30 | 32 | ||
| E -3/8 | 3/8' | 8 | 52 | 38 | 103 | 29 | 42 | 51 | 59 | 65 | 70 | 77 | 82 | |
| E- 1/2 | 1/2'' | 9 | 66.5 | 48 | 146 | 36 | 53 | 62 | 72 | 83 | 88 | 97 | 103 | |
| E - 3/4 | 3/4'' | 10 | 75 | 56.5 | 161 | 43 | 64 | 74 | 85 | 97 | 106 | 116 | 124 | |
| E - 1 | 1'' | 12 | 102 | 71 | 215 | 54 | 96 | 100 | 107 | 122 | 134 | 146 | 156 | |
| E - 1 1/2 | 1 1/2'' | 14 | 112 | 75.5 | 252 | 106 | 151 | 184 | 215 | 243 | 259 | 288 | 308 | |
| Entrained Liquid ''B'' ( l/ min ) | E -1/4-1 | 1/4'' | 3 | 26 | 36 | 45 | 52 | 58 | 63 | 68 | 73 | |||
| E- 1/4-2 | 5 | 42 | 59 | 72 | 84 | 93 | 102 | 110 | 118 | |||||
| E -3/8 | 3/8' | 8 | 116 | 168 | 204 | 236 | 260 | 280 | 308 | 328 | ||||
| E- 1/2 | 1/2'' | 9 | 131 | 212 | 251 | 288 | 324 | 352 | 386 | 421 | ||||
| E - 3/4 | 3/4'' | 10 | 172 | 256 | 298 | 340 | 388 | 424 | 464 | 496 | ||||
| E - 1 | 1'' | 12 | 217 | 384 | 390 | 428 | 489 | 534 | 585 | 625 | ||||
| E - 1 1/2 | 1 1/2'' | 14 | 424 | 604 | 736 | 860 | 972 | 1036 | 1152 | 1232 | ||||
| Circulation Rate ''A''+''B'' ( l/ min ) | E -1/4-1 | 1/4'' | 3 | 33.2 | 46.6 | 58 | 68 | 75 | 83 | 92 | 99 | |||
| E- 1/4-2 | 5 | 53.3 | 75 | 91.5 | 107 | 118 | 130 | 140 | 150 | |||||
| E -3/8 | 3/8' | 8 | 145 | 210 | 255 | 295 | 325 | 350 | 385 | 410 | ||||
| E- 1/2 | 1/2'' | 9 | 180 | 265 | 313 | 360 | 405 | 440 | 482 | 515 | ||||
| E - 3/4 | 3/4'' | 10 | 215 | 320 | 370 | 425 | 485 | 530 | 580 | 620 | ||||
| E - 1 | 1'' | 12 | 342 | 480 | 490 | 536 | 611 | 668 | 731 | 781 | ||||
| E - 1 1/2 | 1 1/2'' | 14 | 530 | 755 | 920 | 1075 | 1215 | 1295 | 1440 | 1540 | ||||
