PJ Impingement Pin Fine Misting Nozzles

Liquid requirements: There will be residual impurities in the liquid under high pressure, and a filter must be installed to achieve a purity similar to that of household drinking water.
Stainless steel micro-nozzle plate is processed by advanced forging process and ruby has strong durability. It is 2.5 times longer than the same type of nozzle.

Material
● Stainless steel
● Brass
Availability:
Product Description

PJ Impingement Pin Fine Misting Nozzles

Liquid requirements: There will be residual impurities in the liquid under high pressure, and a filter must be installed to achieve a purity similar to that of household drinking water.

Stainless steel micro-nozzle plate is processed by advanced forging process and ruby has strong durability. It is 2.5 times longer than the same type of nozzle.



Description
Model PJ
Inlet connection 1/8'' ; 1/4''
Orifice dia. 1mm/0.8mm/0.7mm/0.6mm/0.5mm/0.38mm/0.3mm/0.25mm/0.2mm/0.15mm
Water pressure 70bar/50bar/30bar/20bar/10bar/5bar/3bar/2bar
Application • Wetting and descaling
• Humidification
• Chemical treatment or spraying
• Liquid spraying
• Garden park or agricultural humidification or cooling
• Tablet coating
• Flue gas evaporating cooling
• Sterilization
• Fruit spray Wax
• Wetting and cooling of textile mills
• Plant humidification
• Salt spray test

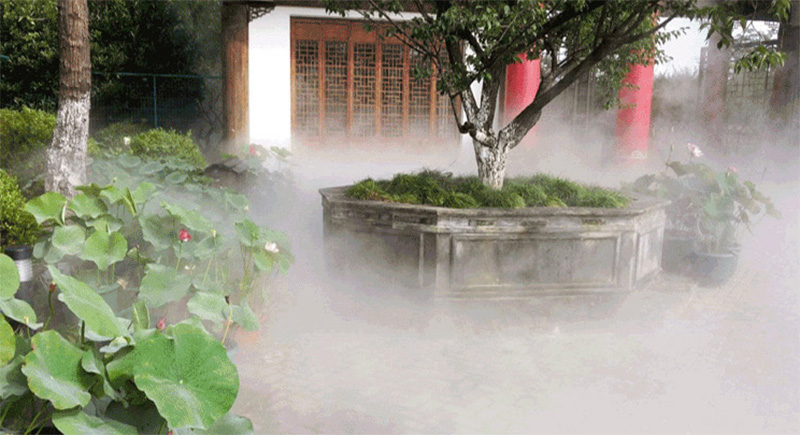

• Artificial fog
Delivery time 4 days after payment being confirmed
Payment Western union, Paypal, T/T, Visa, Our bank account, online payment



Accessories

One-piece design needle to avoid falling off

Ruby orifice is wear-resisting



General Applications

• Wetting and descaling

• Humidification

• Chemical treatment or spraying

• Liquid spraying

• Garden park or agricultural humidification or cooling

• Tablet coating

• Flue gas evaporating cooling

• Sterilization

• Fruit spray Wax

• Wetting and cooling of textile mills

• Plant humidification

• Salt spray test

• Artificial fog



Design Features


Features:

●Material: main body (stainless steel), with micro-nozzle plate ruby inserted or complete stainles steel

●Thread size: 1/8" or 1/4"

●Coverage area: a nozzle spray coverage area of about 1-2 square meters in no wind or breeze

●PJ Impingement Pin Fine Misting Nozzles can be used indoor and outdoor .

●Working pressure 2~70bar

●This series of nozzles does not need air supply,

●The system is simple; the spray mist is fine, full atomization, energy saving,

●Filter device: 6.5*8.8mm PP microporous filter element at nozzle inlet

●Liquid requirements: There will be residual impurities in the liquid under high pressure, and a filter must be installed to achieve a purity similar to that of household drinking water.

●Stainless steel micro-nozzle plate is processed by advanced forging process and ruby has strong durability. It is 2.5 times longer than the same type of nozzle.



Performance Data

Thread Size Style No Orifice Dia (mm) Flow Rate ( Liter / min)
1 ( us gal) = 3.785 L ;   1 ( uk gal) = 4.546 L
2 bar 3 bar 5 bar 10 bar 20 bar 30 bar 50 bar 70 bar

PJ15 0.15


0.0432 0.061 0.075 0.097 0.114

PJ20 0.20

0.058 0.082 0.116 0.142 0.183 0.217

PJ25 0.25
0.0671 0.0866 0.123 0.173 0.212 0.274 0.324
1/8'' PJ30 0.30
0.0908 0.117 0.166 0.234 0.287 0.371 0.439
1/4'' PJ38 0.38 0.119 0.146 0.198 0.267 0.377 0.462 0.596 0.705

PJ50 0.50 0.216 0.264 0.341 0.483 0.683 0.836 1.08 1.28

PJ60 0.60 0.322 0.395 0.51 0.721 1.02 1.25 1.61 1.91

PJ70 0.70 0.419 0.513 0.662 0.9368 1.32 1.62 2.09 2.48

PJ80 0.80 0.58 0.71 0.917 1.2972 1.83 2.25 2.09 3.43

PJ100 1.0 0.902 1.11 1.43 2.02 2.85 3.49 4.51 5.34
