CB1MV Mini Type Air Atomizing Nozzle
Design Features
Features:
● 1/8JJ bodies have liquid and air inlets on opposing sides ofthe nozzle bodies.
● Compact design or mini type nozzles consist of a nozzle body and a spray set-up.
● A wide variety of spray set-ups are available in various spray patterns.
● Common Materials: Stainless steel.
● The spray is finely atomized , mist or fog spray.
● Air and liquid pressure is usually 2 -3 bar.
General Applications
● Coating, cooling, humidifying
● Gas cooling
● Lubricating, moistening
● Misting, fogging
● Dust suppression
Performance Data

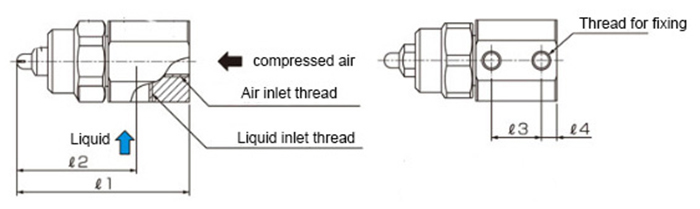

Air consumptionRange | Dimension (mm) | Thread size | |||||||
L1 | L2 | L3 | L4 | h | Compressed air | Liquid | Fixing thread | ||
01 | 27.7 | 19.2 | 8 | 2.5 | 13 | M5×3 | M5×3 | M3×2 | |
02 | 28 | 19.5 | |||||||
04 | 31.3 | 22.8 | |||||||
075 | 32.6 | 24.1 |
Performance Data
CB1MV
Style No. | Spray Angle ※1 | Air consumption code | Air pressure (Mpa) | Liquid capacity (L/hr ) Air capacity (NL/min) | Spray width (mm) ※2 | Average particle size (㎛) | Passage diameter (mm) | |||||||
Liquid pressure (Mpa) | Liquid pressure (Mpa) | nozzle mouth | connector | |||||||||||
0.15 | 0.2 | 0.25 | 0.3 | 0.1 | 0.15 | 0.25 | liquid | air | ||||||
CBIMV11001 | 110° | 01 | 0.2 | 2.8/5.3 | — | — | — | 280 | 330 | — | 20 | 0.2 | 0.6 | 0.5 |
0.3 | 1.1/9.5 | 2.3/8.4 | 4/6.5 | — | 240 | 250 | 380 | ʅ | ||||||
0.4 | 0.6/12.4 | 1.1/12 | 2.2/11 | 3.3/9.6 | — | 220 | 300 | 100 | ||||||
CBIMV11002 | 02 | 0.2 | 5.3/11 | — | — | — | 280 | 340 | — | 20 | 0.2 | 0.9 | 0.7 | |
0.3 | 2.5/19 | 4.6/17 | 8.3/12 | 14.3/7 | 220 | 250 | 420 | ʅ | ||||||
0.4 | 1.4/25 | 2.3/24 | 4.0/23 | 6.3/20 | — | 230 | 340 | 100 | ||||||
CBIMV11004 | 04 | 0.2 | 9.5/20 | 17.0/13 | — | — | 300 | 360 | — | 20 | 0.3 | 0.9 | 0.9 | |
0.3 | 4.7/35 | 8.5/31 | 13.1/27 | 19.6/20 | 230 | 270 | 430 | ʅ | ||||||
0.4 | 2.8/45 | 4.8/44 | 7.7/41 | 11.4/37 | — | 250 | 350 | 100 | ||||||
CBIMV11075 | 075 | 0.2 | 18.4/42 | 33.3/29 | — | — | 320 | 380 | — | 20 | 0.5 | 1.2 | 1.4 | |
0.3 | 8.8/71 | 15.5/64 | 24.3/54 | 38.5/40 | 240 | 300 | 450 | ʅ | ||||||
0.4 | 5.6/91 | 9.1/89 | 14.8/82 | 21.8/74 | — | 270 | 370 | 100 | ||||||
CBIMV8001 | 80° | 01 | 0.2 | 2.8/5.3 | — | — | — | 220 | 250 | — | 20 | 0.2 | 0.6 | 0.5 |
0.3 | 1.1/9.5 | 2.3/8.4 | 4/6.5 | — | 140 | 200 | 250 | ʅ | ||||||
0.4 | 0.6/12.4 | 1.1/12 | 2.2/11 | 3.3/9.6 | — | 140 | 220 | 100 | ||||||
CBIMV8002 | 02 | 0.2 | 5.3/11 | — | — | — | 200 | 260 | — | 20 | 0.3 | 0.9 | 0.7 | |
0.3 | 2.5/19 | 4.6/17 | 8.3/12 | 14.3/7 | 170 | 210 | 300 | ʅ | ||||||
0.4 | 1.4/25 | 2.3/24 | 4.0/23 | 6.3/20 | — | 200 | 250 | 100 | ||||||
CBIMV8004 | 04 | 0.2 | 9.5/20 | 17.0/13 | — | — | 200 | 260 | — | 20 | 0.4 | 0.9 | 0.9 | |
0.3 | 4.7/35 | 8.5/31 | 13.1/27 | 19.6/20 | 170 | 210 | 310 | ʅ | ||||||
0.4 | 2.8/45 | 4.8/44 | 7.7/41 | 11.4/37 | — | 200 | 260 | 100 | ||||||
CBIMV80075 | 075 | 0.2 | 18.4/42 | 33.3/29 | — | — | 200 | 270 | — | 20 | 0.6 | 1.2 | 1.4 | |
0.3 | 8.8/71 | 15.5/64 | 24.3/54 | 38.5/40 | 170 | 210 | 310 | ʅ | ||||||
0.4 | 5.6/91 | 9.1/89 | 14.8/82 | 21.8/74 | — | 200 | 260 | 100 | ||||||
CBIMV4501 | 45° | 01 | 0.2 | 2.8/5.3 | — | — | — | 120 | 150 | — | 20 | 0.3 | 0.6 | 0.5 |
0.3 | 1.1/9.5 | 2.3/8.4 | 4/6.5 | 80 | 110 | 150 | ʅ | |||||||
0.4 | 0.6/12.4 | 1.1/12 | 2.2/11 | 3.3/9.6 | — | 70 | 120 | 100 | ||||||
CBIMV4502 | 02 | 0.2 | 5.3/11 | — | — | — | 100 | 130 | — | 20 | 0.4 | 0.9 | 0.7 | |
0.3 | 2.5/19 | 4.6/17 | 8.3/12 | 14.3/7 | 80 | 110 | 150 | ʅ | ||||||
0.4 | 1.4/25 | 2.3/24 | 4.0/23 | 6.3/20 | — | 100 | 130 | 100 | ||||||
CBIMV4504 | 04 | 0.2 | 9.5/20 | 17.0/13 | — | — | 100 | 130 | — | 20 | 0.5 | 0.9 | 0.9 | |
0.3 | 4.7/35 | 8.5/31 | 13.1/27 | 19.6/20 | 80 | 110 | 150 | ʅ | ||||||
0.4 | 2.8/45 | 4.8/44 | 7.7/41 | 11.4/37 | — | 100 | 130 | 100 | ||||||
CBIMV45075 | 075 | 0.2 | 18.4/42 | 33.3/29 | — | — | 100 | 140 | — | 20 | 0.9 | 1.2 | 1.4 | |
0.3 | 8.8/71 | 15.5/64 | 24.3/54 | 38.5/40 | 80 | 110 | 130 | ʅ | ||||||
0.4 | 5.6/91 | 9.1/89 | 14.8/82 | 21.8/74 | — | 100 | 140 | 100 |
Note:
※1 Spray angle:when air pressure is s0.3 Mpa.Liquid pressure is 0.1 Mpa.
※2 Spray width: when Spray distance is 100mm
CB1MV / J Mini Type Air Atomizing Nozzle
Performance Data
CB1MK
Style No. | Spray Angle ※1 | Air consumption code | Air pressure (Mpa) | Liquid capacity (L/hr ) Air capacity (NL/min) | Spray width (mm) ※2 | Average particle size (㎛) | Passage diameter (mm) | |||||||
Liquid pressure (Mpa) | Liquid pressure (Mpa) | nozzle mouth | connector | |||||||||||
0.15 | 0.2 | 0.25 | 0.3 | 0.1 | 0.15 | 0.25 | liquid | air | ||||||
CBIMK6004 | 60° | 04 | 0.2 | 9.5/20 | — | — | — | 140 | 160 | — | 20 | 0.5 | 0.9 | 0.9 |
0.3 | 4.7/35 | 8.5/31 | 13.1/27 | 19.6/20 | 130 | 160 | 170 | ʅ | ||||||
0.4 | 2.8/45 | 4.8/44 | 7.7/41 | 11.4/37 | — | 150 | 170 | 100 | ||||||
CBIMK60075 | 075 | 0.2 | 18.4/42 | 33.3/29 | — | — | 140 | 170 | — | 20 | 0.7 | 1.2 | 1.4 | |
0.3 | 8.8/71 | 15.5/64 | 24.3/54 | 38.5/40 | 130 | 160 | 180 | ʅ | ||||||
0.4 | 5.6/91 | 9.1/89 | 14.8/82 | 21.8/74 | — | 150 | 170 | 100 |
CB1MJ
Style No. | Spray Angle ※1 | Air consumption range | Air pressure (Mpa) | Liquid capacity (L/hr ) Air capacity (NL/min) | Spray width (mm) ※2 | Average particle size (㎛) | Passage diameter (mm) | |||||||
Liquid pressure (Mpa) | Liquid pressure (Mpa) | nozzle mouth | connector | |||||||||||
0.15 | 0.2 | 0.25 | 0.3 | 0.1 | 0.15 | 0.25 | liquid | air | ||||||
CBIMJ20005 | 25° | 005 | 0.2 | 1.5/2.6 | — | — | — | 25 | 20 | — | 20 | 0.7 | 0.4 | 0.3 |
0.3 | 0.6/4.7 | 1.25/4.1 | 2/3.2 | — | 30 | 30 | 25 | ʅ | ||||||
0.4 | 0.3/6.3 | 0.55/6 | 1.1/5.5 | 1.65/4.8 | — | 30 | 30 | 100 | ||||||
CBIMJ2001 | 01 | 0.2 | 2.8/5.3 | — | — | — | 25 | 30 | — | 20 | 0.8 | 0.6 | 0.5 | |
0.3 | 1.1/9.5 | 2.3/8.4 | 4/6.5 | — | 303 | 30 | 25 | ʅ | ||||||
0.4 | 0.6/12.4 | 1.1/12 | 2.2/11 | 3.3/9.6 | — | 30 | 30 | 100 | ||||||
CBIMJ2002 | 02 | 0.2 | 5.3/11 | — | — | — | 25 | 20 | — | 20 | 1.1 | 0.9 | 0.7 | |
0.3 | 2.5/19 | 4.6/17 | 8.3/12 | 14.3/7 | 30 | 30 | 25 | ʅ | ||||||
0.4 | 1.4/25 | 2.3/24 | 4.0/23 | 6.3/20 | — | 30 | 30 | 100 | ||||||
CBIMJ2004 | 04 | 0.2 | 9.5/20 | 17.0/13 | — | — | 30 | 25 | — | 20 | 1.6 | 0.9 | 0.9 | |
0.3 | 4.7/35 | 8.5/31 | 13.1/27 | 19.6/20 | 35 | 35 | 30 | ʅ | ||||||
0.4 | 2.8/45 | 4.8/44 | 7.7/41 | 11.4/37 | — | 35 | 35 | 100 | ||||||
CBIMJ20075 | 075 | 0.2 | 18.4/42 | 33.3/29 | — | — | 30 | 25 | — | 20 | 2.0 | 1.2 | 1.4 | |
0.3 | 8.8/71 | 15.5/64 | 24.3/54 | 38.5/40 | 35 | 35 | 30 | ʅ | ||||||
0.4 | 5.6/91 | 9.1/89 | 14.8/82 | 21.8/74 | — | 35 | 35 | 100 |
Note
※1 Spray angle: when air pressure is s0.3 Mpa.Liquid pressure is 0.1 Mpa.
※2 Spray width: when Spray distance is 100mm
