MEG High Pressure Flat Fan Nozzle

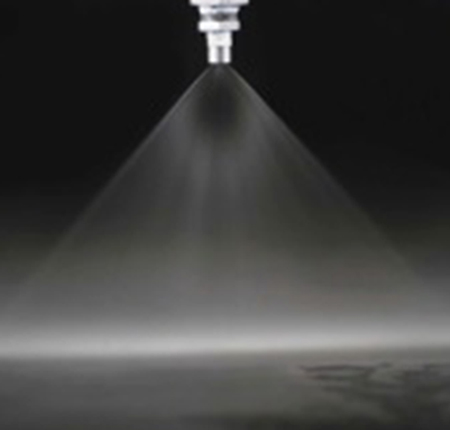

The flat fan pattern functions like a line of spray, with a higher impact than full or hollow cone patterns, but not as high as a solid stream nozzle. Droplet sizes produced by this nozzle are larger than cone nozzles, although certain air atomizing flat fan nozzles can produce very fine droplets. To cover an area, a flat fan nozzle requires some form of relative motion, often achieved by a conveyor moving products under a series of flat fan sprays. Alternatively, the nozzle itself can be in motion to ensure complete coverage.

Material
● 316 stainless steel
● 416 hardened stainless steel
Availability:
Product Description

MEG HIGH PRESSURE FLAT FAN NOZZLES

The flat fan pattern functions like a line of spray, with a higher impact than full or hollow cone patterns, but not as high as a solid stream nozzle. Droplet sizes produced by this nozzle are larger than cone nozzles, although certain air atomizing flat fan nozzles can produce very fine droplets. To cover an area, a flat fan nozzle requires some form of relative motion, often achieved by a conveyor moving products under a series of flat fan sprays. Alternatively, the nozzle itself can be in motion to ensure complete coverage.




Description
Model MEG
Spray pattern High Pressure Flat Fan Nozzles
Thread size 1/8", 1/4"'
Working pressure Up to 300 bar
Flow Rate 1.0-290L/min
Spray angle From 0° to 110°
Application Cleaning,washing
Delivery time 4 days after payment being confirmed
Payment Western union, Paypal, T/T, Visa, Our bank account, online payment



General Applications

● High-pressure washing

● Car washing

● Surface pre-treatment

● Accessory parts cleaning



Design Features




Features:

● High pressure and high impact, straight stream or fan spray shape.

● Spray angle from 0° to 110° (at high pressures from 20 to 275 bar or 300 to 4000 psi).

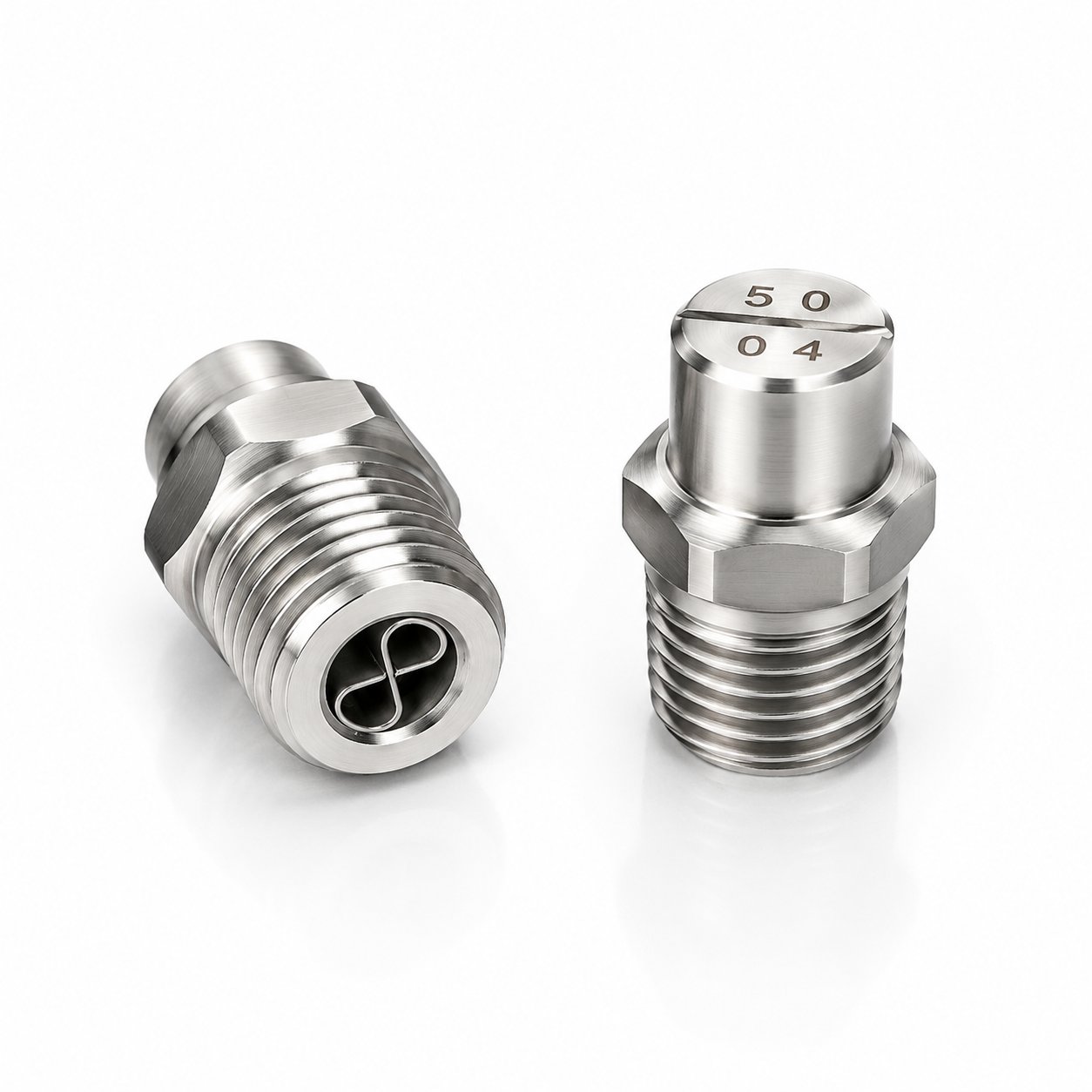

● 8-shaped flow stabilizer is inserted for steady turbulent flow and uniform spray distribution.

● MEG-SSHD hardened stainless steel orifices are extremely resistant to wear and have a long life.

● MEG-SSTC, with tungsten carbide orifice inserts, provides optimum wear resistance under extremely high pressure and much longer life




Acceossories


8-shaped Stabilizer

8-shaped Stabilizer

Quick Coupling

Quick Coupling



Performance Data

Orifice Dia. (mm) Flow Code Flow rate L/min
1 ( us gal) = 3.785 L ;   1 ( uk gal) = 4.546 L
25 bar 30 bar 35 bar 40 bar 50 bar 60 bar 70bar 100 bar 150 bar 200 bar
0.91 02 2.3 2.5 2.7 2.9 3.2 3.5 3.8 4.6 5.6 6.4
1.1 03 3.4 3.7 4 4.3 4.8 5.3 5.7 6.8 8.4 9.4
1.3 04 4.6 5 5.4 5.8 6.4 7.1 7.6 9.1 11.2 12.9
1.35 045 5.1 5.6 6.1 6.5 7.3 7.9 8.6 10.3 12.6 14.5
1.4 05 5.7 6.2 6.7 7.2 8.1 8.8 9.5 11.4 14 16.1
1.5 055 6.3 6.9 7.4 7.9 8.9 9.7 10.5 12.5 15.4 17.7
1.6 06 6.8 7.5 8.1 8.6 9.7 10.6 11.4 13.7 16.7 19.3
1.65 065 7.4 8.1 8.8 9.4 10.5 11.5 12.4 14.8 18.1 21
1.7 07 8 8.7 9.4 10.1 11.3 12.4 13.3 16 19.5 23
1.75 075 8.5 9.4 10.1 10.8 12.1 13.2 14.3 17.1 21 24
1.8 08 9.1 10 10.8 11.5 12.9 14.1 15.3 18.2 22 26
1.85 085 9.7 10.6 11.5 12.3 13.7 15 16.2 19.4 24 27
1.9 09 10.3 11.2 12.1 13 14.5 15.9 17.2 21 25 29
1.95 095 10.8 11.9 12.8 13.7 15.3 16.8 18.1 22 27 31
2 10 11.4 12.5 13.5 14.4 16.1 17.7 19.1 23 28 32
2.05 11 12.5 13.7 14.8 15.9 17.7 19.4 21 25 31 35
2.1 115 13.1 14.4 15.5 16.6 18.5 20 22 26 32 37
2.15 12 13.7 15 16.2 17.3 19.3 21 23 27 33 39
2.2 125 14.2 15.6 16.9 18 20 22 24 28 35 40
2.25 13 14.8 16.2 17.5 18.7 21 23 25 30 36 42
2.3 14 16 17.5 18.9 20 23 25 27 32 39 45
2.4 15 17.1 18.7 20 22 24 26 29 34 42 48
2.5 16 18.2 20 22 23 26 28 31 36 45 52
2.6 18 21 22 24 26 29 32 34 41 50 58
2.8 20 23 25 27 29 32 35 38 46 56 64
3.2 25 28 31 34 36 40 44 48 57 70 81
3.6 30 34 37 40 43 48 53 57 68 84 97
3.8 35 40 44 47 50 56 62 67 80 98 113
4 40 46 50 54 58 64 71 76 91 112 129
4.4 50 57 62 67 72 81 88 95 114 140 161
4.8 60 68 75 81 86 97 106 114 137 167 193
5.2 70 80 87 94 101 113 124 133 160 195 225
5.6 80 91 100 108 115 129 141 153 182 225 260
6 90.0 103 112 121 130 145 159 172 205 250 290
