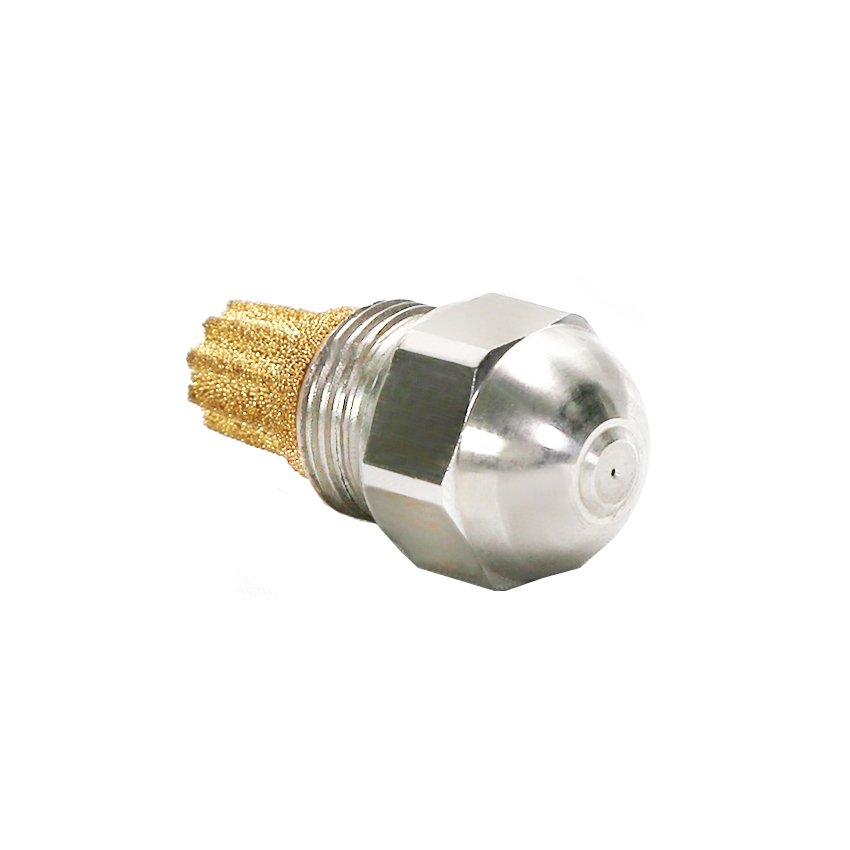

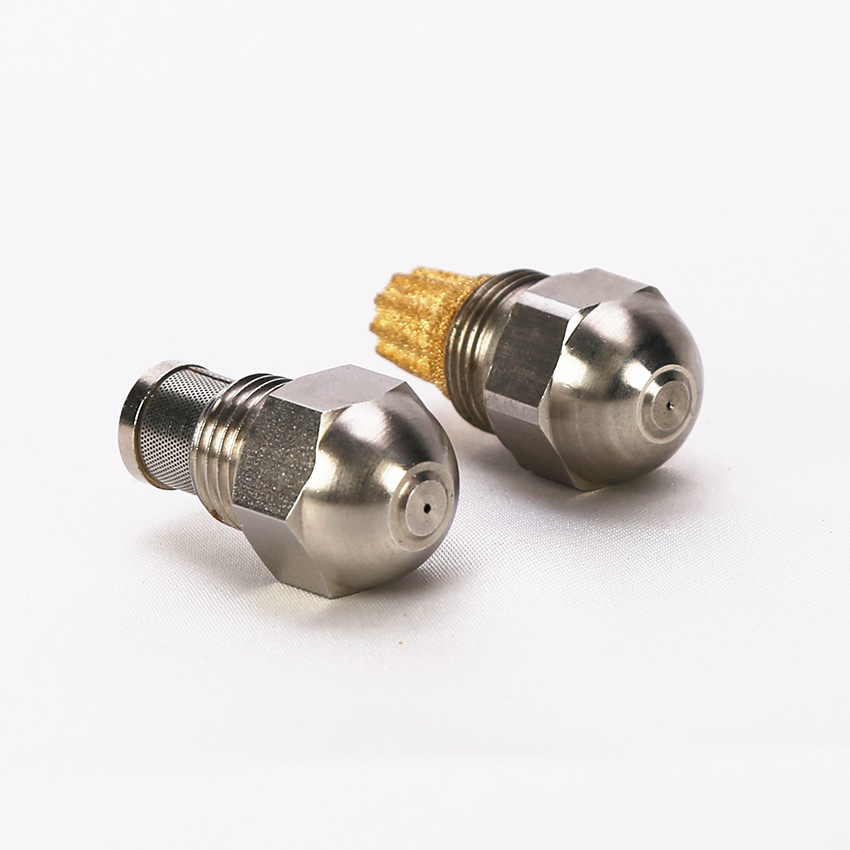

Low Pressure Atomizing Snow Maker Fog Misting Nozzles

The system is simple; the spray mist is fine, full atomization, energy saving.
Liquid requirements: There will be residual impurities in the liquid under high pressure, and a filter must be installed to achieve a purity similar to that of household drinking water.

Material

● Stainless steel
● Brass

Availability:



Inquire

Product Description

Low Pressure Atomizing Snow Maker Fog Misting Nozzles

The system is simple; the spray mist is fine, full atomization, energy saving.

Liquid requirements: There will be residual impurities in the liquid under high pressure, and a filter must be installed to achieve a purity similar to that of household drinking water.

9/16'' , 1/4''

Description
Model	RY
Inlet connection	9/16"; 1/4"
Orifice dia.	1.8mm/1.7mm/1.6mm/1.5mm/1.4mm/1.3mm/1.2mm/1.1mm/1mm/0.9mm/0.8mm/0.7mm/0.6mm/0.5mm/0.4mm/0.3mm
Water pressure	25bar/20bar/15bar/10bar/7bar/5bar/3bar/2bar/1.5bar
Spray angle	Spray angle
Application	• Snow making • Oil Burning • Humidification • Fog cannon • Liquid spraying • Flue gas evaporating cooling • Artificial fog
Delivery time	5 days after payment being confirmed
Payment	Western union, Paypal, T/T, Visa, Our bank account, online payment

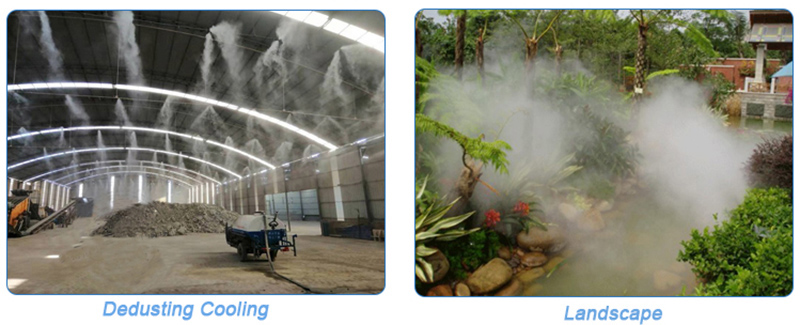

General Applications

• Snow making

• Oil Burning

• Humidification

• Fog cannon

• Liquid spraying

• Flue gas evaporating cooling

• Artificial fog

Design Features

Features:

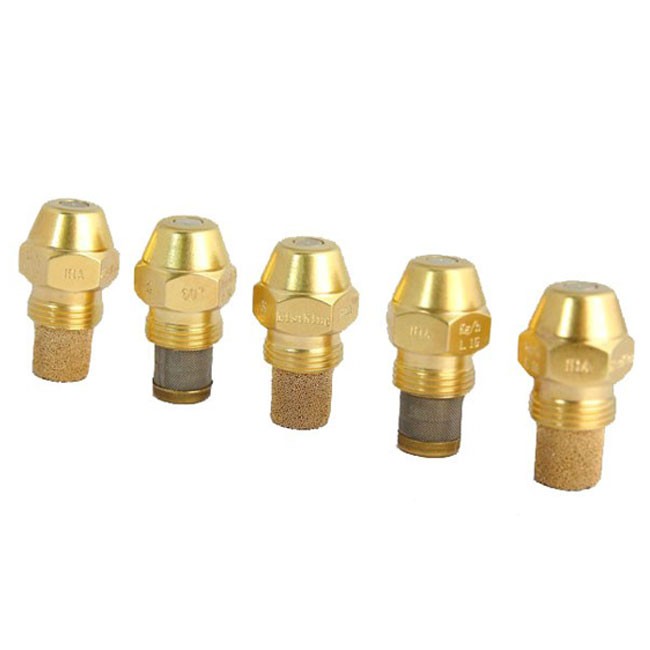

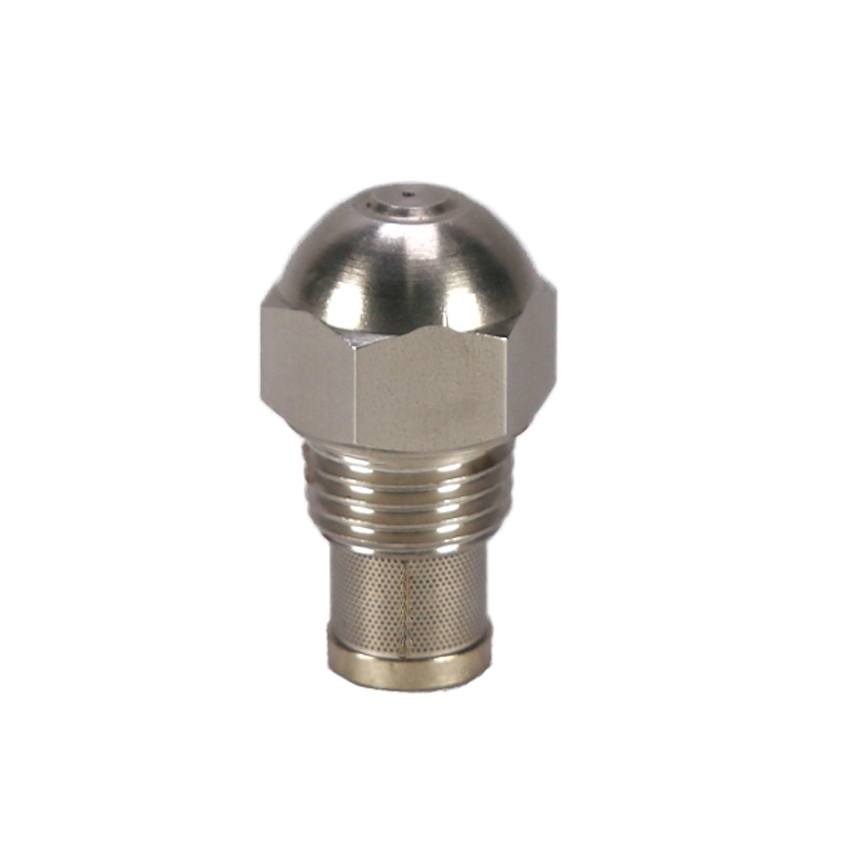

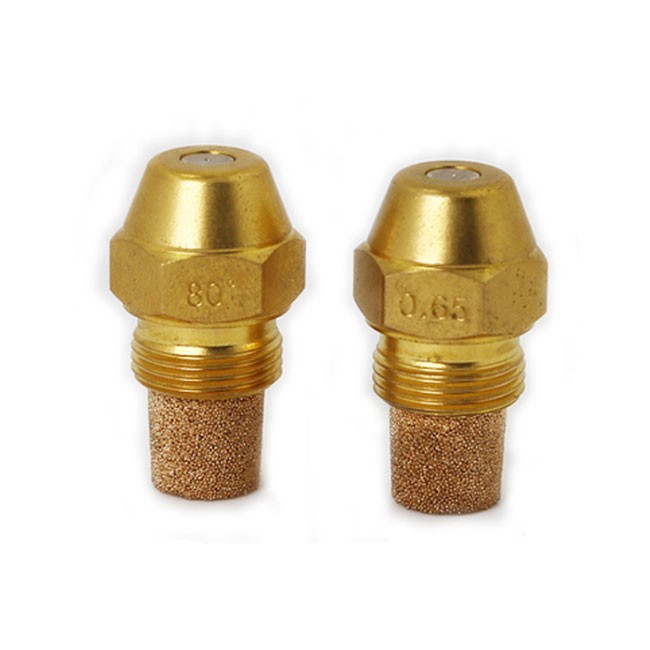

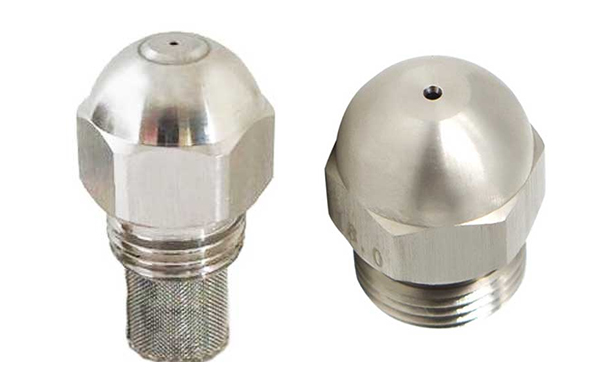

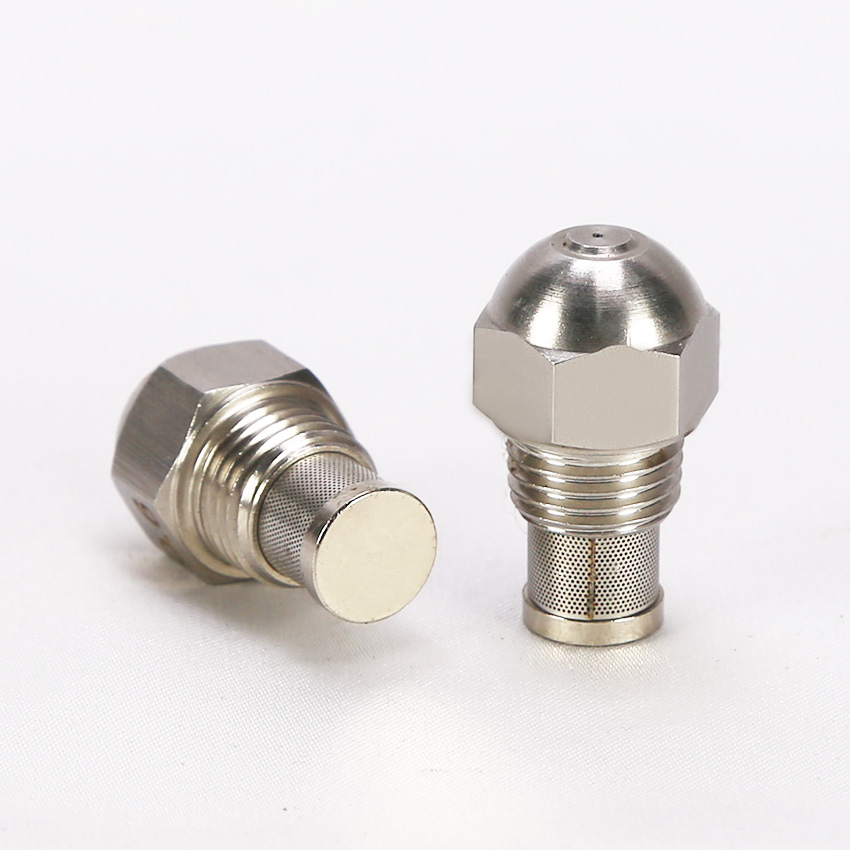

● Material: 304 or 316 SS or brass.

● Thread size: 9/16" or 1/4"

● Working pressure 3~35bar.

● Precisely machined swirl cores structureto produce very fine mist droplets.

● Compact size, wide variety of flowrates.

● Widely used for oil burning, humidifying.fogcannon, snow maker, etc.

● This series of nozzles does not need air supply.

● The system is simple; the spray mist is fine, full atomization, energy saving.

● Liquid requirements: There will be residual impurities in the liquid under high pressure, and a filter must be installed to achieve a purity similar to that of household drinking water.

Performance Data

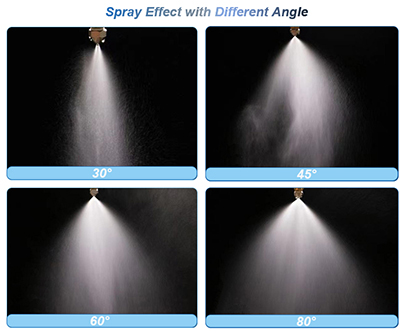

Thread Size	Orifice Dia.	Droplet size	Filter size	Flow rate (L/min)									Spray angle ( O )
Thread Size	mm	(μm)	(mesh)	1.5bar	2bar	3bar	5bar	7bar	10bar	15bar	20bar	25bar	3bar	10bar
1/4''	0.3	50	120	—	—	0.05	0.06	0.07	0.08	0.10	0.12	0.14	30	45
	0.4	60	120	—	—	0.06	0.08	0.09	0.11	0.13	0.15	0.16	30	45
	0.5	70	100	—	—	0.08	0.10	0.12	0.14	0.17	0.20	0.22	45	60
	0.6	70	100	—	0.10	0.13	0.16	0.20	0.25	0.30	0.35	0.40	50	70
	0.7	80	100	0.14	0.16	0.20	0.26	0.30	0.35	0.43	0.49	0.55	50	70
	0.8	80	100	0.22	0.25	0.30	0.38	0.45	0.53	0.66	0.74	0.82	60	70
	0.9	90	50	0.29	0.33	0.40	0.50	0.60	0.71	0.86	0.99	1.10	60	70
	1.0	110	50	0.36	0.41	0.50	0.64	0.75	0.89	1.08	1.23	1.37	60	80
	1.1	120	50	0.43	0.49	0.60	0.77	0.90	1.06	1.29	1.48	1.65	60	80
	1.2	130	50	0.58	0.66	0.80	1.02	1.20	1.42	1.72	1.97	2.20	60	80
	1.3	140	50	0.72	0.82	1.00	1.28	1.50	1.77	2.15	2.47	2.74	60	80
	1.4	140	50	0.86	0.99	1.20	1.53	1.80	2.13	2.58	2.96	3.29	80	80
	1.5	150	50	1.01	1.15	1.40	1.79	2.10	2.48	3.01	3.46	3.84	80	80
	1.6	180	50	1.15	1.32	1.60	2.04	2.40	2.84	3.44	3.95	4.39	80	80
	1.7	210	50	1.29	1.48	1.80	2.20	2.69	3.19	3.87	4.44	4.94	80	80
	1.8	230	50	1.45	1.70	2.08	2.40	3.02	3.65	4.25	4.98	5.50	80	80
