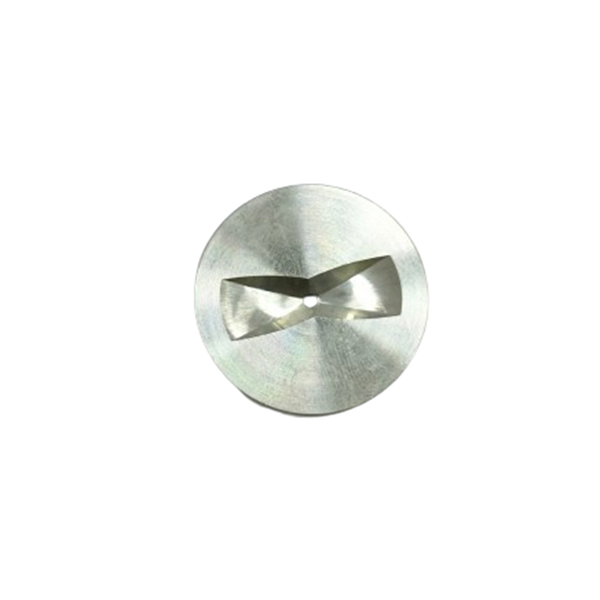

Low or High Pressure Flat Fan Paper Making Nozzles

Low Pressure Flat Fan Paper making nozzles can work under low pressure When the distance between the spraying rod and the screen or the blanket, the Low Pressure Flat Fan Paper making nozzles are the best choices 303SS. 304SS or 316 stainless steel are available.

Material
● 303SS
● 304SS
● 316SS
Availability:
Product Description

Low or High Pressure Flat Fan Paper Making Nozzles

Low Pressure Flat Fan Paper making nozzles can work under low pressure When the distance between the spraying rod and the screen or the blanket, the Low Pressure Flat Fan Paper making nozzles are the best choices 303SS. 304SS or 316 stainless steel are available.



Description
Model CTC / CTY
Application • Scraping type water absorption and lubrication

• Cleaning under low pressure
Delivery time 4 days after payment being confirmed
Payment Western union, Paypal, T/T, Visa, Our bank account, online payment



General Applications

•  Scraping type water absorption and lubrication

• Cleaning under low pressure



Design Features




Features:

● Low Pressure Flat Fan Paper making nozzles can work under low pressure.

● When the distance between the spraying rod and the screen or the blanket, the Low Pressure Flat Fan Paper making nozzles are the best choices.

● 303SS. 304SS or 316 stainless steel are available.



Performance Data

Model No. Orifice Dia. (mm) Flow Rate ( L/min) Spray Angle at 3bar
1 ( us gal) = 3.785 L ;   1 ( uk gal) = 4.546 L
1bar 2bar 3bar 4bar 5bar 6bar 7bar 10bar
CTC-2510
2.3 3.2 3.9 4.6 5.1 5.6 6 7.2 25°
CTC-3580 6.4 18.2 26 32 36 41 45 48 58 35°
CTC-4040
9.1 12.9 15.8 18.2 20 22 24 29 40°
CTC-4047 4.7 10.7 15.1 18.6 21 24 26 28 34
CTC-4067
15.3 22 26 31 34 37 40 48
CTC-4070 5.5 16 23 28 32 36 39 42 50
CTC-4085 6.4 19.4 27 34 39 43 47 51 61 43°
CTC-4308 1.9 1.8 2.6 3.2 3.6 4.1 4.5 4.8 5.8
CTC-4313 2.4 3 4.2 5.1 5.9 6.6 7.3 7.8 9.4 50°
CTC-50033 1.2 0.75 1.1 1.3 1.5 1.7 1.8 2 2.4
CTC-5024 3.2 5.5 7.7 9.5 10.9 12.2 13.4 14.5 17.3
CTC-5033 4 7.5 10.6 13 15 16.8 18.4 19.9 24
CTC-5037
8.4 11.9 14.6 16.9 18.9 21 22 27 55°
CTC-55054 1.6 1.2 1.7 2.1 2.5 2.8 3 3.3 3.9
CTC-5508 1.9 1.8 2.6 3.1 3.6 4.1 4.5 4.8 5.8 58°
CTC-5824 3.2 5.5 7.7 9.5 10.9 12.2 13.4 14.5 17.3
CTC-5833 4 7.5 10.6 13 15 16.8 18.4 19.9 24 60°
CTC-600054 1.6 1.2 1.7 2.1 2.5 2.8 3 3.3 3.9 65°
CTC-65054 1.6 1.2 1.7 2.1 2.5 2.8 3 3.3 3.9
CTC-6513 2.4 3 4.2 5.1 5.9 6.6 7.3 7.8 9.4
CTC-6519 2.8 4.3 6.1 7.5 8.7 9.7 10.6 11.5 13.7
CTC-6533 4 7.5 10.6 13 15 16.8 18.4 19.9 24
CTC-6550 4.7 11.4 16.1 19.7 23 25 28 30 36
CTC-6570 5.5 16 23 28 32 36 39 42 50 68°
CTC-6824 3.2 5.5 7.7 9.5 10.9 12.2 13.4 14.5 17.3
CTC-6840
9.1 12.9 15.8 18.2 20 22 24 29
CTC-6864
14.6 21 25 29 33 36 39 46
CTC-6870 5.5 16 23 28 32 36 39 42 50 70°
CTC-70023 1 0.52 0.74 0.91 1 1.2 1.3 1.4 1.7 80°
CTC-80032 1.2 0.73 1 1.3 1.5 1.6 1.8 1.9 2.3
CTC-80054 1.6 1.2 1.7 2.1 2.5 2.8 3 3.3 3.9
CTC-8008 1.9 1.8 2.6 3.2 3.6 4.1 4.5 4.8 5.8
CTC-80084 1.9 1.9 2.7 3.3 3.8 4.3 4.7 5.1 6.1
CTC-8013 2.4 3 4.2 5.1 5.9 6.6 7.3 7.8 9.4
CTC-8024 3.2 5.5 7.7 9.5 10.9 12.2 13.4 14.5 17.3
CTC-8033 4 7.5 10.6 13 15 16.8 18.4 19.9 24
CTC-8040
9.1 12.9 15.8 18.2 20 22 24 29
CTC-90016 0.79 0.36 0.52 0.63 0.73 0.82 0.89 0.96 1.2 90°
CTC-90054 1.6 1.2 1.7 2.1 2.5 2.8 3 3.3 3.9
CTC-9013 2.4 3 4.2 5.1 5.9 6.6 7.3 7.8 9.4


Model No. Orifice Dia. (mm) Flow Rate ( L/min) Spray Angle at 3bar
1 ( us gal) = 3.785 L ;   1 ( uk gal) = 4.546 L
10bar 20bar 30bar 40bar 60bar 80bar 100bar 150bar
CTY-35084 0.076 0.42 0.59 0.73 0.84 1 1.2 1.3 1.6 35°
CTY-3524 0.125 1.2 1.7 2 2.45 2.9 3.3 3.7 4.6 35°
CTY-3572 0.218 3.5 5 6.2 7.2 8.8 10.1 11.3 14 35°
CTY-4313 0.093 0.66 0.93 1.1 1.3 1.6 1.8 2 2.5 43°
CTY-5013 0.093 0.65 0.93 1.1 1.3 1.6 1.8 2 2.5 50°
CTY-5024 0.125 1.2 1.7 2 2.4 2.9 3.3 3.7 4.6 50°
CTY-55054 0.062 0.27 0.38 0.47 0.54 0.66 0.76 0.84 1 55°
CTY-6513 0.093 0.66 0.93 1.1 1.3 1.6 1.8 2 2.5 65°
CTY-6824 0.125 1.2 1.7 2 2.4 2.9 3.3 3.7 4.6 68°
CTY-70054 0.062 0.27 0.39 0.47 0.54 0.66 0.76 0.84 1 70°
CTY-8013 0.093 0.65 0.93 1.1 1.3 1.6 1.8 2 2.5 80°
CTY-8024 0.125 1.2 1.7 2 2.4 2.9 3.3 3.7 4.6 80°
CTY-8054 0.187 2.7 3.8 4.7 5.4 6.6 7.6 8.5 10.5 80°
CTY-90054 0.062 0.27 0.38 0.47 0.54 0.66 0.76 0.84 1 90°
CTY-9013 0.093 0.66 0.93 1.1 1.3 1.6 1.8 2 2.5 90°
