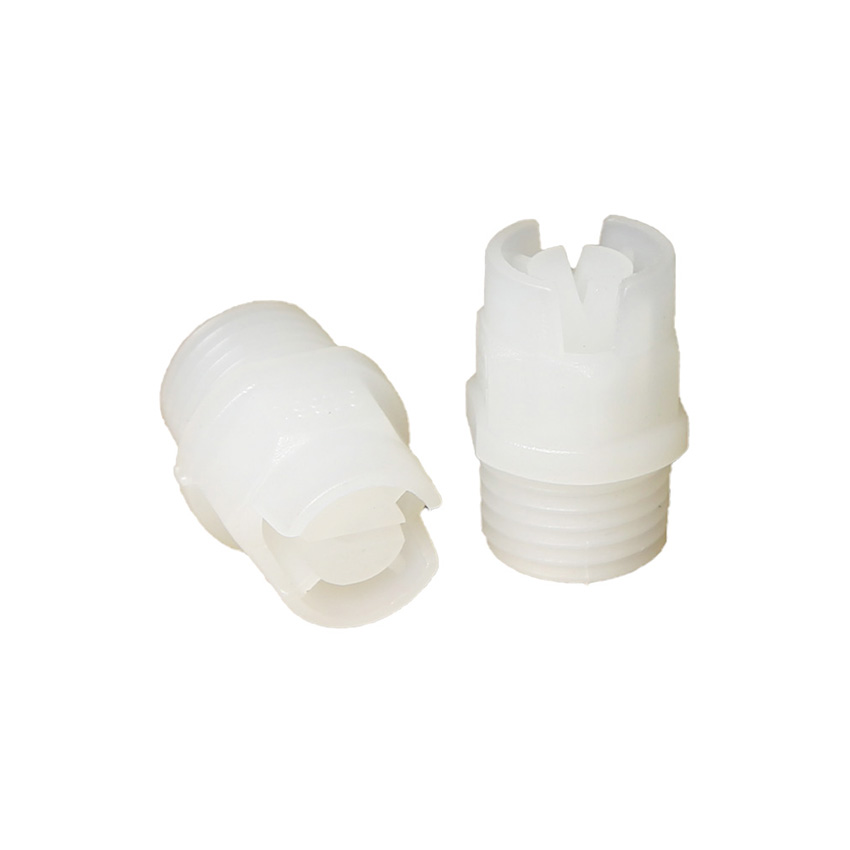

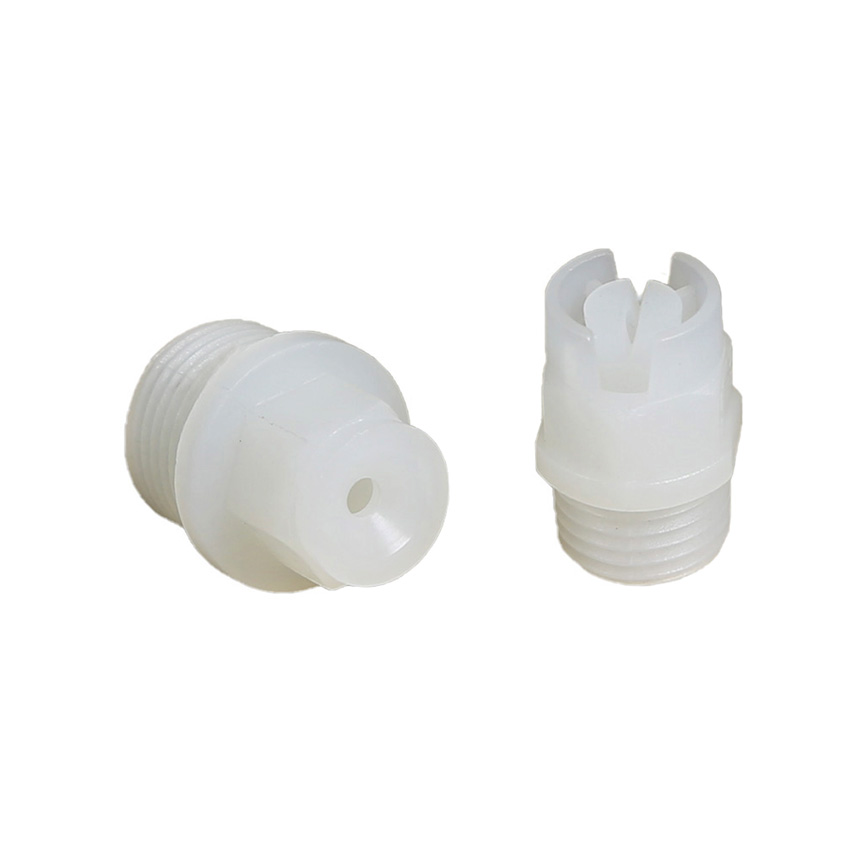

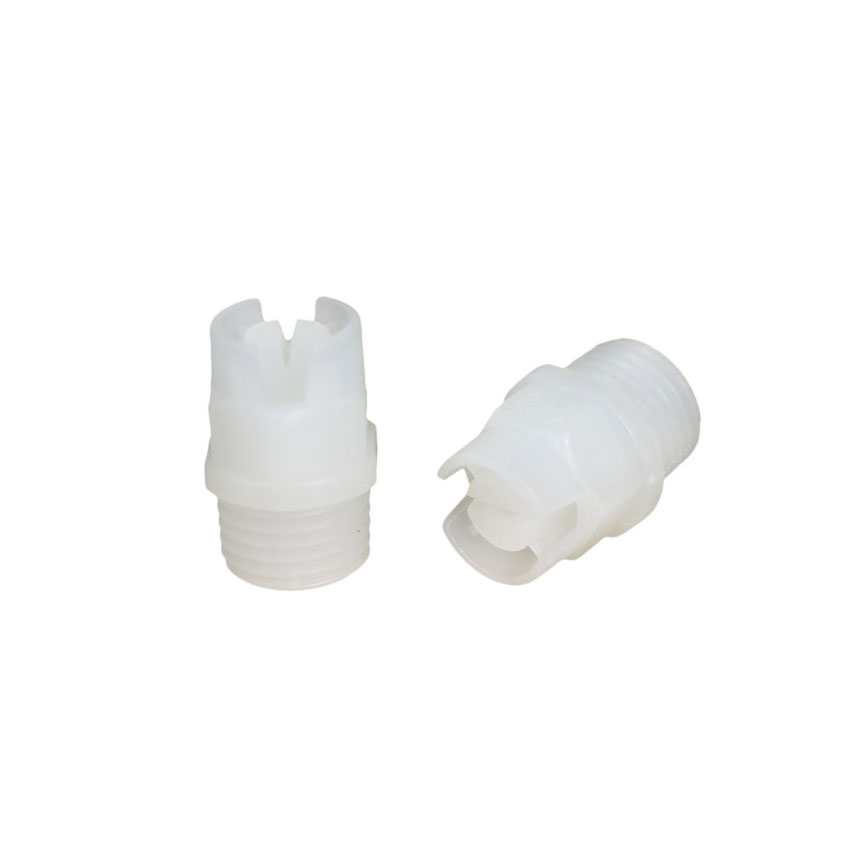

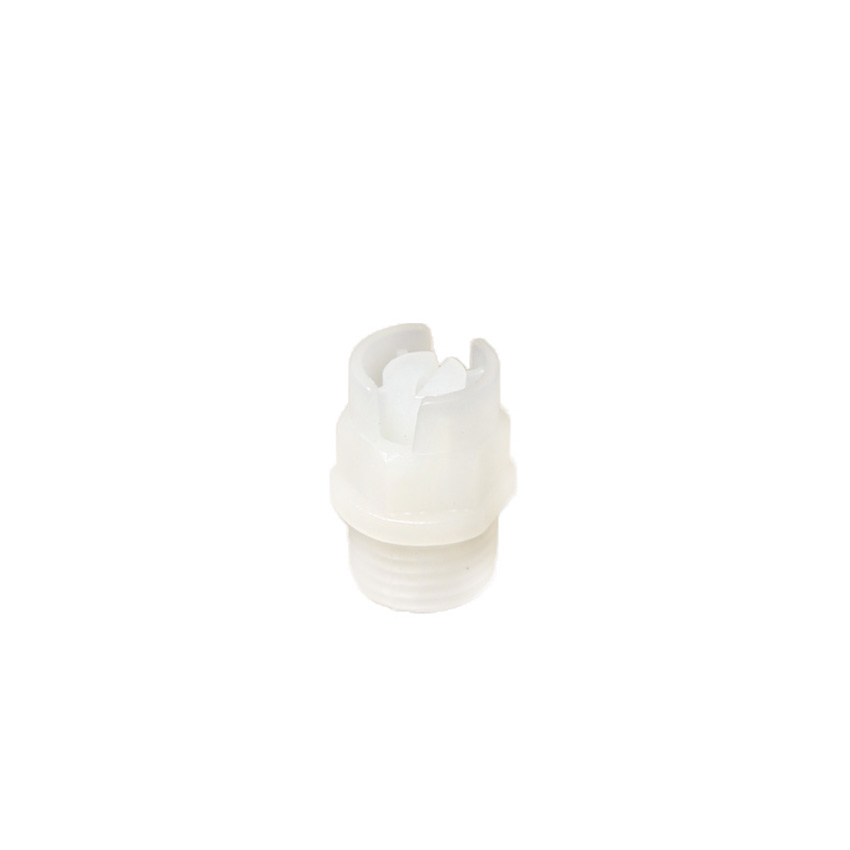

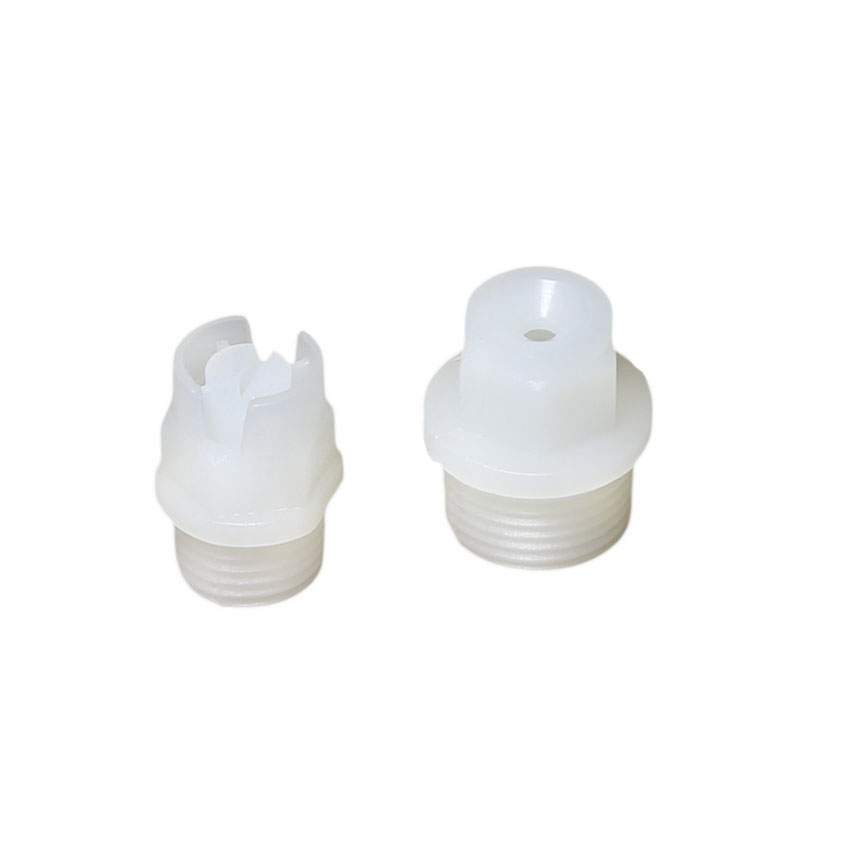

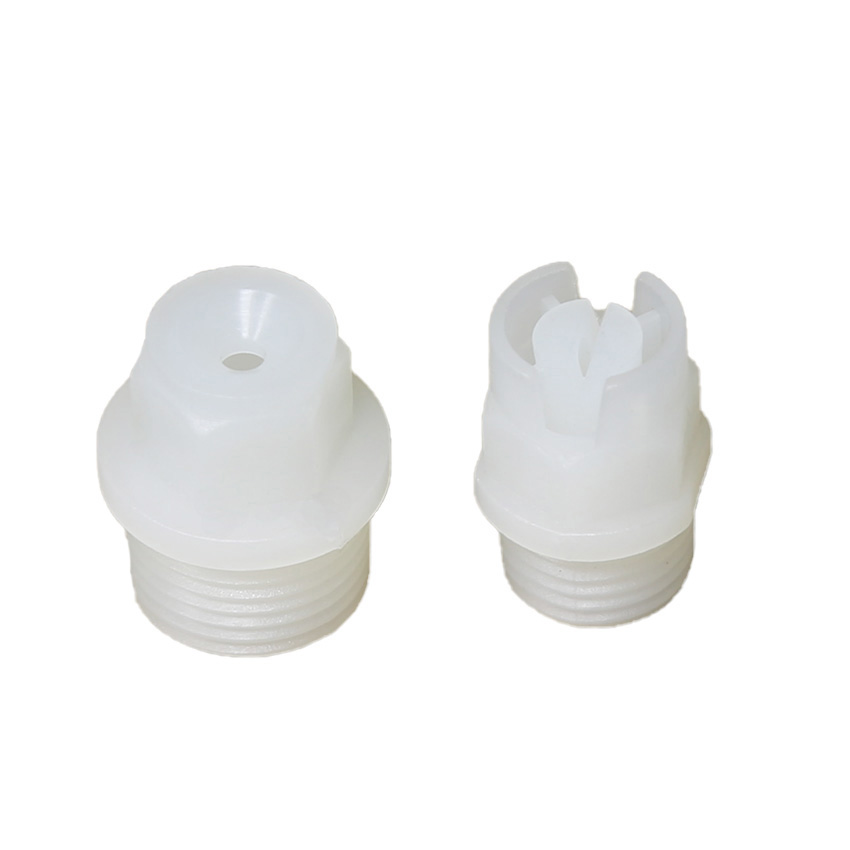

KY PLASTIC FAN SPRAY NOZZLES
The integrated plastic nozzle can withstand temperatures up to 148℃ under 7 ka pressure, which is verysuitable for the development. processing. rinsino. elchina. fim removal and other production processes in themanufacture of printed circuit boards (PCB): plastic materials have excellent chemical resistance lt caneffectively spray various chloride, acid, base or amine etchants, and has excellent anti-aging properties and wide life span.
| Description | |
| Model | KY |
| Spray pattern | KY Plastic Fan Nozzles |
| Thread size | 1/8" / 1/4" / 3/8" |
| Working pressure | Up to 35 bar |
| Flow Rate | 5.5-4140L/min |
| Spray angle | From 25° to 110° |

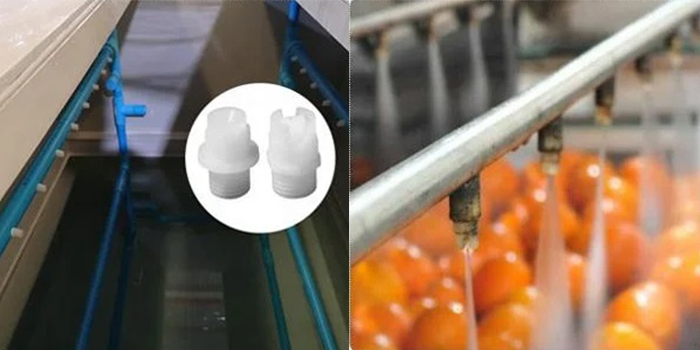

| Application | Typically used for washing, rinsing, cooling,cleaning.misting.dust control. dust suppression and fire protection |
| Delivery time | 4 days after payment being confirmed |
| Payment | Western union, Paypal, T/T, Visa, Our bank account, online payment |
General Applications
● Cleaning
● Degreasing
● Cooling
● Quenching

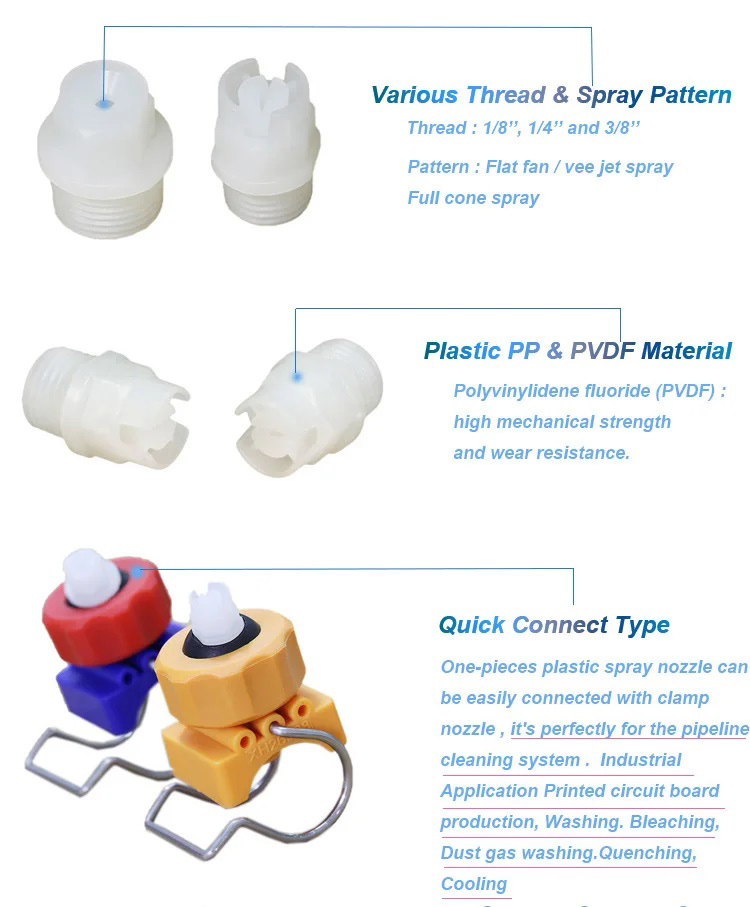

Design Features
Performance Data
| Spray Angle | Flow Code | Orifice Dia. (mm) | Flow Rate ( L/min) | Spray Angle | ||||||||||
| 1 ( us gal) = 3.785 L ; 1 ( uk gal) = 4.546 L | ||||||||||||||
| 0.3 bar | 1 bar | 2 bar | 3bar | 4bar | 5bar | 6bar | 7bar | 10bar | 20bar | 35bar | 1.3 bar | |||
| 110° | 11008 | 1.8 | 1 | 1.8 | 2.6 | 3.2 | 3.6 | 4.1 | 4.5 | 4.8 | 5.8 | 8.2 | 10.8 | 110° |
| 11010 | 2 | 1.2 | 2.3 | 3.2 | 3.9 | 4.6 | 5.1 | 5.6 | 6 | 7.2 | 10.2 | 13.5 | ||
| 11015 | 2.4 | 1.9 | 3.4 | 4.8 | 5.9 | 6.8 | 7.6 | 8.4 | 9 | 10.8 | 15.3 | 20 | ||
| 11020 | 2.8 | 2.5 | 4.6 | 6.5 | 7.9 | 9.1 | 10.2 | 11.2 | 12.1 | 14.4 | 20 | 27 | ||
| Flow Code | Orifice Dia. (mm) | 0.3 bar | 1 bar | 2 bar | 3bar | 4bar | 5bar | 6bar | 7bar | 10bar | 20bar | 35bar | Spray Angle (1.3bar) | |
| 95° | 9502 | 0.91 | 0.25 | 0.46 | 0.64 | 0.79 | 0.91 | 1 | 1.1 | 1.2 | 1.4 | 2 | 2.7 | 95° |
| 9503 | 1.1 | 0.38 | 0.67 | 0.97 | 1.2 | 1.4 | 1.5 | 1.7 | 1.8 | 2.2 | 3.1 | 4 | ||
| 9506 | 1.6 | 0.75 | 1.4 | 1.9 | 2.4 | 2.7 | 3.1 | 3.3 | 3.6 | 4.3 | 6.1 | 8.1 | ||
| 9510 | 2 | 1.2 | 2.3 | 3.2 | 3.9 | 4.6 | 5.1 | 5.6 | 6 | 7.2 | 10.2 | 13.5 | ||
| 9515 | 2.4 | 1.9 | 3.4 | 4.8 | 5.9 | 6.8 | 7.6 | 8.4 | 9 | 10.8 | 15.3 | 20 | ||
| 9530 | 3.6 | 3.7 | 6.8 | 9.7 | 11.8 | 13.7 | 15.3 | 16.7 | 18.1 | 22 | 31 | 40 | ||
| Flow Code | Orifice Dia. (mm) | 0.3 bar | 1 bar | 2 bar | 3bar | 4bar | 5bar | 6bar | 7bar | 10bar | 20bar | 35bar | Spray Angle (1.3bar) | |
| 85° | 8505 | 1.4 | 0.62 | 1.1 | 1.6 | 2 | 2.3 | 2.5 | 2.8 | 3 | 3.6 | 5.1 | 6.7 | 85° |
| Flow Code | Orifice Dia. (mm) | 0.3 bar | 1 bar | 2 bar | 3bar | 4bar | 5bar | 6bar | 7bar | 10bar | 20bar | 35bar | Spray Angle (1.3bar) | |
| 80° | 8005 | 1.4 | 0.62 | 1.1 | 1.6 | 2 | 2.3 | 2.5 | 2.8 | 3 | 3.6 | 5.1 | 6.7 | 80° |
| 8008 | 1.8 | 1 | 1.8 | 2.6 | 3.2 | 3.6 | 4.1 | 4.5 | 4.8 | 5.8 | 8.2 | 10.8 | ||
| 8010 | 2 | 1.2 | 2.3 | 3.2 | 3.9 | 4.6 | 5.1 | 5.6 | 6 | 7.2 | 10.2 | 13.5 | ||
| 8015 | 2.4 | 1.9 | 3.4 | 4.8 | 5.9 | 6.8 | 7.6 | 8.4 | 9 | 10.8 | 15.3 | 20 | ||
| 8020 | 2.8 | 2.5 | 4.6 | 6.5 | 7.9 | 9.1 | 10.2 | 11.2 | 12.1 | 14.4 | 20 | 27 | ||
| 8030 | 3.6 | 3.7 | 6.8 | 9.7 | 11.8 | 13.7 | 15.3 | 16.7 | 18.1 | 22 | 31 | 40 | ||
| Flow Code | Orifice Dia. (mm) | 0.3 bar | 1 bar | 2 bar | 3bar | 4bar | 5bar | 6bar | 7bar | 10bar | 20bar | 35bar | Spray Angle (1.3bar) | |
| 75° | 7506 | 1.6 | 0.75 | 1.4 | 1.9 | 2.4 | 2.7 | 3.1 | 3.3 | 3.6 | 4.3 | 6.1 | 8.1 | 75° |
| Flow Code | Orifice Dia. (mm) | 0.3 bar | 1 bar | 2 bar | 3bar | 4bar | 5bar | 6bar | 7bar | 10bar | 20bar | 35bar | Spray Angle (1.3bar) | |
| 65° | 6504 | 1.3 | 0.5 | 0.91 | 1.3 | 1.6 | 1.8 | 2 | 2.2 | 2.4 | 2.9 | 4.1 | 5.4 | 65° |
| 6505 | 1.4 | 0.62 | 1.1 | 1.6 | 2 | 2.3 | 2.5 | 2.8 | 3 | 3.6 | 5.1 | 6.7 | ||
| 6508 | 1.8 | 1 | 1.8 | 2.6 | 3.2 | 3.6 | 4.1 | 4.5 | 4.8 | 5.8 | 8.2 | 10.8 | ||
| 6510 | 2 | 1.2 | 2.3 | 3.2 | 3.9 | 4.6 | 5.1 | 5.6 | 6 | 7.2 | 10.2 | 13.5 | ||
| 6515 | 2.4 | 1.9 | 3.4 | 4.8 | 5.9 | 6.8 | 7.6 | 8.4 | 9 | 10.8 | 15.3 | 20 | ||
| 6530 | 3.6 | 3.7 | 6.8 | 9.7 | 11.8 | 13.7 | 15.3 | 16.7 | 18.1 | 22 | 31 | 40 | ||
| 6540 | 4 | 5 | 9.1 | 12.9 | 15.8 | 18.2 | 20 | 22 | 24 | 29 | 41 | 54 | ||
| 6550 | 4.4 | 6.2 | 11.4 | 16.1 | 19.7 | 23 | 25 | 28 | 30 | 36 | 51 | 68 | ||
| Flow Code | Orifice Dia. (mm) | 0.3 bar | 1 bar | 2 bar | 3bar | 4bar | 5bar | 6bar | 7bar | 10bar | 20bar | 35bar | Spray Angle (1.3bar) | |
| 50° | 5004 | 1.3 | 0.5 | 0.91 | 1.3 | 1.6 | 1.8 | 2 | 2.2 | 2.4 | 2.9 | 4.1 | 5.4 | 50° |
| 5008 | 1.8 | 1 | 1.8 | 2.6 | 3.2 | 3.6 | 4.1 | 4.5 | 4.8 | 5.8 | 8.2 | 10.8 | ||
| Flow Code | Orifice Dia. (mm) | 0.3 bar | 1 bar | 2 bar | 3bar | 4bar | 5bar | 6bar | 7bar | 10bar | 20bar | 35bar | Spray Angle (1.3bar) | |
| 40° | 4007 | 1.6 | 0.75 | 1.4 | 1.9 | 2.4 | 2.7 | 3.1 | 3.3 | 3.6 | 4.3 | 6.1 | 8.1 | 40° |
| 4008 | 1.8 | 1 | 1.8 | 2.6 | 3.2 | 3.6 | 4.1 | 4.5 | 4.8 | 5.8 | 8.2 | 10.8 | ||
| Flow Code | Orifice Dia. (mm) | 0.3 bar | 1 bar | 2 bar | 3bar | 4bar | 5bar | 6bar | 7bar | 10bar | 20bar | 35bar | Spray Angle (1.3bar) | |
| 35° | 3507 | 1.6 | 0.75 | 1.4 | 1.9 | 2.4 | 2.7 | 3.1 | 3.3 | 3.6 | 4.3 | 6.1 | 8.1 | 35° |
| 3508 | 1.8 | 1 | 1.8 | 2.6 | 3.2 | 3.6 | 4.1 | 4.5 | 4.8 | 5.8 | 8.2 | 10.8 | ||
| Flow Code | Orifice Dia. (mm) | 0.3 bar | 1 bar | 2 bar | 3bar | 4bar | 5bar | 6bar | 7bar | 10bar | 20bar | 35bar | Spray Angle (1.3bar) | |
| 25° | 2505 | 1.4 | 1.1 | 1.6 | 2 | 2.3 | 2.5 | 2.8 | 3 | 3.6 | 5.1 | 6.7 | 25° | |
