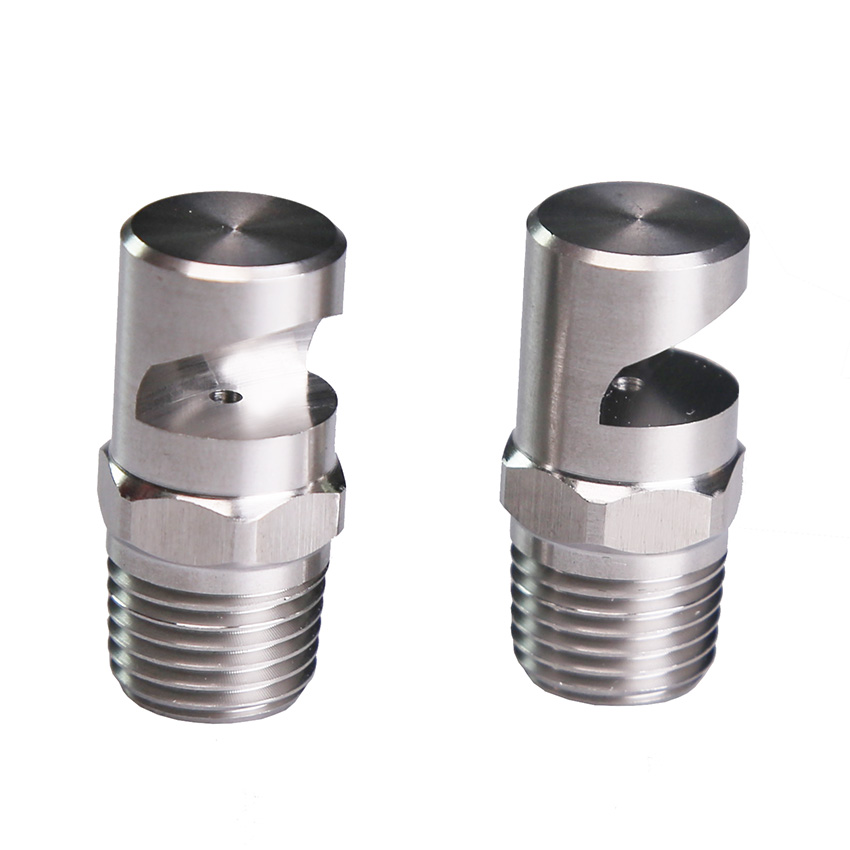

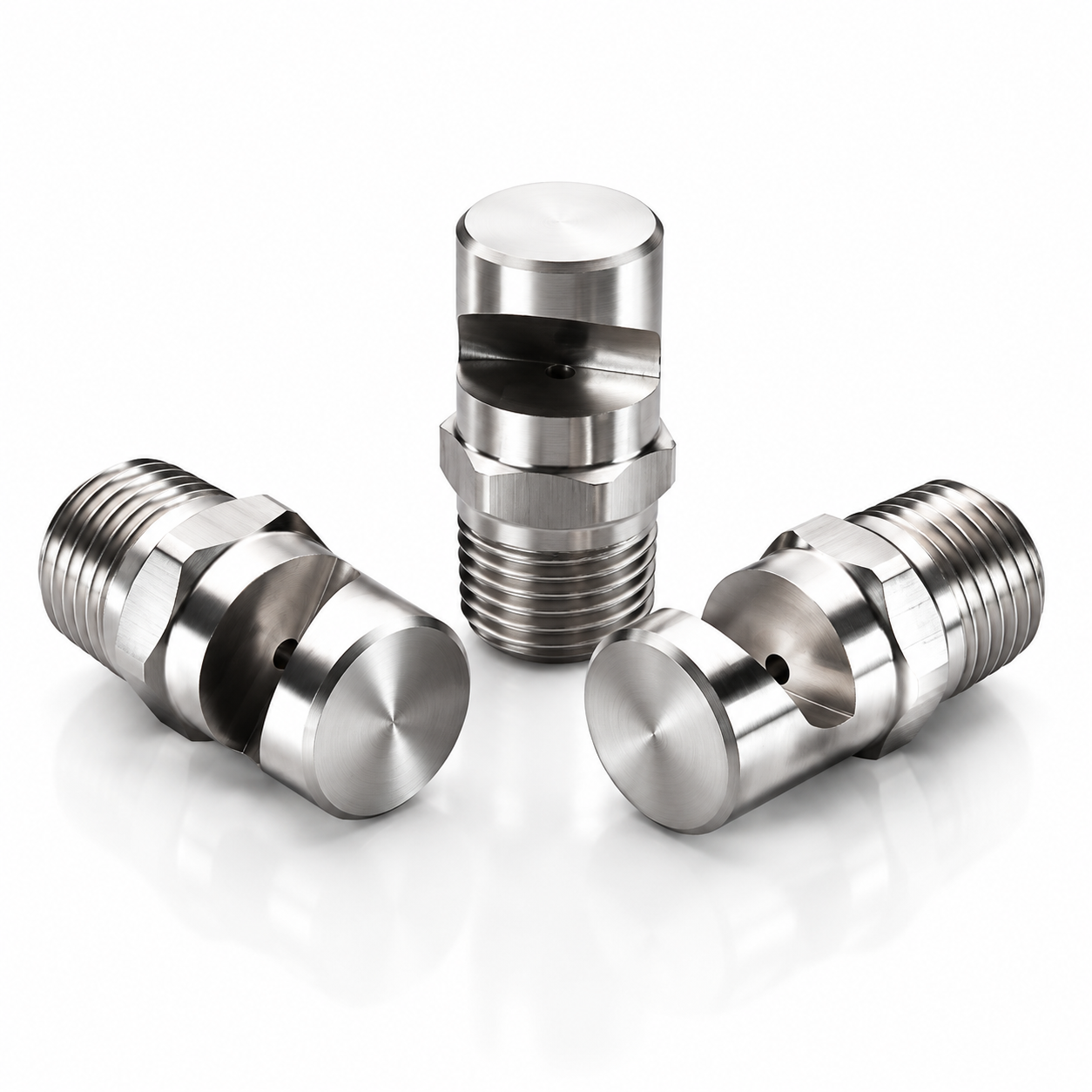

K Wide Angle deflector Flat Fan Spray Nozzle

The Flood Jet Wide Angle Flat Fan Spray Nozzles create a deflected type flat fan spray pattern with a wide angle. They are available in thread sizes ranging from 1/8" to 2" with either BSPT or NPT thread type, and offer a stable spray angle with even, parabolic liquid distribution.

Material
● 304 stainless steel
● 316 stainless steel
● Brass
● Plastic
Availability:
Product Description

K WIDE ANGLE DEFLECTOR FLAT FAN NOZZLES

The Flood Jet Wide Angle Flat Fan Spray Nozzles create a deflected type flat fan spray pattern with a wide angle. They are available in thread sizes ranging from 1/8" to 2" with either BSPT or NPT thread type, and offer a stable spray angle with even, parabolic liquid distribution.




Description
Model K
Spray pattern K Wide Angle Flat Fan Nozzles
Thread size 1/8" / 1/4" / 3/8" 1/2" 3/4" 2''
Working pressure 0.3 to 35 bar
Flow Rate 0.047-4720L/min
Spray angle From 110° to 170°
Application Industries Electronic, Chemical, Environmental Protection, Steel, Machinery, Coating,Electroplating, Textile, Automobile, Papermaking, Medicine, Food and otherindustrial production fields.
Delivery time 4 days after payment being confirmed
Payment Western union, Paypal, T/T, Visa, Our bank account, online payment



General Applications

● Film flushing

● Cooling belt

● Water Curtain

● Fire extinguishing

● Defoaming



Design Features


Features:

● The nozzle produces a medium-impulse, wide-angle fan-shaped spray shape

●  An even distribution and medium-sized droplets.

● Produces a wide spray angle from 120° to 145° with moderate impact

● The wide angle fan nozzle structure itself prevents the fan nozzle from clogging

●  Spray media can be liquid, steam and air




Nozzle Dimension





As liquid passes through the nozzle, it hits the deflector surface and sprays out to form  a flat spray pattern.

The distribution is even from the center of the spray.The deflector surface enables the formation of very wide spray angles compared to other flat spray nozzles.




Performance Data

Flow Code Orifice Dia.  (mm) Flow rate (L/min) Spray Angle
1 ( us gal) = 3.785 L ;   1 ( uk gal) = 4.546 L
0.2 bar 0.3 bar 0.5 bar 0.7 bar 1 bar 1.5 bar 2 bar 3 bar 4 bar 0.5 bar 1.5 bar 4 bar
0.25 0.41



0.11 0.14 0.16 0.2 0.23
83° 117°
0.5 0.61



0.23 0.28 0.32 0.39 0.46
89° 122°
0.75 0.71


0.29 0.34 0.42 0.48 0.59 0.68
106° 125°
1 0.84


0.38 0.46 0.56 0.64 0.79 0.91
109° 128°
1.5 1

0.48 0.57 0.68 0.84 0.97 1.2 1.4 73° 108° 125°
2 1.2

0.64 0.76 0.91 1.1 1.3 1.6 1.8 83° 113° 129°
2.5 1.3
0.62 0.81 0.95 1.1 1.4 1.6 2 2.3 98° 122° 133°
3 1.4
0.75 0.97 1.1 1.4 1.7 1.9 2.4 2.7 86° 112° 126°
4 1.7
1 1.3 1.5 1.8 2.2 2.6 3.2 3.6 97° 123° 132°
5 1.9 1 1.2 1.6 1.9 2.3 2.8 3.2 3.9 4.6 114° 128° 142°
7.5 2.3 1.5 1.9 2.4 2.9 3.4 4.2 4.8 5.9 6.8 101° 119° 134°
10 2.6 2 2.5 3.2 3.8 4.6 5.6 6.4 7.9 9.1 115° 133° 145°
12 2.9 2.4 3 3.9 4.6 5.5 6.7 7.7 9.5 10.9 128° 139° 153°
15 3.3 3.1 3.7 4.8 5.7 6.8 8.4 9.7 11.8 13.7 98° 113° 123°
18 3.6 3.7 4.5 5.8 6.9 8.2 10 11.6 14.2 16.4 106° 120° 131°
20 3.8 4.1 5 6.4 7.6 9.1 11.2 12.9 15.8 18.2 110° 122° 133°
22 4 4.5 5.5 7.1 8.4 10 12.3 14.2 17.4 20 113° 125° 136°
24 4.1 4.9 6 7.7 9.2 10.9 13.4 15.5 18.9 22 115° 131° 144°
27 4.4 5.5 6.7 8.7 10.3 12.3 15.1 17.4 21 25 119° 135° 148°
30 4.6 6.1 7.5 9.7 11.4 13.7 16.7 19.3 24 27 100° 110° 121°
35 5 7.1 8.7 11.3 13.3 16 19.5 23 28 32 105° 118° 128°
40 5.3 8.2 10 12.9 15.3 18.2 22 26 32 36 111° 126° 136°
45 5.6 9.2 11.2 14.5 17.2 21 25 29 36 41 115° 130° 140°
50 6 10.2 12.5 16.1 19.1 23 28 32 39 46 117° 131° 140°
60 6.5 12.2 15 19.3 23 27 33 39 47 55 120° 134° 142°
70 7.1 14.3 17.5 23 27 32 39 45 55 64 123° 137° 146°
80 7.5 16.3 20 26 31 36 45 52 63 73 127° 138° 149°
90 8 18.3 22 29 34 41 50 58 71 82 120° 133° 140°
100 8.4 20 25 32 38 46 56 64 79 91 123° 136° 145°
110 8.8 22 27 35 42 50 61 71 87 100 125° 138° 148°
120 9.3 24 30 39 46 55 67 77 95 109 129° 143° 150°
140 10.3 29 35 45 53 64 78 90 111 128 118° 127° 135°
160 11.1 33 40 52 61 73 89 103 126 146 121° 130° 137°
180 11.5 37 45 58 69 82 100 116 146 164 124° 133° 139°
210 12.3 43 52 68 80 96 117 135 166 191 128° 139° 145°
300 14.7 61 75 97 114 137 167 193 235 275 110° 128° 135°
450 17.9 92 112 145 172 205 2500 290 355 410 118° 132° 138°
