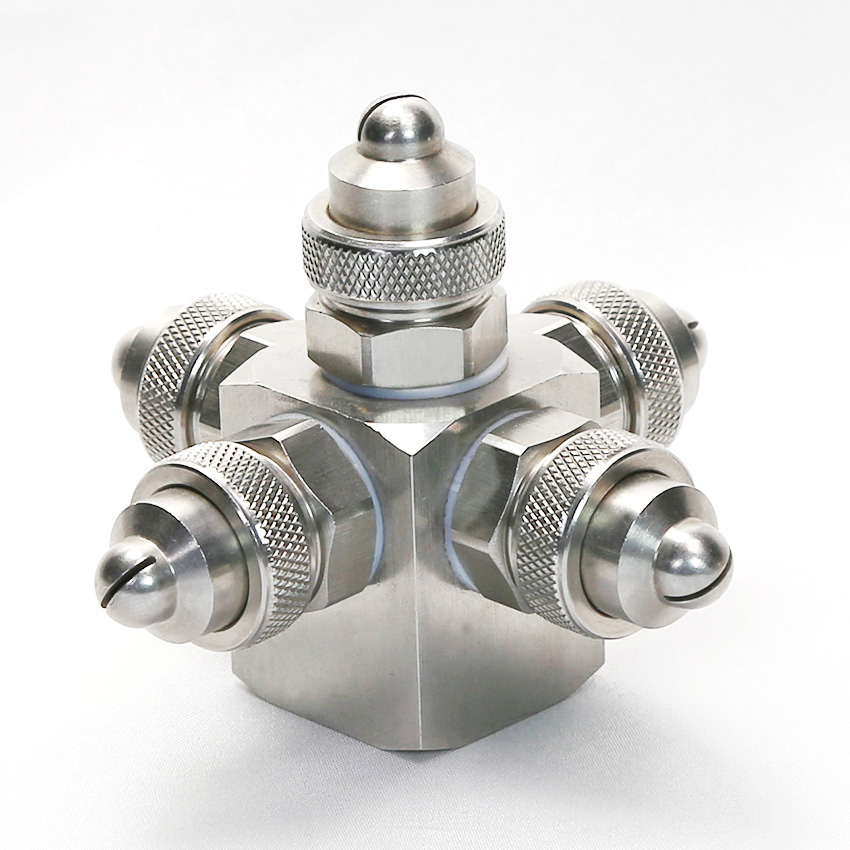

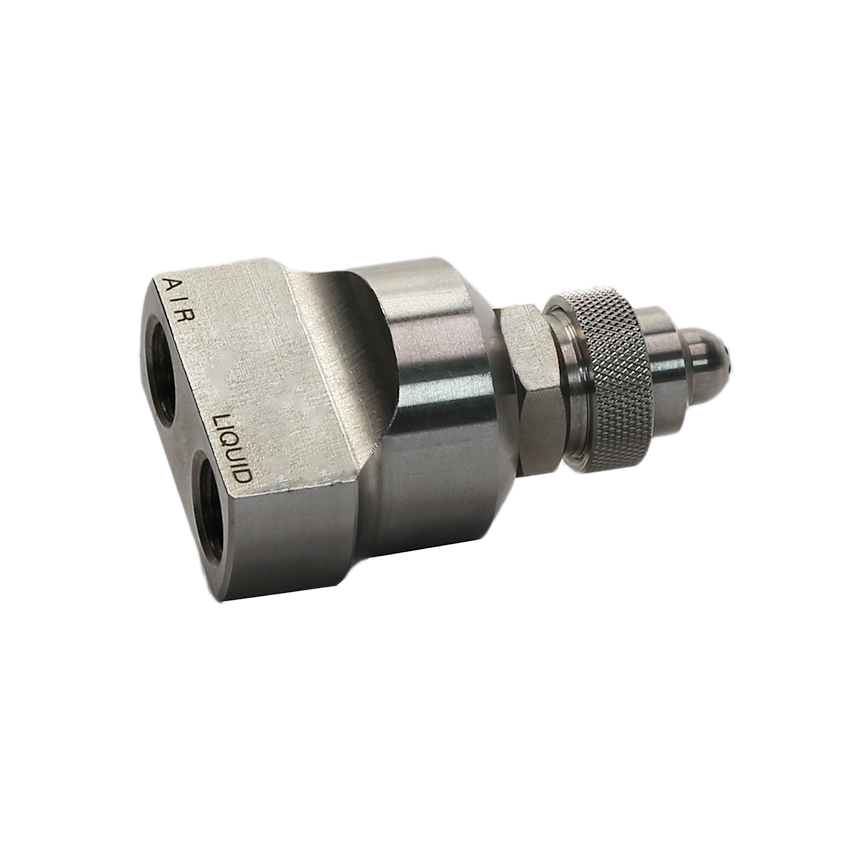

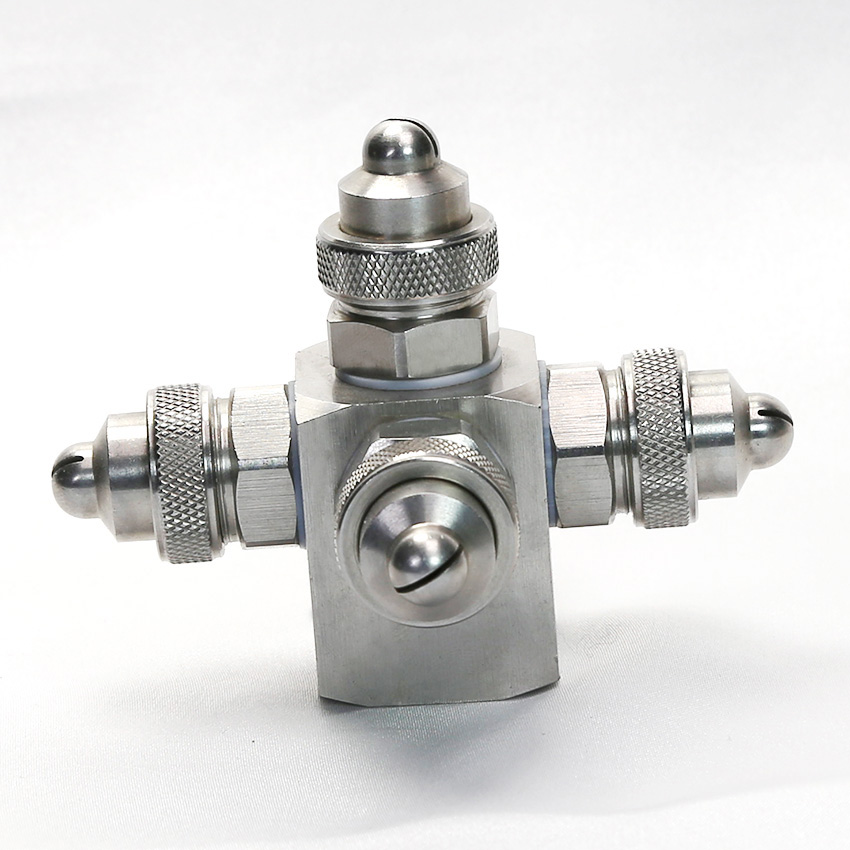

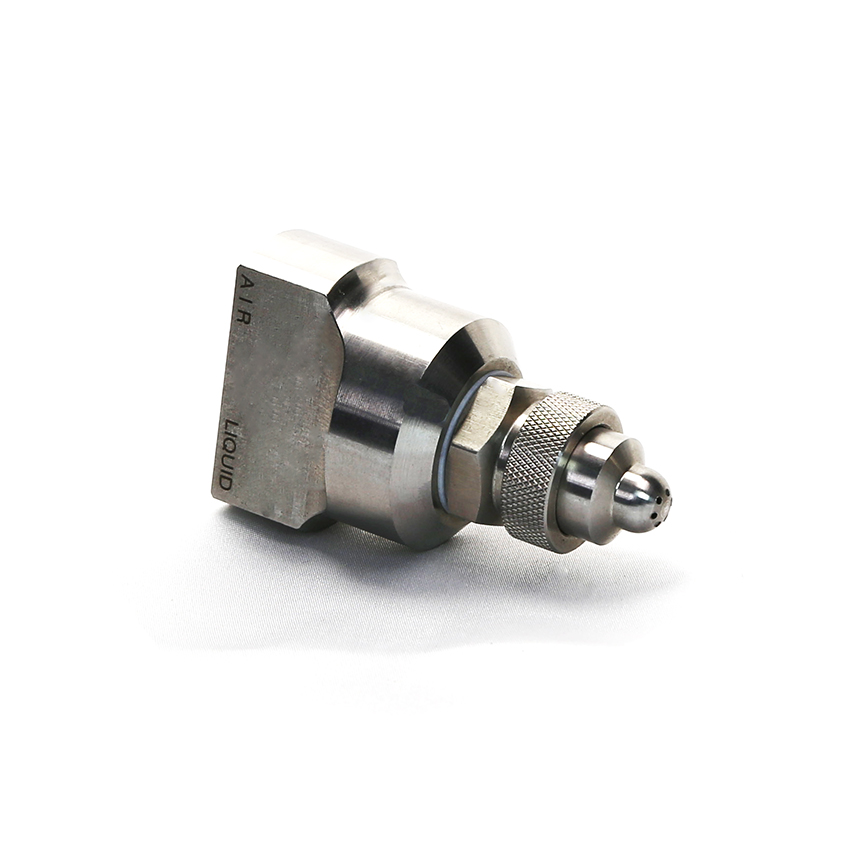

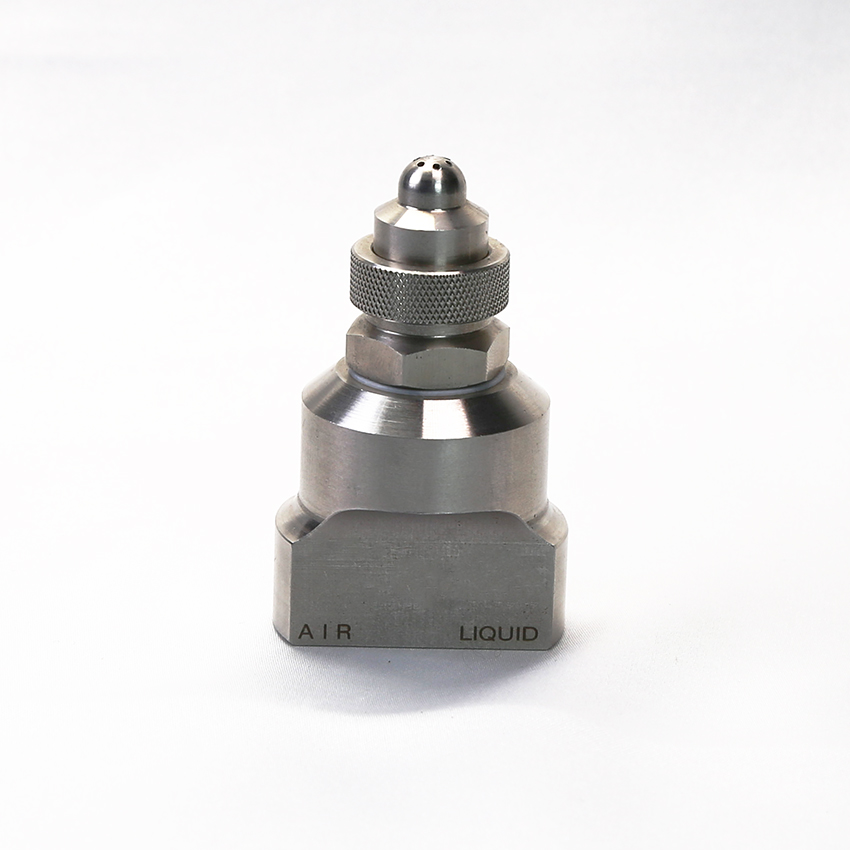

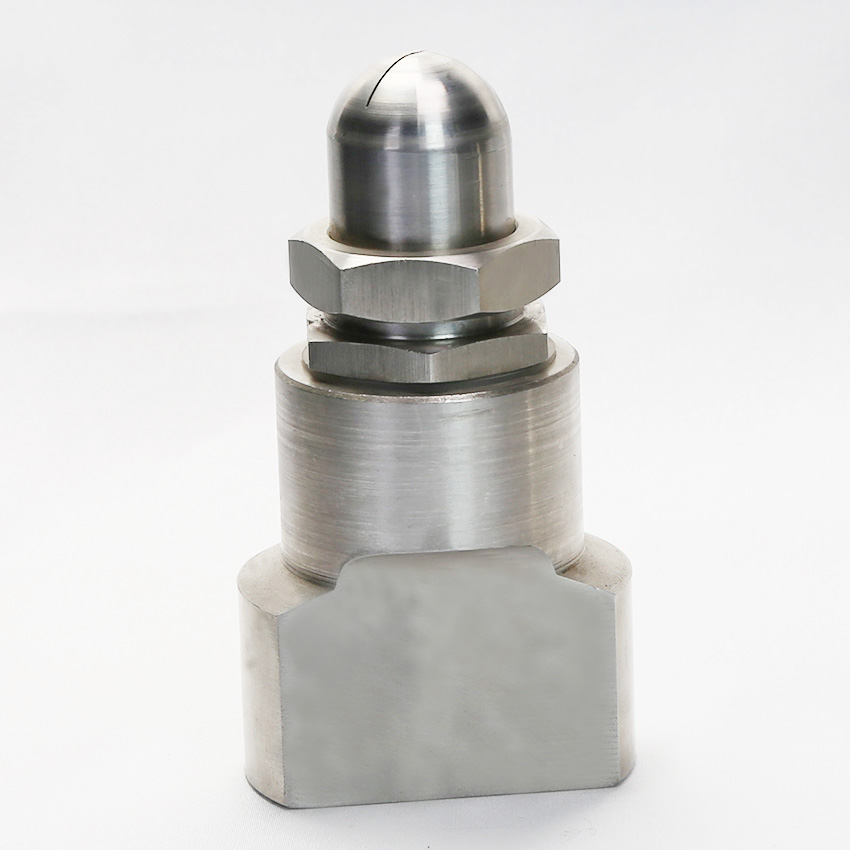

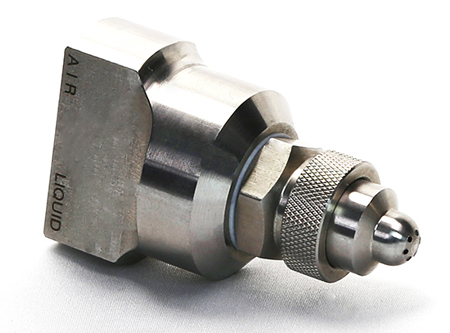

JBC Back Connection Type Atomizing Nozzles
JBC Back Connection Type Atomizing Nozzles include air and liquid connection on the back side.
Gravity or siphon fed and Liquid pressure principle with internal mixing and external mix of fluids.
The spray is finely atomized , mist or fog spray.
Air and liquid pressure is usually 2 -3 bar. Liquid pressure is not necessary for Siphon fed.
| Description | |
| Model | JBC |
| Type | Adjustable |
| Spray pattern | Round |
| Working pressure | 2 to 3 bar |
| Spray angle | Around 90 degrees |
| Application | •Humidification •Mould lubricating •Spray injection •Air disinfection and sterillization •Coating, cooling, humidifying •Gas cooling •Misting, fogging •Dust suppression |
| Delivery time | 5 days after payment being confirmed |
| Payment | Western union, Paypal, T/T, Visa, Our bank account, online payment |
General Applications
•Humidification
•Mould lubricating
•Spray injection
•Air disinfection and sterillization
•Coating, cooling, humidifying
•Gas cooling
•Misting, fogging
•Dust suppression

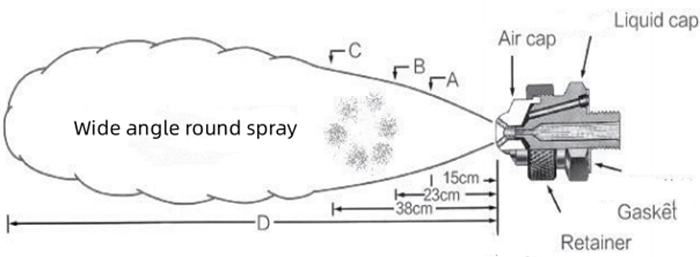

Design Features
Performance Data
| Spray Set-up No. | Liquid cap / Air cap No. | Liquid capacity(L/h) & Air capacity(L/min) | Spray distance | |||||||||||
| 1.5bar ( liquid) | 2bar ( liquid) | 3bar ( liquid) | Air pressure (bar) | Liquid pressure (bar) | D（m) | |||||||||
| Air pressure （bar) | Water capacity | Air capacity | Air pressure （bar) | Water capacity | Air capacity | Air pressure （bar) | Water capacity | Air capacity | ||||||
| SU16 | Liquid cap 2050 / Air cap 67-6-20-70° | 1.1 | 8.1 | 13.3 | 1.5 | 8.1 | 16.4 | 2.4 | 8.9 | 22 | 0.7 | 0.7 | 1.5 | |
| 1.3 | 7.0 | 15.0 | 1.8 | 6.6 | 21 | 2.7 | 8.1 | 26 | 1.4 | 1.5 | 1.8 | |||
| 1.4 | 6.4 | 17.0 | 2.1 | 4.9 | 25 | 3.0 | 6.4 | 30 | 1.8 | 2.0 | 2.1 | |||
| 1.7 | 5.5 | 19.0 | 2.4 | 3.2 | 29 | 3.2 | 4.9 | 34 | 3.0 | 3.0 | 2.7 | |||
| 1.8 | 4.5 | 22 | 3.4 | 4.2 | 27 | 3.9 | 4.0 | 4.0 | ||||||
| 3.5 | 24 | 3.5 | 3.4 | 40 | ||||||||||
| SU26B | Liquid cap 40100 / Air cap 140-6-37-70° | 1.7 | 13.2 | 68 | 2.0 | 18.5 | 68 | 2.8 | 25 | 84 | ||||
| 1.8 | 9.8 | 79 | 2.1 | 15.1 | 76 | 3 | 22 | 92 | 0.85 | 0.7 | 1.8 | |||
| 2.2 | 11.7 | 85 | 3.1 | 18.5 | 101 | 1.7 | 1.5 | 2.4 | ||||||
| 3.2 | 15.1 | 109 | 2.1 | 2.0 | 3.2 | |||||||||
| 3.4 | 12.1 | 119 | 3.2 | 3.0 | 4.1 | |||||||||
| 3.5 | 9.1 | 130 | 4.1 | 4.0 | 5.9 | |||||||||
| 3.7 | 6.1 | 142 | ||||||||||||
| SU26 | Liquid cap 60100 / Air cap 140-6-70° | 1.4 | 43 | 37 | 2.1 | 33 | 66 | 2.8 | 52 | 65 | ||||
| 1.5 | 35 | 49 | 2.2 | 26 | 78 | 3 | 46 | 76 | 0.85 | 0.7 | 2.1 | |||
| 1.7 | 28 | 61 | 2.4 | 18.9 | 89 | 3.1 | 39 | 87 | 1.5 | 1.5 | 3.2 | |||
| 1.8 | 21 | 71 | 2.5 | 11.7 | 100 | 3.2 | 33 | 99 | 2.4 | 2.0 | 4.1 | |||
| 3.4 | 26 | 110 | 3.2 | 3.0 | 5.0 | |||||||||
| 3.5 | 19.5 | 122 | 3.6 | 4.0 | 6.8 | |||||||||
| 3.7 | 13.2 | 133 | ||||||||||||
| SU29 | Liquid cap 60100 / Air cap 140-6-52-70° | 2.1 | 57 | 116 | 3.1 | 53 | 156 | 4.2 | 64 | 197 | ||||
| 2.4 | 51 | 130 | 3.2 | 50 | 163 | 1.9 | 51 | 230 | 2.0 | 0.7 | 5.5 | |||
| 2.7 | 45 | 143 | 3.4 | 47 | 170 | 5.6 | 40 | 265 | 3.0 | 1.5 | 6.4 | |||
| 3.0 | 39 | 157 | 3.5 | 45 | 177 | 6.0 | 34 | 285 | 3.9 | 2.0 | 8.2 | |||
| 3.2 | 33 | 170 | 3.9 | 38 | 194 | 6.3 | 28 | 300 | 6.0 | 3.0 | 9.1 | |||
| 3.5 | 28 | 185 | 4.6 | 25 | 230 | 6.7 | 22 | 320 | 6.3 | 4.0 | 10.4 | |||
| 4.2 | 13.6 | 220 | 4.9 | 18.5 | 245 | 7.0 | 17.8 | 335 | ||||||
| SU30 | Liquid cap 40100 / Air cap 120-6-35-60° | 2.2 | 16.3 | 62 | 2.7 | 21 | 69 | 4.2 | 19.3 | 100 | ||||
| 2.5 | 12.1 | 71 | 3.0 | 16.3 | 78 | 4.6 | 14.6 | 113 | 1.5 | 0.7 | 2.7 | |||
| 2.8 | 8.9 | 79 | 3.2 | 12.3 | 86 | 4.9 | 10.8 | 124 | 3 | 1.5 | 4.6 | |||
| 3.0 | 7.6 | 83 | 3.4 | 10.7 | 91 | 5.3 | 8.1 | 135 | 3.4 | 2.0 | 5.5 | |||
| 3.1 | 6.4 | 87 | 3.5 | 9.3 | 94 | 5.6 | 6.2 | 146 | 5.3 | 3.0 | 7.3 | |||
| 3.2 | 5.5 | 91 | 3.9 | 6.4 | 105 | 6.0 | 4.9 | 157 | 6.3 | 4.0 | 9.4 | |||
| 3.4 | 4.7 | 95 | 4.2 | 4.7 | 115 | 6.3 | 4.0 | 167 | ||||||
| SU46 | Liquid cap 100150 / Air cap 189-6-62-70° | 3.0 | 39 | 230 | 3.4 | 50 | 250 | 4.6 | 62 | 320 | 2 | 5.5 | ||
| 3.1 | 33 | 240 | 3.5 | 43 | 260 | 4.9 | 47 | 345 | 3.2 | 0.7 | 6.4 | |||
| 3.2 | 27 | 255 | 3.7 | 41 | 275 | 5.3 | 36 | 375 | 3.9 | 1.5 | 7.3 | |||
| 3.4 | 23 | 265 | 3.9 | 27 | 300 | 5.6 | 26 | 405 | 5.3 | 2.0 | 7.9 | |||
| 3.5 | 18.5 | 280 | 4.1 | 23 | 310 | 6.0 | 18.9 | 435 | 6.3 | 3.0 | 9.8 | |||
| 3.7 | 14.8 | 290 | 4.2 | 18.9 | 320 | 6.3 | 13.6 | 460 | 4.0 | |||||
| 4.4 | 15.9 | 335 | ||||||||||||
