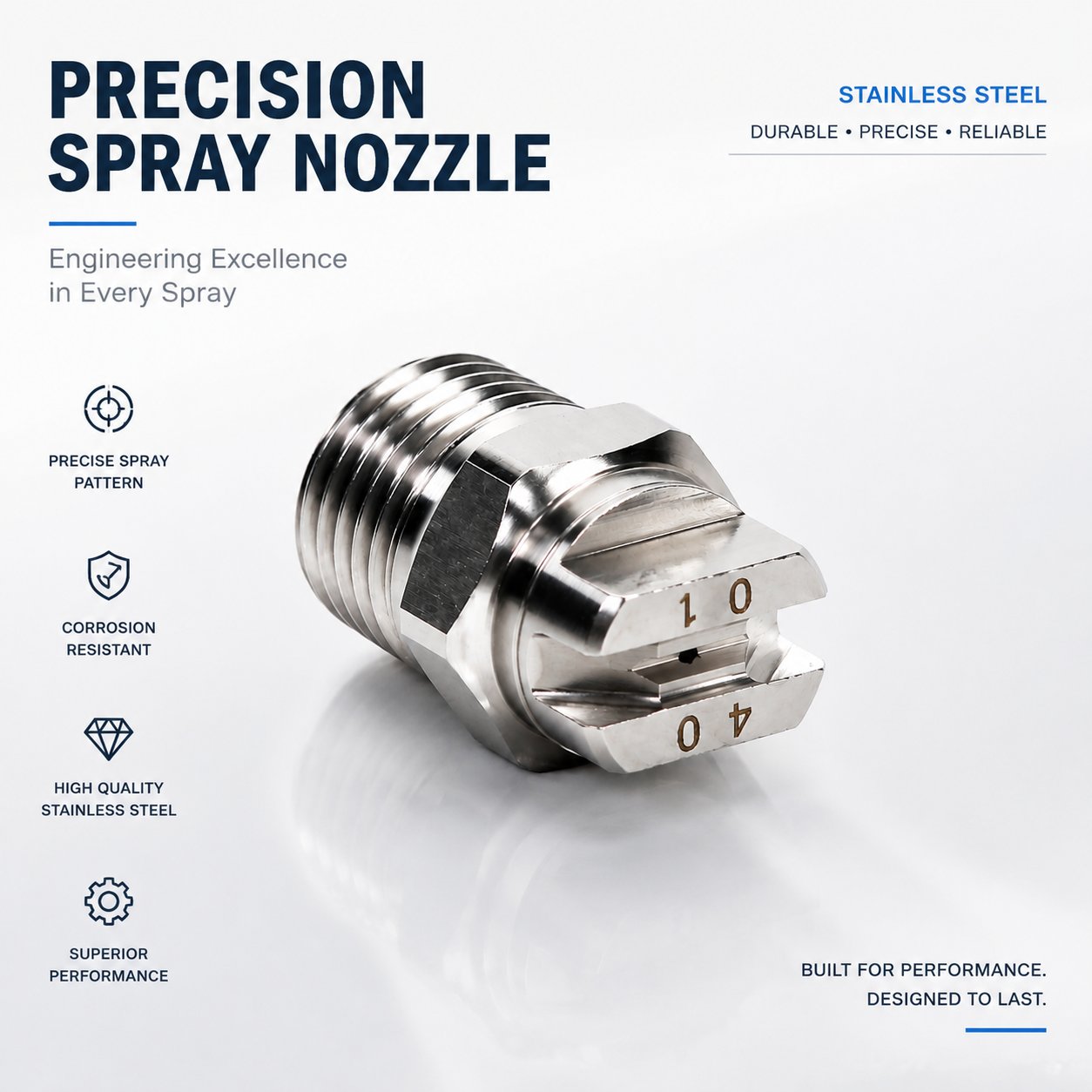

HVV Flat Fan Nozzles

The flat fan pattern functions like a line of spray, with a higher impact than full or hollow cone patterns, but not as high as a solid stream nozzle. Droplet sizes produced by this nozzle are larger than cone nozzles, although certain air atomizing flat fan nozzles can produce very fine droplets. To cover an area, a flat fan nozzle requires some form of relative motion, often achieved by a conveyor moving products under a series of flat fan sprays. Alternatively, the nozzle itself can be in motion to ensure complete coverage.

Material
● Brass
● 303 Stainless steel
● 304 Stainless steel
● 316 stainless steel
● 416 hardened stainless steel
● Plastic (PP, PVDF, TEFLON)

Availability:



Inquire

Product Description

HVV FLAT FAN NOZZLES

The flat fan pattern functions like a line of spray, with a higher impact than full or hollow cone patterns, but not as high as a solid stream nozzle. Droplet sizes produced by this nozzle are larger than cone nozzles, although certain air atomizing flat fan spray nozzles can produce very fine droplets. To cover an area, a flat fan spray nozzle requires some form of relative motion, often achieved by a conveyor moving products under a series of flat fan sprays. Alternatively, the nozzle itself can be in motion to ensure complete coverage.

Description

Model	HVV
Spray pattern	Standard Flat Fan Nozzles
Thread Size	1/8" to 2''
Working pressure	Up to 35 bar (500 psi)
Flow Rate	1.0-410L/min
Spray angle	From 0° (column flow) to 110° at 2.8 bar (40 psi)
Application	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Construction works , Energy & Mining, Cleaning, washing, cooling
Delivery time	4 days after payment being confirmed
Payment	Western union, Paypal, T/T, Visa, Our bank account, online payment

General Applications

● Washing & rinsing

● Spraying & cooling

● Chilling & quenching

● Fire Fighting

● Washing Machines

● Spraying release agents

Design Features

Features:

● The nozzle distributes a fan spray.

● Droplet size ranges from small to medium.

● It is evenly distributed and has a wide range of applications.

● Spray angle from 0° (column flow) to 110° at 2.8 bar (40 psi).

● Unique edge taper spray, suitable for manifold and spraying bar.

● A high-impact liquid flow provides maximum impact force.

● The unobstructed fluid passage minimizes clogging.

As the liquid exits through the sharp V shape cut of the orifice, it forms into a flat spray pattern.

The distribution is tapered from the center of the spray.

Acceossories

Plastic swivel ball joint

Mounting clamp

Adjustable ball joint

Split eyelet connector

Male-female adaptor

Filter for small flow

Performance Data

Spray angle	Flow Code	Orifice Dia.	Flow Rate ( L/min)											Spray Angle
			1 ( us gal) = 3.785 L ; 1 ( uk gal) = 4.546 L											Spray Angle
			0.3 bar	1 bar	2 bar	3bar	4bar	5bar	6bar	7bar	10bar	20bar	35bar	3 bar
110°	11001	0.66	0.12	0.23	0.32	0.39	0.46	0.51	0.56	0.6	0.72	1.0	1.3	110°
	11015	0.79	0.19	0.34	0.48	0.59	0.68	0.76	0.84	0.90	1.1	1.5	2.0
	11002	0.91	0.25	0.46	0.64	0.79	0.91	1.0	1.1	1.2	1.4	2	2.7
	11003	1.1	0.37	0.68	0.97	1.2	1.4	1.5	1.7	1.8	2.2	3.1	4.0
	11004	1.3	0.5	0.91	1.3	1.6	1.8	2.0	2.2	2.4	2.9	4.1	5.4
	11005	1.4	0.62	1.1	1.6	2.0	2.3	2.5	2.8	3	3.6	5.1	6.7
	11006	1.6	0.75	1.4	1.9	2.4	2.7	3.1	3.3	3.6	4.3	6.1	8.1
	11008	1.8	1.0	1.8	2.6	3.2	3.6	4.1	4.5	4.8	5.8	8.2	10.8
	11010	2.0	1.2	2.3	3.2	3.9	4.6	5.1	5.6	6.0	7.2	10.2	13.5
	11015	2.4	1.9	3.4	4.8	5.9	6.8	7.6	8.4	9.0	10.8	15.3	20
	11020	2.8	2.5	4.6	6.5	7.9	9.1	10.2	11.2	12.1	14.4	20	27
95°	Flow Code	Orifice Dia	0.3 bar	1 bar	2 bar	3bar	4bar	5bar	6bar	7bar	10bar	20bar	35bar	Spray Angle (3bar)
	950050	0.46		0.11	0.16	0.2	0.23	0.25	0.28	0.3	0.36	0.51	0.67	95°
	9501	0.66	0.12	0.23	0.32	0.39	0.46	0.51	0.56	0.6	0.72	1.0	1.3
	95015	0.79	0.19	0.34	0.48	0.59	0.68	0.76	0.84	0.90	1.1	1.5	2.0
	9502	0.91	0.25	0.46	0.64	0.79	0.91	1.0	1.1	1.2	1.4	2	2.7
	9503	1.1	0.37	0.68	0.97	1.2	1.4	1.5	1.7	1.8	2.2	3.1	4.0
	9504	1.3	0.5	0.91	1.3	1.6	1.8	2.0	2.2	2.4	2.9	4.1	5.4
	9505	1.4	0.62	1.1	1.6	2.0	2.3	2.5	2.8	3	3.6	5.1	6.7
	9506	1.6	0.75	1.4	1.9	2.4	2.7	3.1	3.3	3.6	4.3	6.1	8.1
	9508	1.8	1.0	1.8	2.6	3.2	3.6	4.1	4.5	4.8	5.8	8.2	10.8
	9510	2.0	1.2	2.3	3.2	3.9	4.6	5.1	5.6	6.0	7.2	10.2	13.5
	9515	2.4	1.9	3.4	4.8	5.9	6.8	7.6	8.4	9.0	10.8	15.3	20
	9520	2.8	2.5	4.6	6.5	7.9	9.1	10.2	11.2	12.1	14.4	20	27
	9530	3.6	3.7	6.8	9.7	11.8	13.7	15.3	16.7	18.1	22	31	40
	9540	4.0	5.0	9.1	12.9	15.8	18.2	20.0	22	24	29	41	54
	9550	4.4	6.2	11.4	16.1	19.7	23	25	28	30	36	51	68
	9560	4.8	7.5	13.7	19.3	24	27	31	33	36	43	61	81
	9570	5.2	8.7	16	23	28	32	36	39	42	50	70	94
	95100	6.4	12.5	23	32	39	46	51	56	60.0	72	102	135
	95150	7.5	18.7	34	48	59	68	76	84	90.0	108	153	205
80°	Flow Code	Orifice Dia	0.3 bar	1 bar	2 bar	3bar	4bar	5bar	6bar	7bar	10bar	20bar	35bar	Spray Angle (3bar)
	800050	0.46		0.11	0.16	0.2	0.23	0.25	0.28	0.3	0.36	0.51	0.67	80°
	800067	0.53		0.15	0.22	0.26	0.31	0.34	0.37	0.4	0.48	0.68	0.9
	8001	0.66	0.12	0.23	0.32	0.39	0.46	0.51	0.56	0.6	0.72	1.0	1.3
	80015	0.79	0.19	0.34	0.48	0.59	0.68	0.76	0.84	0.90	1.1	1.5	2.0
	8002	0.91	0.25	0.46	0.64	0.79	0.91	1.0	1.1	1.2	1.4	2	2.7
	8003	1.1	0.37	0.68	0.97	1.2	1.4	1.5	1.7	1.8	2.2	3.1	4.0
	8004	1.3	0.5	0.91	1.3	1.6	1.8	2.0	2.2	2.4	2.9	4.1	5.4
	8005	1.4	0.62	1.1	1.6	2.0	2.3	2.5	2.8	3	3.6	5.1	6.7
	8006	1.6	0.75	1.4	1.9	2.4	2.7	3.1	3.3	3.6	4.3	6.1	8.1
	8008	1.8	1.0	1.8	2.6	3.2	3.6	4.1	4.5	4.8	5.8	8.2	10.8
	8010	2.0	1.2	2.3	3.2	3.9	4.6	5.1	5.6	6.0	7.2	10.2	13.5
	8015	2.4	1.9	3.4	4.8	5.9	6.8	7.6	8.4	9.0	10.8	15.3	20
	8020	2.8	2.5	4.6	6.5	7.9	9.1	10.2	11.2	12.1	14.4	20	27
	8030	3.6	3.7	6.8	9.7	11.8	13.7	15.3	16.7	18.1	22	31	40
	8040	4.0	5.0	9.1	12.9	15.8	18.2	20.0	22	24	29	41	54
	8050	4.4	6.2	11.4	16.1	19.7	23	25	28	30	36	51	68
	8060	4.8	7.5	13.7	19.3	24	27	31	33	36	43	61	81
	8070	5.2	8.7	16	23	28	32	36	39	42	50	70	94
	80100	6.4	12.5	23	32	39	46	51	56	60.0	72	102	135
	80150	7.5	18.7	34	48	59	68	76	84	90.0	108	153	205
	80200	8.7	25	46	64	79	91	102	112	121	144	205	270
	80400	12.7	50	91	129	158	182	205	225	240.0	290	410	540
73°	Flow Code	Orifice Dia	0.3 bar	1 bar	2 bar	3bar	4bar	5bar	6bar	7bar	10bar	20bar	35bar	Spray Angle (3bar)
	730077	0.56		0.18	0.25	0.3	0.35	0.39	0.43	0.46	0.55	0.78	1.0	73°
	730154	0.81	0.19	0.35	0.5	0.61	0.7	0.78	0.86	0.93	1.1	1.6	2.1
	730231	1.0	0.29	0.53	0.74	0.91	1.1	1.2	1.3	1.4	1.7	2.4	3.1
	730308	1.1	0.38	0.7	0.99	1.2	1.4	1.6	1.7	1.90	2.2	3.1	4.2
	730462	1.4	0.58	1.1	1.5	1.8	2.1	2.4	2.6	2.8	3.3	4.7	6.2
	730770	1.8	0.96	1.8	2.5	3.0	3.5	3.9	4.3	4.6	5.5	7.8	10.4
65°	Flow Code	Orifice Dia	0.3 bar	1 bar	2 bar	3bar	4bar	5bar	6bar	7bar	10bar	20bar	35bar	Spray Angle (3bar)
	650017	0.28			0.05	0.06	0.07	0.08	0.09	0.1	0.12	0.17	0.23
	650033	0.38			0.11	0.13	0.15	0.17	0.18	0.2	0.24	0.34	0.44	65°
	650050	0.46		0.11	0.16	0.2	0.23	0.25	0.28	0.3	0.36	0.51	0.67
	650067	0.53		0.15	0.22	0.26	0.31	0.34	0.37	0.4	0.48	0.68	0.9
	6501	0.66	0.12	0.23	0.32	0.39	0.46	0.51	0.56	0.6	0.72	1.0	1.3
	65015	0.79	0.19	0.34	0.48	0.59	0.68	0.76	0.84	0.90	1.1	1.5	2.0
	6502	0.91	0.25	0.46	0.64	0.79	0.91	1.0	1.1	1.2	1.4	2	2.7
	6503	1.1	0.37	0.68	0.97	1.2	1.4	1.5	1.7	1.8	2.2	3.1	4.0
	6504	1.3	0.5	0.91	1.3	1.6	1.8	2.0	2.2	2.4	2.9	4.1	5.4
	6505	1.4	0.62	1.1	1.6	2.0	2.3	2.5	2.8	3	3.6	5.1	6.7
	6506	1.6	0.75	1.4	1.9	2.4	2.7	3.1	3.3	3.6	4.3	6.1	8.1
	6508	1.8	1.0	1.8	2.6	3.2	3.6	4.1	4.5	4.8	5.8	8.2	10.8
	6510	2.0	1.2	2.3	3.2	3.9	4.6	5.1	5.6	6.0	7.2	10.2	13.5
	6515	2.4	1.9	3.4	4.8	5.9	6.8	7.6	8.4	9.0	10.8	15.3	20
	6520	2.8	2.5	4.6	6.5	7.9	9.1	10.2	11.2	12.1	14.4	20	27
	6530	3.6	3.7	6.8	9.7	11.8	13.7	15.3	16.7	18.1	22	31	40
	6540	4.0	5.0	9.1	12.9	15.8	18.2	20.0	22	24	29	41	54
	6550	4.4	6.2	11.4	16.1	19.7	23	25	28	30	36	51	68
	6560	4.8	7.5	13.7	19.3	24	27	31	33	36	43	61	81
	6570	5.2	8.7	16	23	28	32	36	39	42	50	70	94
	65100	6.4	12.5	23	32	39	46	51	56	60.0	72	102	135
	65150	7.5	18.7	34	48	59	68	76	84	90.0	108	153	205
	65200	8.7	25	46	64	79	91	102	112	121	144	205	270
50°	Flow Code	Orifice Dia	0.3 bar	1 bar	2 bar	3bar	4bar	5bar	6bar	7bar	10bar	20bar	35bar	Spray Angle (3bar)
	5001	0.66	0.12	0.23	0.32	0.39	0.46	0.51	0.56	0.6	0.72	1.0	1.3	50°
	50015	0.79	0.19	0.34	0.48	0.59	0.68	0.76	0.84	0.90	1.1	1.5	2.0
	5002	0.91	0.25	0.46	0.64	0.79	0.91	1.0	1.1	1.2	1.4	2	2.7
	5003	1.1	0.37	0.68	0.97	1.2	1.4	1.5	1.7	1.8	2.2	3.1	4.0
	5004	1.3	0.5	0.91	1.3	1.6	1.8	2.0	2.2	2.4	2.9	4.1	5.4
	5005	1.4	0.62	1.1	1.6	2.0	2.3	2.5	2.8	3	3.6	5.1	6.7
	5006	1.6	0.75	1.4	1.9	2.4	2.7	3.1	3.3	3.6	4.3	6.1	8.1
	5008	1.8	1.0	1.8	2.6	3.2	3.6	4.1	4.5	4.8	5.8	8.2	10.8
	5010	2.0	1.2	2.3	3.2	3.9	4.6	5.1	5.6	6.0	7.2	10.2	13.5
	5015	2.4	1.9	3.4	4.8	5.9	6.8	7.6	8.4	9.0	10.8	15.3	20
	5020	2.8	2.5	4.6	6.5	7.9	9.1	10.2	11.2	12.1	14.4	20	27
	5030	3.6	3.7	6.8	9.7	11.8	13.7	15.3	16.7	18.1	22	31	40
	5040	4.0	5.0	9.1	12.9	15.8	18.2	20.0	22	24	29	41	54
	5050	4.4	6.2	11.4	16.1	19.7	23	25	28	30	36	51	68
	5060	4.8	7.5	13.7	19.3	24	27	31	33	36	43	61	81
	5070	5.2	8.7	16	23	28	32	36	39	42	50	70	94
	50100	6.4	12.5	23	32	39	46	51	56	60.0	72	102	135
	50150	7.5	18.7	34	48	59	68	76	84	90.0	108	153	205
	50200	8.7	25	46	64	79	91	102	112	121	144	205	270
40°	Flow Code	Orifice Dia	0.3 bar	1 bar	2 bar	3bar	4bar	5bar	6bar	7bar	10bar	20bar	35bar	Spray Angle (3bar)
	4001	0.66		0.23	0.32	0.39	0.46	0.51	0.56	0.6	0.72	1.0	1.3	40°
	40015	0.79		0.34	0.48	0.59	0.68	0.76	0.84	0.90	1.1	1.5	2.0
	4002	0.91		0.46	0.64	0.79	0.91	1.0	1.1	1.2	1.4	2	2.7
	4003	1.1		0.68	0.97	1.2	1.4	1.5	1.7	1.8	2.2	3.1	4.0
	4004	1.3	0.5	0.91	1.3	1.6	1.8	2.0	2.2	2.4	2.9	4.1	5.4
	4005	1.4	0.62	1.1	1.6	2.0	2.3	2.5	2.8	3	3.6	5.1	6.7
	4006	1.6	0.75	1.4	1.9	2.4	2.7	3.1	3.3	3.6	4.3	6.1	8.1
	4008	1.8	1.0	1.8	2.6	3.2	3.6	4.1	4.5	4.8	5.8	8.2	10.8
	4010	2.0	1.2	2.3	3.2	3.9		5.1	5.6	6.0	7.2	10.2	13.5
	4015	2.4	1.9	3.4	4.8	5.9	6.8	7.6	8.4	9.0	10.8	15.3	20
	4020	2.8	2.5	4.6	6.5	7.9	9.1	10.2	11.2	12.1	14.4	20	27
	4030	3.6	3.7	6.8	9.7	11.8	13.7	15.3	16.7	18.1	22	31	40
	4040	4.0	5.0	9.1	12.9	15.8	18.2	20.0	22	24	29	41	54
	4050	4.4	6.2	11.4	16.1	19.7	23	25	28	30	36	51	68
	4060	4.8	7.5	13.7	19.3	24	27	31	33	36	43	61	81
	4070	5.2	8.7	16	23	28	32	36	39	42	50	70	94
	40100	6.4	12.5	23	32	39	46	51	56	60.0	72	102	135
	40150	7.5	18.7	34	48	59	68	76	84	90.0	108	153	205
	40200	8.7	25	46	64	79	91	102	112	121	144	205	270
25°	Flow Code	Orifice Dia	0.3 bar	1 bar	2 bar	3bar	4bar	5bar	6bar	7bar	10bar	20bar	35bar	Spray Angle (3bar)
	2501	0.66			0.32	0.39	0.46	0.51	0.56	0.6	0.72	1.0	1.3	25°
	25015	0.79			0.48	0.59	0.68	0.76	0.84	0.90	1.1	1.5	2.0
	2502	0.91		0.46	0.64	0.79	0.91	1.0	1.1	1.2	1.4	2	2.7
	2503	1.1		0.68	0.97	1.2	1.4	1.5	1.7	1.8	2.2	3.1	4.0
	2504	1.3		0.91	1.3	1.6	1.8	2.0	2.2	2.4	2.9	4.1	5.4
	2505	1.4		1.1	1.6	2.0	2.3	2.5	2.8	3	3.6	5.1	6.7
	2506	1.6		1.4	1.9	2.4	2.7	3.1	3.3	3.6	4.3	6.1	8.1
	2508	1.8		1.8	2.6	3.2	3.6	4.1	4.5	4.8	5.8	8.2	10.8
	2510	2.0	1.2	2.3	3.2	3.9	4.6	5.1	5.6	6.0	7.2	10.2	13.5
	2515	2.4	1.9	3.4	4.8	5.9	6.8	7.6	8.4	9.0	10.8	15.3	20
	2520	2.8	2.5	4.6	6.5	7.9	9.1	10.2	11.2	12.1	14.4	20	27
	2530	3.6	3.7	6.8	9.7	11.8	13.7	15.3	16.7	18.1	22	31	40
	2540	4.0	5.0	9.1	12.9	15.8	18.2	20.0	22	24	29	41	54
	2550	4.4	6.2	11.4	16.1	19.7	23	25	28	30	36	51	68
	2560	4.8	7.5	13.7	19.3	24	27	31	33	36	43	61	81
	2570	5.2	8.7	16	23	28	32	36	39	42	50	70	94
	25100	6.4	12.5	23	32	39	46	51	56	60.0	72	102	135
	25150	7.5	18.7	34	48	59	68	76	84	90.0	108	153	205
	25200	8.7	25	46	64	79	91	102	112	121	144	205	270
	25500	13.1	62	114	161	197	230	255	280	300	360	510	680
	25750	15.9	94	171	240	295	340	385	420	455	540	770	1010
	251000	18.7	125	230	325	395	455	510	560	610	720	1020	1350
15°	Flow Code	Orifice Dia	0.3 bar	1 bar	2 bar	3bar	4bar	5bar	6bar	7bar	10bar	20bar	35bar	Spray Angle (3bar)
	1501	0.66			0.32	0.39	0.46	0.51	0.56	0.6	0.72	1.0	1.3	15°
	15015	0.79			0.48	0.59	0.68	0.76	0.84	0.90	1.1	1.5	2.0
	1502	0.91			0.64	0.79	0.91	1.0	1.1	1.2	1.4	2	2.7
	1503	1.1			0.97	1.2	1.4	1.5	1.7	1.8	2.2	3.1	4.0
	1504	1.3	0.5	0.91	1.3	1.6	1.8	2.0	2.2	2.4	2.9	4.1	5.4
	1505	1.4	0.62	1.1	1.6	2.0	2.3	2.5	2.8	3	3.6	5.1	6.7
	1506	1.6	0.75	1.4	1.9	2.4	2.7	3.1	3.3	3.6	4.3	6.1	8.1
	1508	1.8	1.0	1.8	2.6	3.2	3.6	4.1	4.5	4.8	5.8	8.2	10.8
	1510	2.0	1.2	2.3	3.2	3.9	4.6	5.1	5.6	6.0	7.2	10.2	13.5
	1515	2.4	1.9	3.4	4.8	5.9	6.8	7.6	8.4	9.0	10.8	15.3	20
	1520	2.8	2.5	4.6	6.5	7.9	9.1	10.2	11.2	12.1	14.4	20	27
	1530	3.6	3.7	6.8	9.7	11.8	13.7	15.3	16.7	18.1	22	31	40
	1540	4.0	5.0	9.1	12.9	15.8	18.2	20.0	22	24	29	41	54
	1550	4.4	6.2	11.4	16.1	19.7	23	25	28	30	36	51	68
	1560	4.8	7.5	13.7	19.3	24	27	31	33	36	43	61	81
	150	5.2	8.7	16	23	28	32	36	39	42	50	70	94
	15100	6.4	12.5	23	32	39	46	51	56	60.0	72	102	135
	15150	7.5	18.7	34	48	59	68	76	84	90.0	108	153	205
	15200	8.7	25	46	64	79	91	102	112	121	144	205	270
	15250	9.5	31	57	81	99	114	127	140	151	180	255	340
	15500	13.1	62	114	161	197	230	255	280	300	360	510	680
	15750	15.9	94	171	240	295	340	385	420	455	540	770	1010
	151000	18.7	125	230	325	395	455	510	560	610	720	1020	1350
0°	Flow Code	Orifice Dia	0.3 bar	1 bar	2 bar	3bar	4bar	5bar	6bar	7bar	10bar	20bar	35bar	Spray Angle (3bar)
	0003	1.0	0.37	0.68	0.97	1.2	1.4	1.5	1.7	1.8	2.2	3.1	4.0	0°
	0004	1.2	0.5	0.91	1.3	1.6	1.8	2.0	2.2	2.4	2.9	4.1	5.4
	0005	1.3	0.62	1.1	1.6	2.0	2.3	2.5	2.8	3	3.6	5.1	6.7
	0006	1.5	0.75	1.4	1.9	2.4	2.7	3.1	3.3	3.6	4.3	6.1	8.1
	0008	1.7	1.0	1.8	2.6	3.2	3.6	4.1	4.5	4.8	5.8	8.2	10.8
	0010	1.9	1.2	2.3	3.2	3.9	4.6	5.1	5.6	6.0	7.2	10.2	13.5
	0015	2.3	1.9	3.4	4.8	5.9	6.8	7.6	8.4	9.0	10.8	15.3	20
	0020	27	2.5	4.6	6.5	7.9	9.1	10.2	11.2	12.1	14.4	20	27
	0030	3.6	3.7	6.8	9.7	11.8	13.7	15.3	16.7	18.1	22	31	40
	0040	4.0	5.0	9.1	12.9	15.8	18.2	20.0	22	24	29	41	54
	0050	4.4	6.2	11.4	16.1	19.7	23	25	28	30	36	51	68
	0060	4.8	7.5	13.7	19.3	24	27	31	33	36	43	61	81
	0070	5.2	8.7	16	23	28	32	36	39	42	50	70	94
	00100	6.0	12.5	23	32	39	46	51	56	60.0	72	102	135
	00150	7.5	18.7	34	48	59	68	76	84	90.0	108	153	205
	00200	8.3	25	46	64	79	91	102	112	121	144	205	270
	00250	9.5	31	57	81	99	114	127	140	151	180	255	340
	00350	11.1	44	80	113	138	160	178	195	210	255	360	475
	00700	15.5	87	160	225	275	320	355	390	420	510	720	950
	001000	18.7	125	230	325	395	455	510	560	610	720	1020	1350

HVV Flat Fan Nozzles

Related Products

Products

Industries

Applications

Services

Resources

Company
