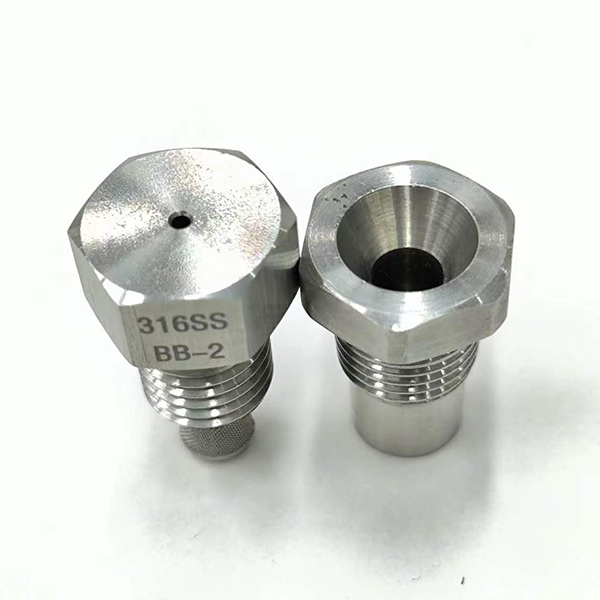

High Pressure Needle Jet Paper Making Nozzles
Net high-pressure swing cleaning Blanket high pressure swing cleaning Blind hole roller cleaning Groove roller cleaning
General Applications
• Net high-pressure swing cleaning
• Blanket high pressure swing cleaning
• Blind hole roller cleaning
• Groove roller cleaning
Design Features
Features:
● High Pressure Needle Jet Papermaking Nozzles can bear high pressure up to 60 bar.
● 303SS. 304SS or 316 stainless steel are available.
Performance Data
Style No. | Orifice Dia. (mm) | Capacity (L/min) | ||||||||||
3 bar | 4 bar | 5 bar | 7 bar | 15 bar | 30 bar | 40 bar | 50 bar | 60 bar | ||||
19124-14 | 0.36 | 0.12 | 0.13 | 0.15 | 0.17 | 0.25 | 0.37 | 0.42 | 0.47 | 0.51 | ||
19124-28 | 0.71 | 0.42 | 0.48 | 0.54 | 0.63 | 0.93 | 1.3 | 1.5 | 1.7 | 1.9 | ||
19124-33 | 0.84 | 0.62 | 0.73 | 0.81 | 0.95 | 1.4 | 2 | 2.4 | 2.7 | 2.9 | ||
19124-40 | 1.02 | 0.89 | 1 | 1.1 | 1.4 | 2 | 2.8 | 3.2 | 3.6 | 3.9 | ||
19124-55 | 1.4 | 1.6 | 1.9 | 2.1 | 2.4 | 3.6 | 5 | 5.8 | 6.5 | 7 | ||
19124-70 | 1.78 | 2.7 | 3.1 | 3.5 | 4.2 | 6.1 | 8.8 | 10 | 11 | 13 | ||
19124-94 | 2.39 | 4.5 | 5.2 | 5.9 | 7 | 10 | 15 | 18 | 20 | 22 | ||
19124-125 | 3.18 | 7.3 | 8.5 | 9.6 | 11 | 17 | 25 | 30 | 33 | 37 |
Style No. | Orifice Dia. (mm) | Capacity (L/min) | ||||||||||||
Standard | Long | 3 bar | 5 bar | 7 bar | 10 bar | 15 bar | 20 bar | 30 bar | 40 bar | 50 bar | 60 bar | 70 bar | 80 bar | |
1/4PT-SS 1/4PT-SSCER 1/4PT-RBY | 1/4PTL-SS 1/4PTL-SSCER 1/4PTL-RBY | 0.8 | 0.54 | 0.7 | 0.83 | 1 | 1.22 | 1.41 | 1.73 | 2 | 2.23 | 2.45 | 2.64 | 2.83 |
0.9 | 0.69 | 0.89 | 1.05 | 1.26 | 1.55 | 1.76 | 2.19 | 2.53 | 2.83 | 2.1 | 3..35 | 3.58 | ||
1 | 0.85 | 1.1 | 1.3 | 1.56 | 1.91 | 2.21 | 2.7 | 3.12 | 3.46 | 3.83 | 4.13 | 4.42 | ||
1.2 | 1.23 | 1.59 | 1.88 | 2.25 | 2.75 | 3.18 | 3.9 | 4.5 | 5.03 | 5.51 | 5.95 | 6.36 | ||
1.5 | 1.92 | 2.48 | 2.94 | 3.51 | 4.3 | 4.97 | 6.09 | 7.03 | 7.86 | 8.61 | 9.3 | 9.95 | ||
1.8 | 2.77 | 3.58 | 4.23 | 5.06 | 6.2 | 7.16 | 8.77 | 10.1 | 11.3 | 12.4 | 13.4 | 14.3 | ||
2 | 3.42 | 4.42 | 5.23 | 6.25 | 7.66 | 8.84 | 10.8 | 12.5 | 13.9 | 15.3 | 16.4 | 17.6 |
