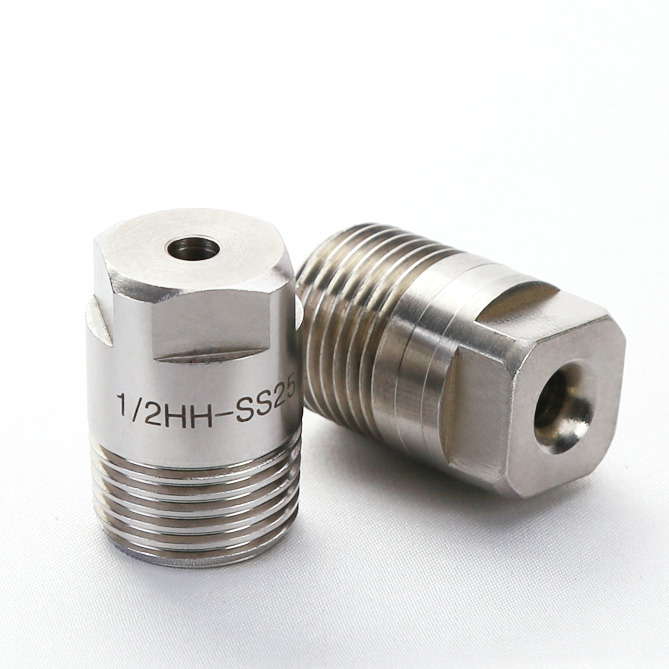

HH Standard Angle Full Cone Nozzles

The feature about square spray nozzle is that it generates full cone spray,the spraying area is square.Spray angle is 40°-105 ° Full jet square spray nozzle can spray uniformly,droplets are from medium to big under big range of pressure and flow rate. This well distributed spray benefits from distinct vane design,big and clear and excellent control features.This kind of nozzle is suitable to be installed at the rectangle area that needs to be completely covered by spray.
G-SQ and GG-SQ series square spray nozzle have detachable cap and vane,so there is no need to remove nozzle body from header or multibranch pipe in maintenance.

Material
● Brass
● 303 Stainless steel
● 304 Stainless steel
● 316 stainless steel
Availability:
Product Description

HH STANDARD ANGLE FULL CONE NOZZLES

The feature about square spray nozzle is that it generates full cone spray,the spraying area is square.Spray angle is 40°-105 ° Full jet square spray nozzle can spray uniformly,droplets are from medium to big under big range of pressure and flow rate. This well distributed spray benefits from distinct vane design,big and clear and excellent control features.This kind of nozzle is suitable to be installed at the rectangle area that needs to be completely covered by spray.

G-SQ and GG-SQ series square spray nozzle have detachable cap and vane,so there is no need to remove nozzle body from header or multibranch pipe in maintenance.




Description
Model HH
Spray pattern Stanard Angle Full Cone Nozzles
Working pressure 0.3-10bar
Inlet thread size 1/8" to 3/4" BSPT or NPT
Flow Rate 0.93-7370L/min
Spray angle From 40° to 105°
Application Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Construction works , Energy & Mining, Cleaning, washing, cooling
Delivery time 4 days after payment being confirmed
Payment Western union, Paypal, T/T, Visa, Our bank account, online payment



General Applications

● Washing and cleaning

● Quenching and cooling

● Control dust

● Air and gas washing

● Scrubbing

● Fire-extinguishing

● Fireproof



Acceossories


Ball universal joint

Ball universal joint

Split eyelet connector

Split eyelet connector



Performance Data

Thread Size Flow Code Orifice Dia (mm) Max free Passage Orifice Dia(mm) Flow Rate ( L/min) Spray angle
1 ( us gal) = 3.785 L ;   1 ( uk gal) = 4.546 L
0.3 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar 6 bar 7 bar 10bar 6bar
1/8'' 3.6SQ 1.6 1.3 0.93 1.2 1.6 2.2 2.7 3.1 3.4 3.7 4 4.7 47°
4.8SQ 1.9 1.3 1.2 1.6 2.2 3 3.6 4.1 4.5 4.9 5.3 6.2 57°
6SQ 2.4 1.3 1.5 2 2.7 3.7 4.5 5.1 5.6 6.1 6.6 7.8 60°
1/4'' 10SQ 2.8 1.6 2.6 3.3 4.5 6.2 7.4 8.5 9.4 10.2 11 13 61°
12SQ 3.2 1.6 3.1 3.9 5.4 7.4 8.9 10.2 11.3 12.3 13.2 15.5 68°
14.5SQ 3.9 1.6 3.7 4.7 6.5 9 10.8 12.3 13.7 14.8 15.9 18.8 75°
3/8'' 18SQ 4 2.4 4.6 5.9 8.1 11.1 13.4 15.3 17 18.4 19.8 23 68°
1/2'' 29SQ 5.6 3.2 7.5 9.5 13 17.9 22 25 27 30 32 38 68°
36SQ 6.4 3.2 9.3 11.8 16.2 22 27 31 34 37 40 47 75°
3/4'' 50SQ 6.7 4.4 12.9 16.3 22 31 37 42 47 51 55 48 68°
1'' 106SQ 9.9 5.6 27 35 48 65 79 90 100 109 117 49 73°
1 1/4'' 177SQ 12.7 6.4 46 58 79 109 132 150 167 181 195 50 73°
1 1/2'' 230SQ 14.3 8.7 59 75 103 142 171 195 220 235 255 51 70°
2'' 290SQ 15.5 11.1 75 95 130 179 215 250 275 300 320 52 64°
360SQ 17.4 11.1 93 118 162 225 270 305 340 370 395 53 67°
480SQ 21 11.1 124 157 215 300 360 410 455 495 530 54 74°
2 1/2'' 490SQ 19.8 14.3 126 160 220 305 365 420 465 510 540 55 61°
590SQ 22.2 14.3 152 193 265 365 440 510 560 610 650 56 71°
950SQ 28.6 17.5 245 310 430 590 710 810 900 980 1050 57 76°
