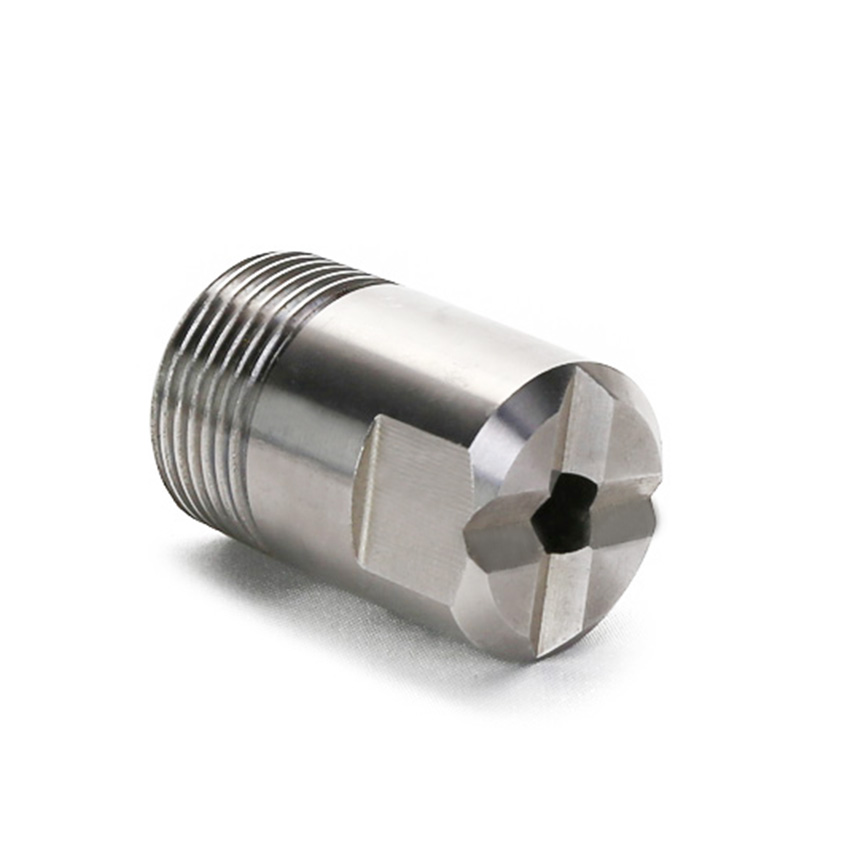

HH-SQ SQUARE SPRAY FULL CONE NOZZLES
The feature about square spray nozzle is that it generates full cone spray,the spraying area is square.Spray angle is 40°-105 ° Full jet square spray nozzle can spray uniformly,droplets are from medium to big under big range of pressure and flow rate. This well distributed spray benefits from distinct vane design,big and clear and excellent control features.This kind of nozzle is suitable to be installed at the rectangle area that needs to be completely covered by spray.
G-SQ and GG-SQ series square spray nozzle have detachable cap and vane,so there is no need to remove nozzle body from header or multibranch pipe in maintenance.
| Description | |
| Model | HH-SQ |
| Spray pattern | Square Pattern Water Spray Full Cone Nozzles |
| Working pressure | 0.3-10bar |
| Inlet thread size | 1/8'' to 3/4“ NPT / BSPT ( M ) |
| Flow Rate | 0.93-7370L/min |
| Spray angle | From 40° to 105° |
| Application | Coating, lubricating, chemical application; Cooling, humidifying, moistening; Cleaning, washing, rinsing; Dust controling, fire fighting |
| Delivery time | 4 days after payment being confirmed |
| Payment | Western union, Paypal, T/T, Visa, Our bank account, online payment |
General Applications
● Washing and cleaning
● Quenching and cooling
● Control dust
● Air and gas washing
● Scrubbing
● Fire-extinguishing
● Fireproof
Performance Data
| Thread Size | Flow Code | Orifice Dia (mm) | Max free Passage Orifice Dia(mm) | Flow Rate ( L/min) | Spray angle | |||||||||
| 1 ( us gal) = 3.785 L ; 1 ( uk gal) = 4.546 L | ||||||||||||||
| 0.3 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar | 6 bar | 7 bar | 10bar | 6bar | ||||
| 1/8'' | 3.6SQ | 1.6 | 1.3 | 0.93 | 1.2 | 1.6 | 2.2 | 2.7 | 3.1 | 3.4 | 3.7 | 4 | 4.7 | 47° |
| 4.8SQ | 1.9 | 1.3 | 1.2 | 1.6 | 2.2 | 3 | 3.6 | 4.1 | 4.5 | 4.9 | 5.3 | 6.2 | 57° | |
| 6SQ | 2.4 | 1.3 | 1.5 | 2 | 2.7 | 3.7 | 4.5 | 5.1 | 5.6 | 6.1 | 6.6 | 7.8 | 60° | |
| 1/4'' | 10SQ | 2.8 | 1.6 | 2.6 | 3.3 | 4.5 | 6.2 | 7.4 | 8.5 | 9.4 | 10.2 | 11 | 13 | 61° |
| 12SQ | 3.2 | 1.6 | 3.1 | 3.9 | 5.4 | 7.4 | 8.9 | 10.2 | 11.3 | 12.3 | 13.2 | 15.5 | 68° | |
| 14.5SQ | 3.9 | 1.6 | 3.7 | 4.7 | 6.5 | 9 | 10.8 | 12.3 | 13.7 | 14.8 | 15.9 | 18.8 | 75° | |
| 3/8'' | 18SQ | 4 | 2.4 | 4.6 | 5.9 | 8.1 | 11.1 | 13.4 | 15.3 | 17 | 18.4 | 19.8 | 23 | 68° |
| 1/2'' | 29SQ | 5.6 | 3.2 | 7.5 | 9.5 | 13 | 17.9 | 22 | 25 | 27 | 30 | 32 | 38 | 68° |
| 36SQ | 6.4 | 3.2 | 9.3 | 11.8 | 16.2 | 22 | 27 | 31 | 34 | 37 | 40 | 47 | 75° | |
| 3/4'' | 50SQ | 6.7 | 4.4 | 12.9 | 16.3 | 22 | 31 | 37 | 42 | 47 | 51 | 55 | 48 | 68° |
| 1'' | 106SQ | 9.9 | 5.6 | 27 | 35 | 48 | 65 | 79 | 90 | 100 | 109 | 117 | 49 | 73° |
| 1 1/4'' | 177SQ | 12.7 | 6.4 | 46 | 58 | 79 | 109 | 132 | 150 | 167 | 181 | 195 | 50 | 73° |
| 1 1/2'' | 230SQ | 14.3 | 8.7 | 59 | 75 | 103 | 142 | 171 | 195 | 220 | 235 | 255 | 51 | 70° |
| 2'' | 290SQ | 15.5 | 11.1 | 75 | 95 | 130 | 179 | 215 | 250 | 275 | 300 | 320 | 52 | 64° |
| 360SQ | 17.4 | 11.1 | 93 | 118 | 162 | 225 | 270 | 305 | 340 | 370 | 395 | 53 | 67° | |
| 480SQ | 21 | 11.1 | 124 | 157 | 215 | 300 | 360 | 410 | 455 | 495 | 530 | 54 | 74° | |
| 2 1/2'' | 490SQ | 19.8 | 14.3 | 126 | 160 | 220 | 305 | 365 | 420 | 465 | 510 | 540 | 55 | 61° |
| 590SQ | 22.2 | 14.3 | 152 | 193 | 265 | 365 | 440 | 510 | 560 | 610 | 650 | 56 | 71° | |
| 950SQ | 28.6 | 17.5 | 245 | 310 | 430 | 590 | 710 | 810 | 900 | 980 | 1050 | 57 | 76° | |
