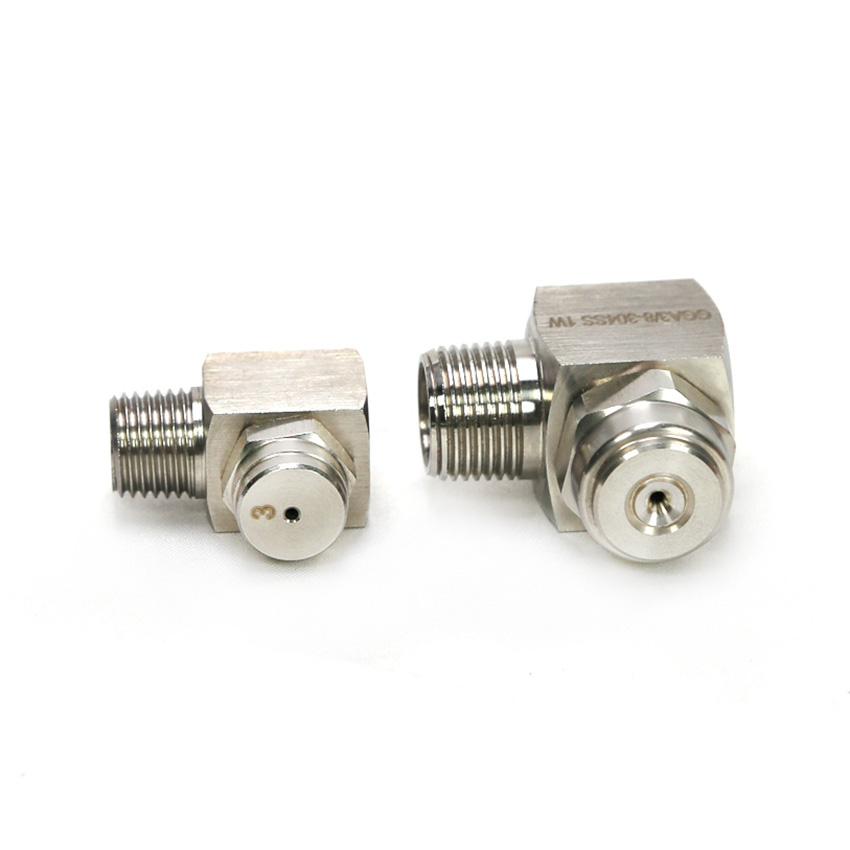

GGA Angle-Type Full Cone Nozzles


Material
● Brass
● 303 Stainless steel
● 304 Stainless steel
● 316 stainless steel
● Polypropylene
Availability:
Product Description

GGA ANGLE-TYPE FULL CONE NOZZLES




Description
Model GGA
Spray pattern GGA Right Angle Tangential-flow Full Cone Nozzles
Working pressure 0.5 to 10 bar
Inlet thread size 1/8", 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3'', 4''
Flow Rate 0.38-52L/min
Spray angle 52°-120°
Application Coating, lubricating, chemical application;
Cooling, humidifying, moistening;
Cleaning, washing, rinsing;
Dust controling, fire fighting
Delivery time 4 days after payment being confirmed
Payment Western union, Paypal, T/T, Visa, Our bank account, online payment



General Applications

● Cleaning

● Cooling

● Coating

● Spraying

● Dusting



Design Features





Features:

● Corner type spray design

● Spray shape is round full cone

● The spray effect is same as univerisal full cone nozzle

● Very stuitable for Sprinker pipe with side hole

● Spray angle have standard angle and wide angle




Performance Data

Standard Angle

Thread Size Flow Code Orifice Dia. (mm) Max free Passage Orifice Dia(mm) Flow Rate ( L/min) spray angle
1 ( us gal) = 3.785 L ;   1 ( uk gal) = 4.546 L
0.5 bar 0.7 bar 1 bar 2 bar 3bar 4bar 5bar 6bar 7bar 10bar 1.5bar
1/8‘’ 1 0.79 0.64
0.38 0.54 0.62 0.74 0.85 0.94 1 1.1 1.3 58°
1.5 1.2 0.64 0.49 0.57 0.81 0.93 1.1 1.3 1.4 1.5 1.7 1.9 65°
2 1.2 1 0.65 0.76 1.1 1.2 1.5 1.7 1.9 2 2.2 2.6 50°
3 1.5 1 0.98 1.1 1.6 1.9 2.2 2.5 2.8 3.1 3.3 3.9 65°
3.5 1.6 1.3 1.1 1.3 1.9 2.2 2.6 3 3.3 3.6 3.9 4.5 50°
3.9 2 1 1.3 1.5 2.1 2.4 2.9 3.3 3.7 4 4.3 5.1 84°
5 2 1.3 1.6 1.9 2.7 3.1 3.7 4.2 4.7 5.1 5.5 6.5 65°
1/4'' 6.5 2.38 1.6 2.1 2.5 3.5 4 4.8 5.5 6.1 6.7 7.1 8.4 50°
10 3.18 1.6 3.3 3.8 5.4 6.2 7.4 8.5 9.4 10.2 11 13 67°
3/8'' 9.5 2.6 2.4 3.1 3.6 5.1 5.9 7.1 8.1 8.9 9.7 10.4 12.3 50°
15 3.6 2.4 4.9 5.7 8.1 9.3 11.2 12.7 14.1 15.4 16.5 19.4 67°
20 4 2.8 6.5 7.6 10.8 12.4 14.9 17 18.8 20 22 26 80°
22 4.5 2.8 7.2 8.4 11.9 13.6 16.4 18.7 21 23 24 28 90°
1/2'' 16 3.5 3.2 5.2 6.1 8.7 9.9 11.9 13.6 15.1 16.4 17.6 21 55°
25 4.6 3.2 8.2 9.5 13.5 15.4 18.6 21 24 26 27 32 67°
32 5.2 3.6 10.4 12.2 17.3 19.8 24 27 30 33 35 41 75°
40 6.2 3.6 13.1 15.2 22 25 30 34 38 41 44 52 91°


Wide Angle

Thread Size Flow Code Orifice Dia. (mm) Max free Passage Orifice Dia(mm) Flow Rate ( L/min) Spray angle
1 ( us gal) = 3.785 L ;   1 ( uk gal) = 4.546 L
0.3 bar 0.5 bar 0.7 bar 1 bar 2bar 3bar 4bar 5bar 6bar 0.7bar 6bar
1/8'' 4.3W 2 1

1.6 1.9 2.6 3.1 3.5 3.9 4.2 120° 102°
5.6W 2.4 1
1.8 2.1 2.5 3.4 4 4.6 5.1 5.5 120° 102°
8W 2.4 1.3
2.6 3 3.6 3.6 4.8 5.8 6.6 7.2 120° 103°
1/4'' 10W 2.8 1.3 2.6 3.3 3.8 4.5 6 7.2 8.2 9.1 9.8 120° 103°
12W 3.2 1.3 3.1 3.9 4.6 5.3 7.3 8.7 9.8 10.9 11.8 120° 103°
14W 3.6 1.6 3.7 4.6 5.3 6.2 8.5 10.1 11.5 12.7 13.7 120° 103°
3/8'' 20W 4.4 2.4 5.2 6.6 7.6 8.9 12.1 14.5 16.5 18.1 19.6 120° 104°
24W 4.8 2.4 6.3 7.9 9.1 10.7 14.5 17.3 19.7 22 24 120° 104°
27W 5.2 2.8 7.1 8.9 10.3 12 16.3 19.5 22 24 26 120° 106°
1/2'' 35W 6 3.2 9.2 11.5 13.3 15.6 21 25 29 32 34 120° 108°
40W 6.4 3.2 10.5 13.1 15.2 17.8 24 29 33 36 39 120° 108°
45W 6.4 3.6 11.8 14.8 17.1 20 28 33 37 41 44 120° 110°
50W 6.7 4 13.1 16.4 19.1 22 30 36 41 45 49 120° 112°


Ordering Information

1/4'' GGA 60° 304SS 6.5
Thread size Style No. Spray Angle Material Flow Code
