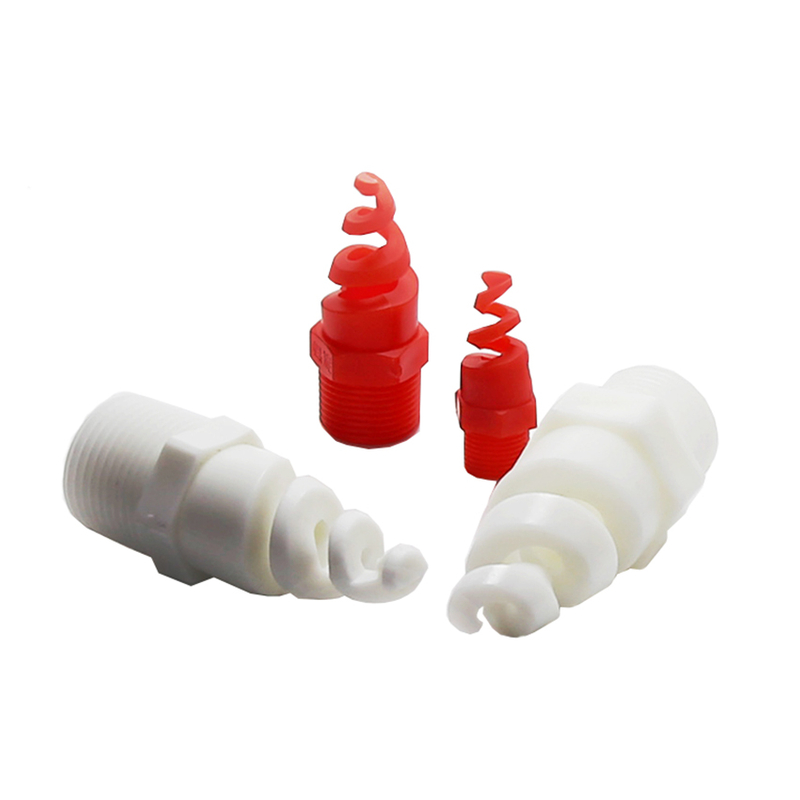

Ceramic Spiral Spray Nozzles

The full cone spiral nozzle is an environmentally friendly industrial nozzle with compact structure, anti-clogging and a wide range of application. After the liquid passes through the tangent and collision of the continuously smaller spiral body, it becomes a tiny liquid bead and sprays out to produce a solid cone spray or a hollow cone spray shape.

Material
● Plastic PP
●PTFE
●Ceramic
●303 Stainless Steel
●304 Stainless Steel
●316 Stainless Steel
●Brass
Availability:
Product Description

CERAMIC SPIRAL SPRAY NOZZLES

The full cone spiral nozzle is an environmentally friendly industrial nozzle with compact structure, anti-clogging and a wide range of application. After the liquid passes through the tangent and collision of the continuously smaller spiral body, it becomes a tiny liquid bead and sprays out to produce a solid cone spray or a hollow cone spray shape.




Description
Model Ceramic Spiral Nozzles
Spray pattern Full cone,hollow cone
Working pressure 0.7-25 bar
Inlet thread size 1/4, 3/8, 3/4, 1-1/2, 2, 3, 4
Flow Rate 2.6-11960L/min
Spray angle 60-170°
Application Cooling, dust suppression, fire fighting,gas scrubber;dust control .humidifying.dedusting etc
Delivery time 4 days after payment being confirmed
Payment Western union, Paypal, T/T, Visa, Our bank account, online payment



General Applications

• Waste gas washing

• Gas cooling

• Washing and rinsing process

• Fire proof and extinguishingment




Design Features



Features:

● Provides Circulation and agitation in liquid rinsing and coating tanks

● Allows smaller pumps to circulate large volumes of liquid

●  Large flow opening minimizes plugging and clogging

● Manufactured of Polypropylene or investment cast, 304 or 316 stainless steel for excellent corrosion chemical resistance and durability

● Available in 1/4'', 3/8'', 1/2'', 3/4'', 1'' and 1 1/2'' BSP inlet connections.




Performance Data

Spray angle 60° 90° 120° 150° 170°
Thread size Flow code Spray hole
Di.a(mm)
Free passage orifice
Dia.(mm)
Flow rate(L/min)
0.7bar 1.5bar 3bar 7bar 25bar
1/4'' 07 2.4 2.4 2.6 3.9 5.5 8.4 16
13 3.2 3.2 4.9 7.3 10.3 15.7 30
20 4.0 3.2 7.6 11.2 15.8 24 46
3/8'' 07 2.4 2.4 2.6 3.9 5.5 8.4 16
13 3.2 3.2 4.9 7.3 10.3 15.7 30
20 4.0 3.2 7.6 11.2 15.8 24 46
30 4.8 3.2 11.4 16.7 24 36 68
40 5.6 3.2 15.1 22 32 48 91
53 6.4 3.2 20 30 42 64 121
82 7.9 3.2 31 46 65 99 187
1/2'' 120 9.5 4.8 45 67 95 145 270
164 11.1 4.8 62 92 129 198 370
3/4'' 210 12.7 4.8 80 117 166 255 480
1'' 340 15.9 6.4 130 190 270 410 775
470 19.1 6.4 179 260 370 565 1070
1-1/2'' 640 22.2 7.9 245 355 505 770 1460
820 25.4 7.9 310 455 645 990 1870
960 28.6 7.9 365 535 755 1160 2190
2'' 1400 34.9 11.1 535 780 1105 1690 3190
1780 38.1 11.1 680 995 1405 2150 4060
3'' 2560 44.5 14.3 980 1430 2020 3090 5830
3360 50.8 14.3 1280 1880 2650 4050 7660
4'' 5250 63.5 15.9 2000 2930 4140 6330 11960
