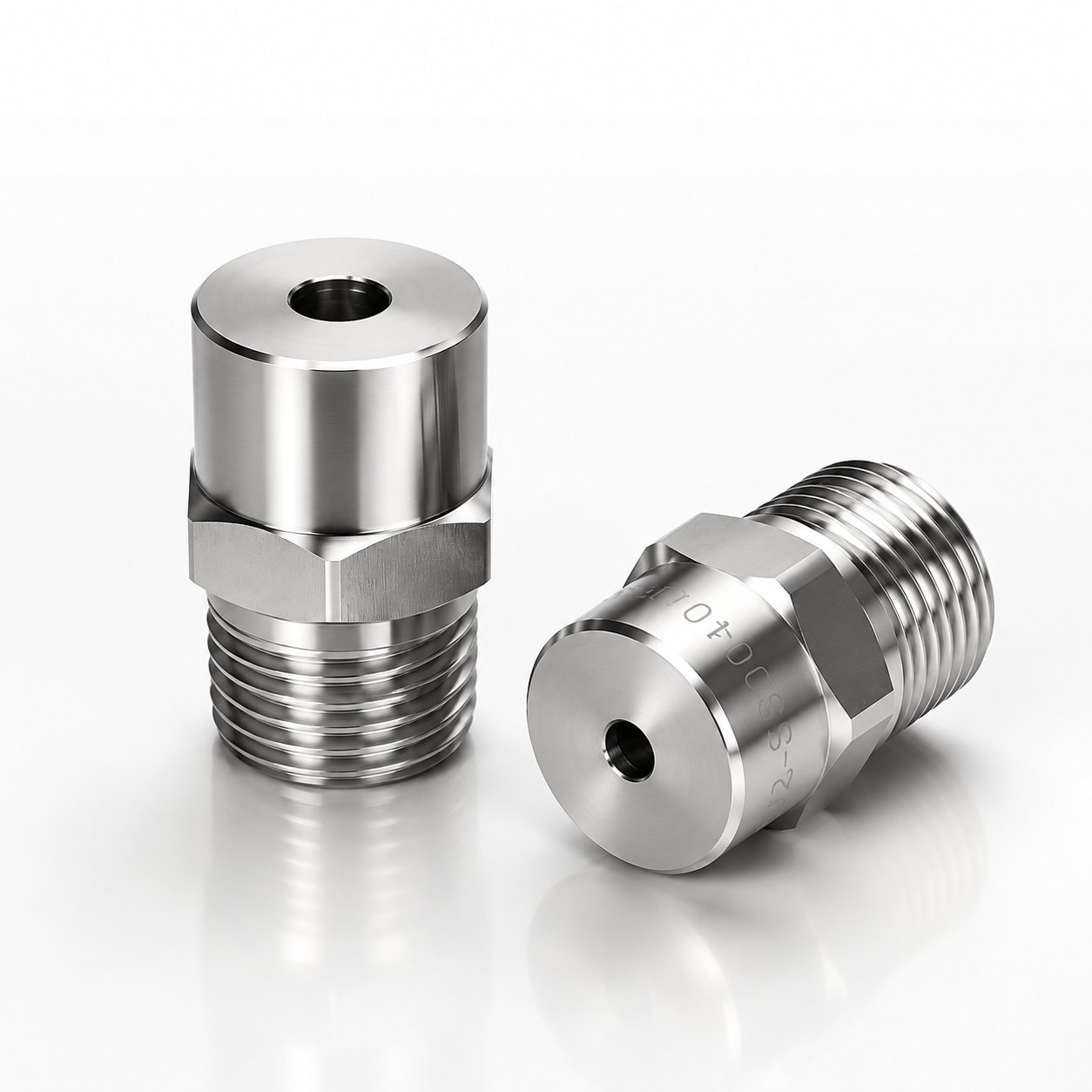

BB STAINLESS STEEL FULL CONE NOZZLES
Standard fulljet nozzle can generate full cone spray. The spray area is round. Spray angle is 43°-106°.Fulljet nozzle can spray uniformly,droplets are from medium to big,This well distributed spray benefits from distinct vane design,big and clear channel, excellent control feature.
Fulljet nozzle made as precise dimension,which assure accurate and reliable performance.G and GG series have detachable cap and vane,can match both headers and multibranch pipe.This design makes it possible that the cap and vane can be detached from nozzle to be mai.ntained and cleaned,instead of nozzle body. The vane of H series standard nozzle(size is more than 1" ) is fixed by positioning screw, which is easy to be detached.HH series standard nozzle's vane is not detachble.
Description | |
Model | BB |
Spray pattern | Stanard Angle Full Cone Nozzles |
Working pressure | Up to 25 bar |
Inlet thread size | 1/8" to 2" BSPT or NPT |
Flow Rate | 0.38-920L/min |
Spray angle | From 0° to 120° |
Application | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Construction works , Energy & Mining, Cleaning, washing, cooling |
Delivery time | 4 days after payment being confirmed |
Payment | Western union, Paypal, T/T, Visa, Our bank account, online payment |
General Applications
● Cleaning/flushing
● Cooling of coal,metals or other materials
● Generation and dispersion of droplets during chemical reaction processing
● Dust control
● Firefighting/extinguishing
● Foam decomposition, aeration, defoaming
● Polishing, washing, cooling
Design Features
Features:
● Produces a solid conical spray shape with a circular area and a standard angle range of around 45° to 65° at 3 bar pressure, other angles can be customised
● The unique internal vane design allows the nozzle to produce an evenly distributed, medium to large size droplets
● Excellent performance in applications where adequate coverage of an area is required
● When several nozzles are required to produce overlapping spray, an overlap area of 25% to 30% is required to make the spray coverage area evenly distributed in the whole direction
● Large and clear free passages make nozzles less likely to clog up.
● GG, GGD and other models with removable tips and vanes for easy nozzle assembly and disassembly .
● GD, GGD, HD Wall-mounted versions suitable for installation on the outside of pipes or vessels
Acceossories
Ball universal joint
Split eyelet connector
Performance Data
Thread Size | Flow Code | Orifice Dia. (mm) | Max free Passage Orifice Dia(mm) | Flow rate ( L/min) | ||||||||||
1 ( us gal) = 3.785 L ; 1 ( uk gal) = 4.546 L | ||||||||||||||
0.5 bar | 0.7 bar | 1.5 bar | 2 bar | 3 bar | 4 bar | 5 bar | 6 bar | 7 bar | 10 bar | 1.5 bar | ||||
1/8'' | 1 | 0.79 | 0.64 | 0.38 | 0.54 | 0.62 | 0.74 | 0.85 | 0.94 | 1 | 1.1 | 1.3 | 58° | |
1.5 | 1.2 | 0.64 | 0.49 | 0.57 | 0.81 | 0.93 | 1.1 | 1.3 | 1.4 | 1.5 | 1.7 | 1.9 | 65° | |
2 | 1.2 | 1 | 0.65 | 0.76 | 1.1 | 1.2 | 1.5 | 1.7 | 1.9 | 2 | 2.2 | 2.6 | 50° | |
3 | 1.5 | 1 | 0.98 | 1.1 | 1.6 | 1.9 | 2.2 | 2.5 | 2.8 | 3.1 | 3.1 | 3.9 | 65° | |
3.5 | 1.6 | 1.3 | 1.1 | 1.3 | 1.9 | 2.2 | 2.6 | 3 | 3.3 | 3.6 | 3.9 | 4.5 | 50° | |
3.9 | 2 | 1 | 1.3 | 1.5 | 2.1 | 2.4 | 2.9 | 3.3 | 3.7 | 4 | 4.3 | 5.1 | 84° | |
5 | 2 | 1.3 | 1.6 | 1.9 | 2.7 | 3.1 | 3.7 | 4.2 | 4.7 | 5.1 | 5.5 | 6.5 | 65° | |
6.1 | 2.3 | 1.3 | 2 | 2.3 | 3.3 | 3.8 | 4.5 | 5.2 | 5.7 | 6.2 | 6.7 | 7.9 | 74° | |
1/4'' | 6.5 | 2.38 | 1.6 | 2.1 | 2.5 | 3.5 | 4 | 4.8 | 5.5 | 6.1 | 6.7 | 7.1 | 8.4 | 50° |
10 | 3.18 | 1.6 | 3.3 | 3.8 | 5.4 | 6.2 | 7.4 | 8.5 | 9.4 | 10.2 | 11 | 13 | 67° | |
12.5 | 3.2 | 1.6 | 4.1 | 4.8 | 6.8 | 7.7 | 9.3 | 10.6 | 11.8 | 12.8 | 13.7 | 16.2 | 74° | |
9.5 | 2.6 | 2.4 | 3.1 | 3.6 | 5.1 | 5.9 | 7.1 | 8.1 | 8.9 | 9.7 | 10.4 | 12.3 | 50° | |
15 | 3.6 | 2.4 | 4.9 | 5.7 | 8.1 | 9.3 | 11.2 | 12.7 | 14.1 | 15.4 | 16.5 | 19.4 | 67° | |
3/8'' | 20 | 4 | 2.8 | 6.5 | 7.6 | 10.8 | 12.4 | 14.9 | 17 | 18.8 | 20 | 22 | 26 | 80° |
22 | 4.5 | 2.8 | 7.2 | 8.4 | 11.9 | 13.6 | 16.4 | 18.7 | 21 | 23 | 24 | 28 | 90° | |
16 | 3.5 | 3.2 | 5.2 | 6.1 | 8.7 | 9.9 | 11.9 | 13.6 | 15.1 | 16.4 | 17.6 | 21 | 50° | |
25 | 4.6 | 3.2 | 8.2 | 9.5 | 13.5 | 15.4 | 18.6 | 21 | 24 | 26 | 27 | 32 | 67° | |
1/2'' | 32 | 5.2 | 3.6 | 10.4 | 12.2 | 17.3 | 19.8 | 24 | 27 | 30 | 33 | 35 | 41 | 75° |
40 | 6.2 | 3.6 | 13.1 | 15.2 | 22 | 25 | 30 | 34 | 38 | 41 | 44 | 52 | 91° | |
50 | 6.7 | 4 | 16.3 | 19.1 | 27 | 31 | 37 | 42 | 47 | 51 | 55 | 65 | 94° | |
3/4'' | 2.5 | 4.9 | 4.4 | 9.6 | 11.2 | 15.9 | 18.2 | 22 | 25 | 28 | 30 | 32 | 38 | 50° |
4 | 6.4 | 4.4 | 15.4 | 18 | 26 | 29 | 35 | 40 | 44 | 48 | 52 | 61 | 70° | |
7 | 9.5 | 5.2 | 27 | 31 | 45 | 51 | 61 | 70 | 78 | 84 | 91 | 107 | 92° | |
1'' | 4.2 | 6 | 5.6 | 16.2 | 18.9 | 27 | 31 | 37 | 42 | 47 | 51 | 54 | 64 | 50° |
7 | 8.3 | 5.6 | 27 | 31 | 45 | 51 | 61 | 70 | 78 | 84 | 91 | 107 | 68° | |
8 | 9.5 | 5.6 | 31 | 36 | 51 | 58 | 70 | 80 | 89 | 91 | 104 | 122 | 81° | |
10 | 11.9 | 5.6 | 38 | 45 | 64 | 73 | 88 | 100 | 111 | 121 | 130 | 153 | 90° | |
1 1/4'' | 12 | 11.9 | 6.4 | 46 | 54 | 77 | 87 | 105 | 120 | 133 | 145 | 155 | 183 | 92° |
6 | 7.4 | 6.4 | 23 | 27 | 38 | 44 | 53 | 60 | 67 | 72 | 78 | 92 | 50° | |
10 | 9.6 | 6.4 | 38 | 45 | 64 | 73 | 88 | 100 | 111 | 121 | 130 | 153 | 67° | |
12 | 10.7 | 6.4 | 46 | 54 | 77 | 87 | 105 | 120 | 133 | 145 | 155 | 183 | 70° | |
14 | 12.3 | 6.4 | 54 | 63 | 89 | 102 | 123 | 140 | 155 | 169 | 181 | 215 | 80° | |
1 1/2'' | 20 | 15.1 | 7.9 | 77 | 90 | 128 | 146 | 175 | 200 | 220 | 240 | 260 | 305 | 93° |
10 | 9.5 | 8.7 | 38 | 45 | 64 | 73 | 88 | 100 | 111 | 121 | 130 | 153 | 50° | |
16 | 12.7 | 8.7 | 62 | 72 | 102 | 116 | 140 | 160 | 178 | 193 | 210 | 245 | 74° | |
20 | 14.3 | 8.7 | 77 | 90 | 128 | 146 | 175 | 200 | 220 | 240 | 260 | 305 | 76° | |
30 | 18.3 | 10.3 | 115 | 135 | 191 | 220 | 265 | 300 | 330 | 360 | 390 | 460 | 94° | |
2'' | 17 | 12.7 | 11.1 | 65 | 76 | 108 | 124 | 149 | 170 | 189 | 205 | 220 | 260 | 50° |
30 | 17.3 | 11.1 | 115 | 135 | 191 | 220 | 265 | 300 | 330 | 360 | 390 | 460 | 74° | |
35 | 19.2 | 11.1 | 135 | 157 | 225 | 255 | 310 | 355 | 390 | 425 | 455 | 540 | 77° | |
40 | 21 | 11.1 | 154 | 180 | 255 | 295 | 350 | 400 | 445 | 485 | 520 | 610 | 80° | |
50 | 23.8 | 14.3 | 192 | 225 | 320 | 365 | 440 | 500 | 560 | 610 | 650 | 770 | 85° | |
60 | 28.6 | 14.3 | 230 | 270 | 385 | 440 | 530 | 600 | 670 | 730 | 780 | 920 | 100° |
