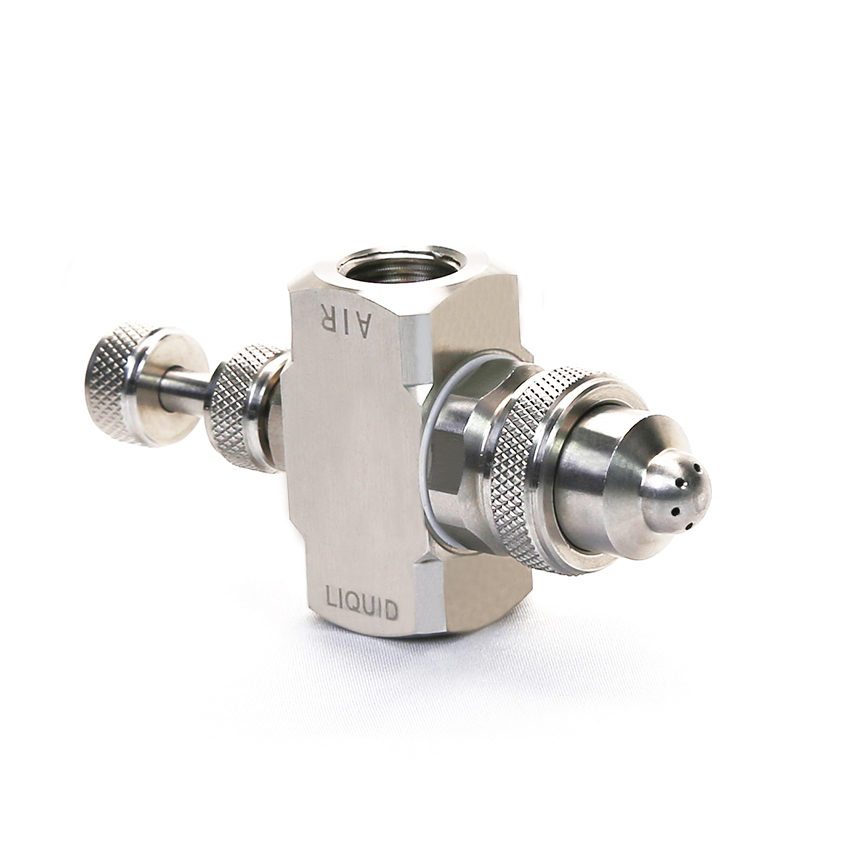

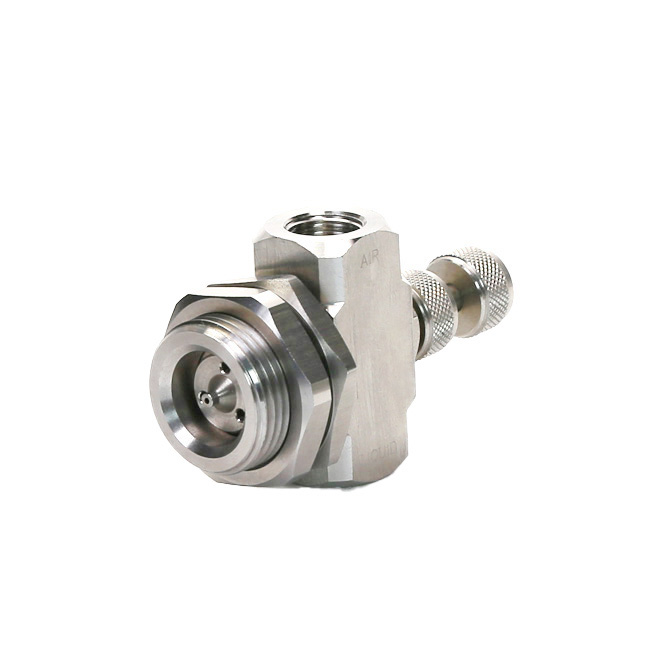

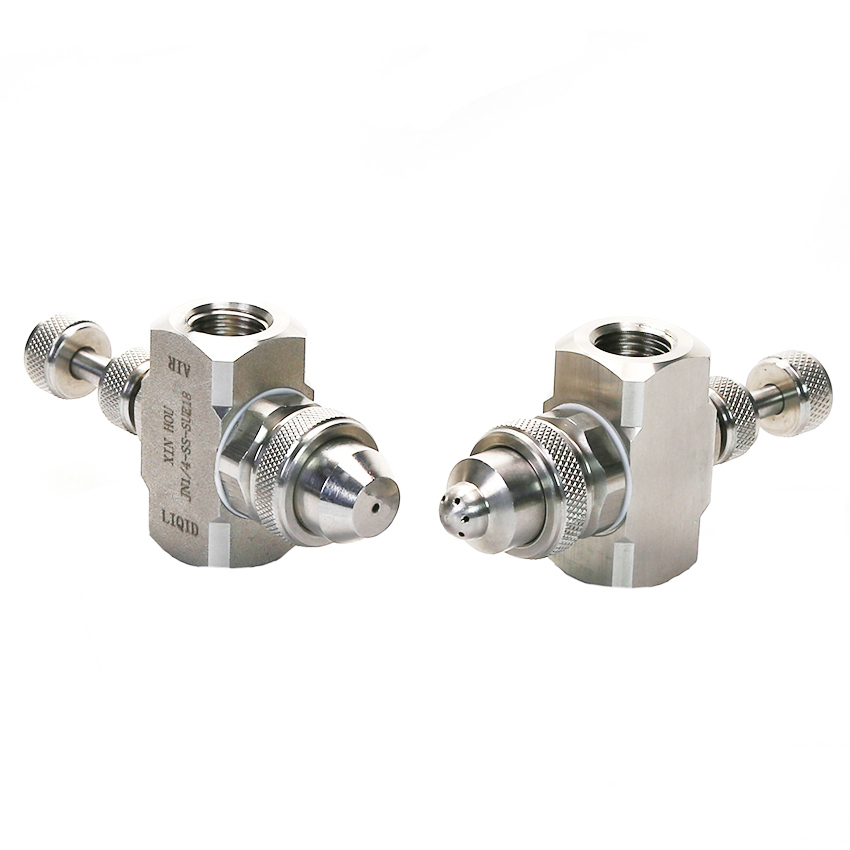

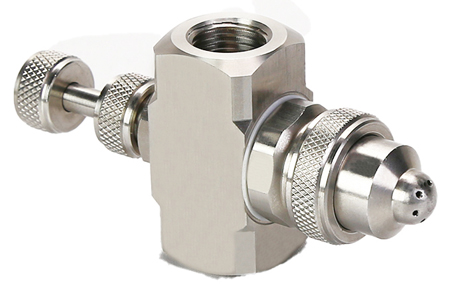

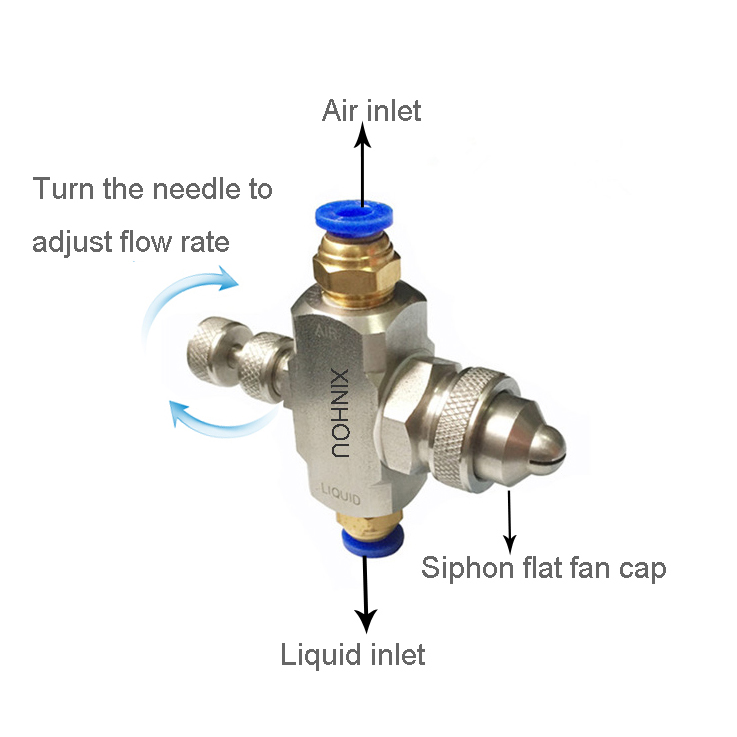

Adjustable Pressure-fed Wide Angle Air Atomizing Nozzle

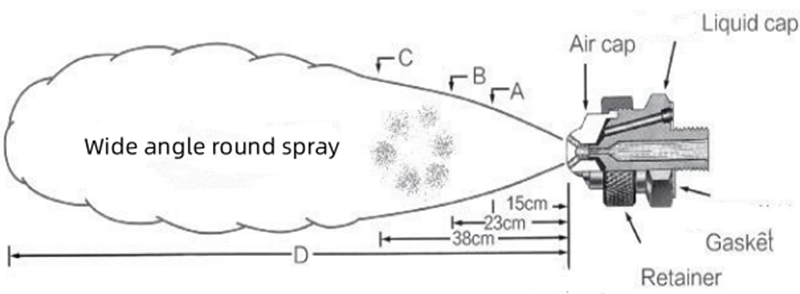

For wide angle round spray,dimensions“A“B”“C”are the pattern width at distance from the nozzle.The total spray distance of spray projection from the nozzle to the maximum dispersal point is represented by “D”. When using a pressure-fed liquid system,the liquid is supplied to the nozzle under pressure.
The liquid and comperssed air or gas are mixed internally to produce a completely atomized spray.
| Description | |
| Model | JN |
| Type | Adjustable |
| Spray pattern | Round |
| Working pressure | 2 to 3 bar |
| Spray angle | Around 90 degrees |
| Application | •Humidification •Mould lubricating •Spray injection •Air disinfection and sterillization •Coating, cooling, humidifying •Gas cooling •Misting, fogging •Dust suppression |
| Delivery time | 5 days after payment being confirmed |
| Payment | Western union, Paypal, T/T, Visa, Our bank account, online payment |
General Applications
•Humidification
•Mould lubricating
•Spray injection
•Air disinfection and sterillization
•Coating, cooling, humidifying
•Gas cooling
•Misting, fogging
•Dust suppression
Design Features

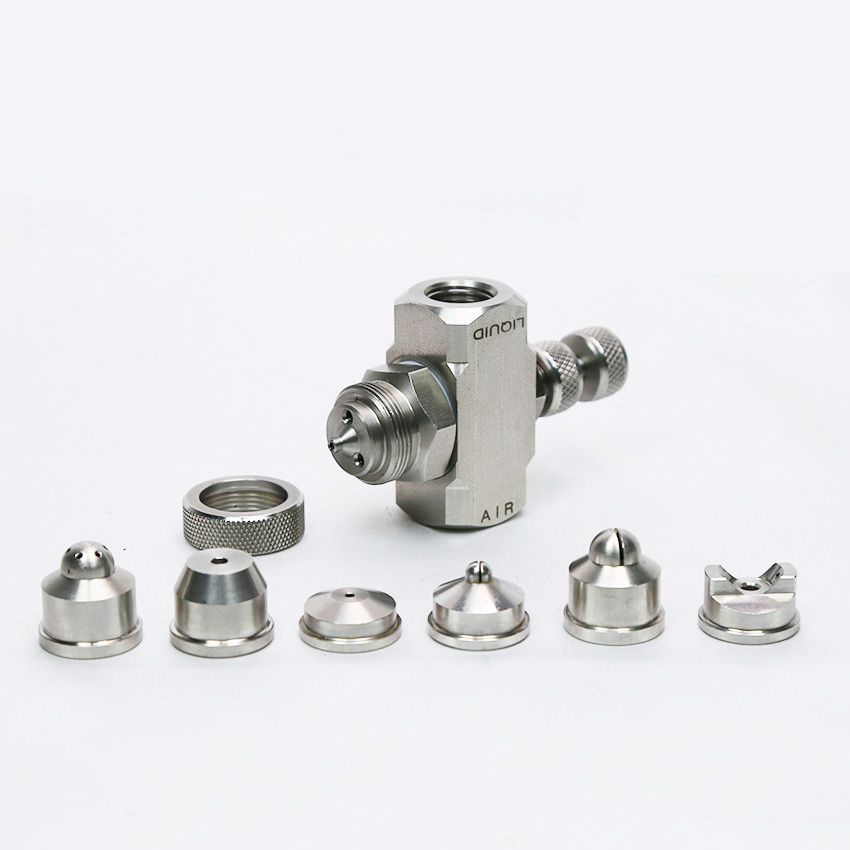

Acceossories
Bracket
Connection to fix on wall

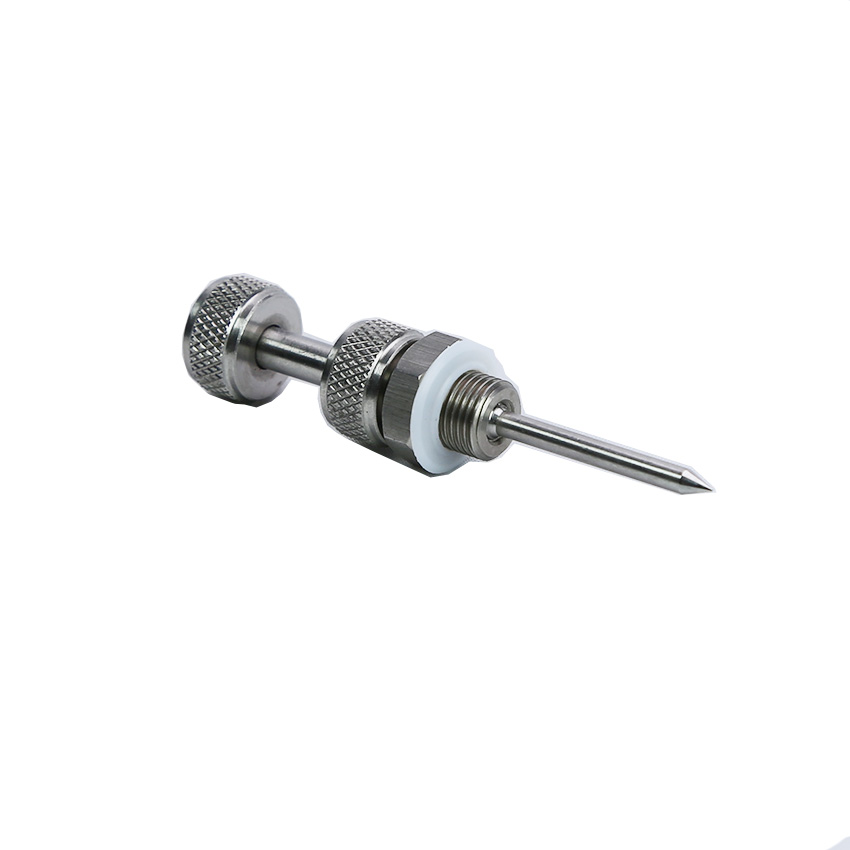

Screw rob
Performance Data
| Spray Set-up No. | Liquid cap / Air cap No. | Liquid capacity(L/h) & Air capacity(L/min) | Spray distance | |||||||||||
| 1.5bar ( liquid) | 2bar ( liquid) | 3bar ( liquid) | Air pressure (bar) | Liquid pressure (bar) | D（m) | |||||||||
| Air pressure （bar) | Water capacity | Air capacity | Air pressure （bar) | Water capacity | Air capacity | Air pressure （bar) | Water capacity | Air capacity | ||||||
| SU16 | Liquid cap 2050 / Air cap 67-6-20-70° | 1.1 | 8.1 | 13.3 | 1.5 | 8.1 | 16.4 | 2.4 | 8.9 | 22 | 0.7 | 0.7 | 1.5 | |
| 1.3 | 7.0 | 15.0 | 1.8 | 6.6 | 21 | 2.7 | 8.1 | 26 | 1.4 | 1.5 | 1.8 | |||
| 1.4 | 6.4 | 17.0 | 2.1 | 4.9 | 25 | 3.0 | 6.4 | 30 | 1.8 | 2.0 | 2.1 | |||
| 1.7 | 5.5 | 19.0 | 2.4 | 3.2 | 29 | 3.2 | 4.9 | 34 | 3.0 | 3.0 | 2.7 | |||
| 1.8 | 4.5 | 22 | 3.4 | 4.2 | 27 | 3.9 | 4.0 | 4.0 | ||||||
| 3.5 | 24 | 3.5 | 3.4 | 40 | ||||||||||
| SU26B | Liquid cap 40100 / Air cap 140-6-37-70° | 1.7 | 13.2 | 68 | 2.0 | 18.5 | 68 | 2.8 | 25 | 84 | ||||
| 1.8 | 9.8 | 79 | 2.1 | 15.1 | 76 | 3 | 22 | 92 | 0.85 | 0.7 | 1.8 | |||
| 2.2 | 11.7 | 85 | 3.1 | 18.5 | 101 | 1.7 | 1.5 | 2.4 | ||||||
| 3.2 | 15.1 | 109 | 2.1 | 2.0 | 3.2 | |||||||||
| 3.4 | 12.1 | 119 | 3.2 | 3.0 | 4.1 | |||||||||
| 3.5 | 9.1 | 130 | 4.1 | 4.0 | 5.9 | |||||||||
| 3.7 | 6.1 | 142 | ||||||||||||
| SU26 | Liquid cap 60100 / Air cap 140-6-70° | 1.4 | 43 | 37 | 2.1 | 33 | 66 | 2.8 | 52 | 65 | ||||
| 1.5 | 35 | 49 | 2.2 | 26 | 78 | 3 | 46 | 76 | 0.85 | 0.7 | 2.1 | |||
| 1.7 | 28 | 61 | 2.4 | 18.9 | 89 | 3.1 | 39 | 87 | 1.5 | 1.5 | 3.2 | |||
| 1.8 | 21 | 71 | 2.5 | 11.7 | 100 | 3.2 | 33 | 99 | 2.4 | 2.0 | 4.1 | |||
| 3.4 | 26 | 110 | 3.2 | 3.0 | 5.0 | |||||||||
| 3.5 | 19.5 | 122 | 3.6 | 4.0 | 6.8 | |||||||||
| 3.7 | 13.2 | 133 | ||||||||||||
| SU29 | Liquid cap 60100 / Air cap 140-6-52-70° | 2.1 | 57 | 116 | 3.1 | 53 | 156 | 4.2 | 64 | 197 | ||||
| 2.4 | 51 | 130 | 3.2 | 50 | 163 | 1.9 | 51 | 230 | 2.0 | 0.7 | 5.5 | |||
| 2.7 | 45 | 143 | 3.4 | 47 | 170 | 5.6 | 40 | 265 | 3.0 | 1.5 | 6.4 | |||
| 3.0 | 39 | 157 | 3.5 | 45 | 177 | 6.0 | 34 | 285 | 3.9 | 2.0 | 8.2 | |||
| 3.2 | 33 | 170 | 3.9 | 38 | 194 | 6.3 | 28 | 300 | 6.0 | 3.0 | 9.1 | |||
| 3.5 | 28 | 185 | 4.6 | 25 | 230 | 6.7 | 22 | 320 | 6.3 | 4.0 | 10.4 | |||
| 4.2 | 13.6 | 220 | 4.9 | 18.5 | 245 | 7.0 | 17.8 | 335 | ||||||
| SU30 | Liquid cap 40100 / Air cap 120-6-35-60° | 2.2 | 16.3 | 62 | 2.7 | 21 | 69 | 4.2 | 19.3 | 100 | ||||
| 2.5 | 12.1 | 71 | 3.0 | 16.3 | 78 | 4.6 | 14.6 | 113 | 1.5 | 0.7 | 2.7 | |||
| 2.8 | 8.9 | 79 | 3.2 | 12.3 | 86 | 4.9 | 10.8 | 124 | 3 | 1.5 | 4.6 | |||
| 3.0 | 7.6 | 83 | 3.4 | 10.7 | 91 | 5.3 | 8.1 | 135 | 3.4 | 2.0 | 5.5 | |||
| 3.1 | 6.4 | 87 | 3.5 | 9.3 | 94 | 5.6 | 6.2 | 146 | 5.3 | 3.0 | 7.3 | |||
| 3.2 | 5.5 | 91 | 3.9 | 6.4 | 105 | 6.0 | 4.9 | 157 | 6.3 | 4.0 | 9.4 | |||
| 3.4 | 4.7 | 95 | 4.2 | 4.7 | 115 | 6.3 | 4.0 | 167 | ||||||
| SU46 | Liquid cap 100150 / Air cap 189-6-62-70° | 3.0 | 39 | 230 | 3.4 | 50 | 250 | 4.6 | 62 | 320 | 2 | 5.5 | ||
| 3.1 | 33 | 240 | 3.5 | 43 | 260 | 4.9 | 47 | 345 | 3.2 | 0.7 | 6.4 | |||
| 3.2 | 27 | 255 | 3.7 | 41 | 275 | 5.3 | 36 | 375 | 3.9 | 1.5 | 7.3 | |||
| 3.4 | 23 | 265 | 3.9 | 27 | 300 | 5.6 | 26 | 405 | 5.3 | 2.0 | 7.9 | |||
| 3.5 | 18.5 | 280 | 4.1 | 23 | 310 | 6.0 | 18.9 | 435 | 6.3 | 3.0 | 9.8 | |||
| 3.7 | 14.8 | 290 | 4.2 | 18.9 | 320 | 6.3 | 13.6 | 460 | 4.0 | |||||
| 4.4 | 15.9 | 335 | ||||||||||||
