Adjustable Fog Cannon Misting Nozzles

The atomization of Adjustable Cannon Fog Misting Nozzles give a filmy feeling. The flow rate and spray angle of the Adjustable Fog Cannon Misting Nozzlescan be adjusted.
The spray distance can reach 30 to 100 meters when connected with air blower. The coverage area can be adjusted in a small range. When the nozzle reaches the atomization, the water is very fine, and the atomization effect is very good.

Material
● Stainless steel
Availability:
Product Description

Adjustable Fog Cannon Misting Nozzles

The atomization of Adjustable Cannon Fog Misting Nozzles give a filmy feeling. The flow rate and spray angle of the Adjustable Fog Cannon Misting Nozzlescan be adjusted.

The spray distance can reach 30 to 100 meters when connected with air blower. The coverage area can be adjusted in a small range. When the nozzle reaches the atomization, the water is very fine, and the atomization effect is very good.




Description

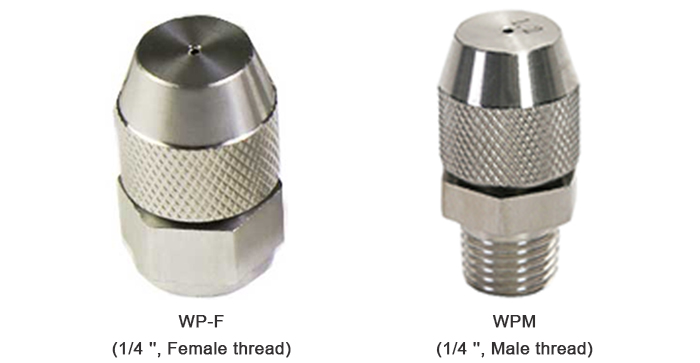

Model WPF(female); WPM(male)
Thread 1/4’’
Orifice dia. 1.5mm/1.2mm/1.1mm/1mm
Water pressure 35bar/20bar/10bar/7bar/6bar/5bar/4bar/3bar/2bar
Application •Cooling, humidifying
•Misting, fogging
•Dust suppression
•Fog cannon machine nozzles
Delivery time 4 days after payment being confirmed
Payment Western union, Paypal, T/T, Visa, Our bank account, online payment



General Applications

•Cooling, humidifying

•Misting, fogging

•Dust suppression

•Fog cannon machine nozzles



Design Features



Features:

● The atomization of Adjustable Cannon Fog Misting Nozzles give a filmy feeling.

The flow rate and spray angle of the Adjustable Fog Cannon Misting Nozzlescan be adjusted.

● The spray distance can reach 30 to 100 meters when connected with air blower.

● The coverage area can be adjusted in a small range. When the nozzle reaches the atomization, the water is very fine, and the atomization effect is very good.

● The water pressure requirements are relatively low, even tap water pressure can be sprayed.

● Easy to install, good water-saving performance.




Performance Data

Orifice dia.
mm
Flow rate(L/min)
2bar 3bar 4bar 5bar 6bar 7bar 10bar 20bar 35bar
1 0.22 0.26 0.31 0.34 0.37 0.40 0.48 0.68 0.90
1.1 0.29 0.33 0.37 0.41 0.43 0.47 0.53 0.7 0.95
1.2 0.32 0.39 0.46 0.51 0.56 0.6 0.72 1.0 1.3
1.5 0.39 0.48 0.55 0.61 0.67 0.72 0.86 1.3 1.7
