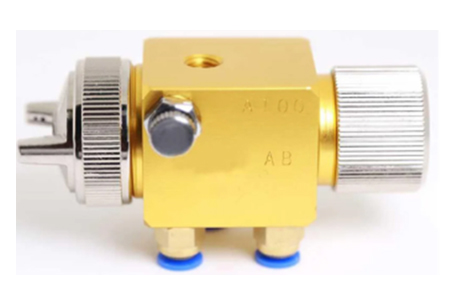

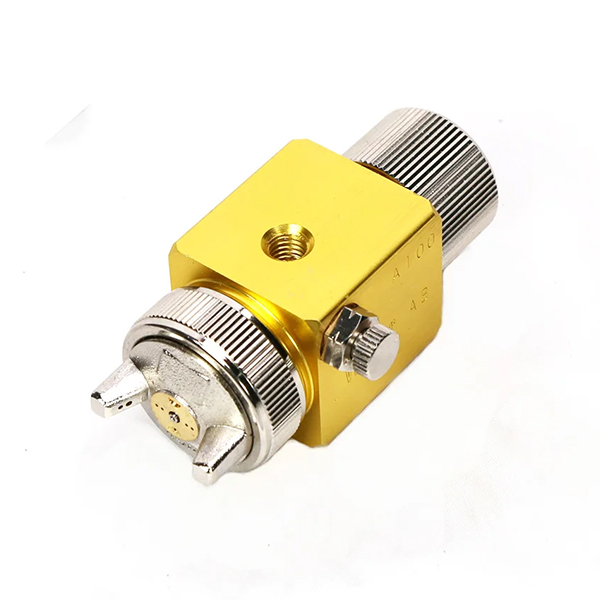

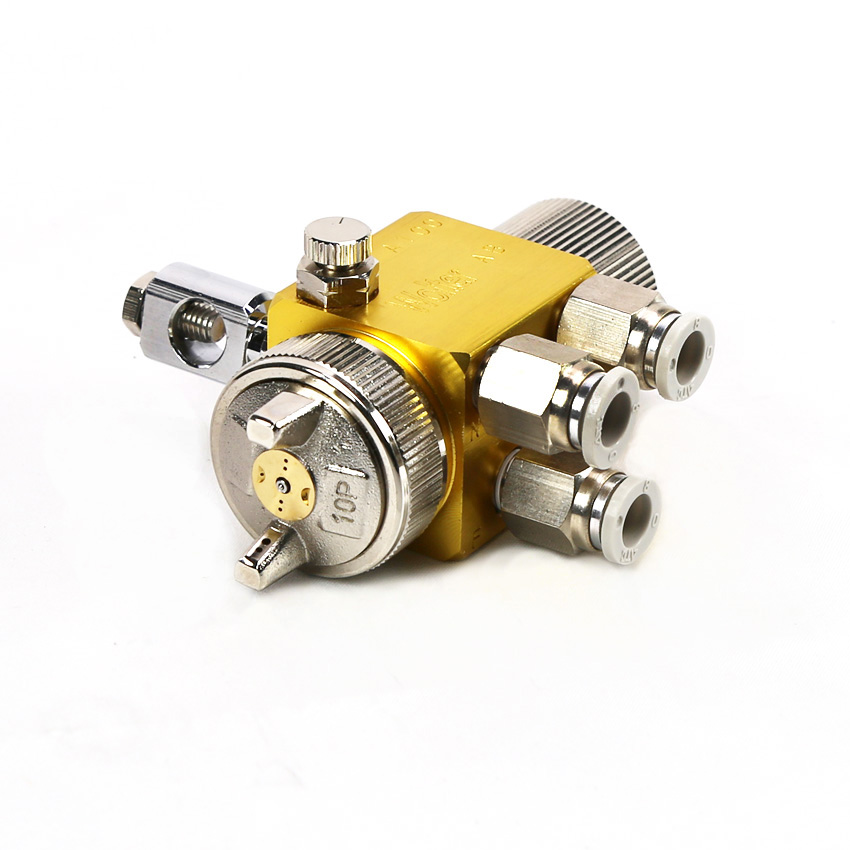

A-100 Mini Automatic Spray Gun

XINHOU is a Chinese company that specializes in manufacturing and trading Automatic Spray Guns. They focus on researching, developing, and producing Mini Automatic Spray Guns. With a skilled and dedicated team, they have successfully exported their products to numerous countries and regions worldwide, earning a positive reputation among their customers.

Material
● Plastic PP
●PTFE
●Ceramic
●303 Stainless Steel
●304 Stainless Steel
●316 Stainless Steel
●Brass
Availability:
Product Description

A100 MINI AUTOMATIC SPRAY GUNS

XINHOU is a Chinese company that specializes in manufacturing and trading Automatic Spray Guns. They focus on researching, developing, and producing Mini Automatic Spray Guns. With a skilled and dedicated team, they have successfully exported their products to numerous countries and regions worldwide, earning a positive reputation among their customers.




Description
Model A100
Spray pattern A100 Mini Automatic Spray Guns
Working pressure 3-4 bar
Droplet size 5 to 110 microns
Flow Rate 270-290L/min
Spray Orifice 0.8mm, 1.0mm, 1.3mm
Air Pressure 0.26-0.29 MPa
Application Humidifying, coating, cooling, gluing, lubricating, marking,disinfecting.spraying.painting etd
Delivery time 4 days after payment being confirmed
Payment Western union, Paypal, T/T, Visa, Our bank account, online payment



General Applications

●316 Stainless Steel

●Brass Copper




Design Features



Features:

• Adjustable spray angle and flow rate

• Anti-dripping

• Automatic

• Anti-clogging

• A-100 Mini Automatic Spray Gun is a compact design that allows for installation in small spaces.




Product Details


Forging Gun Body

All metal anodized body durable and wear-resistant

Copper Cap

Improve atomization effect

All copper processing, wear resistance

No air leakage

No water leakage

316 Stainless Steel needle and nozzle

Chromium plating process

Optimized pressure reduction makes atomization more delicate with high adhesion and low rebound

The needle tip is made of 316 stainless steel, durable and wear-resistant

Long lifetime

Flow rate adjustable valve

Less and less flow when loosening

More and more flow when tightening



Performance Data

Model No. Painting Feed method Orifice Dia Spray distance Working pressure Air consumption Liquid capacity Spray width Air cap model No.
(mm) (mm) Mpa L/min ml/min (mm)
A-100-08P Pressure  / Siphon 0.8 200 0.35 270 150 190 08P
A-100-10P 1.0 270 200 200 10P
A-100-13P 1.3 290 280 22 13P
