XINHOU is a Chinese company that specializes in manufacturing and trading Automatic Spray Guns. They focus on researching, developing, and producing Mini Automatic Spray Guns. With a skilled and dedicated team, they have successfully exported their products to numerous countries and regions worldwide, earning a positive reputation among their customers.
● Food industry: spray edible oil, syrup etc.
● Wood industry: spray mould release agent
● Wet tissue industry: spray water or agent
● Pharmaceutical industry : Spray fine chemical liquid
● Mould industry: spray liquid or lubricating oil

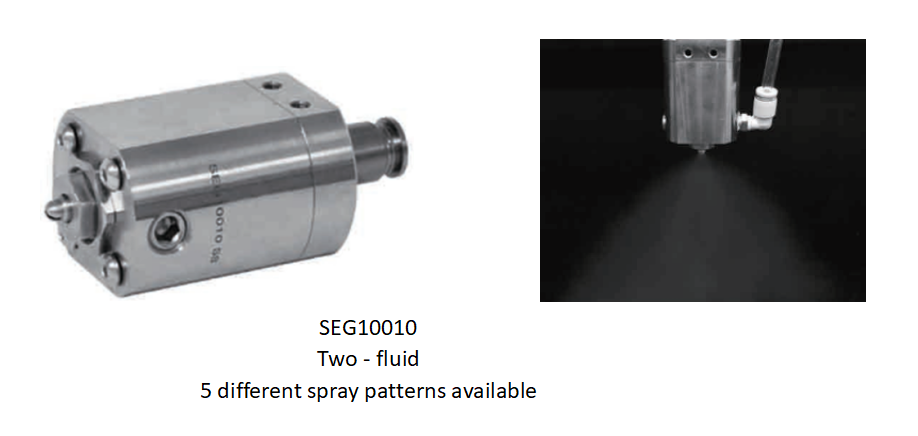

● Air and liquid mixing to produce atomizing spray with extremely fine atomizing particles around 30 microns
● Frequency of up to 10,000 cycles/minute. It allows greater flexibility and adjustment of the spray volume while maintaining a complete spray pattern.
● The electronic spray gun offers unrivaled advantages in terms of energy savings in water, electricity and gas

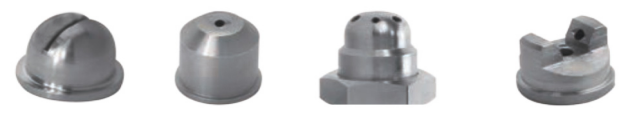

● A choice of 4 different types of spray nozzles can be selected to meet the demand for multiple applications in different fields (Note: the water source must be soft water).
● 24V Pulse Width Modulation (PWM) technology is used to control the spray time and flow rate, enabling precise on/off switching without dripping liquid.
● The spray volume of the spray gun can be changed with the conveyor speed, always keeping the same spray volume per unit of time.

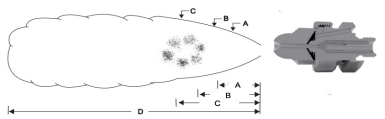

| Spray set-up No. | Liquid & Air cap No. | Liquid flow rate (L/h) & Air capacity (L/min) | Spray distance | |||||||||||||||||||
| Liquid Pressure | ||||||||||||||||||||||
| 0.7 bar | 1.5 bar | 2 bar | 3 bar | 4 bar | ||||||||||||||||||
| Air pressure | L/h | Air L/min | Air pressure | L/h | Air L/min | Air pressure | L/h | Air L/min | Air pressure | L/h | Air L/min | Air pressure | L/h | Air L/min | Air bar | Liquid bar | A ( cm) | B ( cm) | C ( cm) | D ( m) | ||
| KSJ13A | Liquid cap J2050 + Air cap J73328 | 0.69 | 5.4 | 23.9 | 1.2 | 9.0 | 30.9 | 1.9 | 8.5 | 41.9 | 2.6 | 11.1 | 51.9 | 3.8 | 11.9 | 68.9 | 1.1 | 0.7 | 25 | 36 | 46 | 2.6 |
| 0.84 | 4.6 | 26.9 | 1.4 | 7.6 | 35.9 | 2.1 | 7.4 | 46.9 | 2.9 | 10.0 | 55.9 | 4.5 | 9.6 | 80.9 | 2.1 | 1.5 | 36 | 48 | 66 | 3.0 | ||
| 0.9 | 4.0 | 30.9 | 1.7 | 6.4 | 41.9 | 2.4 | 6.1 | 51.9 | 3.1 | 9.0 | 61.9 | 5.4 | 7.4 | 92.9 | 2.8 | 2 | 38 | 53 | 76 | 3.2 | ||
| 1.2 | 2.9 | 36.9 | 2.3 | 4.2 | 51.9 | 3 | 4.1 | 62.9 | 4.1 | 5.3 | 78.9 | 6.2 | 4.2 | 109.9 | 3.5 | 3 | 47 | 61 | 86 | 3.4 | ||
| 1.4 | 1.9 | 43.9 | 2.7 | 2.7 | 59.9 | 3.3 | 3.1 | 67.9 | 4.8 | 3.0 | 90.9 | 6.9 | 2.3 | 121.9 | 6.0 | 4 | 56 | 74 | 94 | 4.0 | ||
| KSJ14 | Liquid cap J2850 + Air cap J73320 | 1.2 | 3.8 | 29.9 | 2.0 | 7.3 | 39.9 | 2.9 | 6.0 | 51.9 | 3.8 | 9.3 | 59.9 | 5.2 | 10.1 | 77.9 | 1.5 | 0.7 | 25 | 33 | 46 | 1.8 |
| 1.3 | 2.9 | 32.9 | 2.3 | 5.2 | 44.9 | 3.0 | 5.2 | 53.9 | 4.1 | 7.1 | 66.9 | 55 | 8.2 | 83.9 | 2.7 | 1.5 | 36 | 51 | 69 | 2.0 | ||
| 1.4 | 2.2 | 34.9 | 2.4 | 4.3 | 46.9 | 3.1 | 4.4 | 56.9 | 4.5 | 5.2 | 72.9 | 5.9 | 6.5 | 88.9 | 3.2 | 2.0 | 58 | 74 | 91 | 2.0 | ||
| 1.7 | 1.2 | 40.9 | 2.7 | 3.0 | 51.9 | 3.4 | 3.1 | 61.9 | 4.8 | 3.7 | 79.9 | 6.2 | 5.0 | 97.9 | 4.2 | 3.0 | 61 | 74 | 94 | 2.1 | ||
| 1.9 | 0.94 | 43.9 | 3.0 | 2.0 | 56.9 | 3.8 | 1.7 | 67.9 | 5.6 | 4.0 | 64 | 76 | 97 | 2.3 | ||||||||
| KSJ23B | Liquid cap J40100 + Air cap J125328 | 1.0 | 11.1 | 53.9 | 2.0 | 17.9 | 78.9 | 2.6 | 19.5 | 92.9 | 3.4 | 26.9 | 111 | 4.5 | 32.9 | 136 | 1.4 | 0.7 | 15 | 18 | 20 | 3.0 |
| 1.2 | 8.4 | 59.9 | 2.1 | 15.7 | 83.9 | 2.7 | 17.2 | 97.9 | 3.6 | 24.9 | 115 | 4.8 | 27.9 | 148 | 2.4 | 1.5 | 23 | 28 | 33 | 3.2 | ||
| 1.3 | 6.4 | 64.9 | 2.3 | 13.5 | 88.9 | 2.9 | 15.1 | 102 | 3.7 | 22.9 | 120 | 5.2 | 26.9 | 160 | 3.0 | 2.0 | 25 | 33 | 46 | 3.4 | ||
| 1.4 | 4.9 | 70.9 | 2.4 | 11.5 | 94.9 | 3.0 | 13.1 | 108 | 3.8 | 20.9 | 125 | 5.5 | 19.6 | 173.0 | 3.7 | 3.0 | 30 | 38 | 46 | 3.5 | ||
| 1.6 | 3.7 | 76.9 | 3.1 | 11.3 | 113 | 4.1 | 16.9 | 136 | 6.2 | 12.3 | 199 | 5.3 | 4.0 | 33 | 41 | 48 | 4.0 | |||||
| Spray set-up No. | Liquid & Air cap No. | Liquid flow rate (L/h) & Air capacity (L/min) | Spray distance | |||||||||||||||||||
| Liquid Pressure | ||||||||||||||||||||||
| 0.7 bar | 1.5 bar | 2 bar | 3 bar | 4 bar | ||||||||||||||||||
| Air pressure | L/h | Air L/min | Air pressure | L/h | Air L/min | Air pressure | L/h | Air L/min | Air pressure | L/h | Air L/min | Air pressure | L/h | Air L/min | Air bar | Liquid bar | Spray angle（°） | B ( cm) | D ( m) | |||
| KS11 | Liquid cap 2050 + Air cap 67147 | 0.69 | 2.4 | 15.5 | 1.0 | 6.3 | 11.8 | 1.3 | 6.3 | 13.8 | 2.6 | 6.1 | 22.9 | 3.4 | 7.7 | 27.9 | ||||||
| 0.84 | 1.7 | 18.9 | 1.3 | 4.9 | 14.9 | 1.6 | 5.4 | 16.6 | 2.7 | 5.6 | 24.9 | 3.6 | 7.2 | 28.9 | 0.85 | 0.7 | 13 | 30 | 2.7 | |||
| 0.9 | 1.3 | 21.9 | 1.6 | 4.0 | 18.6 | 1.9 | 4.4 | 19.7 | 2.9 | 5.1 | 26.9 | 3.8 | 6.3 | 32.9 | 1.7 | 1.5 | 13 | 33 | 3.0 | |||
| 1.7 | 3.3 | 19.9 | 2.1 | 3.3 | 23.9 | 3.0 | 4.6 | 28.9 | 4.1 | 5.4 | 37.9 | 2.5 | 2.0 | 13 | 36 | 3.4 | ||||||
| 1.9 | 2.9 | 22.9 | 2.3 | 2.9 | 25.9 | 3,1 | 4.2 | 30.9 | 4.4 | 4.4 | 42.9 | 3.1 | 3.0 | 14 | 39 | 3.8 | ||||||
| 2.0 | 2.5 | 24.9 | 2.4 | 2.4 | 27.9 | 3.3 | 3.8 | 32.9 | 4.5 | 4.0 | 44.9 | 4.5 | 4.0 | 15 | 44 | 4.4 | ||||||
| 2.1 | 1.9 | 26.9 | 2.6 | 2.2 | 30.9 | 3.6 | 2.9 | 37.9 | 4.7 | 3.6 | 46.9 | |||||||||||
| KS12 | Liquid cap 2850 + Air cap 73160 | 0.84 | 4.7 | 20.9 | 1.6 | 8.3 | 30.9 | 1.9 | 10.6 | 32.9 | 2.6 | 16.4 | 36.9 | 3.3 | 19.9 | 42.9 | ||||||
| 1.0 | 4.0 | 26.9 | 1.7 | 7.4 | 34.9 | 2.0 | 9.7 | 36.9 | 2.7 | 15.3 | 37.9 | 3.6 | 18.3 | 46.9 | 1.5 | 0.7 | 12 | 48 | 4.0 | |||
| 1.3 | 3.3 | 32.9 | 1.9 | 6.9 | 36.9 | 2.3 | 8.1 | 41.9 | 3.0 | 13.5 | 42.9 | 3.8 | 16.7 | 49.9 | 2.5 | 1.5 | 13 | 51 | 4.3 | |||
| 1.4 | 3.0 | 34.9 | 2.1 | 5.6 | 43.9 | 2.6 | 6.7 | 47.9 | 3.3 | 11.7 | 48.9 | 4.1 | 15.1 | 54.9 | 3.0 | 2.0 | 13 | 53 | 4.6 | |||
| 1.6 | 2.9 | 38.9 | 2.4 | 4.7 | 48.9 | 2.9 | 5.8 | 54.9 | 3.6 | 10.3 | 54.9 | 4.4 | 13.7 | 59.9 | 3.4 | 3.0 | 14 | 56 | 4.9 | |||
| 1.7 | 2.8 | 40.9 | 2.7 | 4.0 | 53.9 | 3.1 | 4.9 | 58.9 | 3.8 | 9.0 | 60.9 | 4.7 | 12.3 | 64.9 | 4.2 | 4.0 | 15 | 60 | 5.3 | |||
| 1.9 | 2.7 | 43.9 | 3.0 | 3.5 | 58.9 | 3.4 | 4.0 | 64.9 | 4.1 | 7.8 | 64.9 | 4.8 | 11.7 | 67.9 | ||||||||
| Spray set-up No. | Liquid & Air cap No. | Liquid flow rate (L/h) & Air capacity (L/min) | Spray distance | |||||||||||||||||||
| Liquid Pressure | ||||||||||||||||||||||
| 0.7 bar | 1.5 bar | 2 bar | 3 bar | 4 bar | ||||||||||||||||||
| Air pressure | L/h | Air L/min | Air pressure | L/h | Air L/min | Air pressure | L/h | Air L/min | Air pressure | L/h | Air L/min | Air pressure | L/h | Air L/min | Air bar | Liquid bar | A ( cm) | B ( cm) | C ( cm) | D ( m) | ||
| KS16 | Liquid cap 2050 + Air cap 67-6-20 70° | 0.59 | 5.2 | 10.1 | 1.0 | 8.0 | 13.2 | 1.4 | 8.0 | 16.3 | 2.3 | 8.8 | 21.9 | 3.0 | 10.4 | 23.9 | 0.7 | 0.7 | 14 | 18 | 23 | 1.5 |
| 0.69 | 4.2 | 12.1 | 1.2 | 6.9 | 14.9 | 1.7 | 6.5 | 20.9 | 2.6 | 8.0 | 25.9 | 3.3 | 9.6 | 27.9 | 1.4 | 1.5 | 15 | 19 | 24 | 1.8 | ||
| 0.84 | 2.9 | 14.1 | 1.3 | 6.3 | 16.9 | 2.0 | 4.8 | 24.9 | 2.9 | 6.3 | 29.9 | 3.8 | 7.7 | 35.9 | 1.8 | 2.0 | 16 | 20 | 25 | 2.1 | ||
| 0.9 | 1.6 | 16.9 | 1.4 | 5.4 | 18.9 | 2.3 | 3.1 | 28.9 | 3.1 | 4.8 | 33.9 | 4.1 | 6 | 41.9 | 3.0 | 3.0 | 16 | 20 | 26 | 2.7 | ||
| 1.6 | 4.4 | 21.9 | 3.3 | 4.1 | 36.9 | 4.5 | 4.3 | 46.9 | 3.9 | 4.0 | 19 | 23 | 30 | 4.0 | ||||||||
| 1.7 | 3.4 | 23.9 | 3.4 | 3.3 | 39.9 | 4.8 | 2.7 | 53.9 | ||||||||||||||
| KS26B | Liquid cap 40100 + Air cap 140-6-37 70° | 0.84 | 6.9 | 49.9 | 1.6 | 13.1 | 67.9 | 1.9 | 18.4 | 67.9 | 2.7 | 24.9 | 83.9 | 3.6 | 30.9 | 95.9 | ||||||
| 0.9 | 2 | 61.9 | 1.7 | 9.7 | 78.9 | 2.0 | 15 | 75.9 | 2.9 | 21.9 | 91.9 | 3.7 | 27.9 | 104 | 0.85 | 0.7 | 18 | 24 | 31 | 1.8 | ||
| 2.1 | 11.6 | 84 | 3.0 | 18.4 | 100 | 3.8 | 25.9 | 112 | 1.7 | 1.5 | 19 | 25 | 33 | 2.4 | ||||||||
| 3.1 | 15.0 | 108 | 4.0 | 22.9 | 121 | 2.1 | 2.0 | 19 | 25 | 33 | 3.2 | |||||||||||
| 3.3 | 12.0 | 118 | 4.1 | 19.9 | 129 | 3.2 | 3.0 | 20 | 26 | 34 | 4.1 | |||||||||||
| 3.4 | 9.0 | 129 | 4.5 | 13.5 | 152.0 | 4.1 | 4.0 | 21 | 28 | 37 | 5.9 | |||||||||||
| 3.6 | 6.0 | 141 | 4.8 | 6.7 | 182 | |||||||||||||||||
| KS26 | Liquid cap 60100 + Air cap 140-6-37 70° | 0.69 | 23.9 | 31.9 | 1.3 | 42.9 | 36.9 | 2.0 | 32.9 | 65.9 | 2.7 | 51.9 | 64.9 | 3.6 | 62.9 | 67.9 | ||||||
| 0.84 | 13.5 | 43 | 1.4 | 34.9 | 48.9 | 2.1 | 25.9 | 77.9 | 2.9 | 45.9 | 75.9 | 3.7 | 57.9 | 78.9 | 0.85 | 0.7 | 19 | 25 | 36 | 2.1 | ||
| 0.9 | 7.5 | 56.9 | 1.6 | 27.9 | 60.9 | 2.3 | 18.8 | 88.9 | 3.0 | 38.9 | 86.9 | 3.8 | 51.9 | 100 | 1.5 | 1.5 | 20 | 27 | 37 | 3.2 | ||
| 1.7 | 20.9 | 70.9 | 2.4 | 11.6 | 99.9 | 3.1 | 32.9 | 98.9 | 4.1 | 40.9 | 110 | 2.4 | 2.0 | 20 | 27 | 37 | 4.1 | |||||
| 3.3 | 25.9 | 109 | 4.5 | 26.9 | 137 | 3.2 | 3.0 | 20 | 28 | 38 | 5.0 | |||||||||||
| 3.4 | 19.4 | 121 | 4.8 | 15.8 | 165.0 | 3.9 | 4.0 | 20 | 28 | 39 | 6.8 | |||||||||||
| 3.6 | 13.1 | 132 | ||||||||||||||||||||
| Spray set-up No. | Liquid & Air cap No. | Atomizing air | Liquid flow rate (L/h) | Spray Distance ( at 20cm syphon height ) | |||||||||||||
| Air pressure (bar) | Air capacity (L/min) | Gravity drop (cm) | Syphon height （cm) | ||||||||||||||
| 45 (cm) | 30 (cm) | 15 (cm) | 10 （cm) | 20 (cm) | 30 (cm) | 60 (cm) | 90 (cm) | Air 空气 bar | A ( cm) | B ( cm) | C ( m) | D ( m) | |||||
| KSF1 | Liquid cap 2850 Air cap 73420 | 0.69 | 27.9 | 1.2 | 1.1 | 1.0 | 0.9 | 0.94 | 0.82 | 0.63 | 0.48 | 0.7 | 20 | 26 | 38 | 2.1 | |
| 1.4 | 42.9 | 1.1 | 1.0 | 0.9 | 0.89 | 0.85 | 0.77 | 0.65 | 0.53 | 1.5 | 21 | 29 | 38 | 2.1 | |||
| 1.9 | 49.9 | 0.81 | 0.75 | 0.67 | 0.56 | 0.49 | 2.0 | 23 | 30 | 38 | 1.8 | ||||||
| KSF2C | Liquid cap 35100 + Air cap 120432 | 1.4 | 55.9 | 3.6 | 3.4 | 3.2 | 2.8 | 2.7 | 2.4 | 2.2 | 2.0 | 1.5 | 23 | 32 | 38 | 2.7 | |
| 1.9 | 64.9 | 3.3 | 3.2 | 3.0 | 2.7 | 2.6 | 2.5 | 2.3 | 2.1 | 2.0 | 24 | 34 | 42 | 2.7 | |||
| 2.9 | 86.9 | 2.7 | 2.6 | 2.4 | 2.3 | 2.1 | 2.0 | 1.8 | 1.6 | 3.0 | 27 | 37 | 46 | 3.0 | |||
| 3.9 | 109 | 1.8 | 1.7 | 1.5 | 1.4 | 1.2 | 1.1 | 4.0 | 28 | 39 | 48 | 2.7 | |||||
| KSF3B | Liquid cap 40100 + Air cap 122435 | 1.4 | 67.9 | 5.0 | 4.7 | 4.4 | 3.7 | 3.6 | 3.4 | 2.9 | 2.3 | ||||||
| 1.9 | 77.9 | 4.8 | 4.6 | 4.3 | 3.5 | 3.3 | 3.1 | 2.8 | 2.2 | 1.5 | 19 | 23 | 27 | 3.4 | |||
| 2.9 | 102 | 3.3 | 3.1 | 2.9 | 2.1 | 1.9 | 1.6 | 2 | 20 | 25 | 28 | 3.4 | |||||
| 3.4 | 116 | 2.1 | 1.9 | 1.6 | 3.0 | 22 | 27 | 30 | 3.0 | ||||||||
