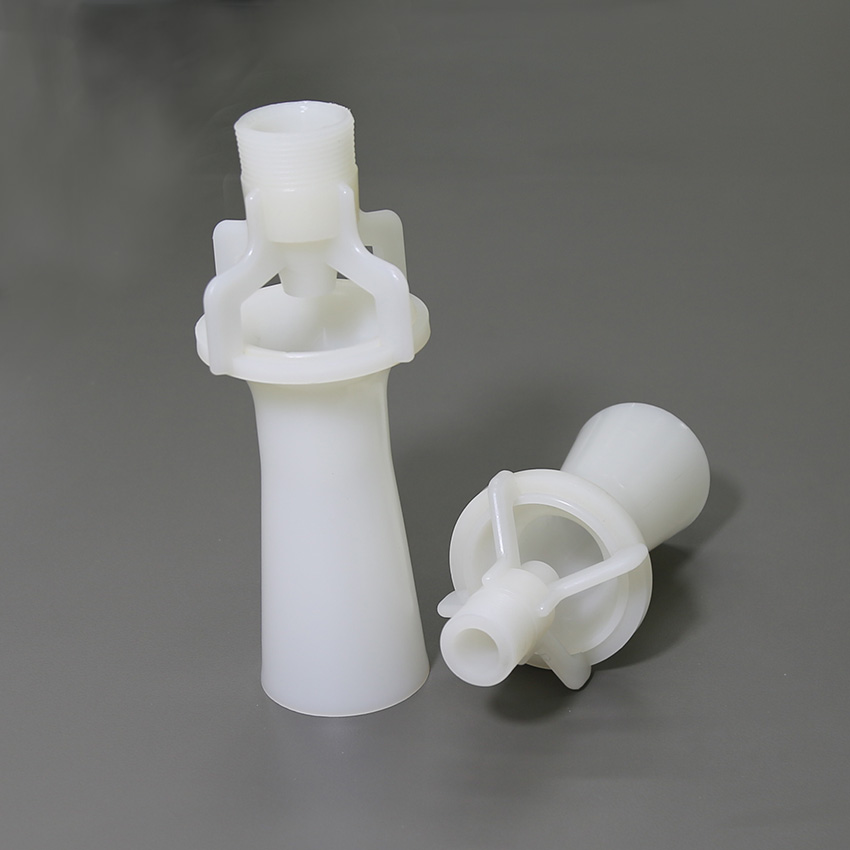

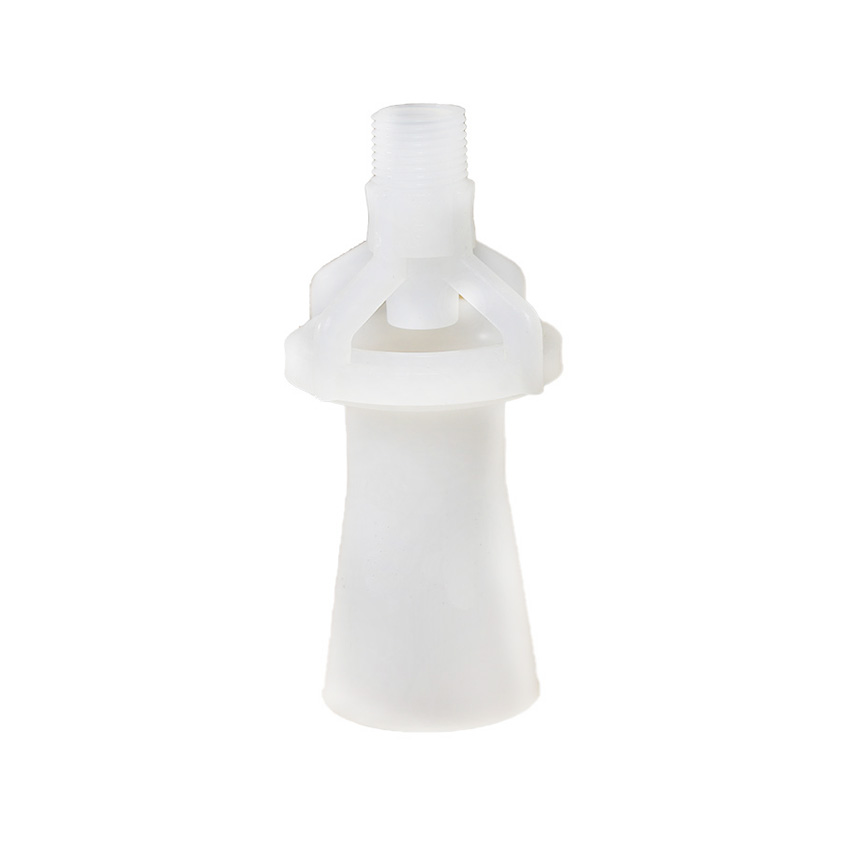

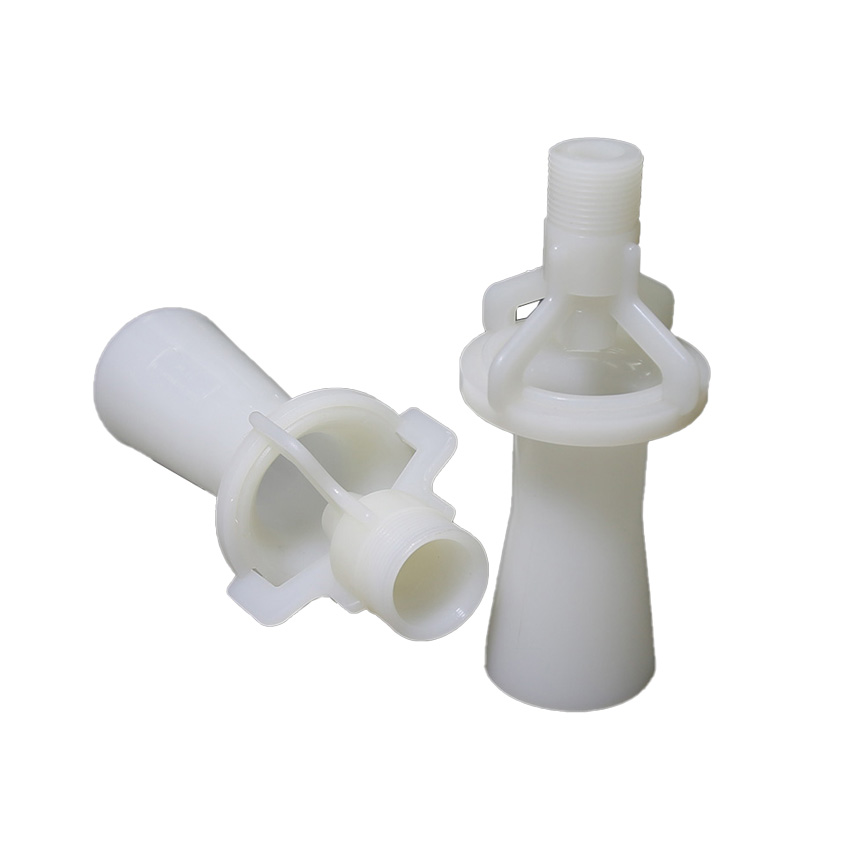

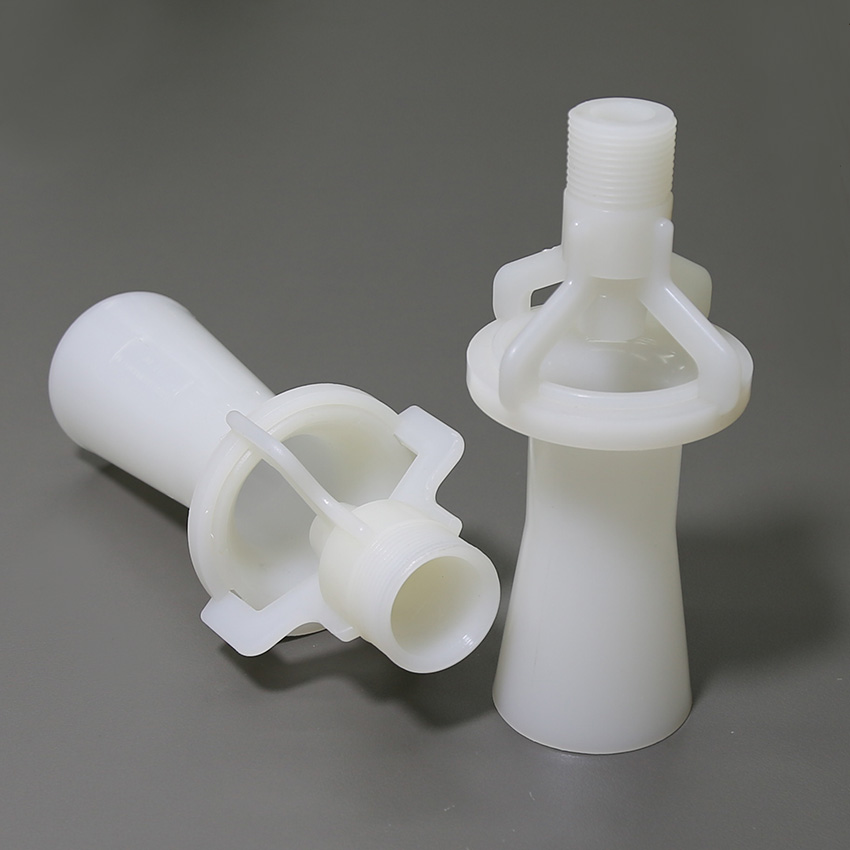

The Anti-Corrosion PVDF Venturi Mixing Eductor is a device specifically designed for mixing gases and liquids, particularly suitable for ozone mixing in water treatment processes.Ozone disinfection systems are widely used in water treatment to significantly enhance water disinfection effectiveness. In the chemical industry, they are suitable for liquid mixing and reaction processes, improving reaction efficiency. In environmental protection, they are used in wastewater and exhaust gas treatment to mix chemical agents or gases.
Description | ||
Model | Mixing Eductor Nozzles |
|
Spray pattern | PVDF Venturi Tank Mixing Eductor Nozzles | |
Thread size | 1/4’’; 3/8’’ ; 1/2’’ ; 3/4’’ ; 1’’ ; 1-1/2’’ | |
Working pressure | 0.5-4 bar | |
Flow Rate | 7.2-620L/min | |
Spray angle | From 0° to 82° | |
Application | Liquid mixing, solution agitation | |
Delivery time | 4 days after payment being confirmed | |
Payment | Western union, Paypal, T/T, Visa, Our bank account, online payment | |

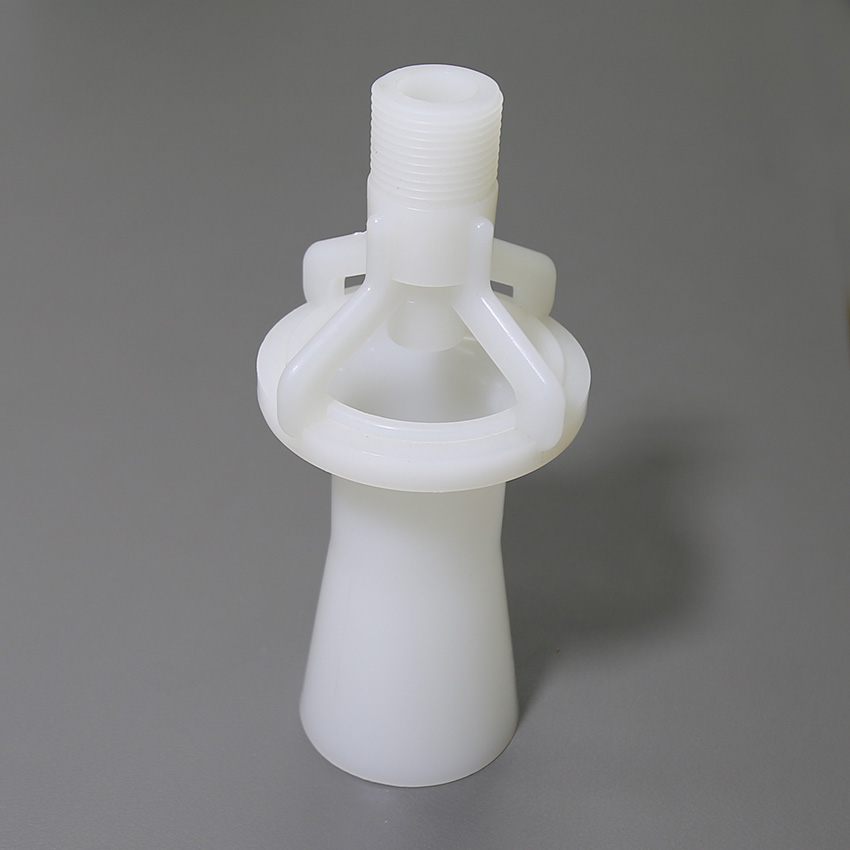

Plastic (PVDF)
Electrophoresis tank liquid stirring
Fire protection water storage tanks
General particle agitation
Material injection and mixing
Waste water treatment plants
Oil and gas storage tanks
Drinking water holding tanks and reservoirs
Cooling towers and decorative fountains
Tank blending of oils
Tank Mixing Eductor in batch mixing application
Maintain solids in suspension
Provides effective, economical way to circulate liquids in closed or open tanks
Generate cone-shaped plume
Allows smaller pumps to circulate large volume of liquid
Large flow openning and inherently clog resistant
Manufactured of Poly-propylene or investment cast, 304 or 316 stainless steel for chemcial resistance and durability

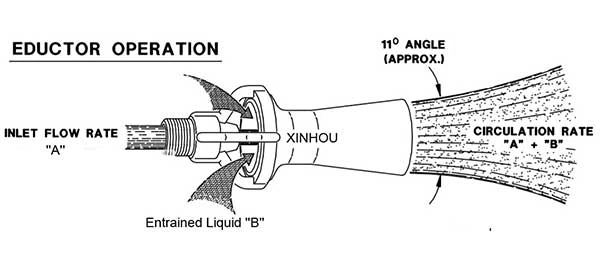

Nozzle operation creates multiplying effect on fluid flow
The volume of discharge liquid will be 3-5 times greater than the motive liquid pumped

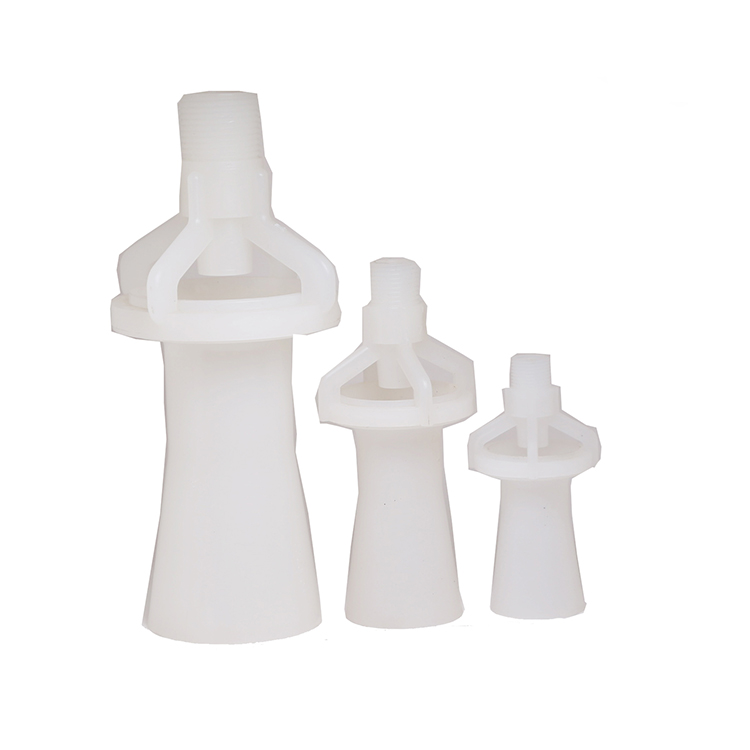

Available in 1/4'', 3/8'', 1/2'', 3/4'', 1'' and 1 1/2'', 2'' inlet connections.
Temperature range of PP : approx. from -10°C (14°F) to 85°C （185 °F)
Temperature range of PVDF: approx. -30°C (-22°F) to 150°C (302°F)
Temperature range of 304SS: approx. -50°C （-58°F ） to 400°C (752°F)
Temperature range of 316SS: approx. -50°C （-58°F ） to 500°C (932°F)

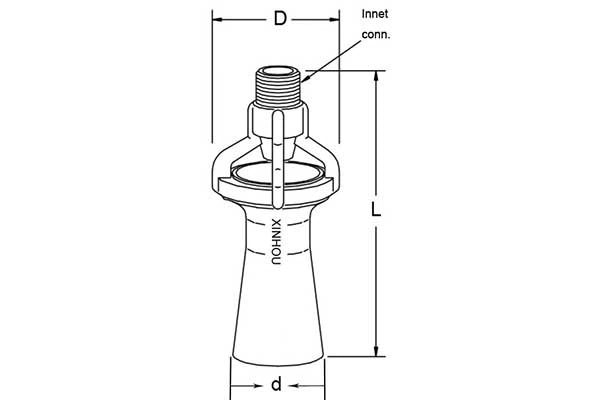

Model No. | Inlet Thread size (inch) | Flow Rate ( l/min) | Inlet Liquid Pressure | Orifice Dia. (mm) | Dimension (mm) | |||||||
1 bar | 1.5 bar | 2 bar | 2.5 bar | 3 bar | 3.5 bar | D | d | L | ||||
E 1/4-3（Orifice：3mm) | 1/4 | Inlet Flow Rate | 10.6 | 13 | 16 | 17 | 20 | 24 | 3 | 48 | 33 | 95 |
Circulation Rate | 46.6 | 58 | 68 | 75 | 83 | 92 | ||||||
Effevtive Flow Field （m ） | 1.2 | 1.8 | 2.6 | 3.2 | 4.0 | 4.9 | ||||||
E 1/4-5 （Orifice：5mm) | 1/4 | Inlet Flow Rate | 16 | 19.5 | 23 | 25 | 28 | 30 | 5 | 32 | 22.5 | 69 |
Circulation Rate | 75 | 91.5 | 107 | 118 | 130 | 140 | ||||||
Effevtive Flow Field （m ） | 1.5 | 2.1 | 3.0 | 3.7 | 4.3 | 5.2 | ||||||
E 3/8 | 3/8 | Inlet Flow Rate | 42 | 51 | 59 | 65 | 70 | 77 | 8 | 52 | 38 | 103 |
Circulation Rate | 210 | 255 | 295 | 325 | 350 | 385 | ||||||
Effevtive Flow Field （m ） | 1.8 | 2.4 | 3.7 | 4.3 | 4.9 | 6.7 | ||||||
E 1/2 | 1/2 | Inlet Flow Rate | 54 | 66.5 | 76.7 | 85.8 | 94 | 101 | 9 | 66.5 | 48 | 146 |
Circulation Rate | 265 | 332.5 | 383.5 | 429 | 470 | 529 | ||||||
Effevtive Flow Field （m ） | 2.1 | 2.7 | 4.5 | 5..0 | 5.6 | 8.3 | ||||||
E 3/4 | 3/4 | Inlet Flow Rate | 64 | 74 | 85 | 97 | 106 | 116 | 10 | 75 | 56.5 | 161 |
Circulation Rate | 320 | 370 | 425 | 485 | 530 | 580 | ||||||
Effevtive Flow Field （m ） | 2.4 | 3.4 | 5.3 | 6.1 | 7.3 | 10.1 | ||||||
E 1 | 1 | Inlet Flow Rate | 108 | 133 | 153 | 172 | 188 | 203 | 12 | 102 | 71 | 215 |
Circulation Rate | 540 | 668 | 765 | 860 | 940 | 1015 | ||||||
Effevtive Flow Field （m ） | 3.2 | 4.1 | 6.3 | 7.5 | 8.6 | 12.0 | ||||||
E 1-1/2 | 1-1/2 | Inlet Flow Rate | 151 | 184 | 215 | 243 | 259 | 288 | 14 | 114 | 75 | 255 |
Circulation Rate | 755 | 920 | 1075 | 1215 | 1295 | 1440 | ||||||
Effevtive Flow Field （m ） | 3.7 | 4.9 | 7.3 | 8.6 | 10.4 | 14.0 | ||||||
E 2 | 2 | Inlet Flow Rate | 282 | 345 | 399 | 450 | 489 | 528.5 | 23 | 120.5 | 118.5 | 287 |
Circulation Rate | 1410 | 1716 | 1995 | 2250 | 2445 | 2642 | ||||||
Effevtive Flow Field （m ） | 4.2 | 5.7 | 8.5 | 9.8 | 12.1 | 16.2 | ||||||
