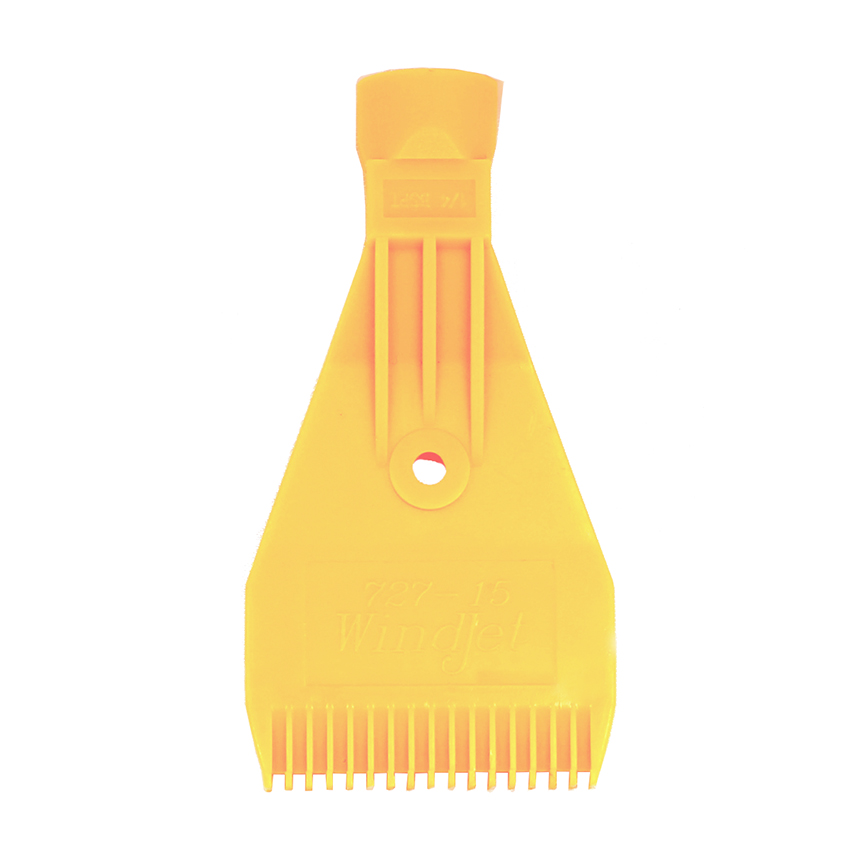

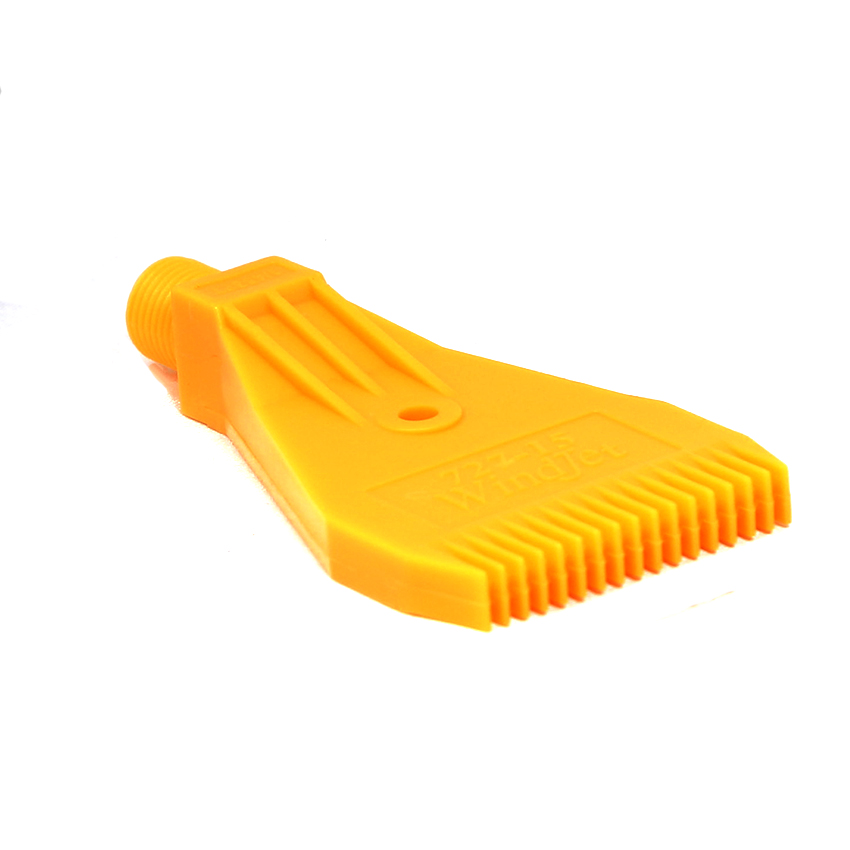

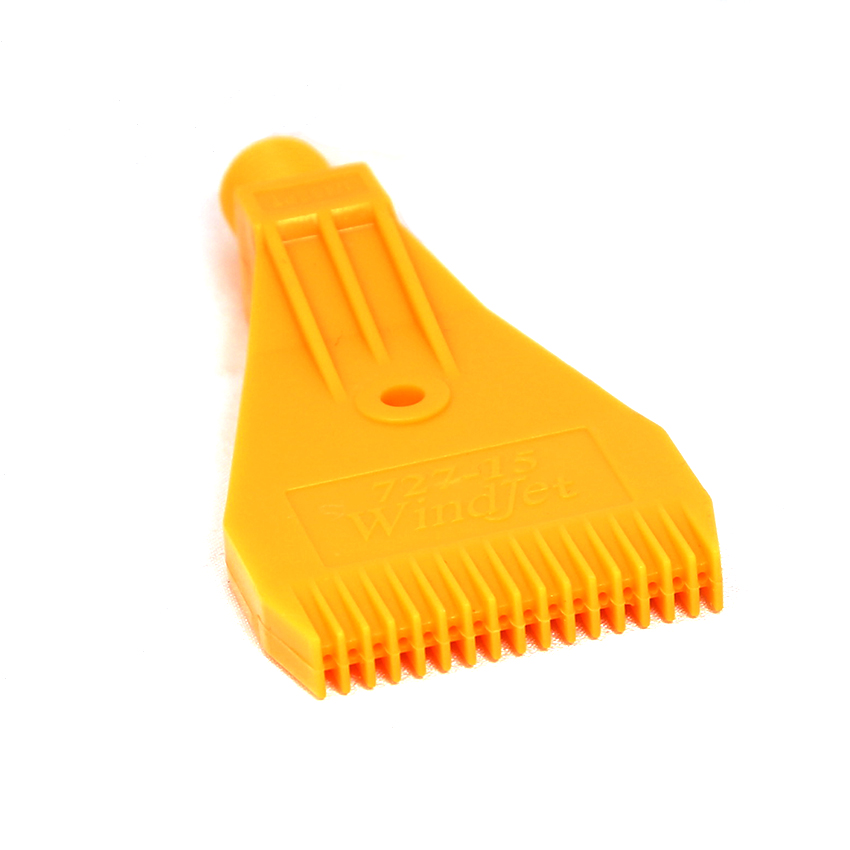

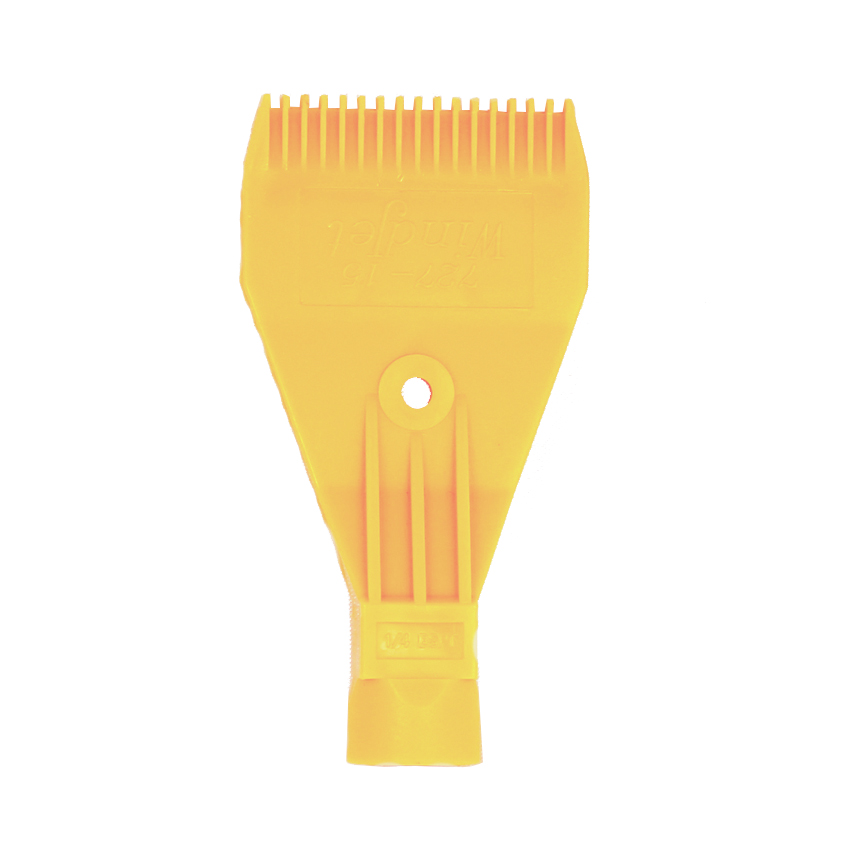

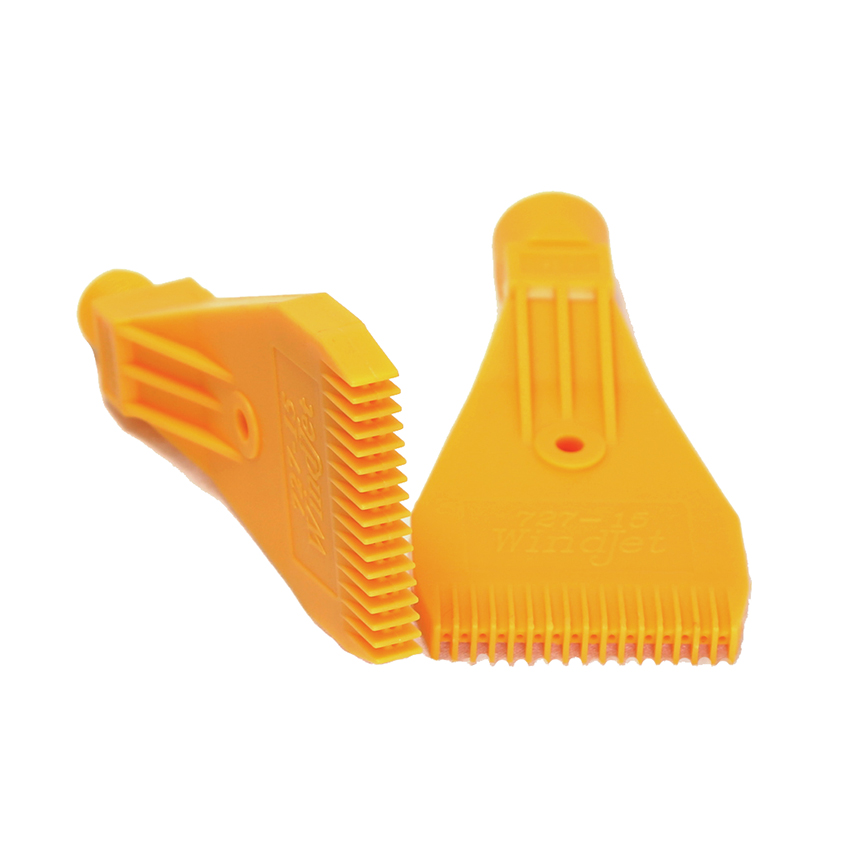

727-15 ABS Air knife Windjet Air Nozzles
The Windjet Air Nozzles is also called comb nozzle or compressed air nozzle. It can spray high-impact, fan-shaped compressed air flow. The working principle is to inhale the surrounding air to greatly increase the amount of air ejected, which is very suitable for removing water. Uniform and effective air ejection greatly reduces air consumption.
| Description | |
| Model | FB1/4-ABS |
| Spray pattern | Flat Fan |
| Thread size | 1/4" |
| Working pressure | 7bar |
| Thread Type | NPT / BSPT |
| Temperature Endurance | 77 ºC |
| Application | cooling, quenching, washing, and fire protection. |
| Delivery time | 4 Working Days after payment being confirmed |
| Payment | Western union, Paypal, T/T, Visa, Our bank account, online payment |
General Applications
● Cooling
● Drying
● Cleaning
● Moving material
● Direct paper
Design Features
DIMENSIONS
| Model No. | Thread size | Dimensions(mm) | |||||
| h | d | ||||||
| 707-ABS | 1/4 | 47 | 20 | ||||
| 707-AL | 47 | 20 | |||||
| FN 1/4 -ABS | 38 | 39.5 | |||||

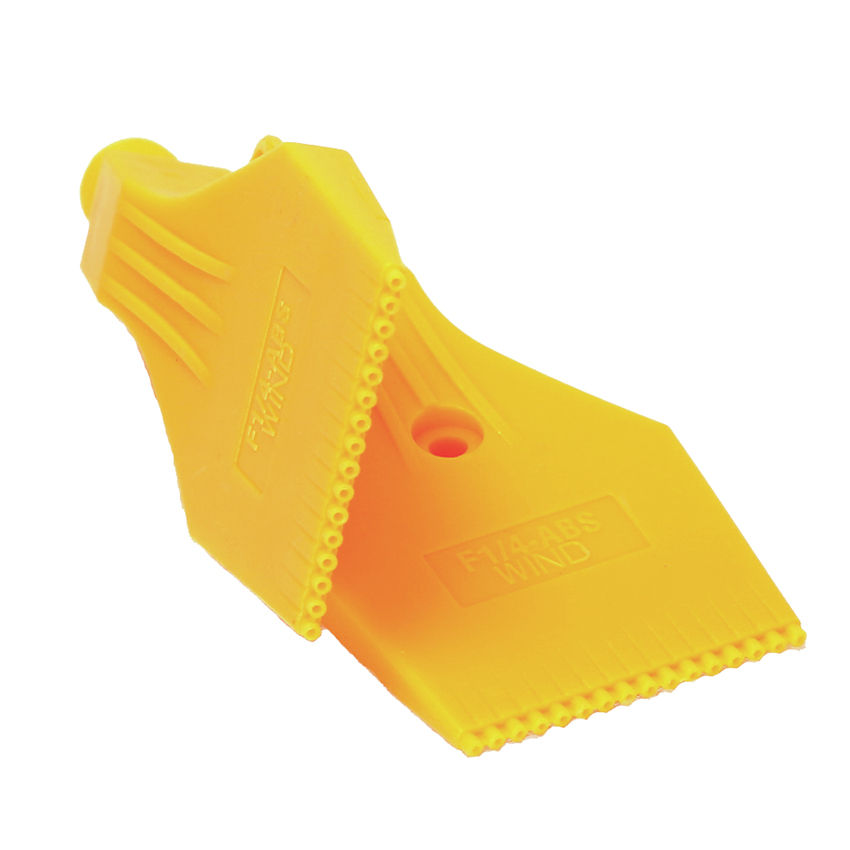

| FW 1/4-ABS | 60 | 110 | |||||

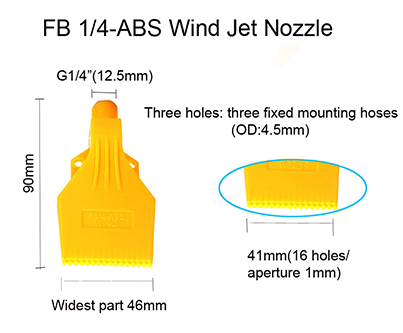

| FB 1/4-ABS | 89 | 46 | |||||
| FJ1/4 | 92 | 46 | |||||
| 973-SS | 76 | 58.5 | |||||
| DGF24-SS | 55 | 24 | |||||
Performance Data
| Series | Orifice section summation | Number of holes | Air consumption at different wind speed | |||||||||||
| V=2m/s | V=3m/s | V=4m/s | V=5m/s | V=10m/s | V=15m/s | V=20m/s | V=25m/s | V=30m/s | ||||||
| 707-ABS | 1.256 * 10-5 ㎡ | 16 | 0.9 | 1.36 | 1.8 | 2.26 | 4.52 | 6.78 | 9.0 | 11.3 | 13.6 | |||
| 707-AL | ||||||||||||||
| FB 1/4-ABS | ||||||||||||||
| FN 1/4 -ABS | 1.256 * 10-5 ㎡ | 16 | ||||||||||||
| FW 1/4-ABS | 3.768 * 10-5 ㎡ | 48 | 2.7 | 4.1 | 5.4 | 6.78 | 13.56 | 20.34 | 27.0 | 33.9 | 40.8 | |||
| 973-SS | 1.727 * 10-5 ㎡ | 22 | 1.24 | 1.87 | 2.48 | 3.1 | 6.21 | 9.32 | 12.37 | 15.54 | 18.7 | |||
Ordering Information:
| Model No. | thread size | Material | |||
Example
| FW | 1/4 | ABS | |||
| Style No. | Thread size | Material |
