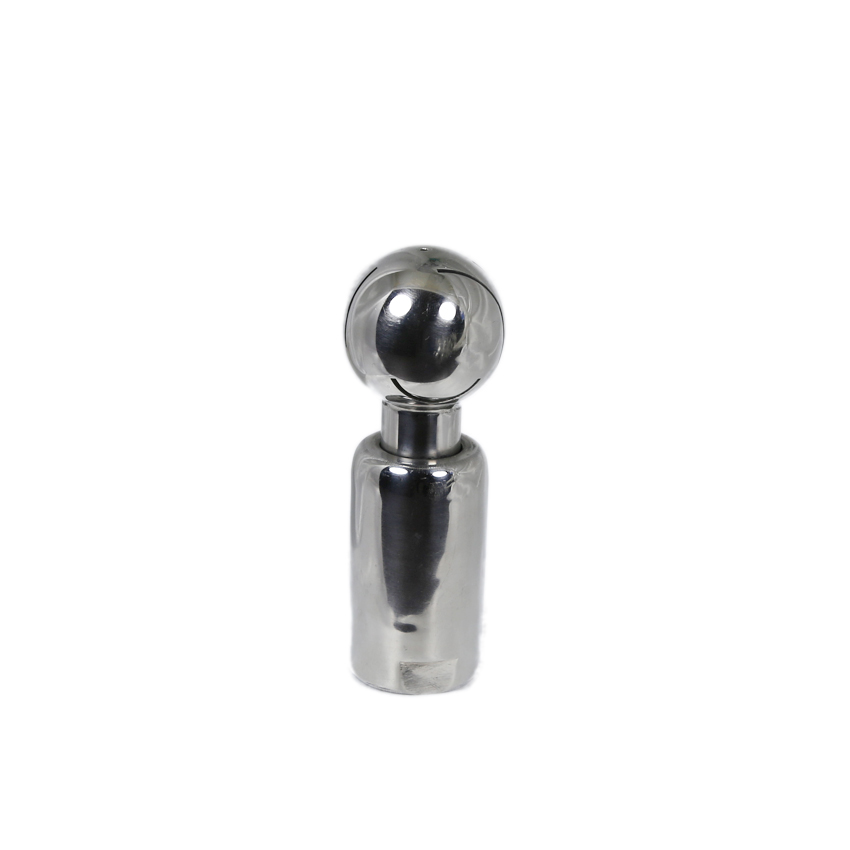

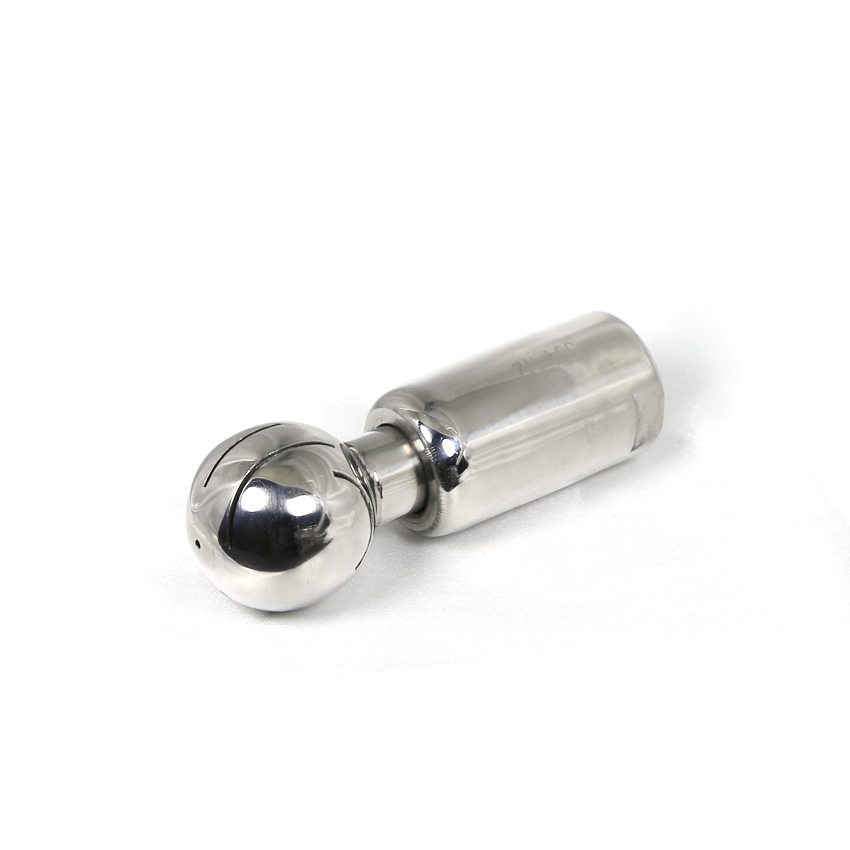

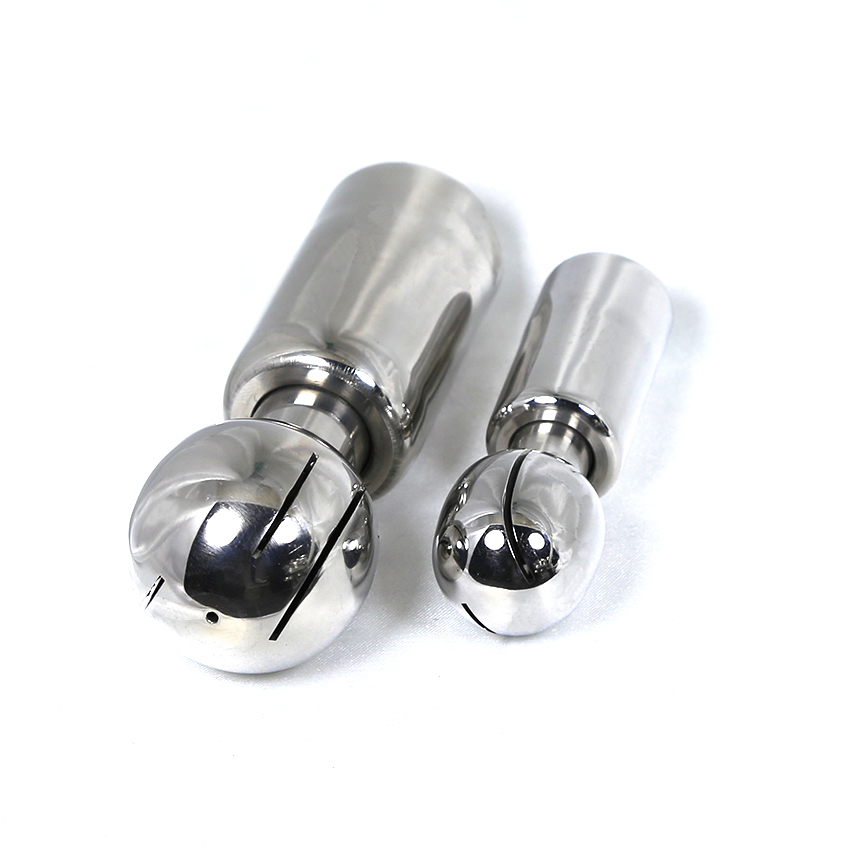

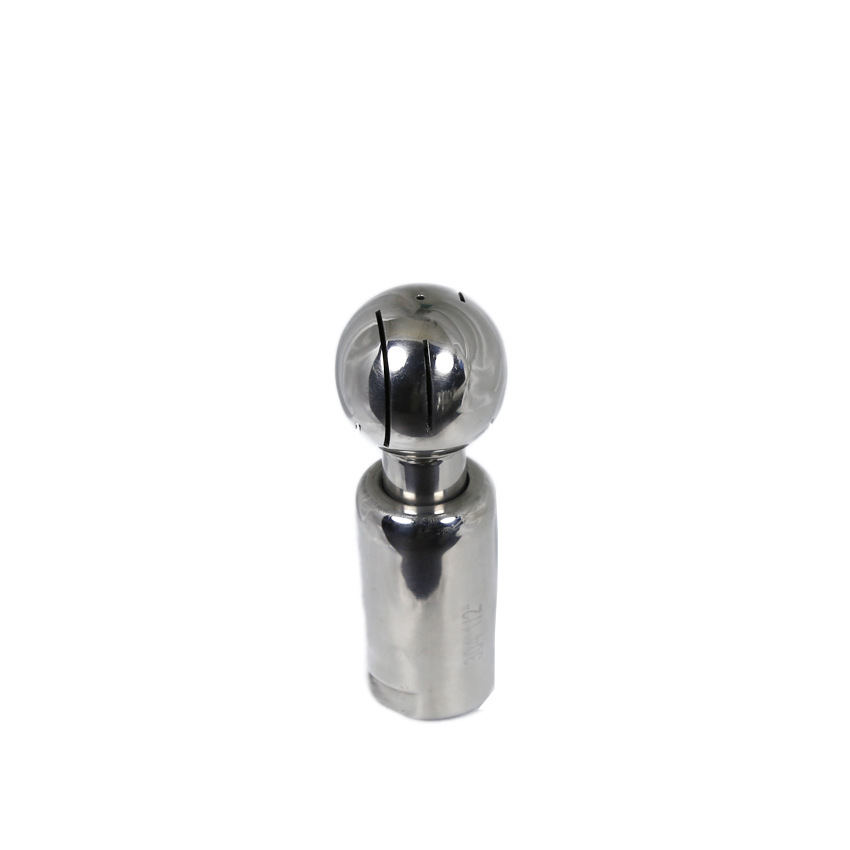

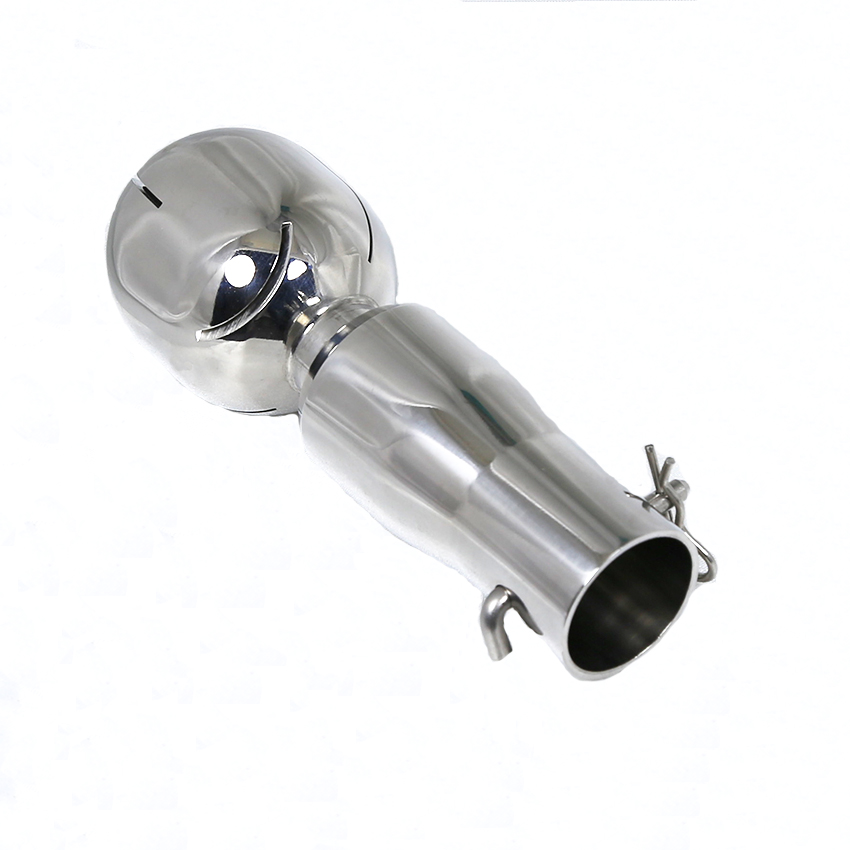

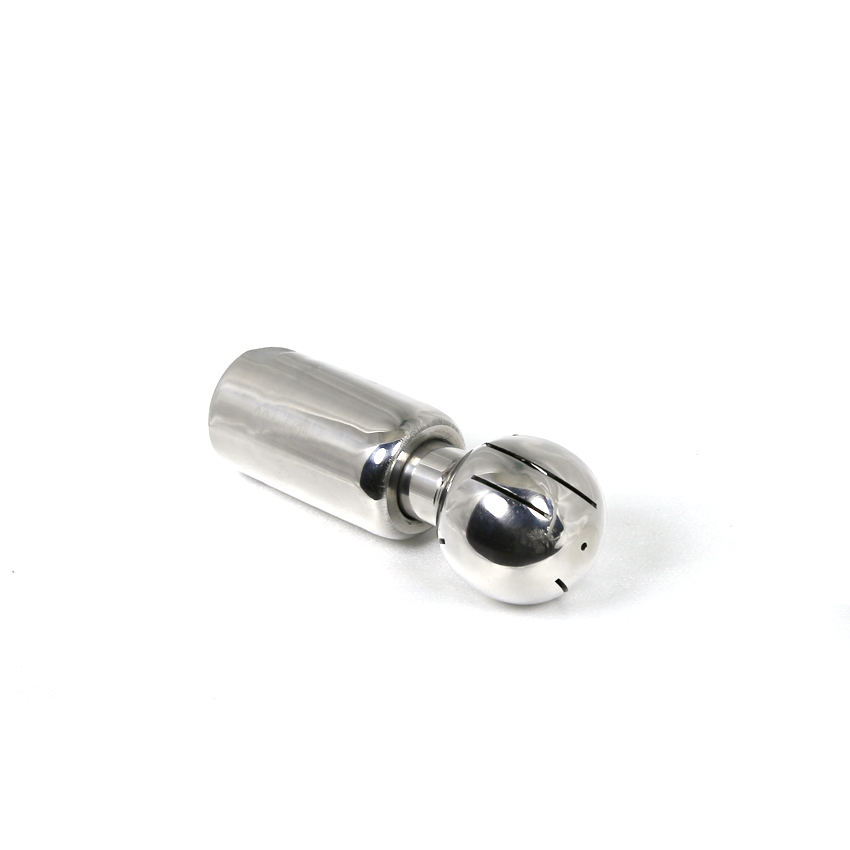

360° Rotating Ball Tank Washing Nozzles
The 19150 tank cleaning nozzle is a compact, easy-to-install small rotating cleaning nozzle that reaches into bottlenecks up to 25 mm in diameter for effective cleaning.Unique design, four flat fan-shaped nozzles generate 360-degree driving force for the special position of the tank.
Therefore, 19150 is very suitable for cleaning small tanks and barrels.
| Description | |
| Model | 19150 |
| Spray pattern | Flat Fan |
| Thread size | 3/8"~2" |
| Working pressure | 7bar |
| Thread Type | BSPT |
| Application | Tank washing and cleaning, defoaming, painting box washing |
| Delivery time | 7 Working Days after payment being confirmed |
| Payment | Western union, Paypal, T/T, Visa, Our bank account, online payment |
General Applications
● Tank washing
● Cleaning
● Defoaming
● Painting box
● Washing
Design Features

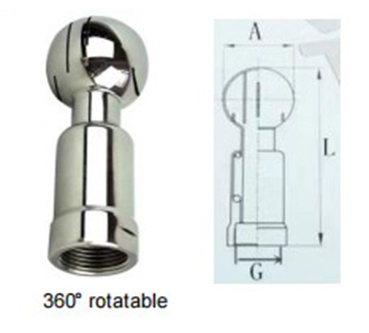

Dimension ( mm )
| Thread size | A | G (Inner dia.) | L | Weight (KGS) |
| 3/8'' | 24.5 | 15 | 77 | 0.1 |
| 1/2'' | 38 | 19 | 110 | 0.2 |
| 3/4'' | 53 | 24 | 140 | 0.35 |
| 1'' | 53 | 30 | 140 | 0.35 |
| 1-1/4" | 63 | 39 | 150 | 0.4 |
| 1-1/2" | 63 | 44 | 150 | 0.44 |
| 2'' | 93 | 57 | 195 | 1.2 |
Ordering Information:
| Model No. | thread size | Material | |||
Example
| 19150 | 1/2 | SS304 | |||
| Style No. | Thread size | Material |
