26988 Adjustable ball Clip Eyelet Nozzles

The clamp nozzle consists of a clamp base, detachable screw caps, and an adjustable ball head. It offers hollow cone, full cone, and flat fan spray patterns, meeting different requirements by connecting the spray tip directly or indirectly with a threaded ball or quick dismantling ball. The clamp eyelet nozzle enables easy and quick replacement of spray tips, allowing for removal and installation by hand without the need for tools.

Material
Components: Materials & Features
Cap: 30% Carbon fiber reinforced polypropylene; Excellent performance in heat resistance (Max 82°C), chemical resistance and wear resistance
Spray Tip
Base: 30% Carbon fiber reinforced polypropylene; Excellent performance in heat resistance (Max 82°C), chemical resistance and wear resistance
Clamp: 304SS, 316SS
Seal Ring: NBR(nitrile rubber buna) , Viton / Fluorous rubber
Availability:
Product Description

26988 ADJUSTABLE BALL CLIP EYELET SPRAY NOZZLES

The clamp spray nozzle(26988 adjustable ball clip eyelet spray nozzle) consists of a clamp base, detachable screw caps, and an adjustable ball head. It offers hollow cone, full cone, and flat fan spray patterns, meeting different requirements by connecting the spray tip directly or indirectly with a threaded ball or quick dismantling ball. The clamp eyelet nozzle enables easy and quick replacement of spray tips, allowing for removal and installation by hand without the need for tools.




Description
Model 26988
Spray pattern 26988 Adjustable Ball Clamp Nozzles
Working pressure 0.3-4 bar
Inlet thread size 3/4"-2"
Flow Rate 0.62-39L/min
Spray angle 40-80°
Application Cleaning.degreasing.phosphating.pretreatment surface
Delivery time 4 days after payment being confirmed
Payment Western union, Paypal, T/T, Visa, Our bank account, online payment



General Applications

• Metal surface treatment.

• Pretreatment and rainning test in auto coating industry.

• Degreasing and phosphating in the process of surface treatment.

•Other low pressure washing or cleaning application: Vegetable & fruit pre-treatment cleaning

• Chemical treatment and coating pre-Treatment cleaning nozzle before electrophoresis processing

• Cleaning: conveyor belt, film, copper thin, paper, all kinds of plates, filters, dust and gravel, and machine tool cleaning.

• Cooling: conveyor belt, gas, tank, machinery, metal, roof etc.

• Dispersion: humidifying, chemicals, firefighting, dedust, deodorization, defoaming, etc

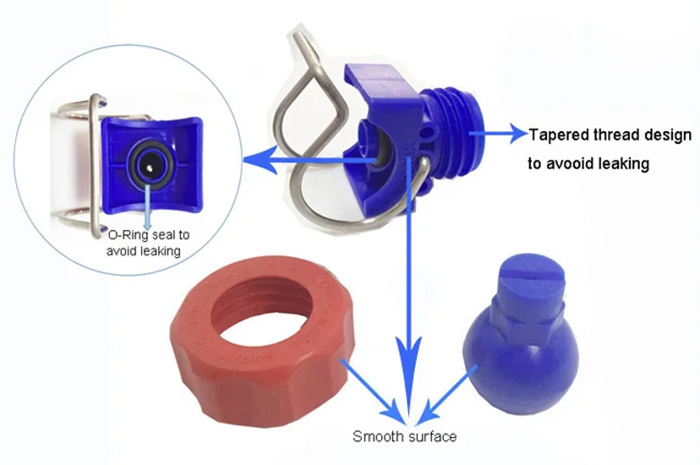

Design Features


Features:

• Snap-on pipe connection with Clip Eyelet ball type spray tips.

• Adjustable Ball type tips allow quick and accurate adjustment of spray direction without disturbing pipe connection.

• Use with 3/4”, 1”, 1-1/4”, 1-1/2” or 2” pipe.

• Inlet sizes for 8mm,14 mm, 16mm, 18mm, 20mm dia. drill holes.

• Chemical- and corrosion-resistant material PP or FRPP ( Fiber reinforced Polypropylene) withstands high temperatures at about 85°C.

• Use with Nitrile or Fluorine rubber as O-ring seal material which is Chemical- and corrosion-resistant.

• Spring-grade stainless steel single- and double-clamp.

• More suitable for low-pressure working environment.

• Multi-piece structure, easy maintenance, cleaning and replacement, and can save the cost of replacement nozzle head.




Single- clamp water spray nozzle

It is suitable tp clamp on pipes with outer diametner from 3/4'' to 1 1/2'' ( 27mm to 51mm)

Double-clamp water spray nozzle

It is suitable tp clamp on pipes with outer diametner of 2'' ( 54mm to 60mm)

Clamp nozzle with plastic flat fan spray tip

The spray angle of adjustable ball spray tip can be adjusted with 45 degrees

Clamp nozzle with stainless steel full cone nozzle

Different spray nozzles can in plastic or stainless steel with thread size of 1/4'' or 3/8'' can be connected to the black threaded ball with adjustable angle 45 degrees



Spray Effect


Performance Data

Dimensions of clamp

Style No. Pipe outer Dia. Pipe outer Dia.in mm Drilling hole dia.         on pipe (mm)
(inch)
26988 3/4'' 25 --- 29 14
16
18
20
1'' 32 --- 35
1 1/4'' 38 --- 43
1 1/2'' 44 ---51
2'' 54 --- 60


Full Cone Tip

Style No. Flow Rate  ( l/min) Spray angle
0.3 bar 0.7 bar 1bar 1.5 bar 2 bar 3 bar 4 bar 0.5 bar 1.5 bar 4 bar
BT6 1.6 2.3 2.6 3.2 3.7 4.5 5.1 69° 74° 68°
BT12.5 3.4 4.8 5.4 6.8 7.7 9.3 10.6 69° 74° 68°
BT25 6.7 9.5 10.9 13.5 15.4 18.6 21 64° 67° 63°


Flat Fan Tip

Spray Tip Style No. ( Spray angle at 3 bar ) Flow Rate  ( l/min)
40° 50° 65° 80° 0.3 bar 0.7 bar 1bar 1.5 bar 2 bar 3 bar 4 bar 4 bar


CT6505
0.62 0.9 1.1 1.3 1.6 2 2.3


CT6510 CT8010 1.2 1.9 2.3 2.8 3.2 3.9 4.6
CT4020 CT5020 CT6520 CT8020 2.5 3.8 4.6 5.6 6.5 7.9 9.1
CT4030
CT6530 CT8030 3.7 5.7 6.8 8.4 9.7 11.8 13.7
CT4040
CT6540 CT8040 5.0 7.6 9.1 11.2 12.9 15.8 18.2
CT4050
CT6550
6.2 9.5 11.4 14.0 16.1 19.7 23.0
CT4060
CT6560
7.5 11.4 13.7 16.7 19.3 24.0 27.0
CT4070
CT6570
8.7 13.3 16.0 19.5 23.0 28.0 32.0
CT4026
CT65100
12.5 19.1 23.0 28.0 32.0 39.0 46.0


Hollow Cone Tip

Style No. Flow Rate  ( l/min) Spray angle
0.3 bar 0.7 bar 1bar 1.5 bar 2 bar 3 bar 4 bar 0.5 bar 1.5 bar 4 bar
AT15-30.1 6.2 8.8 10.4 12.6 14.5 17.6 20.2 46° 49° 51°
